Rapid Hook Cat 2



Hydraulic Top Link Rapid Hook Cat 2

Hydraulic top links with integrated Rapid Hook for Category 2 tractors. Achieve fast, secure implement coupling and precise hydraulic adjustment directly from the cab, reducing changeover time and improving field efficiency.

Technical Highlights

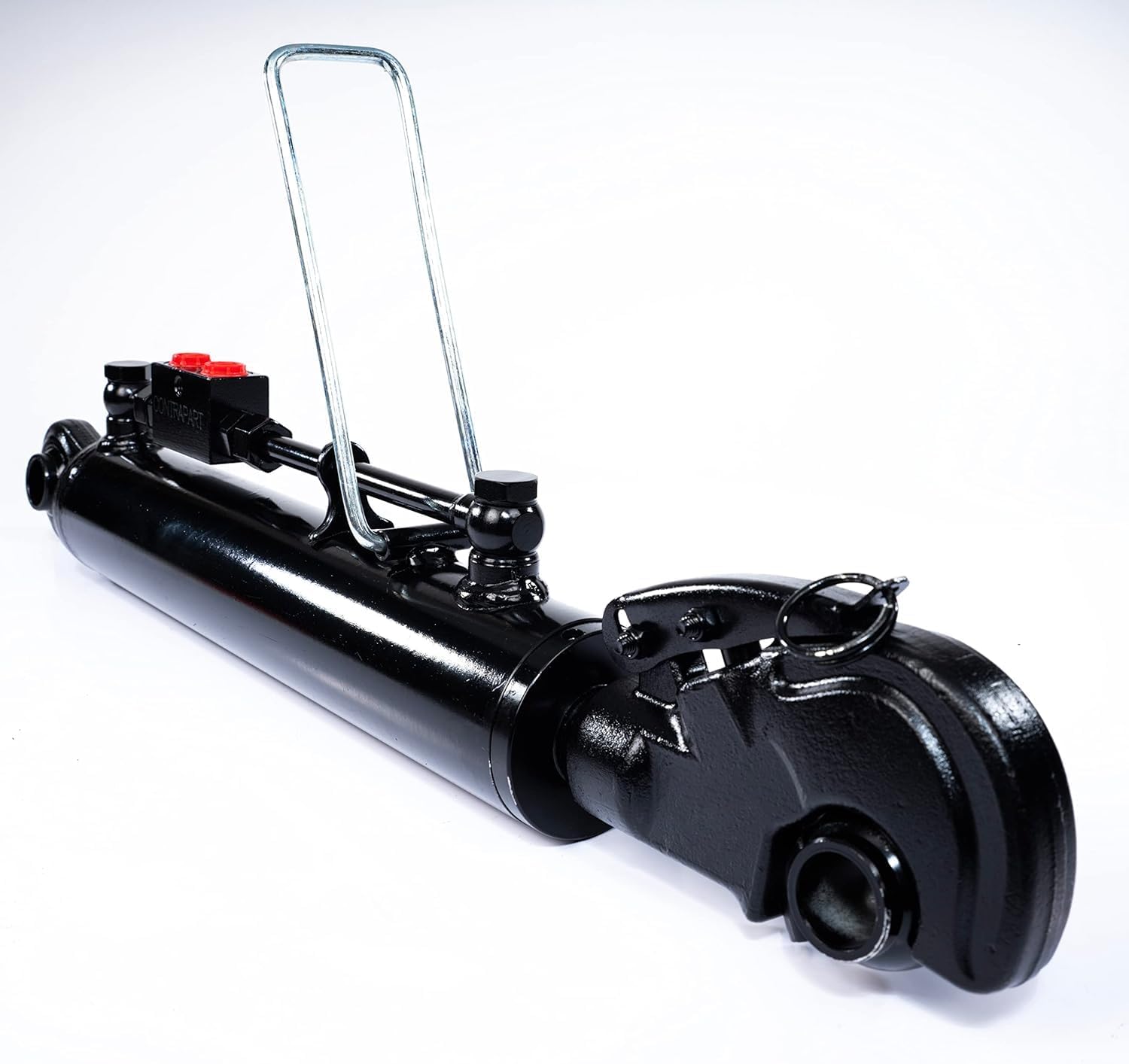

  • Rapid hook mechanism with automatic latching for quick, tool-free implement coupling.
  • Cat 2 eye and pin dimensions (typically 25.4 mm / 1") for secure coupling and high load capacity.
  • Hydraulic actuation for on-demand top link length and accurate implement angle control.

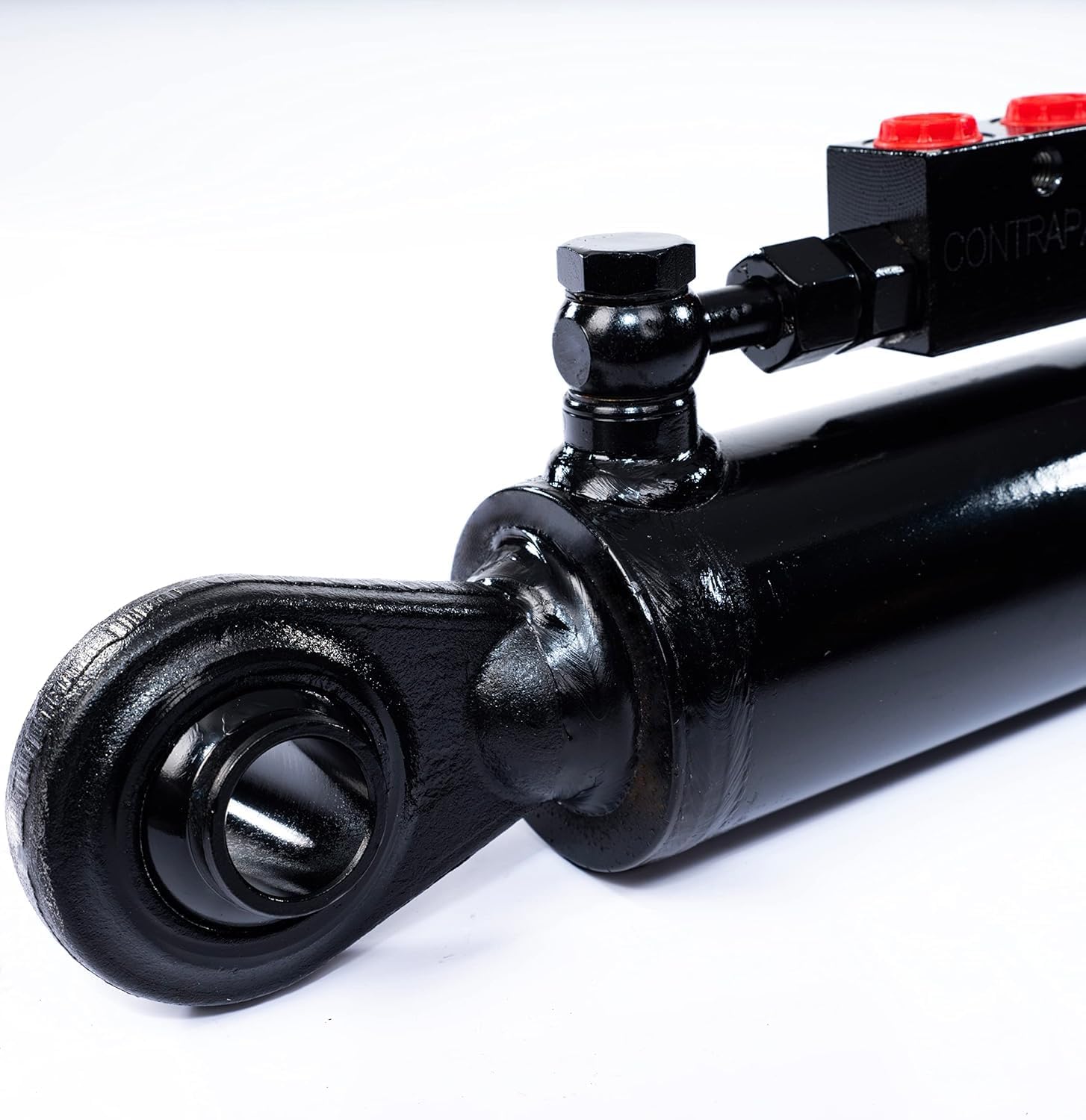

  • Heavy-duty cylinder with induction-hardened rod and serviceable seals.

Selection & Specification Guide

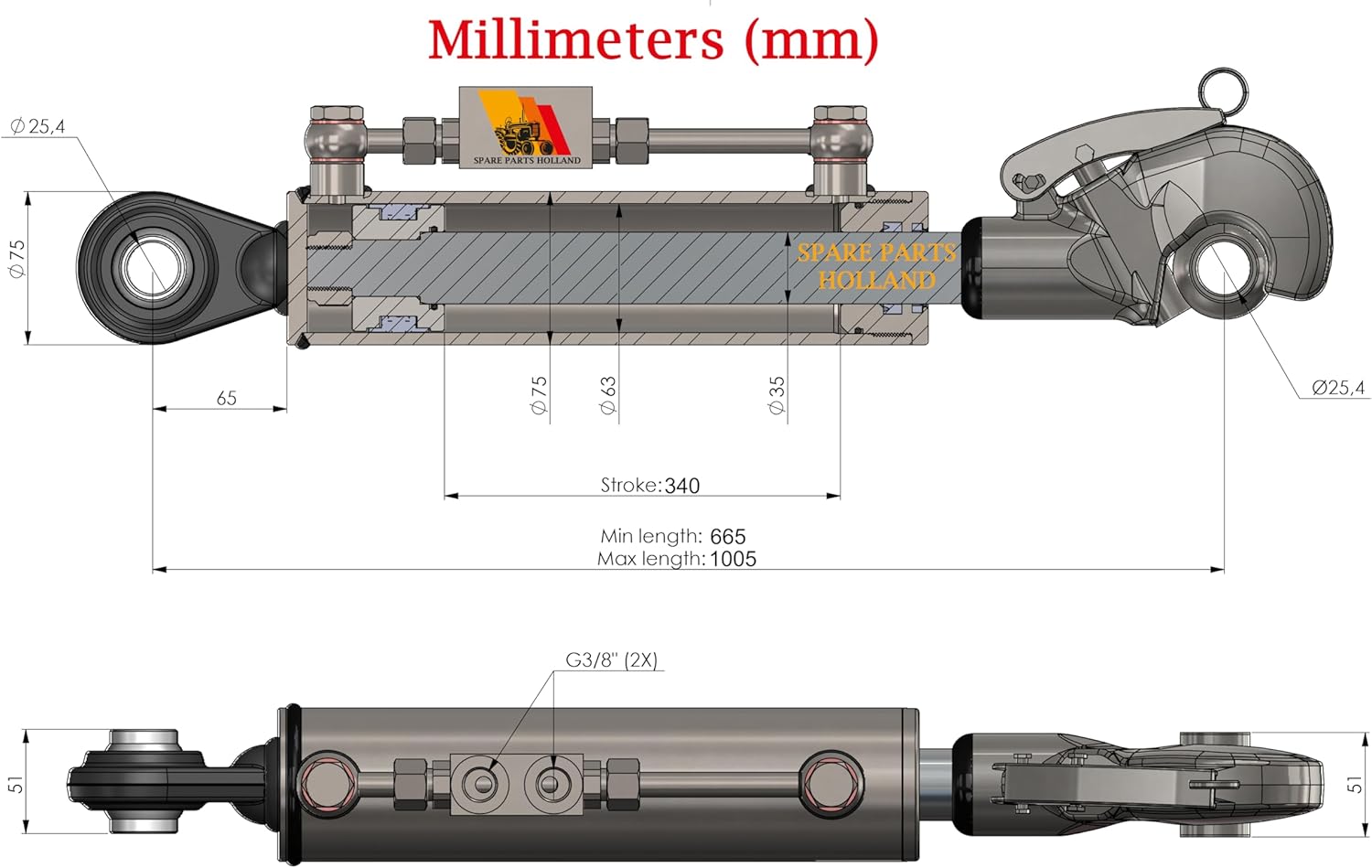

  1. Closed/Open Length & Stroke: choose a range covering transport and working positions with safety margin.
  2. End Fittings: verify Cat 2 eye width, 1" pin compatibility and hook opening size.

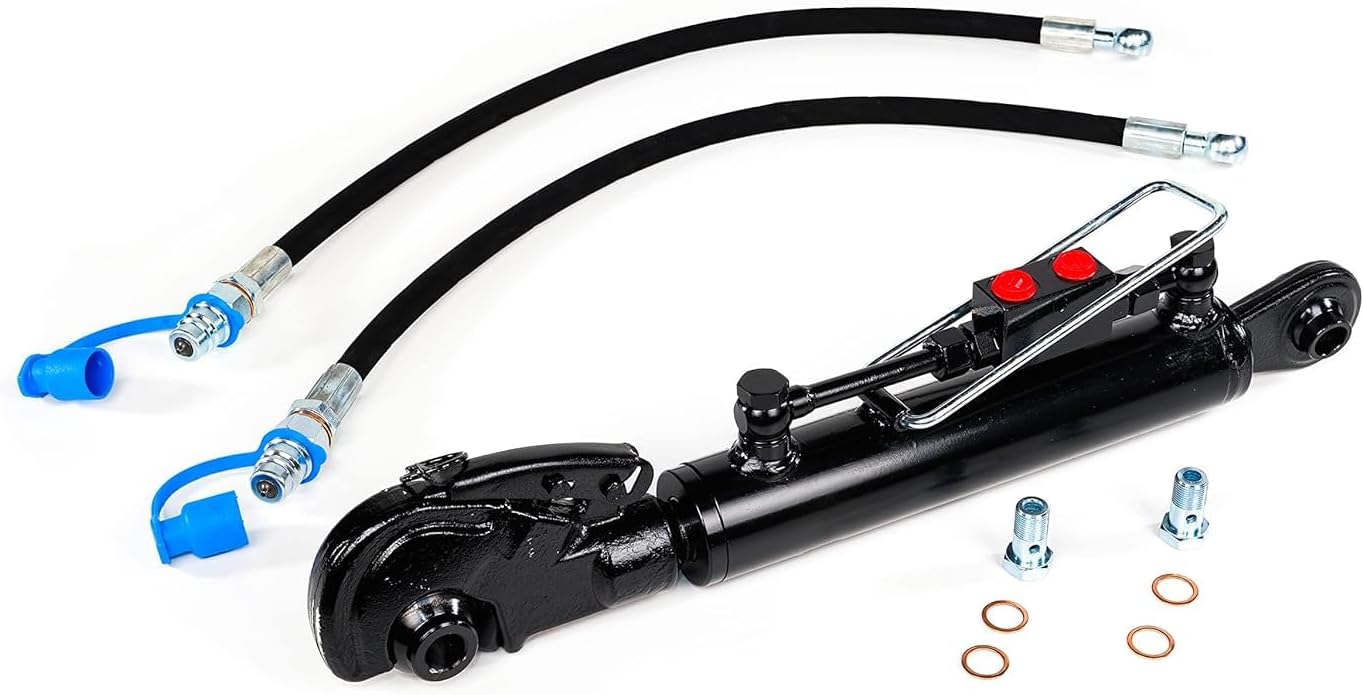

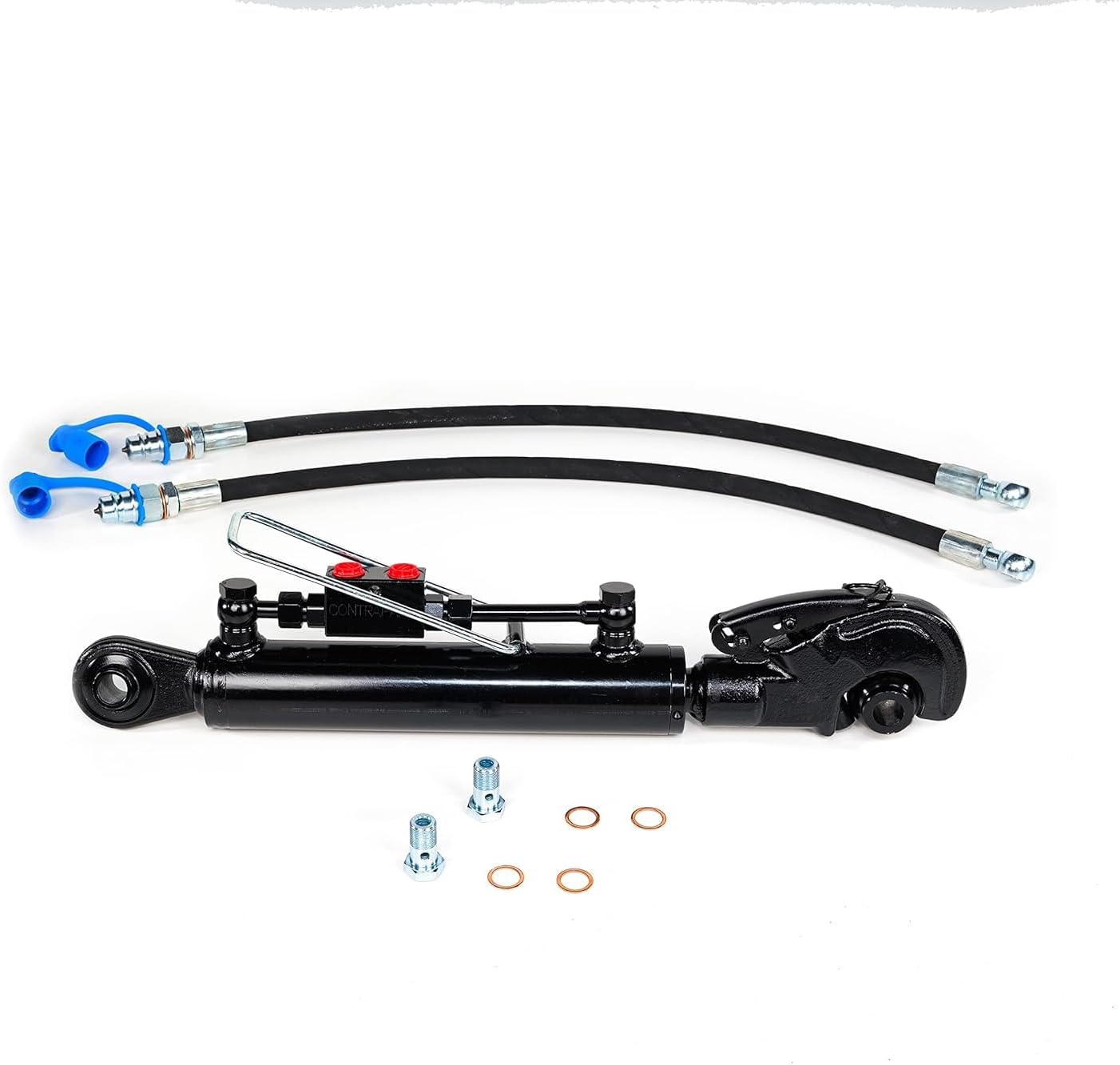

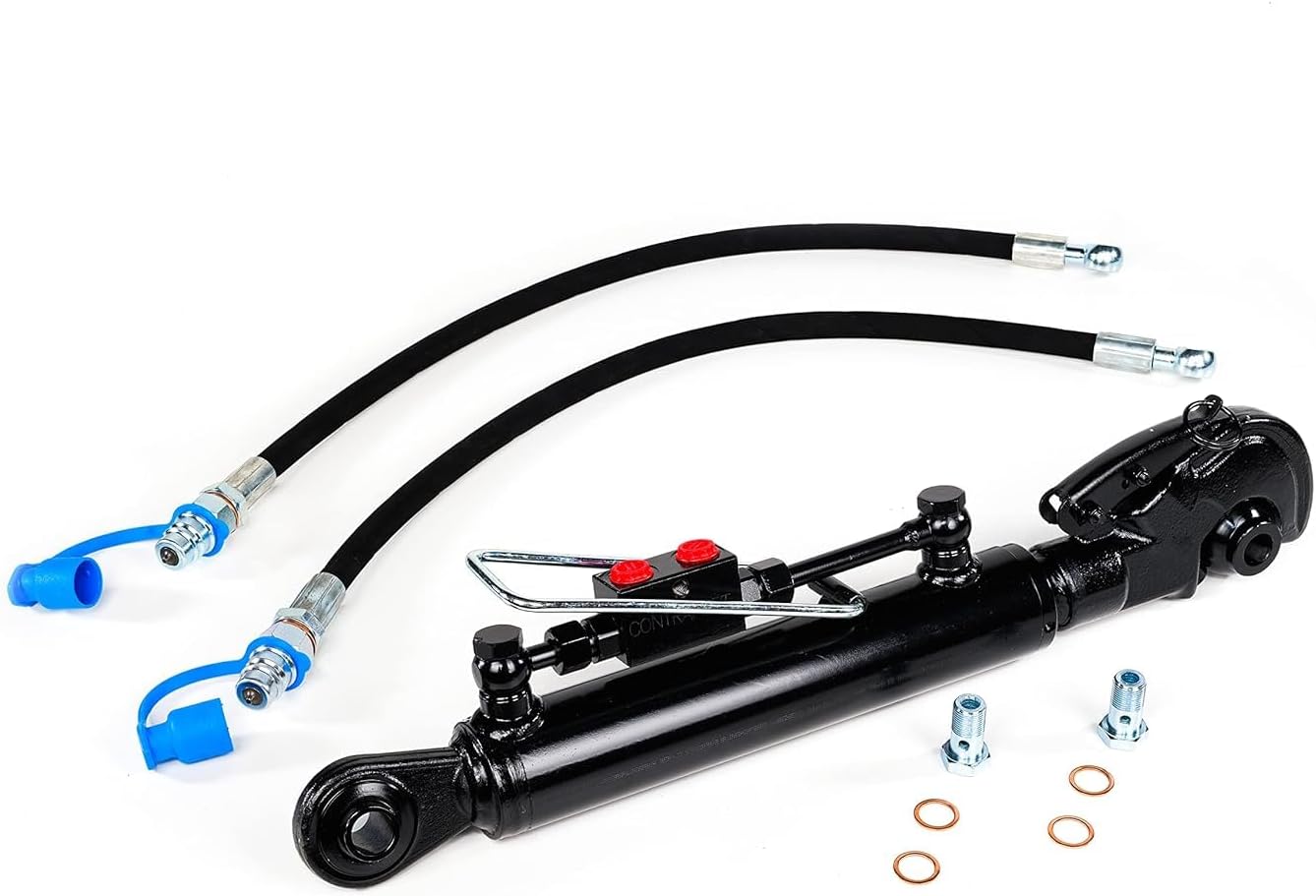

  3. Hydraulic Ports & Hoses: confirm thread type (e.g., BSPP, NPT) and select proper hose length/routing.
  4. Pressure & Flow: match system pressure and valve flow for controlled cylinder speed.
  5. Valving: consider pilot-operated check valves for load holding and flow control for smooth operation.

Compatibility

Designed for tractors with a Category 2 three-point hitch. Ideal for frequent implement changes (box blades, graders, mowers, cultivators, subsoilers). For mixed fleets, use adapters or see our Cat 1 and Cat 3 ranges.

Operational Benefits

  • Reduced downtime due to rapid, secure coupling.
  • Improved finish quality via precise, repeatable angle control.
  • Lower operator effort; no manual adjustment under load.
  • Less wear on linkages and implements through correct alignment.

FAQs

How do I size the cylinder?

Measure your current top link’s closed and open lengths and select a Rapid Hook Cat 2 model whose stroke covers both with margin.

Do I need extra valves?

Most tractors use an existing rear SCV/spool. For load holding, add a pilot-operated check valve; for speed control, use a flow restrictor or adjustable flow control.

Is the hook safe under load?

The Rapid Hook includes a positive locking mechanism. Always verify full engagement on the implement pin before operation and follow the product manual.
