Rapid Hook Cat 1

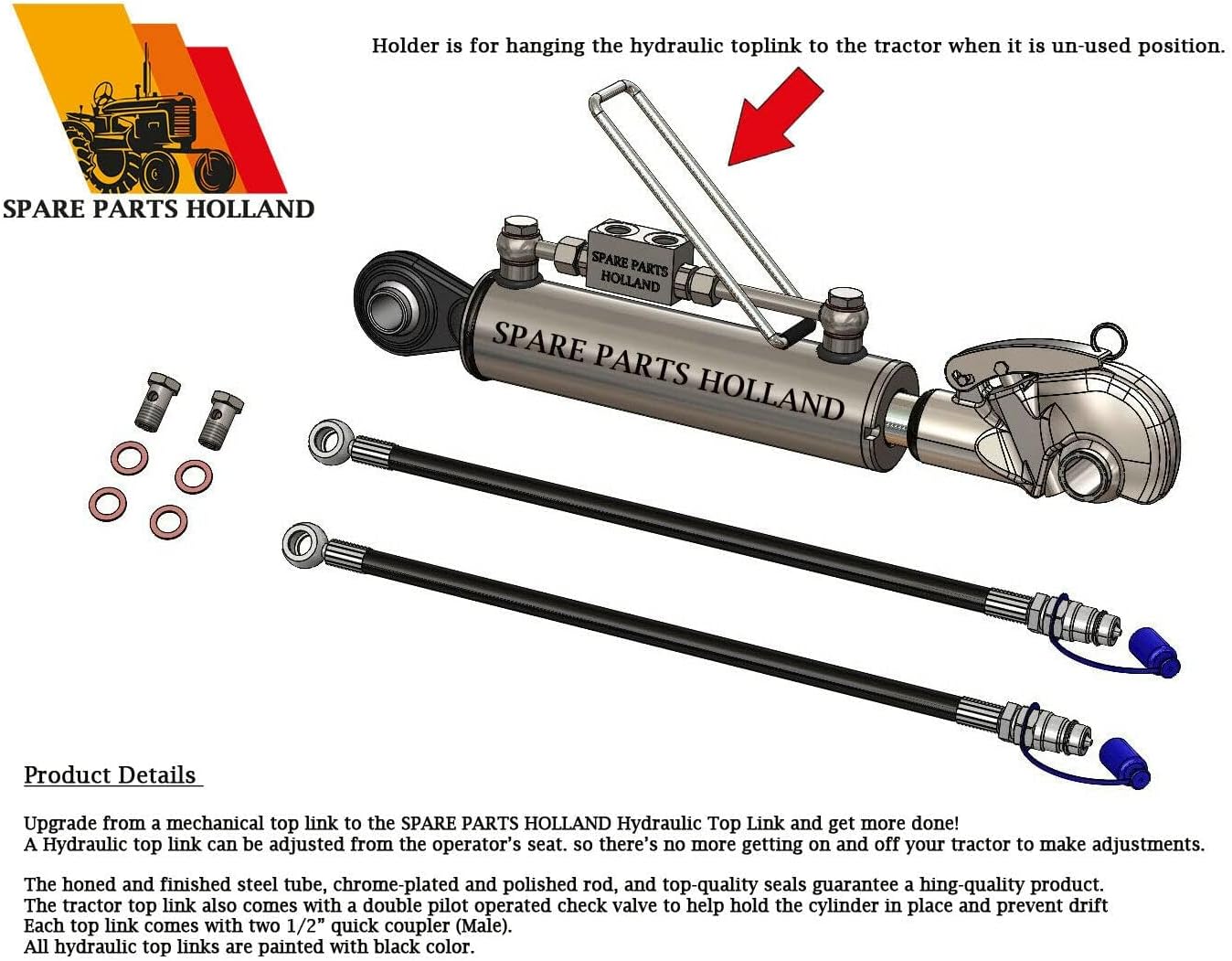

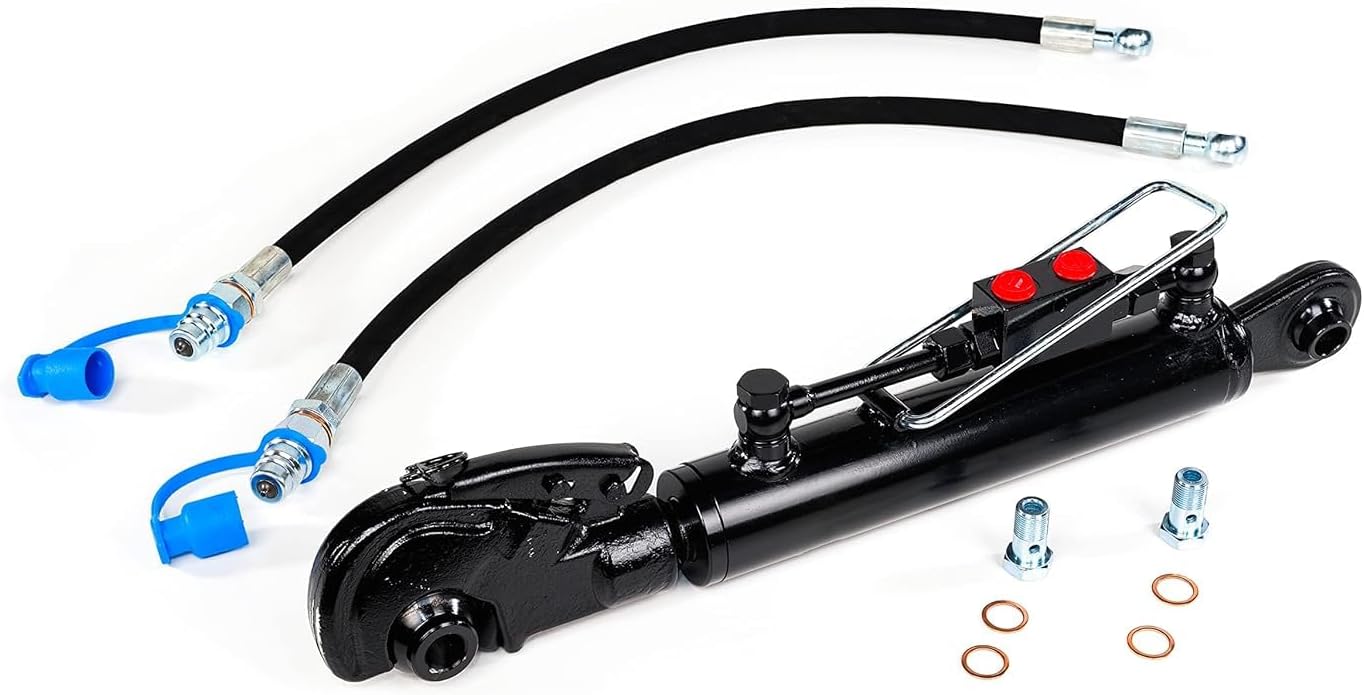

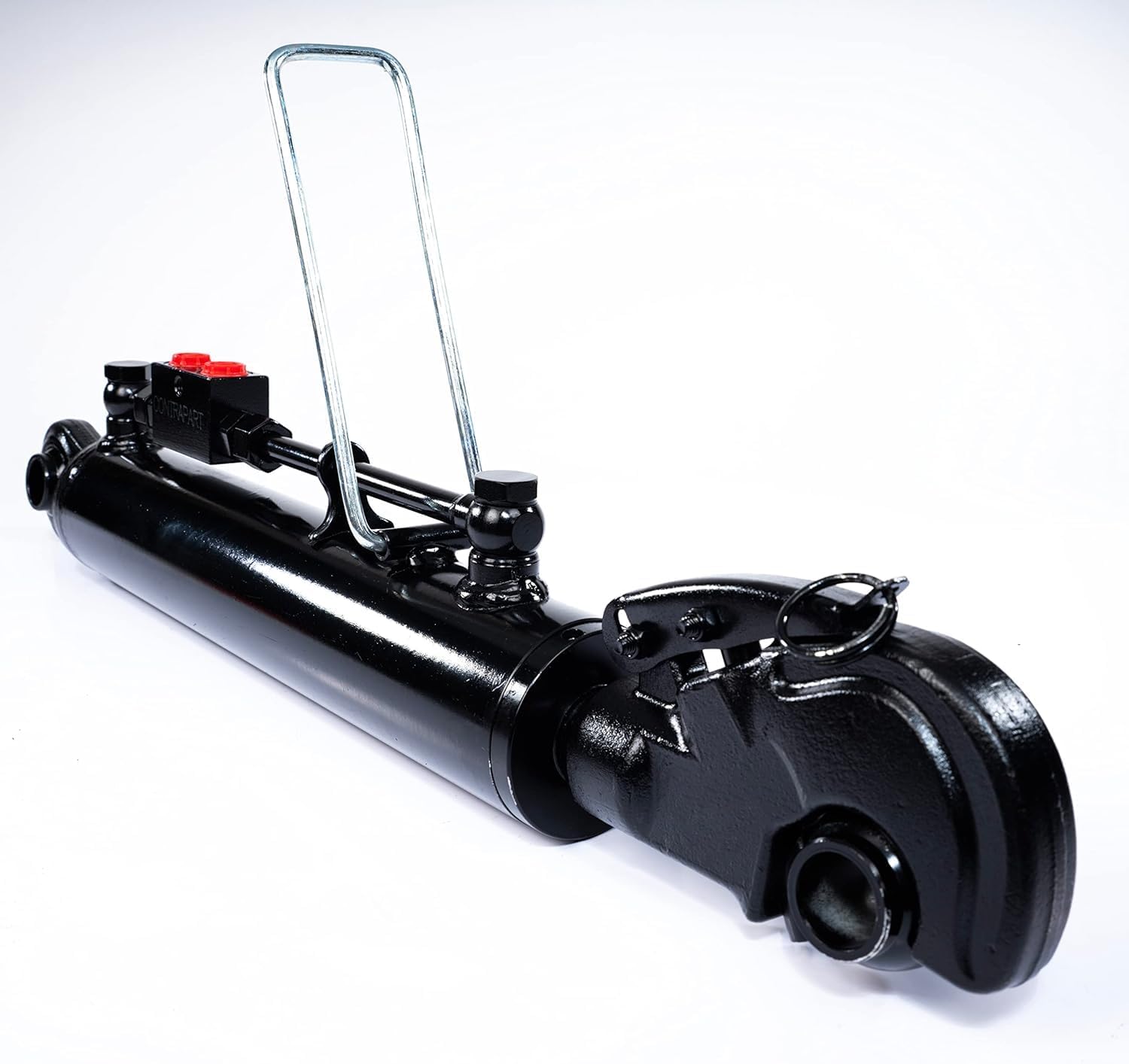

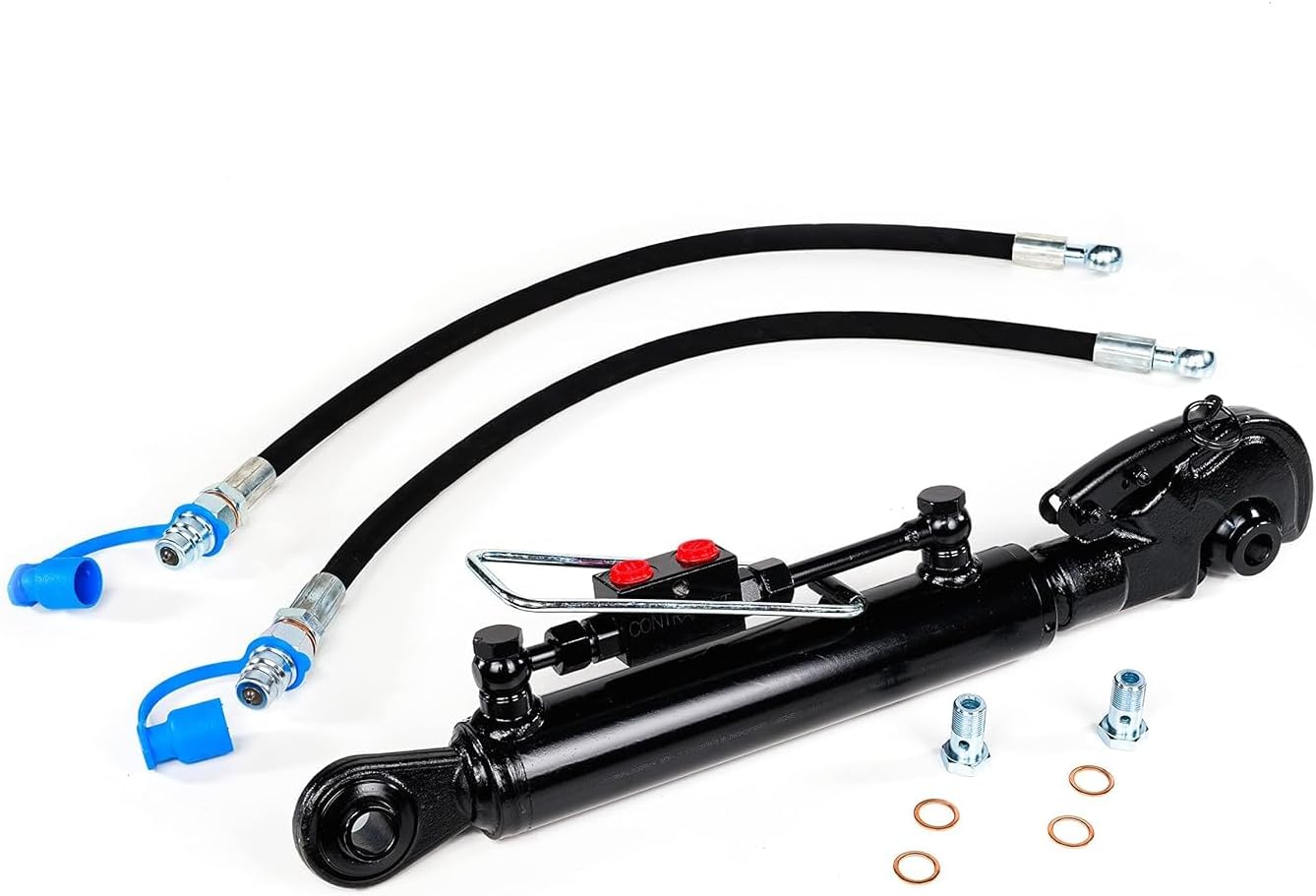

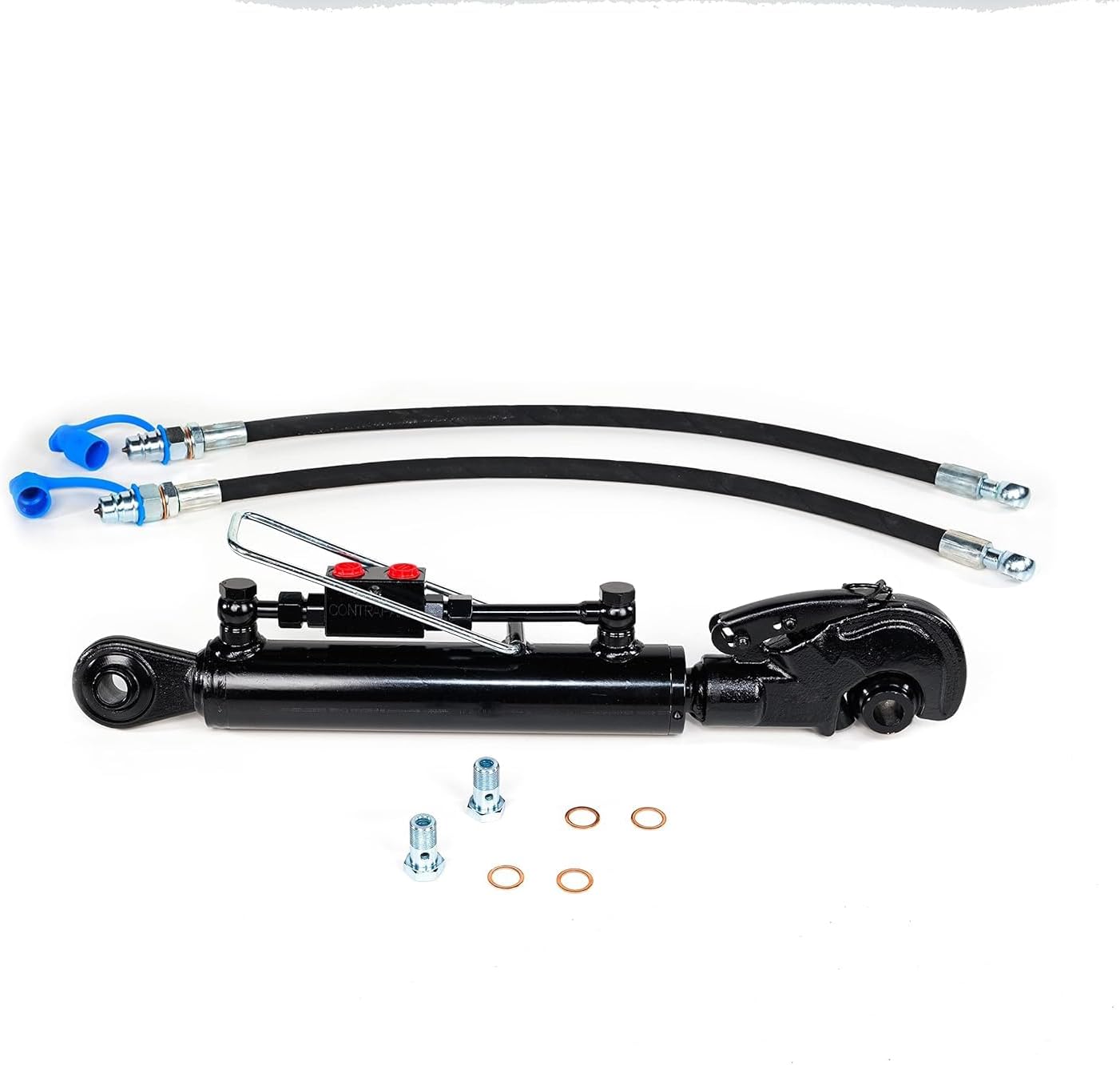

Hydraulic Top Link Rapid Hook Cat 1

Hydraulic top links with integrated rapid hook for Category 1 tractors. Achieve fast, tool-free implement coupling and precise hydraulic adjustment directly from the operator’s seat, reducing changeover time and improving field efficiency.

Technical Highlights

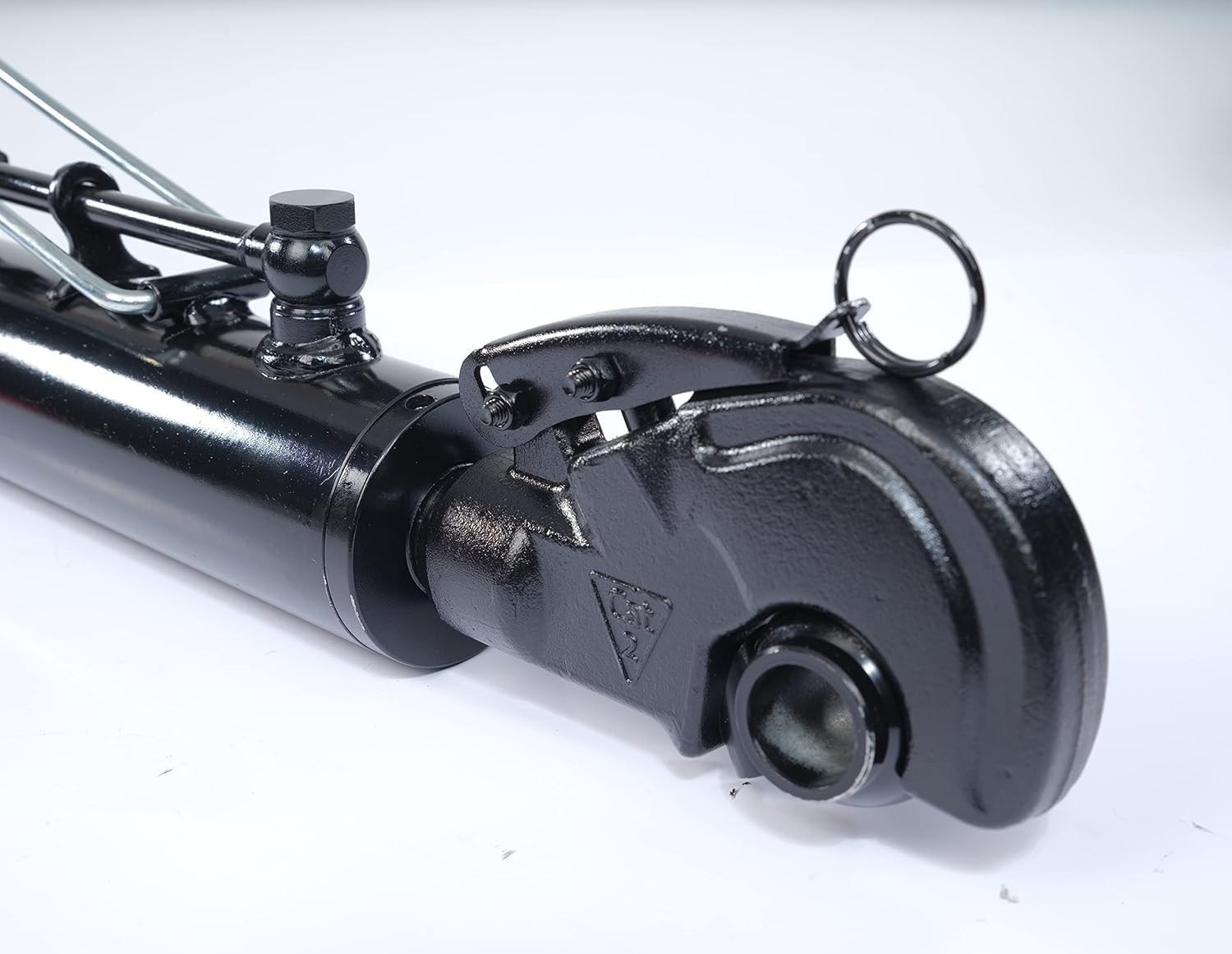

  • Rapid hook mechanism with automatic latching for quick implement coupling.
  • Hydraulic actuation for on-demand top link length and angle adjustment.
  • Built to ISO Category 1 dimensions for direct three-point compatibility.
  • Heavy-duty cylinder, induction-hardened rod, and serviceable seals.
  • Designed for compact and mid-size tractors with rear SCV/spool valves.

Selection & Specification Guide

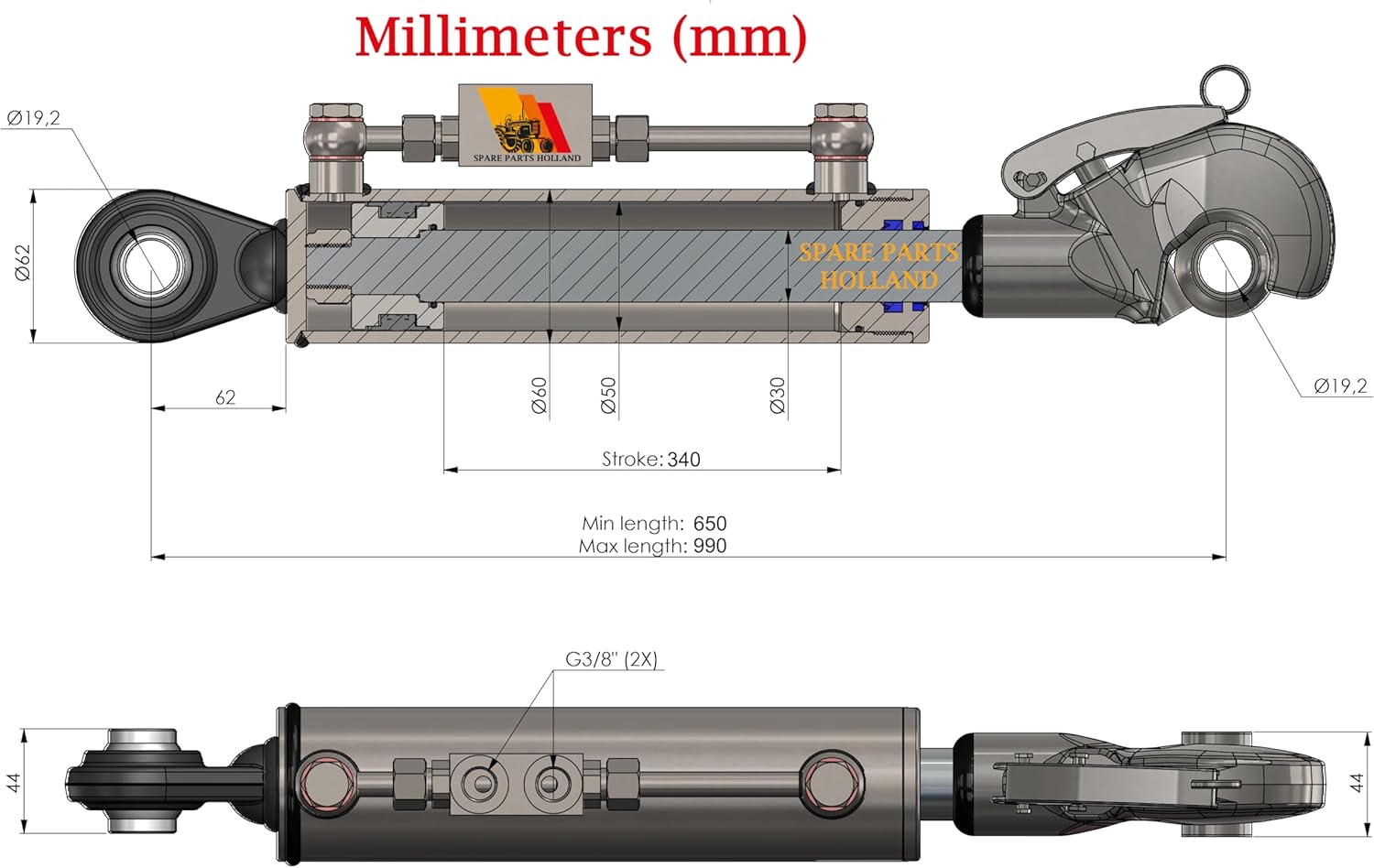

  1. Closed / Open Length & Stroke: choose a range covering transport and working positions with margin.
  2. End Fittings: Cat 1 ball/eye dimensions; verify pin diameter, width, and hook opening size.
  3. Hydraulic Ports: confirm thread type (e.g., BSPP, NPT) and hose routing/length.
  4. Pressure & Flow: match system pressure and valve flow for safe, controllable cylinder speed.
  5. Valving: consider pilot-operated check valves for load holding and flow control for smooth operation.

Compatibility

Designed for tractors with a Category 1 three-point hitch. Ideal for frequent implement changes (box blades, graders, mowers, cultivators). For Cat 2 or Cat 3 systems, refer to our alternative ranges or use appropriate adapters.

Operational Benefits

  • Reduced downtime due to rapid, secure coupling.
  • Improved finish quality via precise implement angle control.
  • Lower operator fatigue; minimal manual adjustment under load.
  • Consistent alignment reduces wear on linkages and attachments.

FAQs

How do I size the cylinder?

Measure current top link closed and open lengths and select a Rapid Hook model whose stroke covers both transport and working positions.

Do I need extra valves?

Most tractors use an existing rear SCV/spool. For load holding, add a pilot-operated check valve; for speed control, add a flow restrictor or adjustable flow control.

Is the hook safe under load?

The rapid hook includes a positive locking mechanism. Always verify full engagement on the implement pin before operation and follow the product manual.
