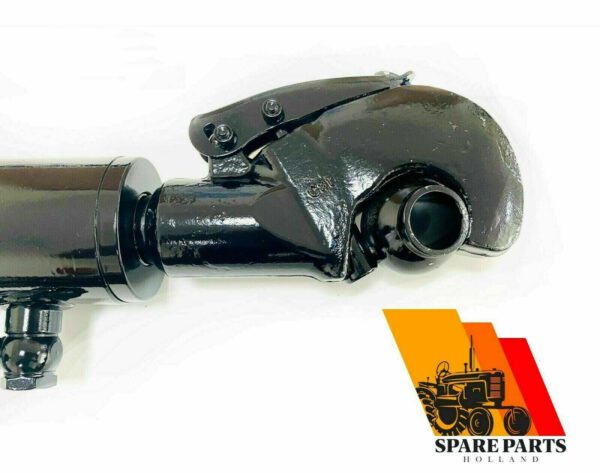

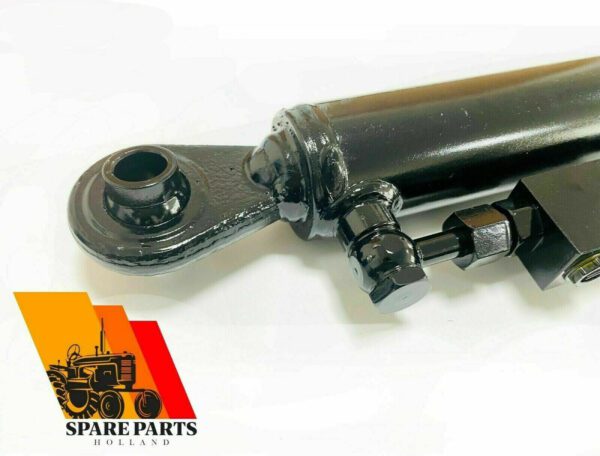

Hydraulic Top Link Cat. 2-2 (24 13/32″ – 36 7/32″) with Hook, Locking Block and 2 x Hoses – Stroke 11 13/16″

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block.

When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

• High quality
• Painted black
• Incl. locking block
• 2 x hydraulic connection
• Delivery is fully assembled

Technical specifications:

• Hydraulic connection: 3/8″
• E: 620-920mm / 24 13/32″ – 36 7/32″
• A: 63mm
• W: 75mm
• C: 35mm
• M: 75mm
• L: 25.4mm
• N: 51mm
• F: 65mm
• D: 300mm (stroke)
• Hydraulic pressure: max. 3600 PSI / 250 bar
• Thrust force: 12500 Lbs / 5.7 T
• Pull force: 8700 Lbs / 3.95 T
• Weight: about  16 kg / 35 Lbs

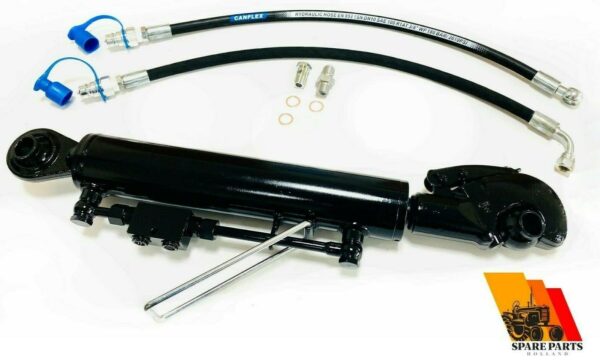

2 x hydraulic hose with 1/2″ quick coupling and dust cap

• Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
• Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
• Working pressure: 2600 PSI / 180 bar
• Length: 19.5″ / 75 cm
