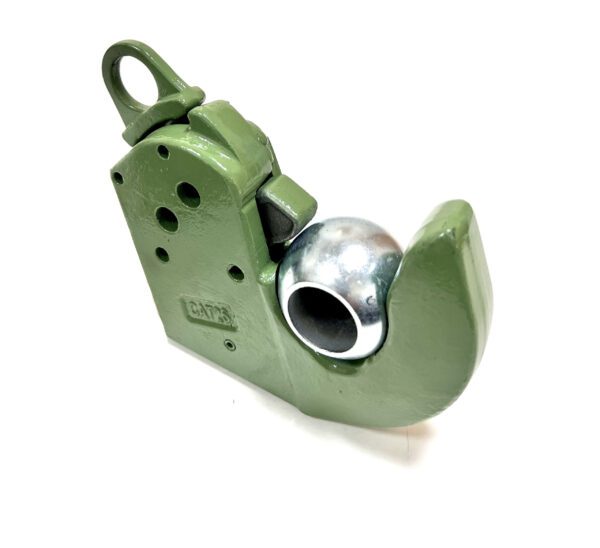

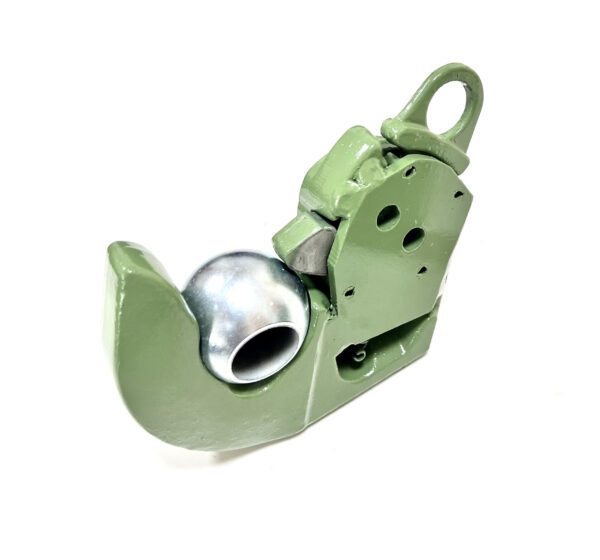

2 x Lower link quick release hitch ball hook, weld on end 66 KW / 90 PS, Cat. 2 S for tractor.
The hook is used to pick up agricultural attachments via the front or rear hydraulics of a tractor. The quick coupler automatically engages and is locked. A safety lock prevents accidental opening. The hook is welded to the lower link.

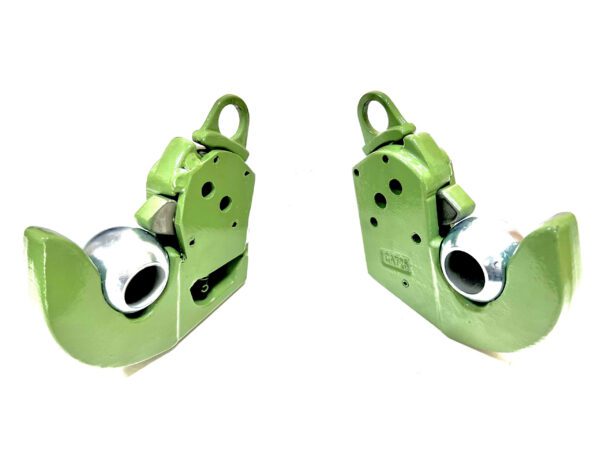

This set consists of two hooks, each with a lower link ball.
Technical data lower link quick coupler with automatic safety:
- Up to 66 kW / 90 hp
- Usable on both sides
- For welding to the lower link
- Hooks are partially coated with anti-rust primer, the color of which may differ from the picture
- Welding area: 85mm x 32mm
- Weight: approx. 3.3 kg with ball
- W: 32mm
- D: 56mm
- L: 115mm
Technical data lower link ball Cat. 2 S
- 28 x 56 x 45 mm made of steel (4140)
- A: 45mm
- B: inner Ø : 28 mm
- C: outer Ø: 56 mm
