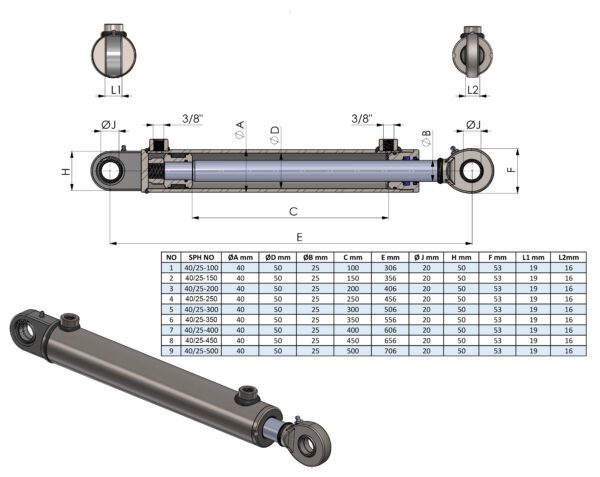

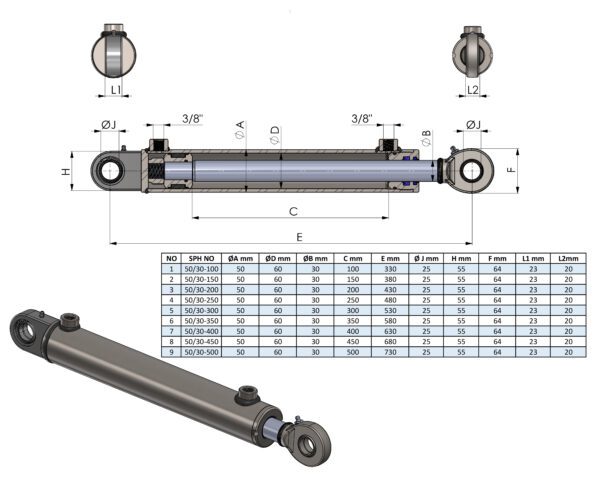

Double Acting Hydraulic Cylinder With Industrial Ball Joints (40/25 – 50/30)


  • Hydraulic cylinder, double acting with industrial ball joints. 40/25 different stroke
  • Operating pressure 180 bar
  • Cylinder tube: steel ST52.3 DIN 2393, piston rod: steel C45
  • Black color, oil connection: 3/8 “
  • However, you can also load it up to a peak pressure of 230 bar.
Add to Wishlist
Add to Wishlist
SKU: N/A Category:


Hydraulic cylinder double-acting with industrial ball joints. 3/8″ ports piston and rod diameter selectable! Stroke selectable!

Larger quantities available on request.

Special features:

  • Fully assembled
  • Unique innovative design
  • Special locking ring on the piston


  • Immediately ready for use
  • Long service life
  • High level of operational safety


  • All types of fastening possible
  • Maximum radial load: 10% of the axial force
  • Maximum operating pressure depends on the maximum buckling load
  • All cylinders are painted black. This can show signs of scratches and is only used to protect against corrosion during storage or transport. Scratches are therefore not a defect or a reason for complaint.

Technical information:

  • Interchangeable with other brands
  • Medium: mineral oil, HLP ISO VG 32 to ISO VG 46
  • Cleanliness of the medium: ISO 4406 22/20/ 17 or NAS 9
  • Important note! Protect welding spatter!

Additional information

Weight N/A
Part No.

SPH340178, SPH340179, SPH340180, SPH340181, SPH340182, SPH340183, SPH340184, SPH340185, SPH340186, SPH340193, SPH340194, SPH340195, SPH340196, SPH340197, SPH340198, SPH340199, SPH340200, SPH340201

Cyl Tube and Rod Size:

40/25, 50/30


100, 150, 200, 250, 300, 350, 400, 450, 500
