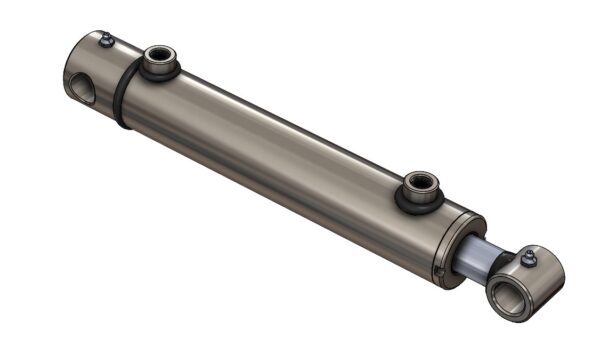

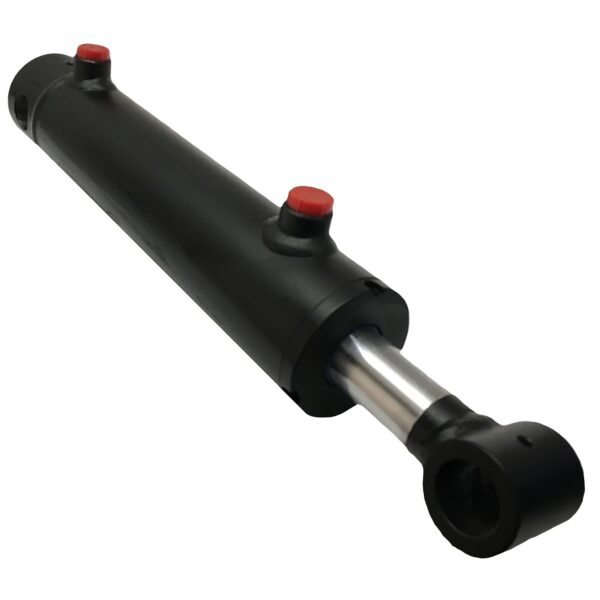

Double Acting Hydraulic Cylinder With End Plug Hole (several variants)


  • Hard chrome-plated piston rod
  • Honed steel pipe
  • Operating pressure 180 bar, peak pressure of 230 bar
  • Painted black
  • 3/8” Ports
Add to Wishlist
Add to Wishlist
SKU: N/A Category:


Our hydraulic cylinders are made of high quality steel and are a smart solution to replace defective cylinders or to adapt them to individual requirements. The hydraulic cylinder is turned out of a honed steel tube. The pipe faced from the inside was made of the material S235 JR. The piston rod has been hard chrome-plated, as are the piston jaws. This special surface treatment makes the steel smooth and thus reduces seal wear to a minimum. This type of chrome plating also significantly increases the resistance. This also enables us to guarantee a long service life due to the corrosion protection. The compressive and tensile force specified by us is specified at an operating pressure of 180 bar.

  • Hard chrome-plated piston rod
  • Honed steel pipe
  • Operating pressure 180bar
  • You can also load it up to a peak pressure of 230 bar
  • Painted Black
  • 3/8 ” Ports

Additional information

Weight N/A
Dimensions N/A
Part No.

SPH340236, SPH340237, SPH340238, SPH340239, SPH340240, SPH340241, SPH340242, SPH340243, SPH340244, SPH340245, SPH340246, SPH340247, SPH340248, SPH340251, SPH340252, SPH340253, SPH340254, SPH340255, SPH340256, SPH340257, SPH340258, SPH340259, SPH340260, SPH340261, SPH340262, SPH340263, SPH340268, SPH340269, SPH340270, SPH340271, SPH340272, SPH340273, SPH340274, SPH340275, SPH340276, SPH340483, SPH340484, SPH340485, SPH340486, SPH340487, SPH340488, SPH340489, SPH340490, SPH340491, SPH340492, SPH340493, SPH340494

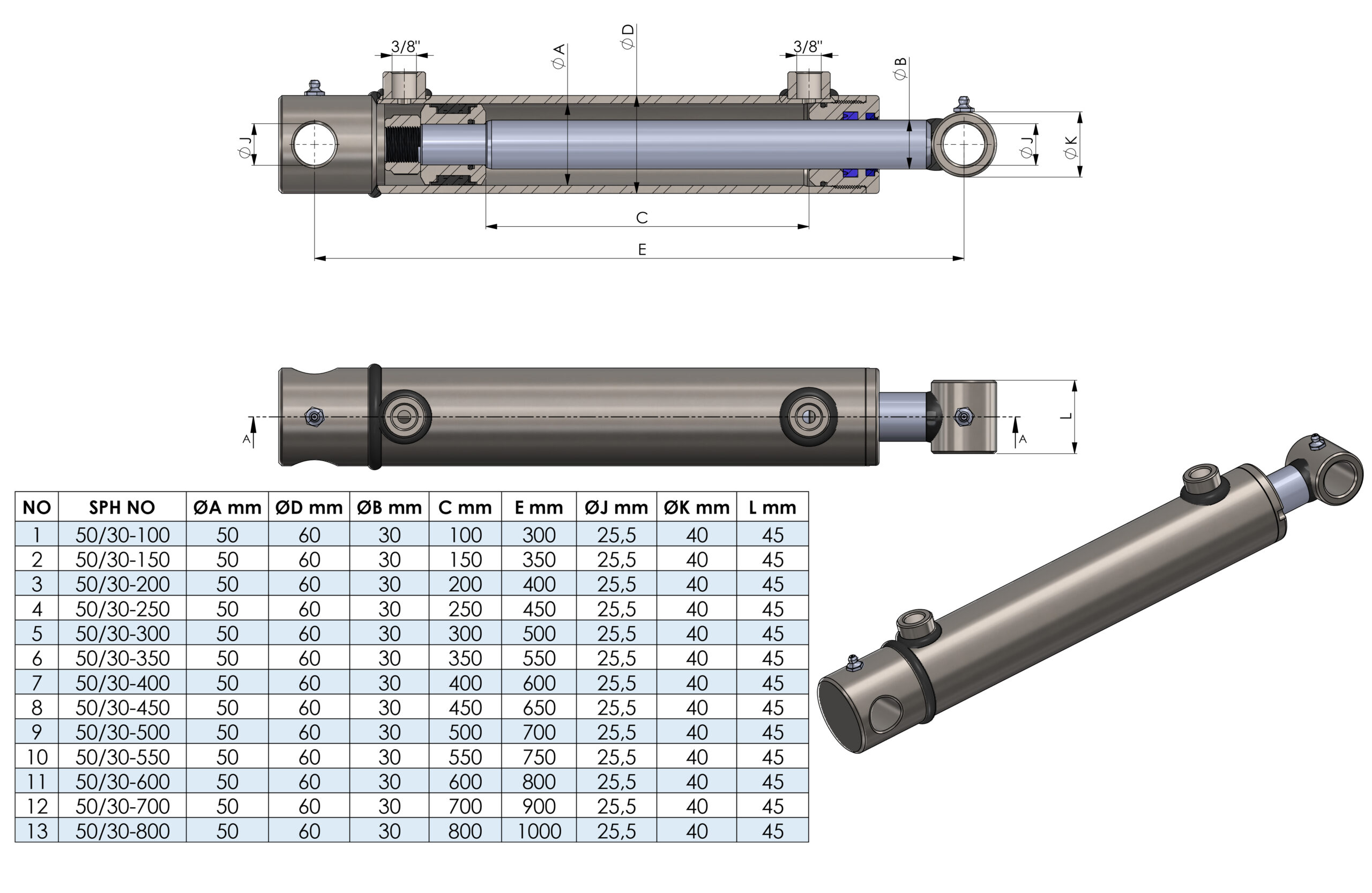

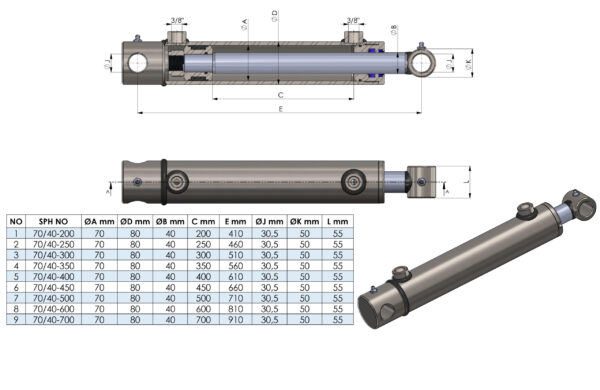

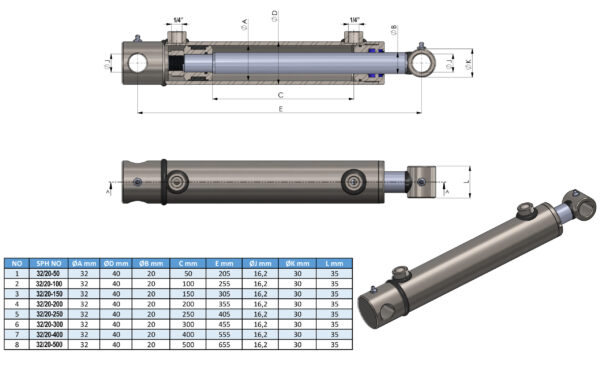

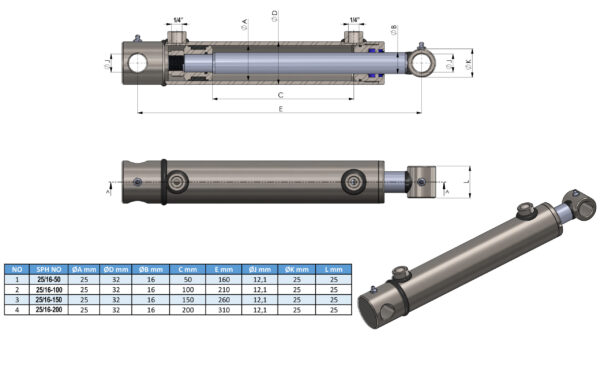

Cyl Tube and Rod Size

25/16, 32/20, 40/25, 50/30, 70/40


050, 100, 150, 200, 250, 300, 350, 400, 450, 500, 550, 600, 700, 800
