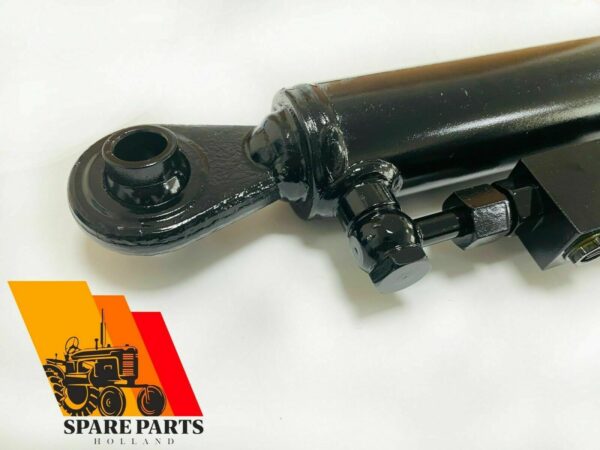

Hydraulic Top Link Cat 1 (20 7/8” – 31 7/8”) with Locking Block and 2 Hoses

Description

Hydraulic top link Cat. 1 with locking block and two hoses.

Description:

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

Design:

• High quality
• Painted black
• Incl. locking block
• Top link Cat. 1
• 2 x hydraulic connection
• Delivery is fully assembled

Technical specifications:

• Hydraulic connection: 3/8″
• E: 530-810mm
• A: 50mm
• W: 60mm
• C: 30mm
• M: 62mm
• N: 44mm
• H 19.2mm
• F: 62mm
• D: 280mm
• Hydraulic pressure max. 250 bar
• Thrust: 3.5 tons
• Pulling force: 2.3 tons
• Weight: about 10.35 kg

2 x hydraulic hose with plug and dust cap

Technical specifications:

• Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
• Hose designation: Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
• Working pressure: 180 bar
• Length: 75 cm
