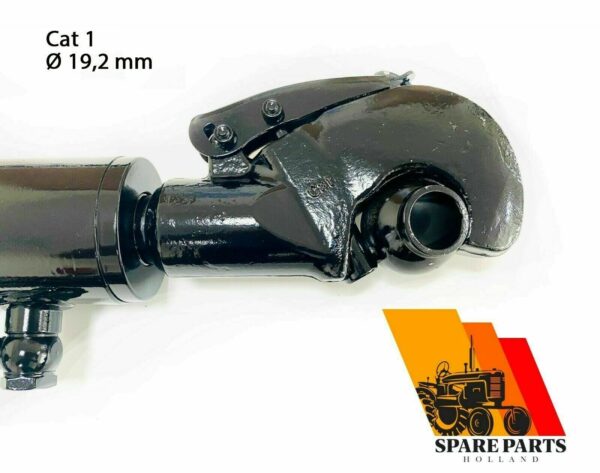

Hydraulic Top Link Cat. 1-1 (19 7/8″ – 28 5/32″) with Hook, Locking Block and Hoses – Stroke 8 9/32″


  • Technical specifications – This hydraulic top link fits Category 1. It has a minimum overall length of 19 7/8” and a maximum extended length of 28 5/32”. It comes with 3/4″ pinholes on both ends and a 1 3/4″ ball width for mounting.
  • Intelligent and strong – With a push force of 7200 Lbs and a pull force of 4600 Lbs at 2600 PSI, our hydraulic top link makes your work much easier. The two-way check valve helps to maintain the desired position for smarter working.
  • Fast and reliable delivery – Spare Parts Holland packs your hydraulic top link in high quality boxes so that chances of damage are minimized. Your order will be shipped within 1 working day with high priority via our logistic partners. This means, in most cases, you will receive your order between 1 – 3 working days.

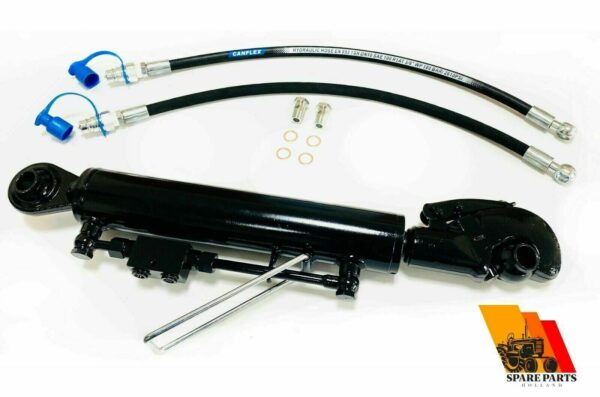

  • Easy to install – The hydraulic top link comes with two hydraulic hoses made of durable rubber, banjo bolts, sealing rings and a two-way check valve. All parts will be delivered completely assembled to save time for you.
  • 2-year guarantee – Because all parts are manufactured in our own factory, we are on top of the production process. We apply the highest standards for all our products and offer you a 2-year warranty; if you are not satisfied, we will refund the purchase price within 30 days.
EAN: 8720254379142 SKU: SPH320048 Categories: , GTIN: 8720254379869

In Stock

Add to Wishlist
Add to Wishlist
Order now and your products will be shipped tommorrow.
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9


The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

  • High quality
  • Painted black
  • Incl. locking block
  • 2 x hydraulic connection
  • Delivery is fully assembled


Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 19 7/8″ – 28 5/32″ / 505-715mm
  • A: 50mm
  • W: 60mm
  • C: 30mm
  • M: 62mm

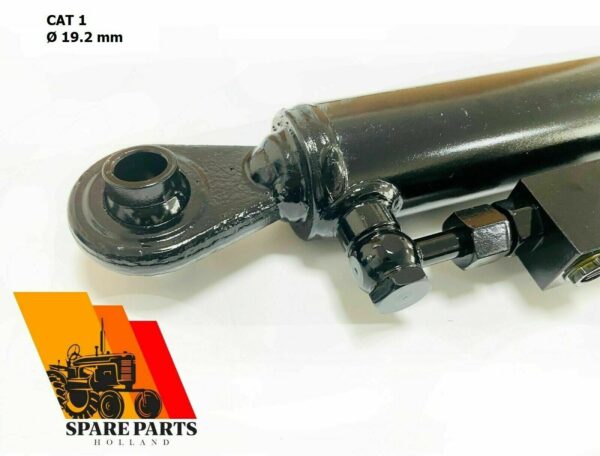

  • L: 19.2mm
  • N: 44mm
  • F: 62mm
  • D: 210mm (stroke)
  • Hydraulic pressure: max 3600 PSI / 250 bar
  • Thrust force: 7200 Lbs / 3.3 T
  • Pull force: 4600 Lbs / 2.1 T
  • Weight: about 25 Lbs / 11.20kg


2 x hydraulic hose with plug and dust cap

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 4785 PSI / 330 bar
  • Length: 19.5″ / 75 cm

Additional information

Weight 12 kg
Dimensions 80 × 15 × 15 cm
