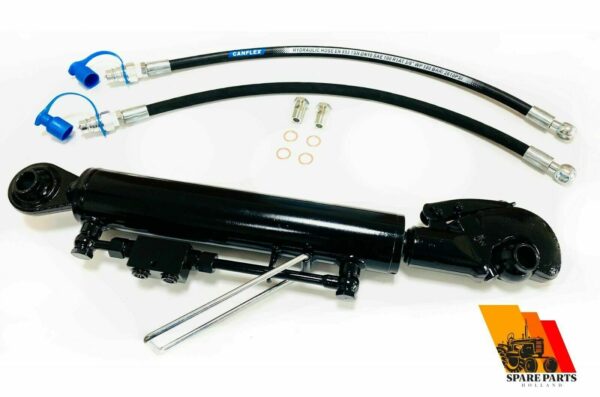

Hydraulic Top Link Cat. 2-2 (20 7/8” – 29 1/8”) with Hook, Locking Block and 2 x Hoses – Stroke 8 1/8”

Description

Hydraulic top link Cat 2 with hook, locking block and hoses.

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

• High quality
• Painted black
• Incl. locking block
• Top link Cat. 2
• 2x hydraulic connection
• Delivery is fully assembled

Technical specifications:

• Hydraulic connection: 3/8″
• E: 530-740mm / 20 7/8” – 29 1/8”
• A: 63mm
• W: 75mm
• C: 35mm
• M: 75mm

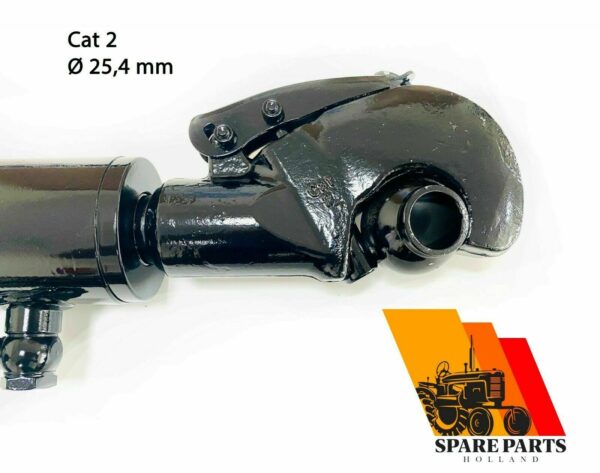

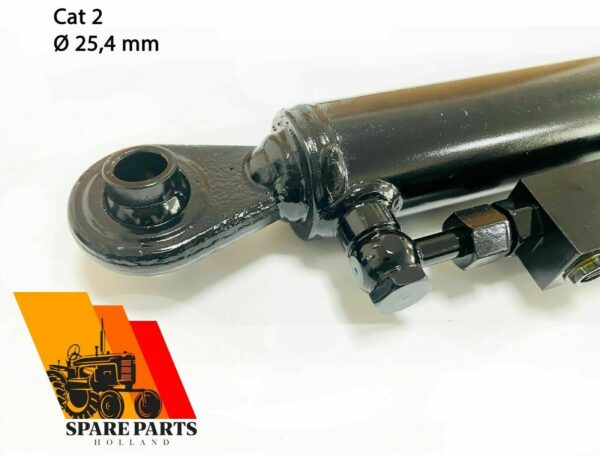

• L: 25.4mm
• N: 51mm
• F: 65mm
• D: 210mm (stroke)
• Hydraulic pressure max. 200 bar
• Thrust: 6850 kg
• Pulling force: 3950 kg
• Weight: about 15 kg

2 x hydraulic hose with plug and dust cap

• Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
• Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
• Working pressure: 330 bar
• Length: 75 cm
