Hydraulic Top Link Cat. 2-2 (27 3/16”- 42 15/16”) with Locking Block and 2 x Hoses – Stroke 15 3/4″

$220.00

  • Technical specifications – This hydraulic top link fits Category 1. It has a minimum overall length of 27 3/16” and a maximum extended length of 42 15/16”. It comes with 1″ pinholes on both ends and a 1 3/4″ ball width for mounting.
  • Intelligent and strong – With a push force of 12500 Lbs and a pull force of 8700 Lbs at 2600 PSI, our hydraulic top link makes your work much easier. The two-way check valve helps to maintain the desired position for smarter working.
  • Fast and reliable delivery – Spare Parts Holland packs your hydraulic top link in high quality boxes so that chances of damage are minimized. Your order will be shipped within 1 working day with high priority via our logistic partners. This means, in most cases, you will receive your order between 1 – 3 working days.

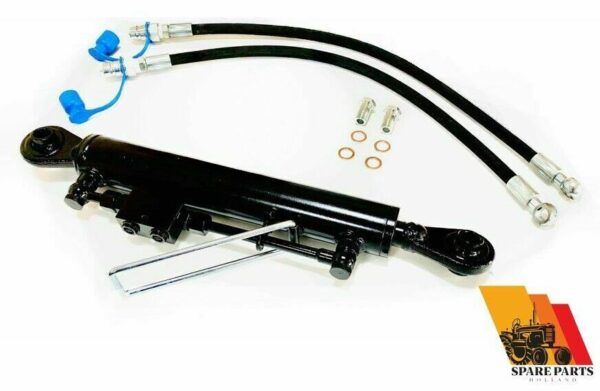

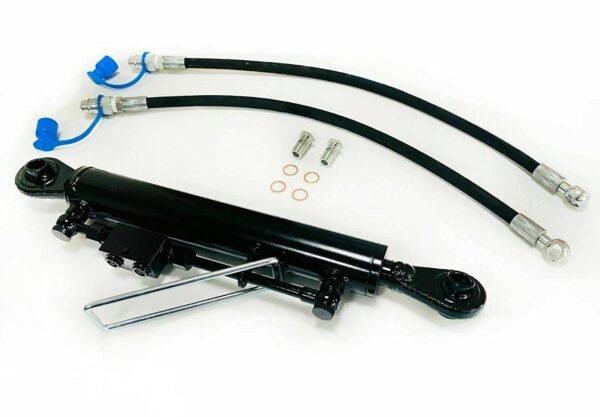

  • Easy to install – The hydraulic top link comes with two hydraulic hoses made of durable rubber, banjo bolts, sealing rings and a two-way check valve. All parts will be delivered completely assembled to save time for you.
  • 2-year guarantee – Because all parts are manufactured in our own factory, we are on top of the production process. We apply the highest standards for all our products and offer you a 2-year warranty; if you are not satisfied, we will refund the purchase price within 30 days.
EAN: 8720254379135 SKU: SPH320046 Categories: , GTIN: 8720254379845

In Stock

-
+
Add to Wishlist
Add to Wishlist
Order now and your products will be shipped tommorrow.
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is part of it – in combination with its own locking block * an unbeatable combination.

* In toplink, it is very important that the hidden setting position is also after the time has passed. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is the view with a locking block related to the control. With this valve, the oil is released through a non-return valve in the cylinder. Not until the tractor’s oil pressure returns and the valve and cylinder adjust.

  • High quality
  • Painted black
  • Incl. locking block
  • 2 x hydraulic connection
  • Delivery instead of fully assembled



Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 690-10900mm
  • A: 63mm
  • W: 73mm
  • C: 35mm
  • Y-M: 75mm
  • K-N: 51mm
  • H-L 25.4mm
  • F: 65mm
  • D: 400mm
  • Hydraulic pressure: max 3600 PSI / 250 bar
  • Thrust force: 12500 Lbs / 5.7 T
  • Traction force: 8700 Lbs / 3.95 T
  • Weight: about 35 Lbs / 15.90 kg



2 x hydraulic hose with plug and dust cap

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blau Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 4800 PSI / 330 bar
  • Length: 19.5″ / 75 cm

Additional information

Weight 16 kg
Dimensions 80 × 15 × 15 cm
