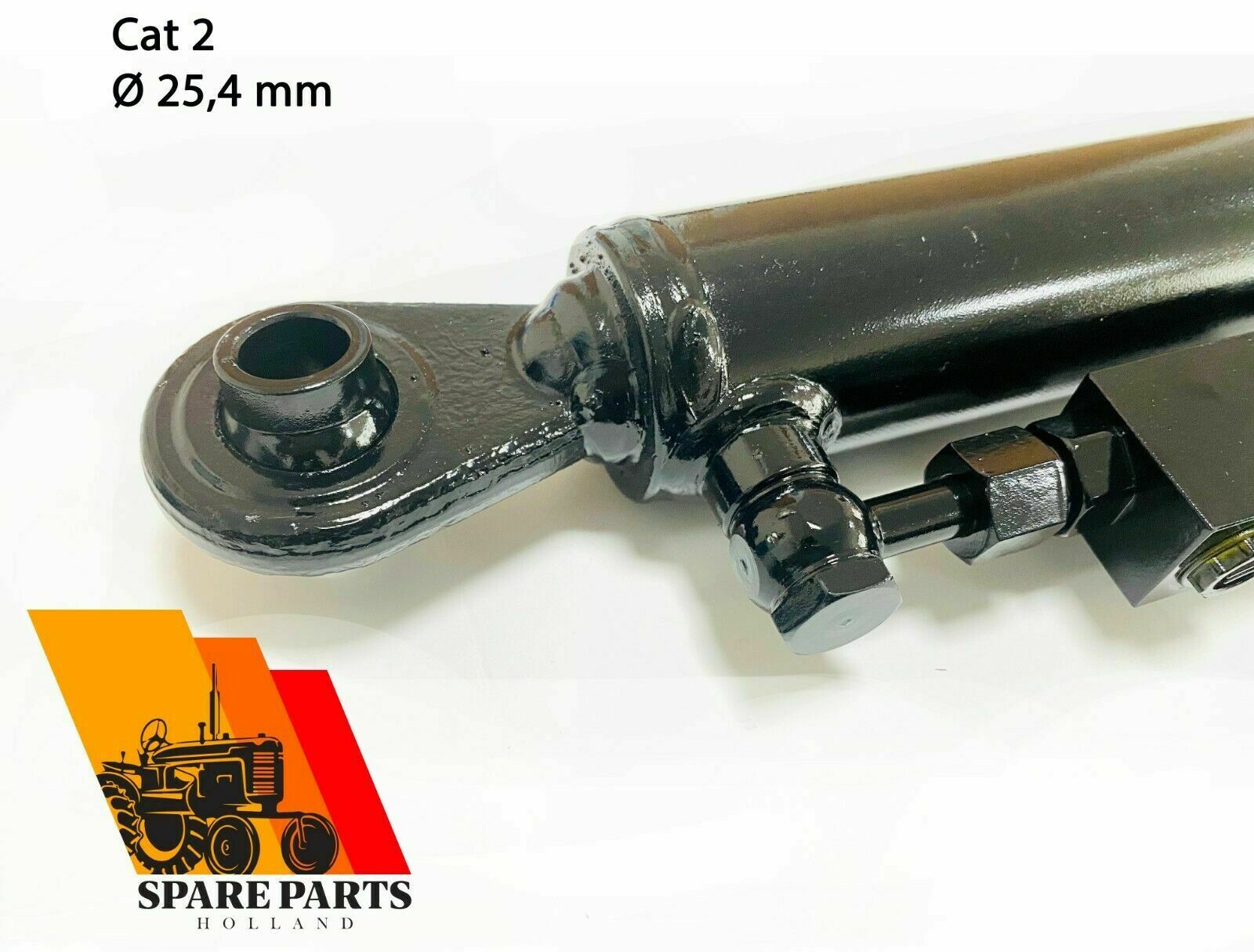

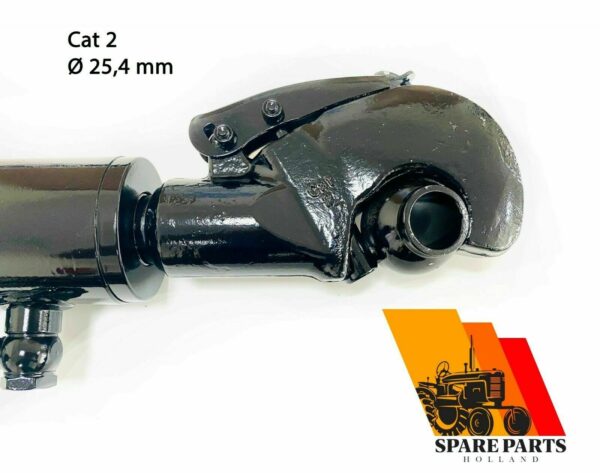

Hydraulic Top Link Cat. 2-2 (18 7/8” – 25 3/16”) with Hook, Locking Block and 2 x Hoses – Stroke 6-5/16”

$ 238.49

  • Technical specifications – This hydraulic top link fits Category 2. It has a minimum overall length of 18 7/8” and a maximum extended length of 25 3/16”. It comes with 3/4″ pinholes on both ends and a 1 3/4″ ball width for mounting.
  • Intelligent and strong – With a push force of 12500 Lbs and a pull force of 8700 Lbs at 2600 PSI, our hydraulic top link makes your work much easier. The two-way check valve helps to maintain the desired position for smarter working.
  • Fast and reliable delivery – Spare Parts Holland packs your hydraulic top link in high quality boxes so that chances of damage are minimized. Your order will be shipped within 1 working day with high priority via our logistic partners. This means, in most cases, you will receive your order between 1 – 3 working days.
  • Easy to install – The hydraulic top link comes with two hydraulic hoses made of durable rubber, banjo bolts, sealing rings and a two-way check valve. All parts will be delivered completely assembled to save time for you.
  • 2-year guarantee – Because all parts are manufactured in our own factory, we are on top of the production process. We apply the highest standards for all our products and offer you a 2-year warranty; if you are not satisfied, we will refund the purchase price within 30 days.
EAN: 8720956301519 SKU: SPH320051 Categories: , GTIN: 8720254379340

In Stock

Add to Wishlist
Add to Wishlist
Place your order within 3 hours and we will ship your order today!
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Shipping via UPS Worldwide Saver or Fedex Priority
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9


The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

  • High quality
  • Painted black
  • Incl. locking block
  • 2 x hydraulic connection
  • Delivery is fully assembled

Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 18 7/8” – 25 3/16” / 480-640mm
  • A: 63mm
  • W: 75mm
  • C: 35mm
  • M: 75mm
  • L: 25.4mm
  • N: 51mm
  • F: 65mm
  • D: 160mm (stroke)
  • Hydraulic pressure: max. 3600 PSI / 250 bar
  • Thrust force: 12500 Lbs / 5.7 T
  • Pulling force: 8700 Lbs / 3.95 T
  • Weight: about 33 Lbs / 15 kg

2 x hydraulic hose with plug and dust cap

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 2600 PSI / 180 bar
  • Length: 19.5″ / 75 cm

Additional information

Weight 14 kg
Dimensions 80 × 15 × 15 cm
