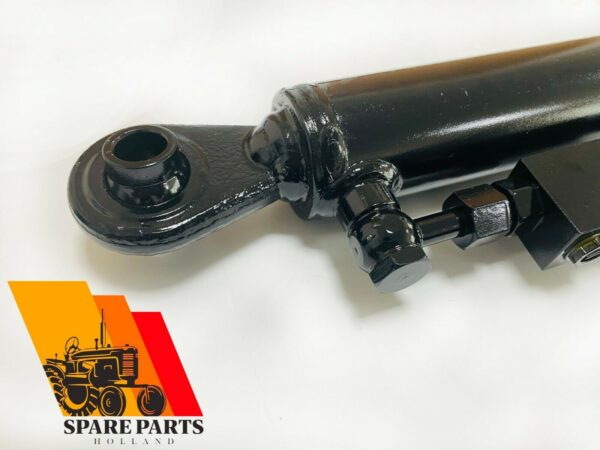

Hydraulic Top Link Cat. 2-2 (26 3/8” – 42 1/8”) with Locking Block and 2 x Hoses – Stroke 15 3/4″

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block*.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

• High quality finish and painted
• Includes locking block
• 2 x hydraulic connection
• Delivery is fully assembled

Technical specifications:

• Category: 2
• Hydraulic pressure: max. 3600 PSI / 250 bar
• Thrust: 7200 Lbs / 3.3 T
• Pull force: 4600 Lbs / 2.1 T
• Weight: about 23 Lbs / 10.35 kg

2 x hydraulic hose with plug and dust cap

• Connection: 12-L bulkhead size 3 (common coupling connector)
• 18-1.5 SW22 nipple + union
• Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
• Length: 19.5″ / 75 cm
