Hydraulic Top Link Cat. 2 (28 3/8” – 44 1/8”) + 2 Hooks and Locking Block with Hoses Stroke 15-3/4”

Description

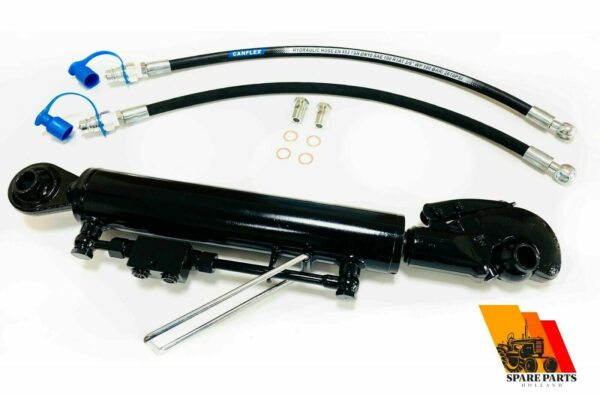

Hydraulic top link Cat. 2 with two catch hooks, locking block and hoses.

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

• High quality, painted black
• Incl. locking block

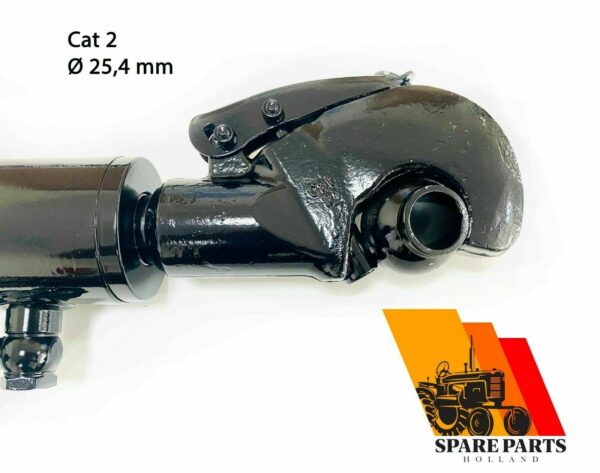

• Top link Cat. 2
• 2x hydraulic connection
• Delivery is fully assembled

Technical specifications:

• Hydraulic connection: 3/8″
• E: 720-1120mm
• A: 63mm
• W: 75mm
• C: 35mm
• M: 75mm

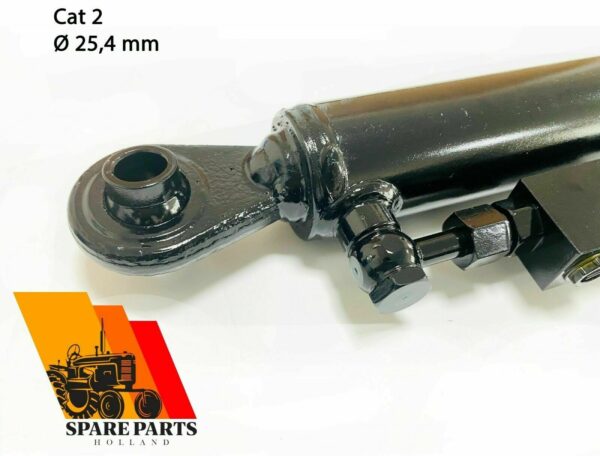

• L: 25.4mm
• N: 51mm
• F: 65mm
• D: 400mm (stroke)
• Hydraulic pressure max. 200 bar
• Thrust: 6850 kg
• Pulling force: 3950 kg
• Weight about 17.45 kg

2 x hydraulic hose with plug and dust cap

• Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
• Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
• Working pressure: 330 bar
• Length: 75 cm
