Hydraulic Diverter Valve for Tractor – 6 Port 2 Into 4 Manual Selector – SPH330037

This manual 6-port hydraulic diverter valve kit is designed to expand one existing double-acting tractor remote into two selectable double-acting hydraulic circuits. The valve uses a 2-into-4 port arrangement: one connection pair from the tractor and two separate connection pairs for the hydraulic functions.

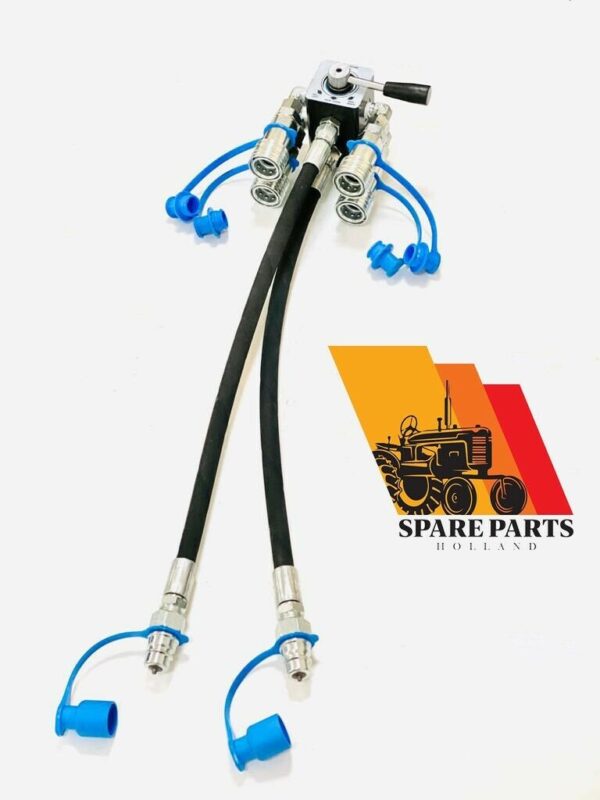

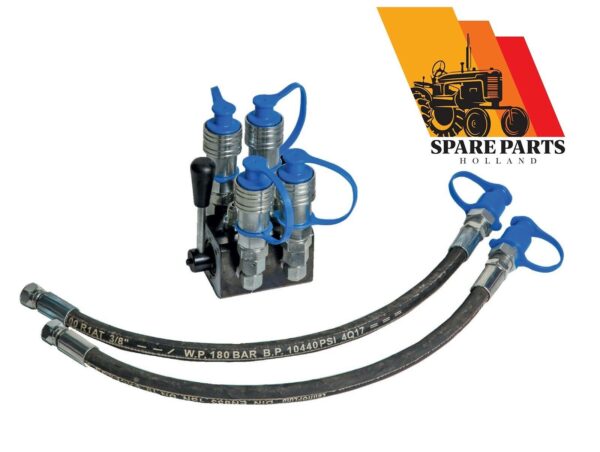

6 port hydraulic diverter valve for tractor remotes

SPH330037 is a manual hydraulic selector valve, also commonly searched as a tractor diverter valve, hydraulic splitter valve or hydraulic remote multiplier. It allows tractors, hydraulic trailers and implements with multiple hydraulic functions to use two selectable double-acting circuits from one existing tractor remote.

Key product features

• 6-port configuration: 2 connections from the tractor remote and 4 connections for two selectable hydraulic circuits.

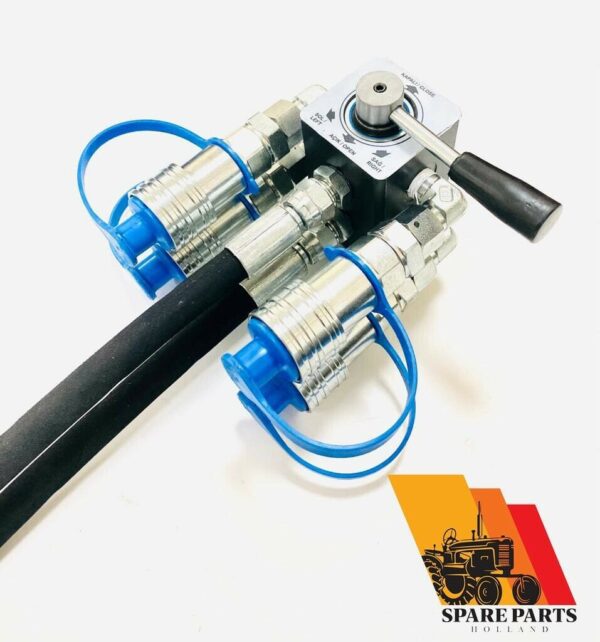

• Manual selector lever: switches between the two hydraulic circuits.
• Flow rate: 60 L/min.
• Working pressure: 250 bar.
• Maximum pressure: 350 bar.
• Hose length: 75 cm.
• Connections: ½" BSP.
• Quick couplings: ISO 5675 poppet type, male and female; compatible with ISO 7241-1 A.
• Mounting: bracket and mounting bolts included.

Technical specifications

Connection layout: one tractor remote to two functions

The kit has three connection pairs in total. One pair connects to the tractor’s existing double-acting remote. The remaining two pairs connect to two separate double-acting hydraulic circuits. The manual lever determines which circuit is active.

Applications

This universal hydraulic diverter valve can be used where one existing tractor remote needs to be shared between two hydraulic functions, for example on tractors, hydraulic trailers and compatible implements. Always check the required flow, pressure and ½" BSP / ISO 5675 connection standard before ordering.

For more universal selector and diverter solutions, see our universal hydraulic control valves and diverter valves. To compare the complete tractor range, see our hydraulic remote valve kits for tractors.

Order SPH330037 online

Choose SPH330037 when you want to convert one existing double-acting tractor remote into two manually selectable double-acting hydraulic circuits. Spare Parts Holland ships hydraulic parts from the Netherlands with fast worldwide delivery.
