Hydraulic Top Link Cat. 1-1 (16 1/8” – 22 7/16”) with Locking Block and 2 x Hoses – Stroke 6 5/16″

$165.00

  • Technical specifications – This hydraulic top link fits Category 1. It has a minimum overall length of 16 1/8” and a maximum extended length of 22 7/16”. It comes with 3/4″ pinholes on both ends and a 1 3/4″ ball width for mounting.
  • Intelligent and strong – With a push force of 7200 lbs and a pull force of 4600 lbs at 2600 PSI, our hydraulic top link makes your work much easier. The two-way check valve helps to maintain the desired position for smarter working.
  • Fast and reliable delivery – Spare Parts Holland packs your hydraulic top link in high quality boxes so that chances of damage are minimized. Your order will be shipped within 1 working day with high priority via our logistic partners. This means, in most cases, you will receive your order between 1 – 3 working days.

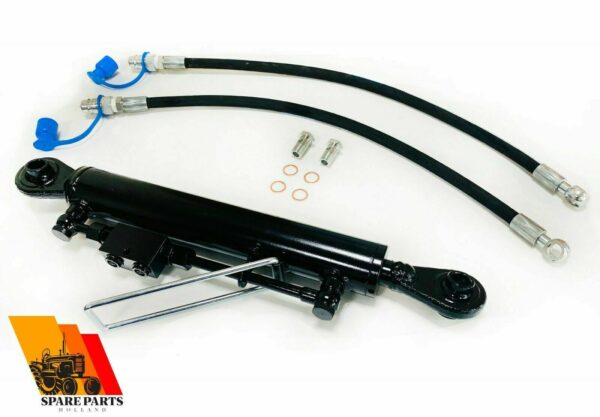

  • Easy to install – The hydraulic top link comes with two hydraulic hoses made of durable rubber, banjo bolts, sealing rings and a two-way check valve. All parts will be delivered completely assembled to save time for you.
  • 2-year guarantee – Because all parts are manufactured in our own factory, we are on top of the production process. We apply the highest standards for all our products and offer you a 2-year warranty; if you are not satisfied, we will refund the purchase price within 30 days.
EAN: 8720256725640 SKU: SPH320031 Categories: , GTIN: 8720254379739

In Stock

-
+
Add to Wishlist
Add to Wishlist
Order now and your products will be shipped tommorrow.
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the upper link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor’s control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted.

  • High quality and workmanship and painted
  • Incl. locking block
  • Hydraulic pressure max. 3600 PSI (250 bar)
  • Thrust: 7200 lbs (3.6T)
  • Pulling force: 4600 lbs (2.1T)
  • Weight about 17.5 lbs  (8 kg)

2 x hydraulic hose with plug and dust cover

  • Connection: 12-L bulkhead size 3 (usual coupling connector)
  • 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Operating pressure: 2600 PSI (180 bar)
  • Length: 29.5″ / 75 cm

Additional information

Weight 8 kg
Dimensions 80 × 15 × 15 cm
