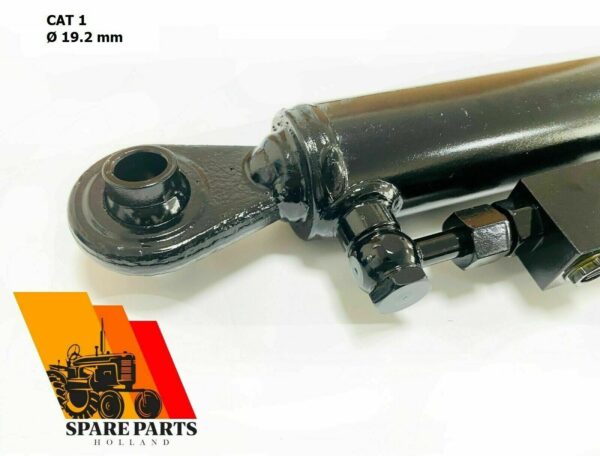

Hydraulic Top Link Cat. 1 (17 15/16″ – 24 7/32″) with Hook, Locking Block and 2 x Hoses – Stroke 6 5/16″

$218,00

  • High quality
  • Painted black
  • Incl. locking block
  • Top link Cat 1
  • 2x hydraulic connection
  • Delivery is fully assembled
EAN: 8720254379326 SKU: SPH320047 Categories: , GTIN: 8720254379852

In Stock

-
+
Add to Wishlist
Add to Wishlist
Place your order within 13 hours and we will ship your order today!
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9

Description

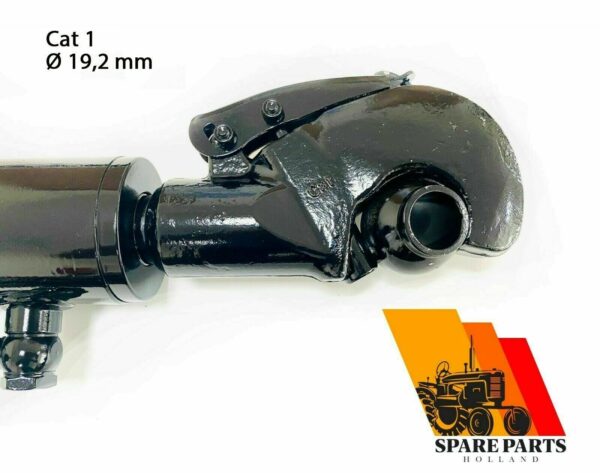

Hydraulic top link Cat 1 with hook, locking block and 2 hoses.

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

  • High quality
  • Painted black
  • Incl. locking block
  • Top link Cat. 1
  • 2x hydraulic connection
  • Delivery is fully assembled

Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 455-615mm
  • A: 50mm
  • W: 60mm
  • C: 30mm
  • M: 62mmL: 19.2mm
  • N: 44mm
  • F: 62mm
  • D: 210mm (stroke)
  • Hydraulic pressure max. 200 bar
  • Thrust: 3.5 ton
  • Pulling force: 2.3 ton
  • Weight: about 11.20kg

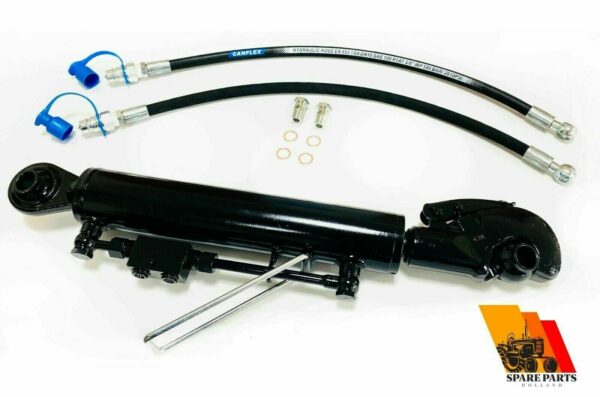

2 x hydraulic hoses with quick couplings (1/2″) and dust cover

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 180 bar
  • Length: 75 cm

Additional information

Weight 9 kg
Dimensions 80 × 15 × 15 cm
