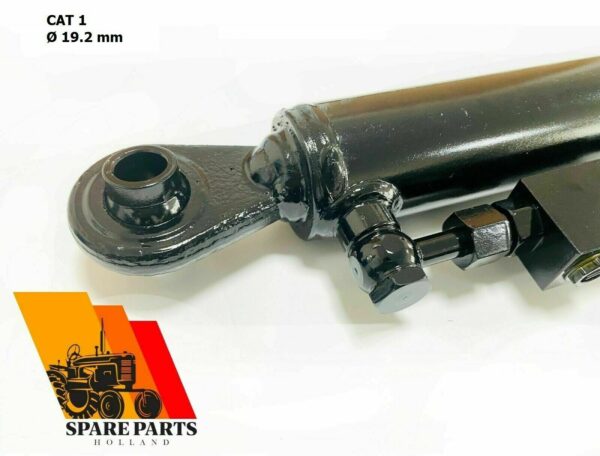

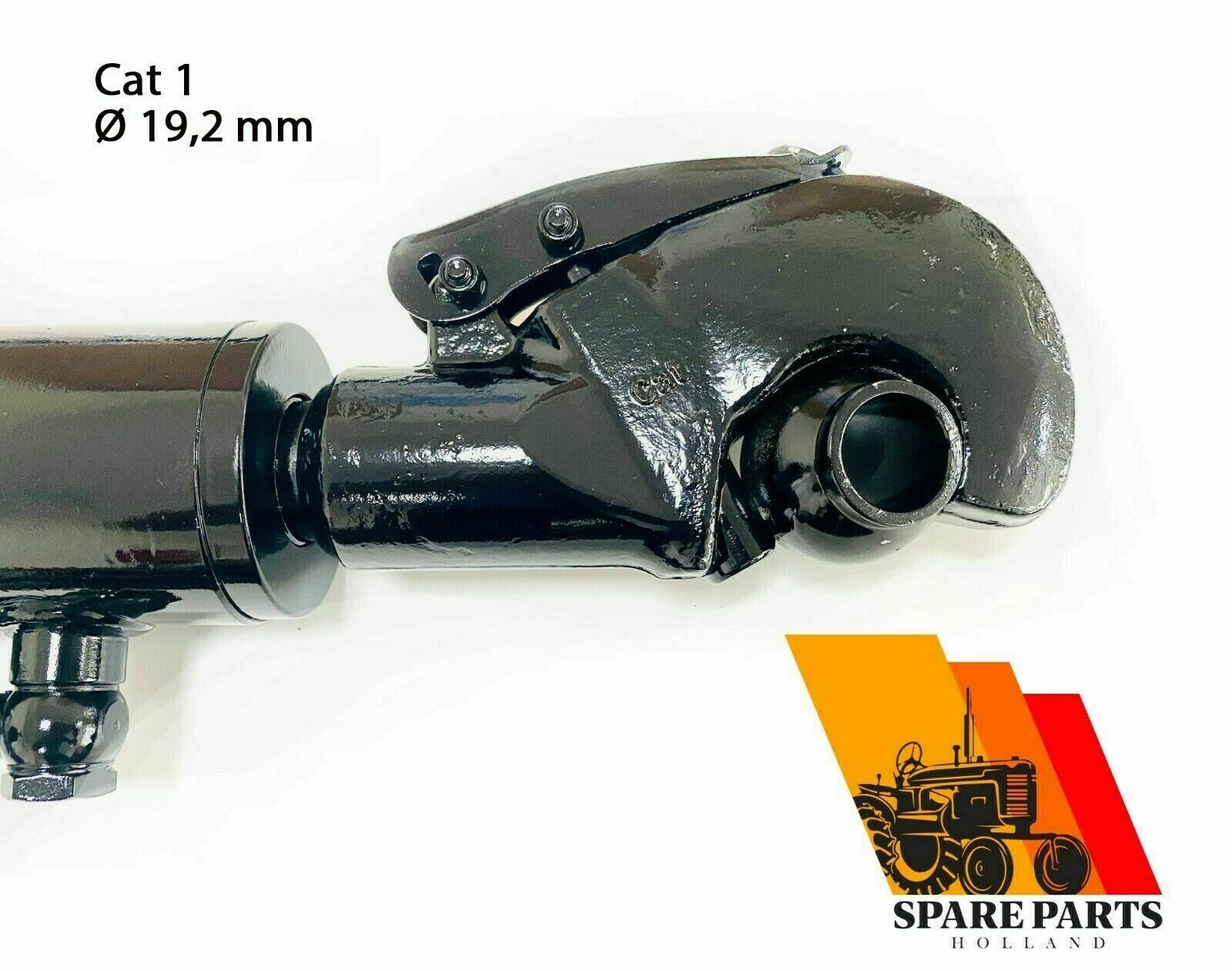

Hydraulic Top Link Cat. 1-1 (22 5/8″ – 33 11/16″) with Hook, Locking Block and 2 x Hoses – Stroke 11 1/32″

$239,00

  • High quality
  • Painted black
  • Incl. locking block
  • 2x hydraulic connection
  • Delivery is fully assembled
EAN: 8720254379159 SKU: SPH320049 Categories: , GTIN: 8720254379876

In Stock

-
+
Add to Wishlist
Add to Wishlist
Order now and your products will be shipped tommorrow.
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

  • High quality
  • Painted black
  • Incl. locking block
  • 2 x hydraulic connection
  • Delivery is fully assembled

Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 575-855mm
  • A: 50mm
  • W: 60mm
  • C: 30mm
  • M: 62mm
  • L: 19.2mm
  • N: 44mm
  • F: 62mm
  • D: 280mm (stroke)
  • Hydraulic pressure max. 200 bar
  • Thrust: 3.5 kg ton
  • Pulling force: 2.3 kg ton
  • Weight: about 12.10 kg

2 x hydraulic hose with plug and dust cap

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 330 bar
  • Length: 75 cm

Additional information

Weight13 kg
Dimensions80 × 15 × 15 cm
