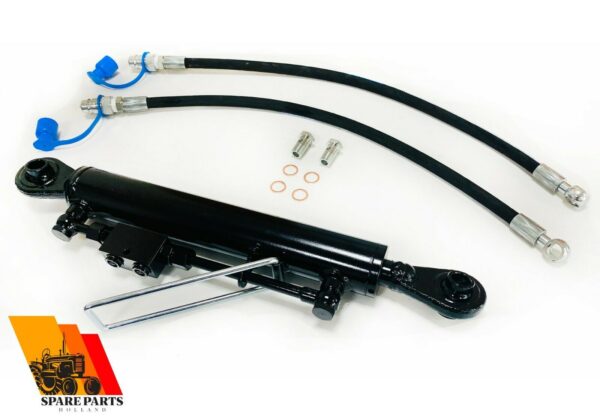

Hydraulic Top Link Cat 2 (16 15/16” – 23 1/4”) with Locking Block and 2 Hoses

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

• High quality finish and painted black
• Includes locking block
• 2x hydraulic connection
• Delivery is fully assembled

Technical specifications:

• Hydraulic connection: 3/8″

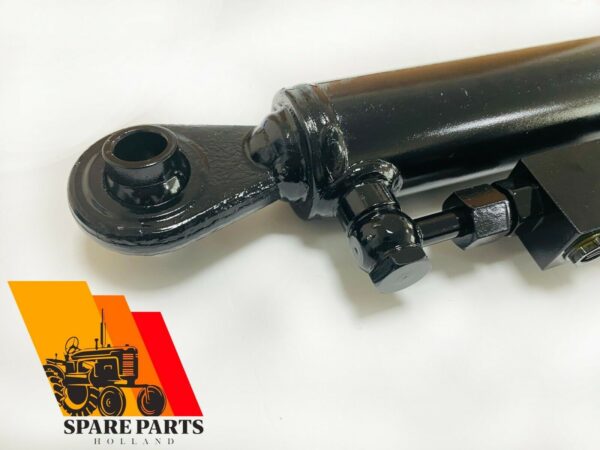

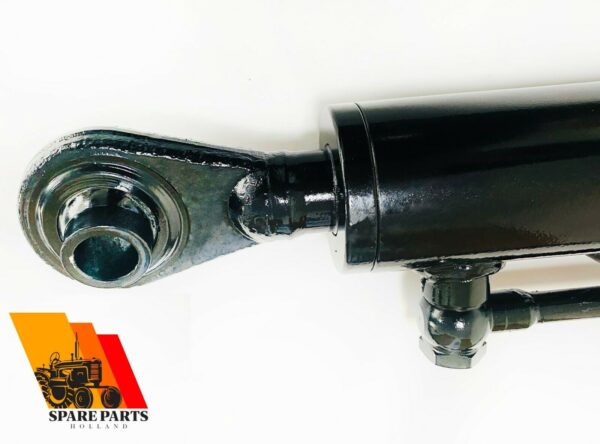

• Pin hole: Ø25.4mm (1”) pin holes on both ends (piston can be rotated as needed)
• Ball width: 44 mm (1-3/4”) (both ends)
• Cylinder bore: Ø50mm (2”)
• Cat 2 upper shift rod diameter: Ø30mm (1-3/16”)
• Hydraulic pressure max. 250 bar
• Thrust: 3.5 ton
• Traction: 2.3 ton
• Weight about 8 kg

2 x hydraulic hose with plug and dust cap

• Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
• Hose designation: Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
• Working pressure: 180 bar
• Length: 70 cm
