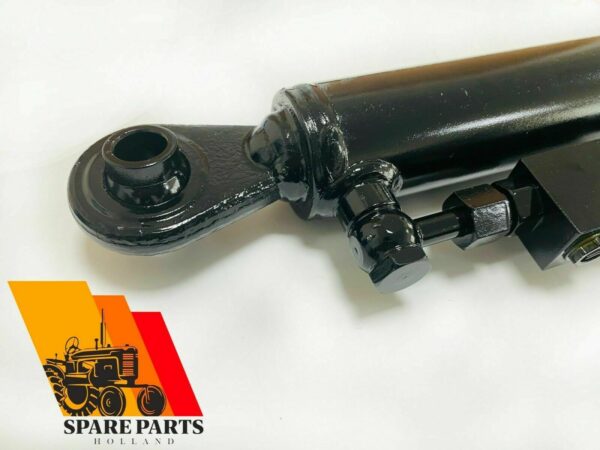

Hydraulic Top Link Cat. 2-2 (22 3/8” – 33 1/2) with Locking Block and 2 Hoses

$205,00

  • High quality
  • Painted black
  • Incl. locking block
  • 2x hydraulic connection
  • Delivery is fully assembled
EAN: 8720256725688 SKU: SPH320045 Categories: , GTIN: 8720254379838

In Stock

-
+
Add to Wishlist
Add to Wishlist
Order now and your products will be shipped tommorrow.
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9

Description

Hydraulic top link Cat 2 with locking block and 2 hoses.

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block *.

* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This top link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

  • High quality
  • Painted black
  • Incl. locking block
  • 2x hydraulic connection
  • Delivery is fully assembled

Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 570-850mm
  • A: 63mm
  • W: 73mm
  • C: 35mm
  • M: 75mm
  • N: 51mm
  • H: 25.4mm
  • F: 65mm
  • D: 280mm (stroke)
  • Hydraulic pressure max. 200 bar
  • Thrust: 4 ton
  • Traction: 2.5 ton
  • Weight about 13 kg

2 x hydraulic hose with plug and dust cap

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 330 bar
  • Length: 75 cm

Additional information

Weight 13 kg
Dimensions 80 × 15 × 15 cm
