Hydraulic Top Link Cat. 2-2 (22 7/16”- 32 1/4”) with Locking Block and 2 x Hoses – Stroke 9 7/8″

$244,00

  • High quality
  • Painted black
  • Incl. locking block
  • Top link Cat 2
  • 2 x hydraulic connection
  • Delivery is fully assembled
EAN: 8720254379357 SKU: SPH320067 Categories: , GTIN: 8720254379944

In Stock

-
+
Add to Wishlist
Add to Wishlist
Order now and your products will be shipped tommorrow.
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Description

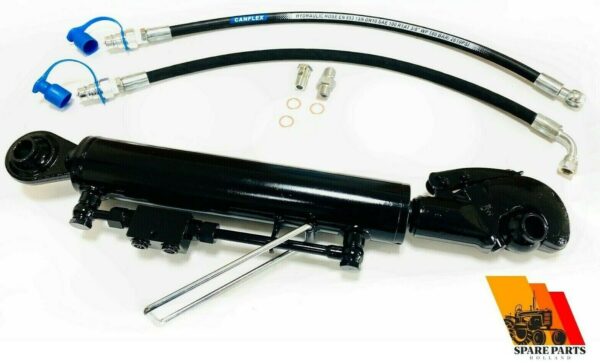

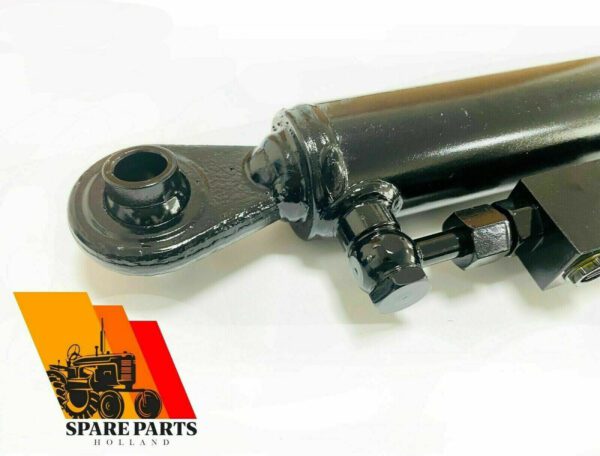

Hydraulic top link cat 2 with hook, locking block and hoses.

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. This requires a double-acting control valve on the tractor – an unbeatable combination in combination with the integrated locking block.

When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top couplings without a locking block, because the tractor’s control units do not lock as tightly. This upper link is therefore equipped with a locking block. With this valve, the oil in the cylinder is enclosed by a non-return valve. Only when oil pressure returns from the tractor does the valve open and the cylinder can be adjusted.

  • High quality
  • Painted black
  • Incl. locking block
  • Top link Cat. 2
  • 2x hydraulic connection
  • Delivery is fully assembled

Technical specifications:

  • Hydraulic connection: 3/8″
  • E: 570-790mm
  • A: 63mm
  • W: 75mm
  • C: 35mm
  • M: 75mm
  • L: 25.4mm
  • N: 51mm
  • F: 65mm
  • D: 250mm (stroke)
  • Hydraulic pressure max. 200 bar
  • Thrust: 6850 kg
  • Pulling force: 3950 kg
  • Weight: about 16 kg

2 x hydraulic hose with 1/2″ quick coupling and dust cap

  • Connection: 12-L bulkhead size 3 (common coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Working pressure: 180 bar
  • Length: 75 cm

Additional information

Weight 15 kg
Dimensions 80 × 15 × 15 cm
