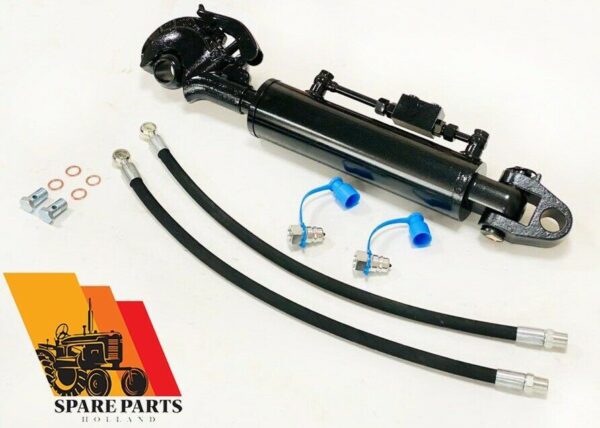

Hydraulic Top Link Cat 3 (27 9/16″ – 38 5/8″) with Ball Joint, Hook and Saturn Clevis – Stroke 11″

$499,00

  • High quality, painted black
  • Incl. locking block
  • Top link cat. 3
  • 2 x hydraulic connection
  • Delivery is completely assembled
  • 2 x hydraulic hose with plug and dust cover
EAN: 8720618601018 SKU: SPH320062 Category: GTIN: 8720618601018

In Stock

-
+
Add to Wishlist
Add to Wishlist
Place your order within 0 hours and we will ship your order today!
Delivery and service
Ordered before 15:00 CET, delivered within 3 days
Insured shipping
1000+ customers give us a 4.8 review

Trustpilot Reviews: 4.9

Description

The hydraulic top link we offer replaces the existing top link on the tractor and makes your daily work easier. A double-acting control valve on the tractor is necessary for this – an unbeatable combination in combination with the integrated locking block*.
* When adjusting the top link, it is very important that the adjusted position is maintained even after a long period of time. This is hardly possible with top links without a locking block, as the tractor’s control units do not lock so tightly. This top link is therefore equipped with a locking block. With this valve, the oil is enclosed in the cylinder by a check valve. Only when there is oil pressure from the tractor again does the valve open and the cylinder can be adjusted.
  • High quality, painted black
  • Incl. locking block
  • Top link cat. 3
  • 2 x hydraulic connection
  • Delivery is completely assembled
  • 2 x hydraulic hose with plug and dust cover
Technical specifications:
  • Connection: 12-L bulkhead size 3 (usual coupling connector), 18-1.5 SW22 nipple + union
  • Hose designation Blue Flex SAE 100 3/8 R2AT DIN EN 853 2SN DN10 W.P.330
  • Operating pressure: 330 bar
  • Length: 75 cm

Additional information

Weight 22 kg
Dimensions 80 × 15 × 15 cm
Part no.

SPH320062
