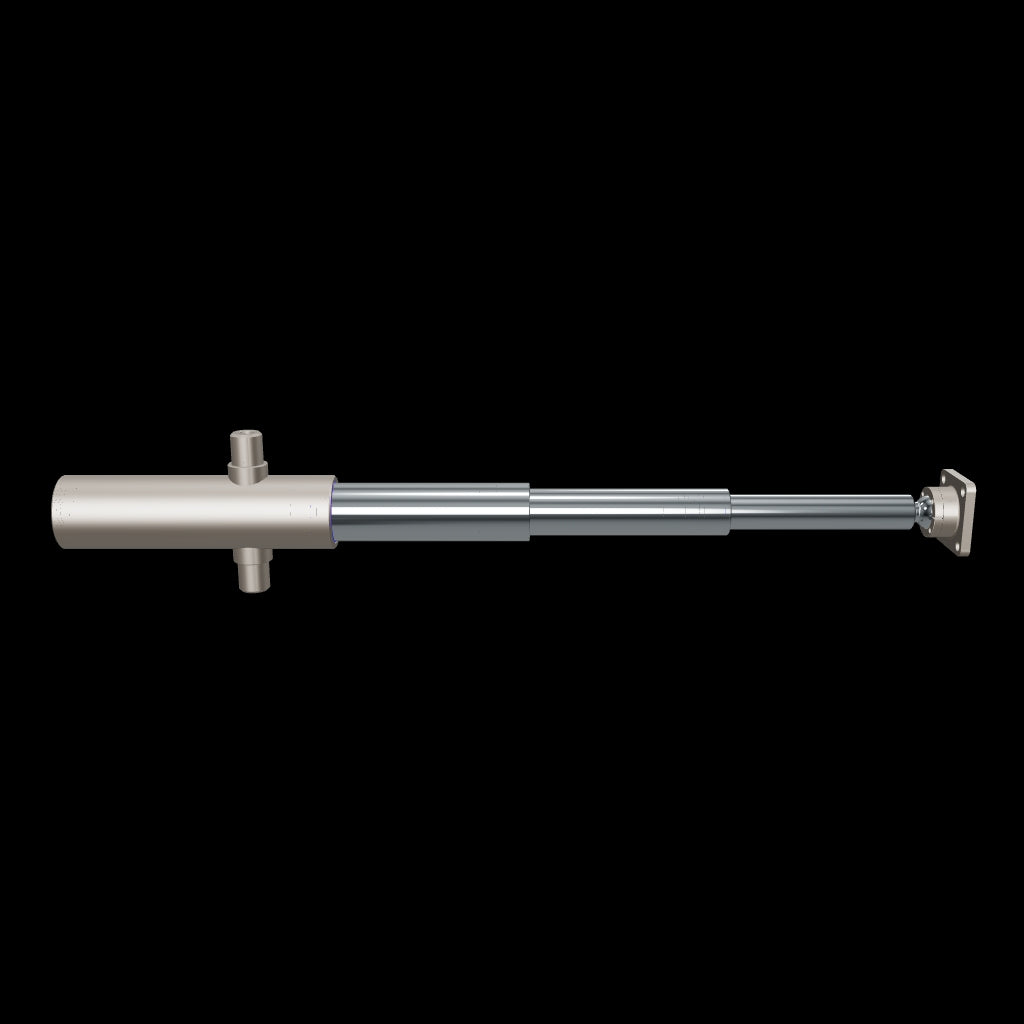

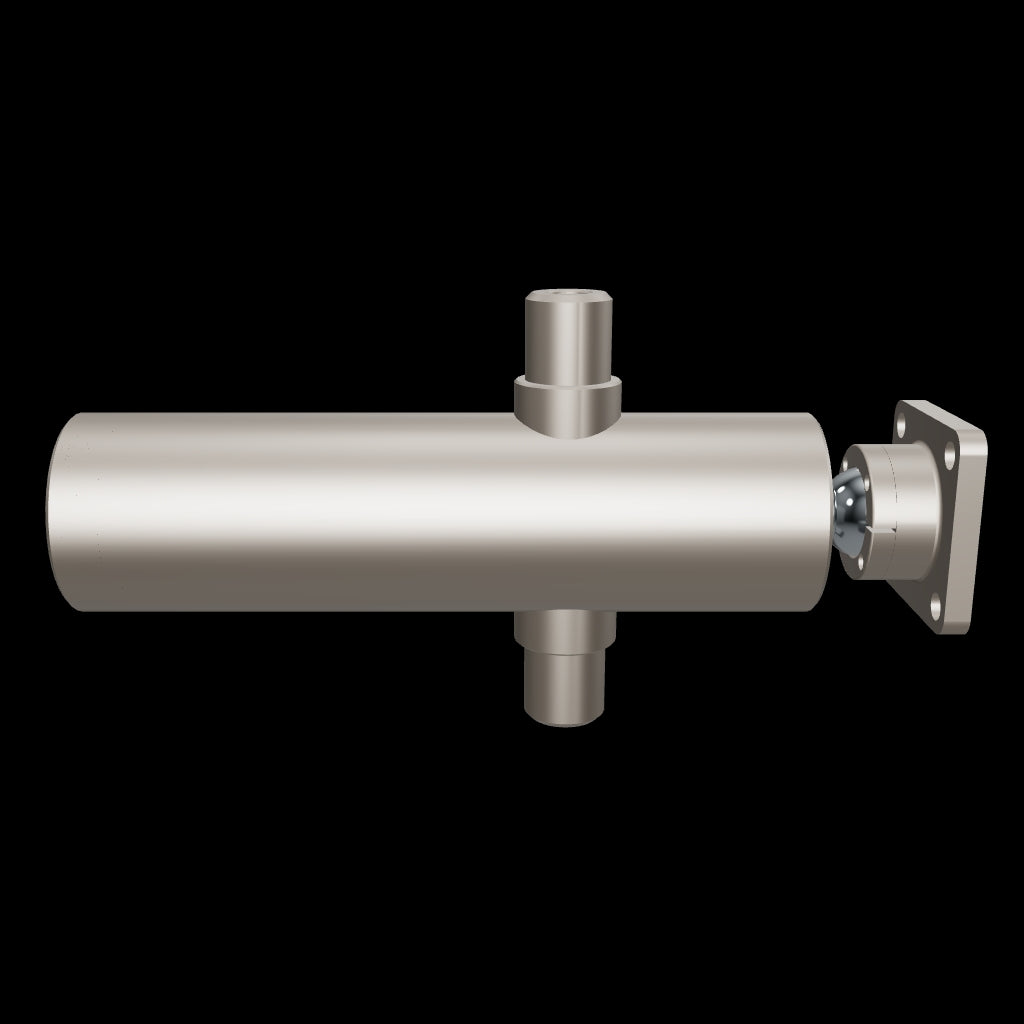

8-Ton 3-Stage Hydraulic Telescopic Tipping Cylinder - 730mm Stroke

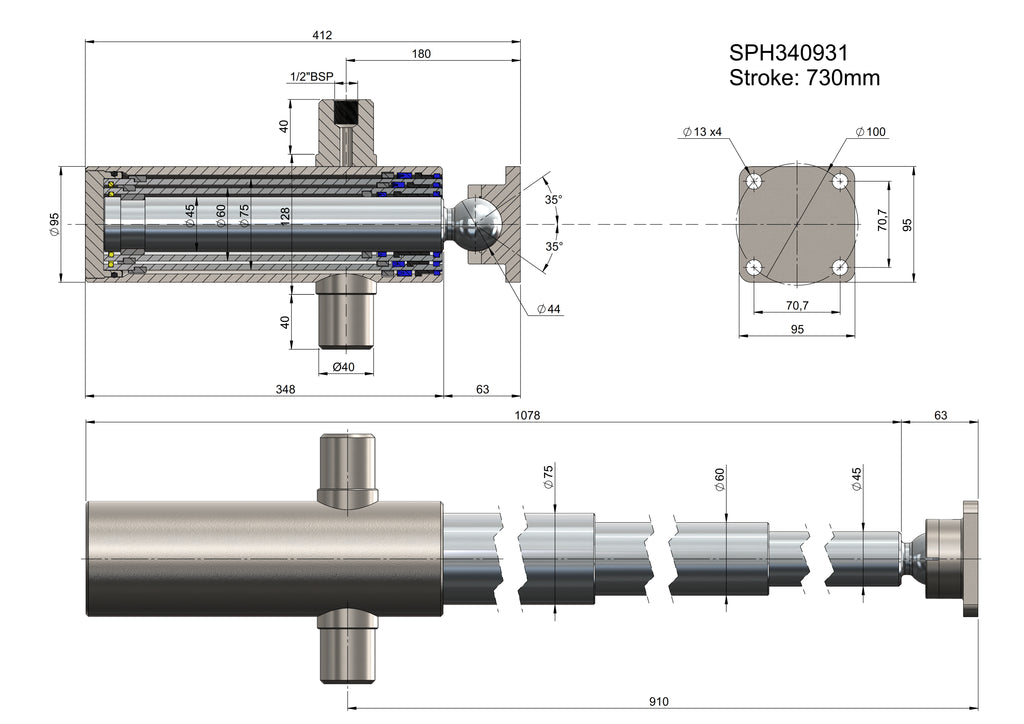

Upgrade your tipper trailer or commercial dumping vehicle with our high-performance Hydraulic Telescopic Tipping Cylinders. Engineered for heavy-duty agricultural and industrial applications, these high-pressure hydraulic rams deliver reliable lifting performance and smooth, effortless unloading under demanding site conditions. Please refer to the technical drawing in the image gallery for exact stroke dimensions, stage counts, and mounting measurements.

Premium Quality Standards: Corrosion Protection & Heavy-Duty Strength

Engineered for long-lasting durability in harsh outdoor environments and demanding agricultural conditions, every cylinder is manufactured with top-tier industrial components:

• Heavy-Duty Steel Swivel Joint: Premium steel construction designed for seamless welding or bolted mounting, offering superior resistance against intense torsional stress during tipping.
• Precision-Finished Seamless Tubes: Cold-drawn seamless steel tubes (NFA 49311/312 & C35R) machined, ground, and polished to Ra < 0.4μ for smooth extension and extended seal life.
• Corrosion-Protected Black Finish: Exterior surfaces are coated with a protective moisture-resistant black paint layer to prevent oxidation and withstand harsh site weather.
• Advanced Leak-Free Sealing: High-grade compact polyurethane lip seals, wiper seals, and Shore 80 O-rings ensure zero fluid leakage even under peak 200-bar operating pressure.

Technical Specifications & Operating Limits

Operational Recommendations & Maintenance

The normal operation of a telescopic cylinder consists of regular lifting of a tipper body to progressively empty its load. A tipping system is solely a lifting device; under no circumstances should it be used to stabilize or guide the tipper body.

• System Protection: Always protect the hydraulic circuit using an appropriately set relief valve and a high-purity oil filter.
• Circuit Purging: Ensure all air is bled from the hydraulic circuit and cylinder before initial operation.
• No Mechanical Stop: Do not use the tipping system as a mechanical hard-stop at maximum extension.
• Resting Gap: In the stowed (lowered) position, ensure a gap of at least 20mm to 30mm remains between the tipper body and cylinder. Never allow the body weight to rest on the cylinder.
• Storage & Cleaning: Apply protective grease to the cylinder rod before extended storage. Protect the cylinder shaft and trunnions during high-pressure steam cleaning.

Safety Procedures & Risk Prevention

Before initiating any tipping procedure, verify the following checklist:

• The ground surface is firm, stable, and completely flat.
• The payload is within vehicle limits and evenly distributed across the trailer bed.
• The working perimeter is completely clear of bystanders and overhead obstacles.
• Tyre pressures are correctly set across all wheels.
• Pay attention to sticky loads (e.g., wet soil, clay): Strong load adhesion can offset the center of gravity and cause vehicle rollover.

WARNING: Non-compliance with safety procedures may cause extreme internal over-pressures and unallowed transverse side-loads, resulting in equipment failure and severe risk to the operator.
