Size group 40/30
Bore: 40 mm.
Rod diameter: 30 mm.
Stroke: 200, 250, 300, 350, 400, 500 mm.
Standard 40/30-Stroke
Standard 50/40-Stroke
Standard 60/50-Stroke

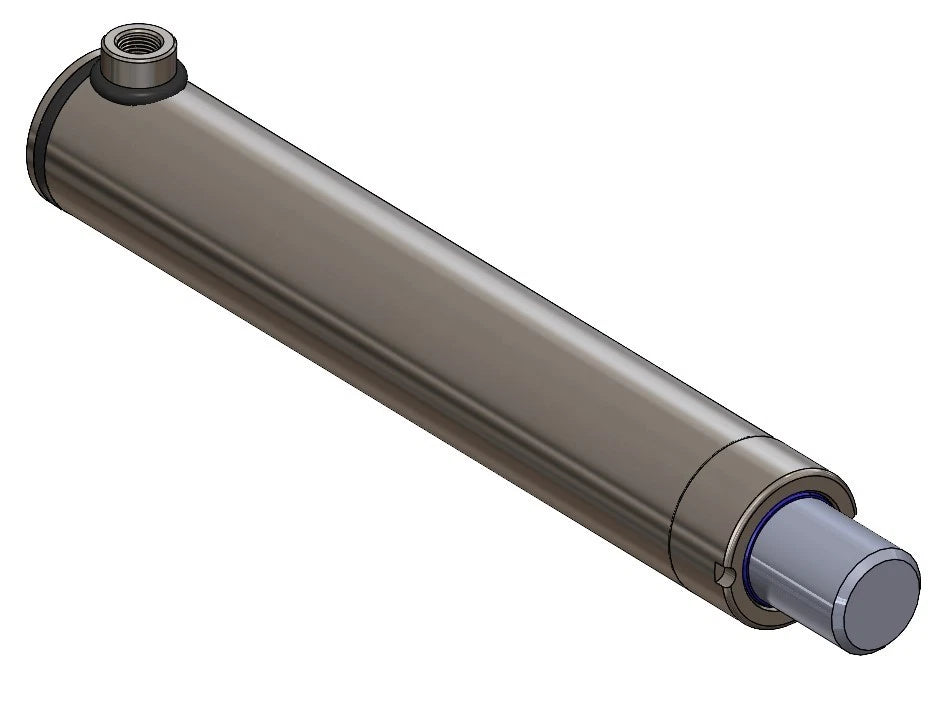

Standard single-acting hydraulic cylinders. Without pre-drilled mounting holes at the base or rod end. Check how the cylinder will be mounted in your structure and compare the overall dimensions with the drawing. Compare 3 metric size groups and 15 stroke variants with direct SPH product links.
Oil pressure extends these cylinders. Retraction requires the load, gravity or another external force from the machine. The installation must allow this return movement. If you need hydraulic force in both directions, compare the double-acting cylinders.

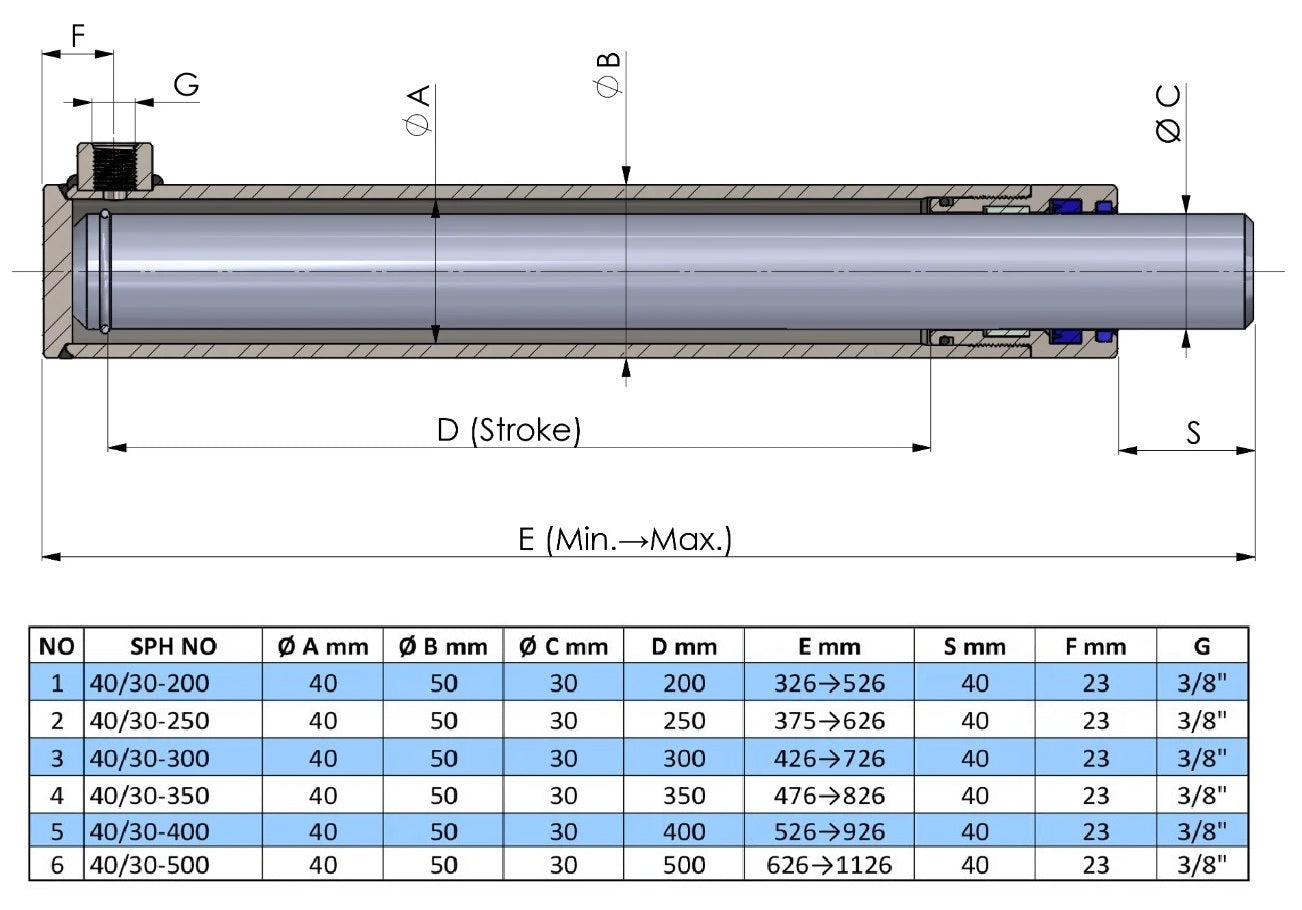

The size code 40/30 means a 40 mm bore and a 30 mm rod diameter. It does not specify the mounting-hole diameter. Stroke is the extension travel. Check installation space and load as well; do not select by the size code alone. All dimensions below are in millimetres.
Bore: 40 mm.
Rod diameter: 30 mm.
Stroke: 200, 250, 300, 350, 400, 500 mm.
Bore: 50 mm.
Rod diameter: 40 mm.
Stroke: 200, 300, 400, 500, 600 mm.

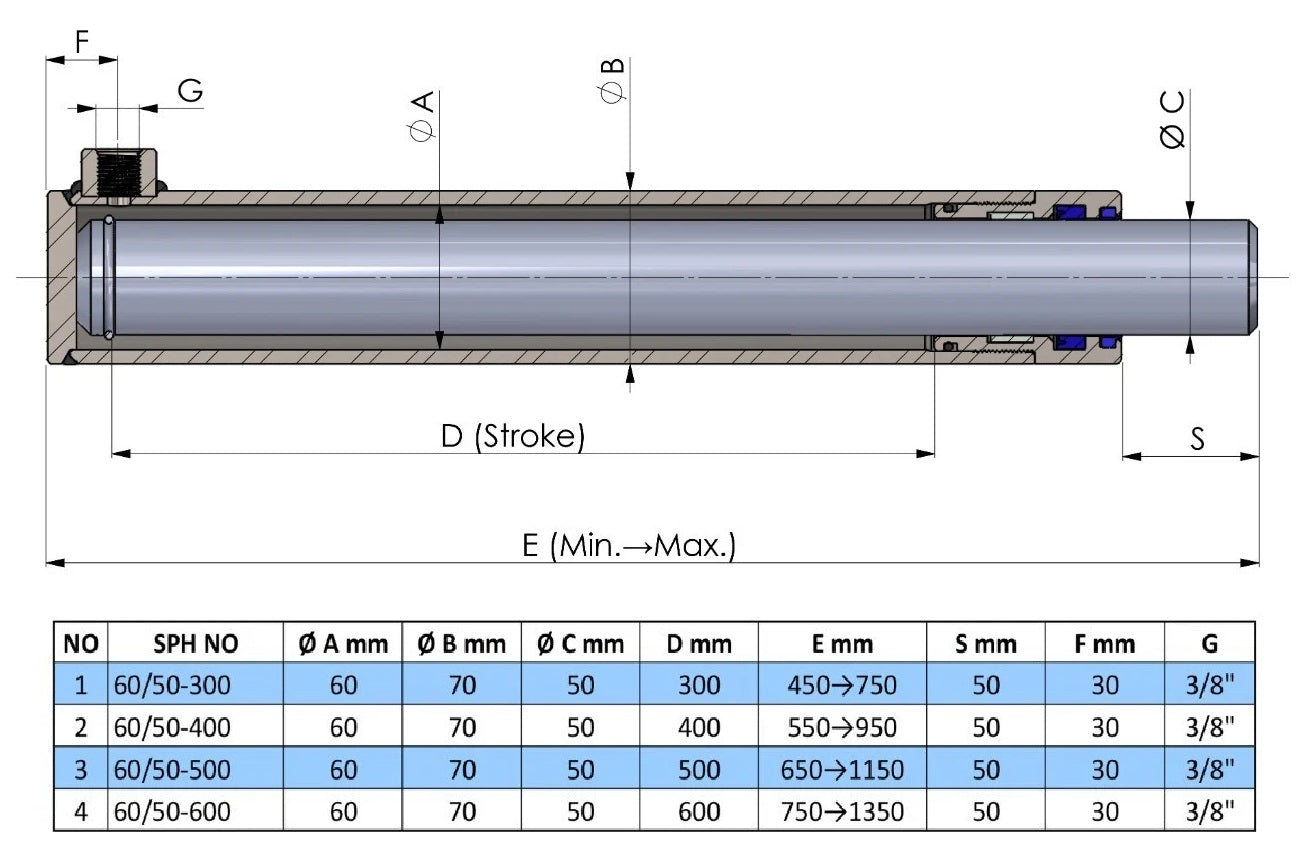

Bore: 60 mm.
Rod diameter: 50 mm.
Stroke: 300, 400, 500, 600 mm.
Once you know the size and stroke, open the relevant version and select the SPH code. Tables can be scrolled sideways on narrow screens.
For the version with transverse mounting holes, the drawing length is measured between the centres of the mounting holes. For the standard version, it is the overall length from the rear face of the cylinder base to the rod tip. These are different measurements. Use the measuring points on the product drawing and check both the retracted and extended positions.
With transverse mounting holes — Single-acting hydraulic cylinders
The recommended working pressure for these cylinder groups is 180 bar; the maximum pressure is 250 bar. Also check stroke, mounting, alignment and load for your application. Maximum pressure alone does not determine whether a cylinder suits your machine.
Without pre-drilled mounting holes at the base or rod end. Check how the cylinder will be mounted in your structure and compare the overall dimensions with the drawing.
Compare all other dimensions first: size group, mounting, installation length, available space, system pressure and hydraulic connection. Check that the machine can still provide the return movement.
Single-acting hydraulic cylinders · All hydraulic cylinders
These cylinders are not hydraulically pulled back through a second oil port. The load, gravity or another external force from the machine must provide the return movement.
The transverse-hole version has mechanical mounting holes at both ends. The standard version does not have these pre-drilled holes. Length measuring points also differ; check the product drawing.
Compare all other dimensions first: size group, mounting, installation length, available space, system pressure and hydraulic connection. Check that the machine can still provide the return movement.
Send the required stroke, available installation space and photos of the cylinder and machine mounting via WhatsApp. Include the bore and rod diameter if known.
