Hydraulic hand pumps
Operate your hydraulic cylinder manually with a suitable hydraulic hand pump. Choose models for single-acting or double-acting cylinders, with or without an oil reservoir. Compare connections, working pressure, oil delivery per stroke and required reservoir capacity before ordering.
Which hydraulic hand pump do you need?
For single-acting cylinders
The pump supplies oil for movement in one direction. The cylinder returns under load, gravity or spring force, through a suitable return or lowering arrangement.
For double-acting cylinders
Choose a pump configuration with suitable directional control to supply each cylinder chamber in turn. Check the connections and valve operation on the product page.
Oil reservoir and installation

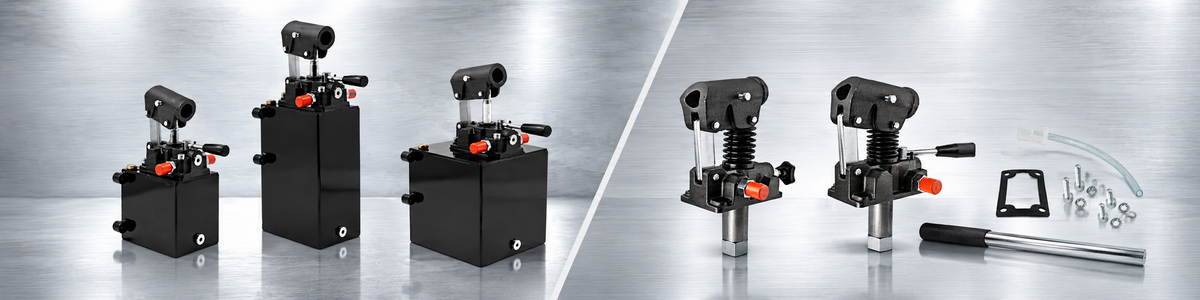

Choose a pump with a tank or combine a compatible hand pump with a suitable reservoir. Check usable oil capacity, mounting points and permitted installation orientation.
Compare working pressure, displacement and connections
Select a hand pump to suit the complete installation. Matching connection sizes or a similar appearance alone do not establish compatibility.
- Cylinder type and control: check that the pump and valve suit your single-acting or double-acting cylinder.
- Working pressure: match the pump to the permitted pressure of the cylinder, hoses and other components. A higher maximum pump pressure does not automatically mean a suitable combination.
- Oil delivery per stroke: compare the specified displacement. It affects the number of operating strokes needed to move the cylinder. Pump displacement is different from reservoir capacity.
- Threads: compare thread type, size and sealing method. NPTF connections, for example, are not automatically interchangeable with other thread types.
- Reservoir capacity: check oil requirements over the full cylinder stroke, taking account of the installation and specified oil level.
- Installation: check orientation, mounting dimensions and sufficient clearance for the pump handle.
Manual operation or cordless drill drive?
A hand pump is practical for occasional operation, maintenance and applications without a fixed power supply, such as a compatible tipping system or mobile machine. Suitability depends on the required pressure, oil volume and controls.

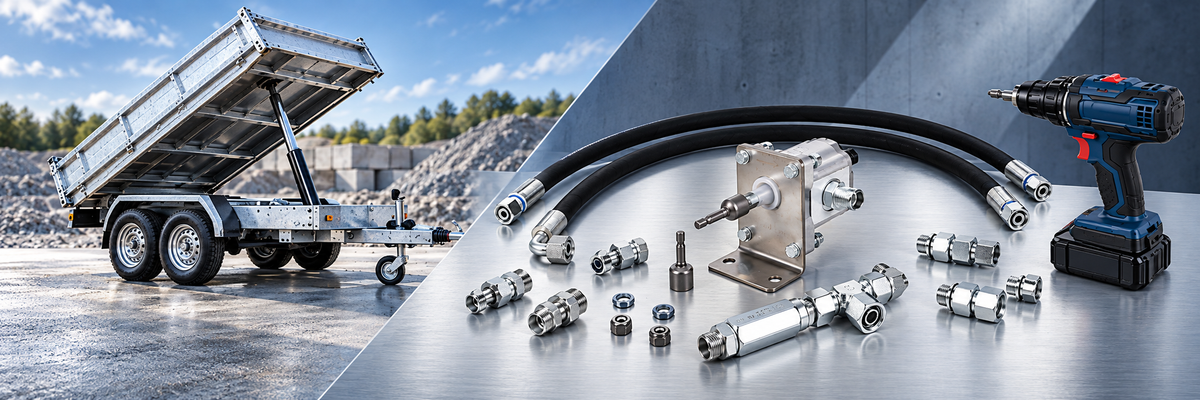

This collection also includes the hydraulic pump kit for cordless drill drive. It is a separate alternative for a compatible tipping trailer, not a conventional hand pump. Check the product specifications against your existing installation.
Frequently asked questions about hydraulic hand pumps
Can I use any hand pump with my hydraulic cylinder?
No. Check cylinder type, valve function, working pressure, connections and oil capacity. For a double-acting cylinder, the system must supply both chambers alternately and provide a return path for the oil.
How do I determine the required reservoir capacity?
Use the oil requirement of your cylinder over its full stroke and the other parts of the installation. Compare this with usable reservoir capacity and the specified oil level. The nominal tank volume is not always fully available to pump into the cylinder.
What does displacement per stroke mean?
It is the stated quantity of oil the pump delivers per operating stroke. Check how this value is specified for each product. Your cylinder's oil requirement helps determine how many strokes are needed.
Are a reservoir and pump handle always included?
This varies by product and variant. The range includes pumps with tanks and separate oil reservoirs. Check the package contents on the product page before ordering.
Order your hydraulic hand pump
Choose a suitable model above and check technical specifications and package contents on the product page, where current prices and availability are also shown.
Unsure whether it suits your cylinder? Ask us for help choosing and send the cylinder specifications, connection sizes and a photo of your existing installation.
