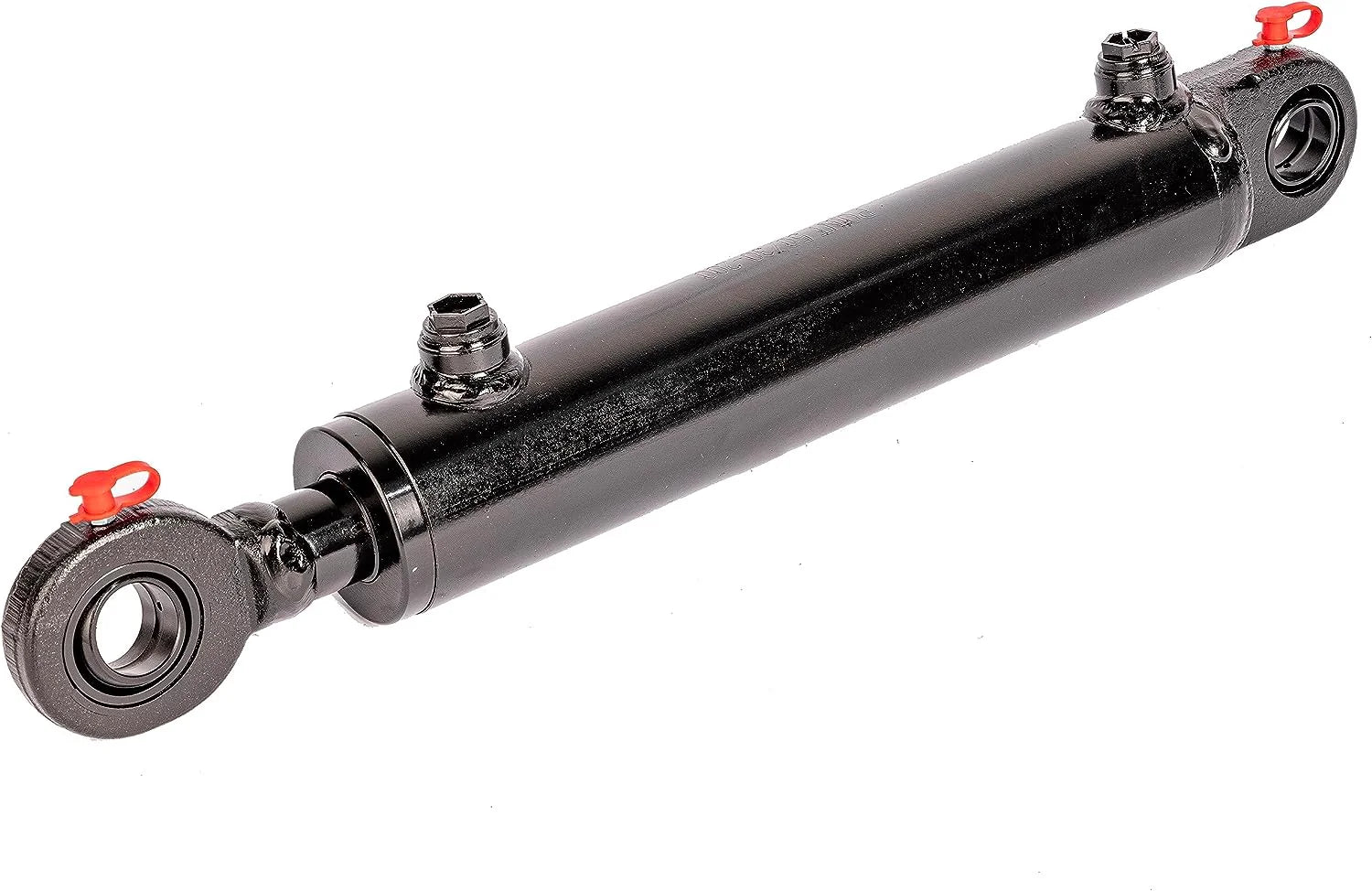

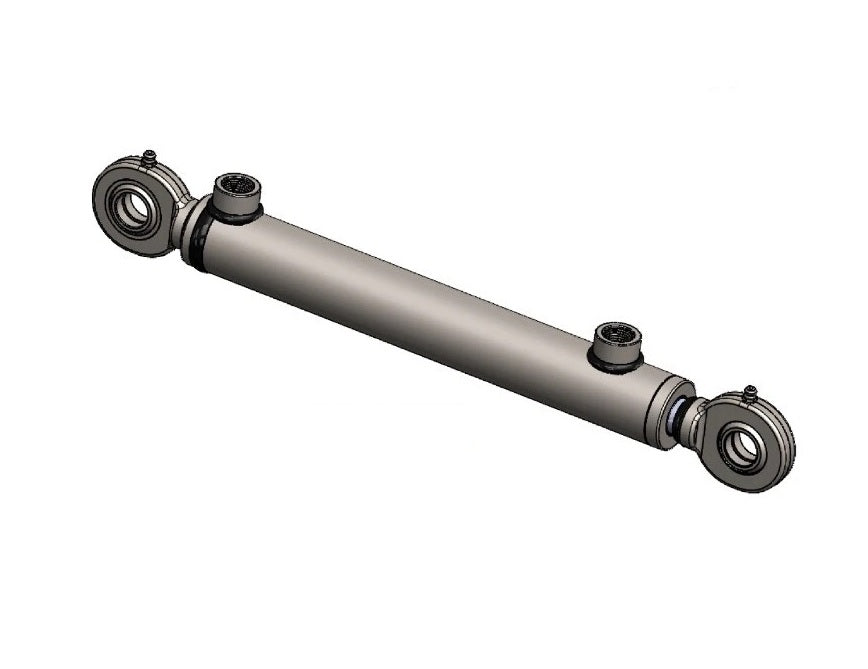

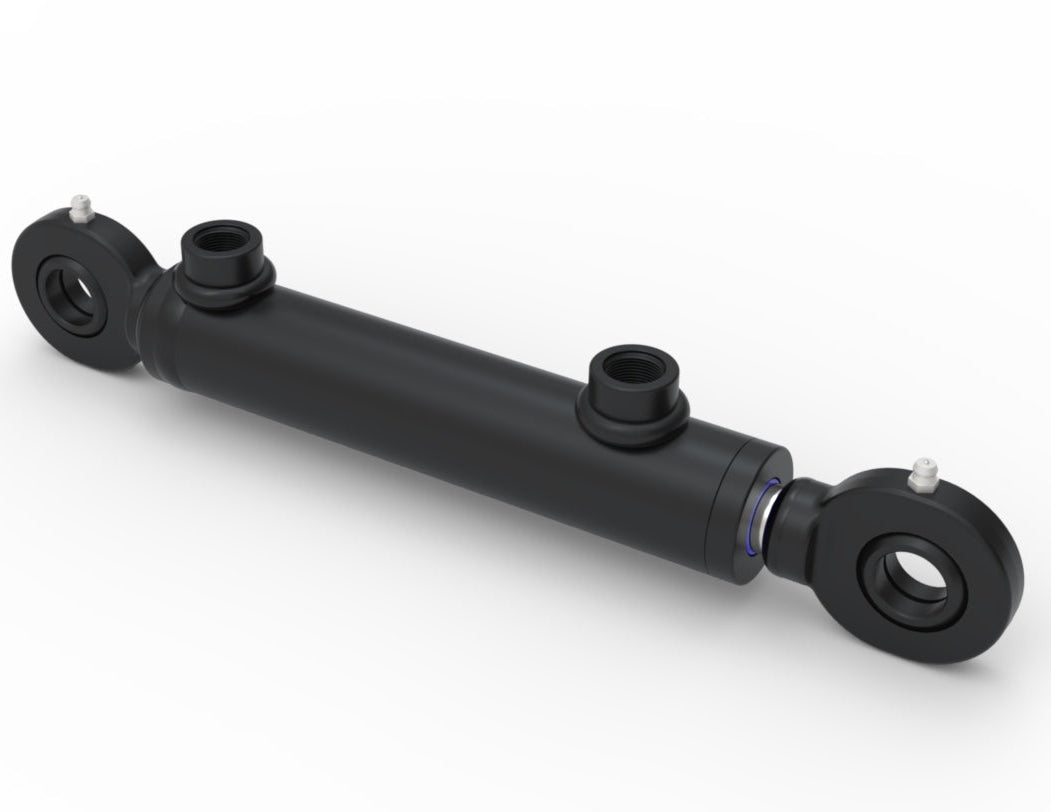

This collection includes double acting hydraulic cylinders with ball joints, designed for applications requiring controlled push and pull force while allowing angular movement at the mounting points.

Ball joints — also known as spherical bearings or heim joints — allow the hydraulic cylinder to compensate for misalignment during operation. This reduces side loading on the piston rod and ensures smoother, more reliable performance in demanding environments.

Typical Applications

• Agricultural machinery and implements with varying working angles
• Loaders and lifting systems exposed to frame movement
• Trailers and transport equipment requiring articulated motion
• Industrial machines where alignment shifts under load

Why Choose Ball Joint Hydraulic Cylinders?

Unlike rigid-mounted cylinders, ball joint hydraulic cylinders provide flexibility at the mounting points. This allows for angular misalignment and reduces stress on both the cylinder and surrounding components.

• Compensates for misalignment
• Reduces side load and wear
• Improves operational reliability
• Extends service life in dynamic applications

Construction and Durability

All cylinders in this collection are manufactured from high-strength steel and equipped with chrome-plated piston rods to minimize wear and corrosion. Durable sealing systems ensure leak-free performance and consistent operation across agricultural, industrial, and mobile hydraulic systems.

Technical Considerations

When selecting a hydraulic cylinder, consider the following:

• Bore size and rod diameter
• Stroke length
• Ball joint (spherical bearing) dimensions
• Working pressure and load requirements

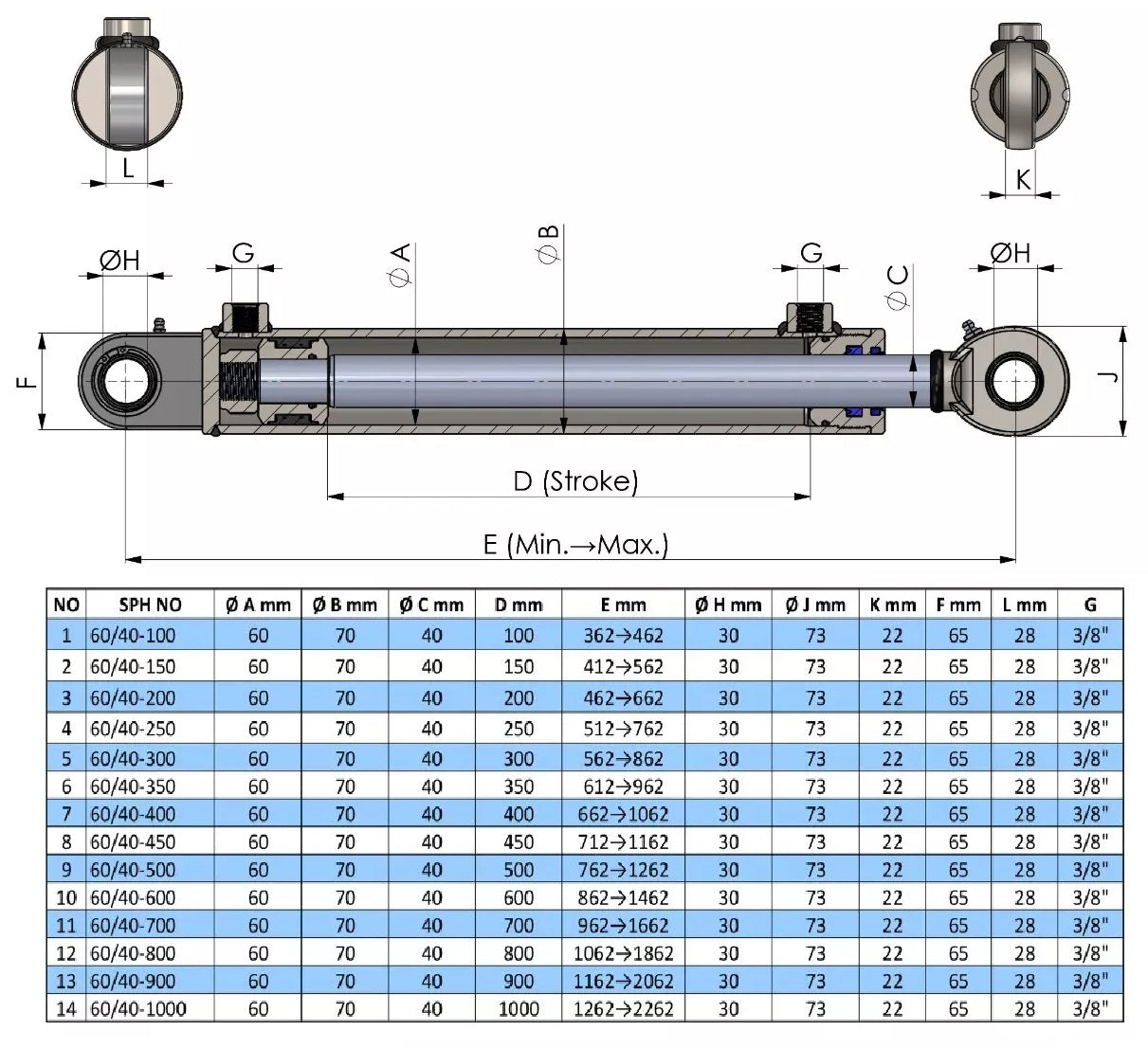

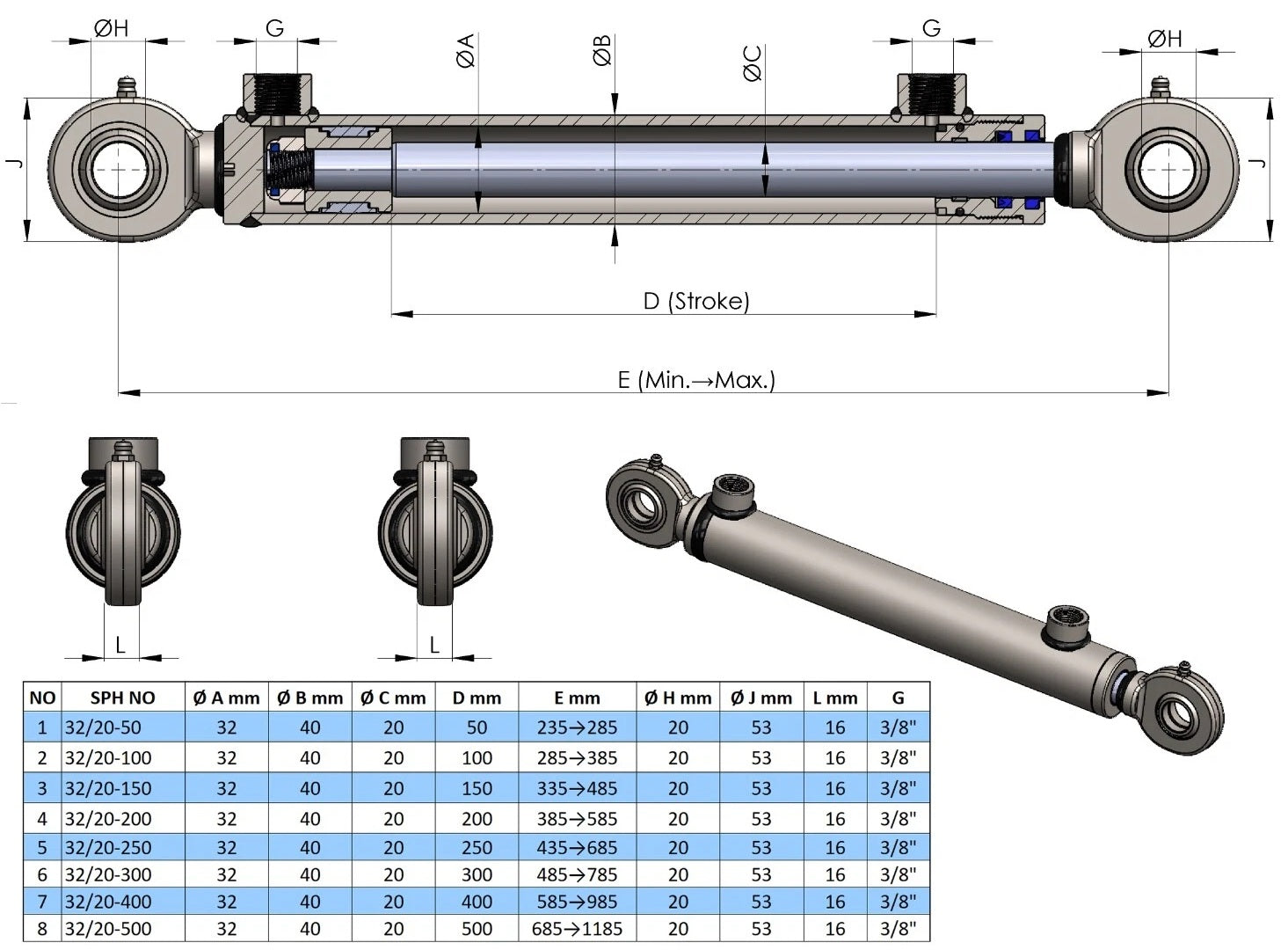

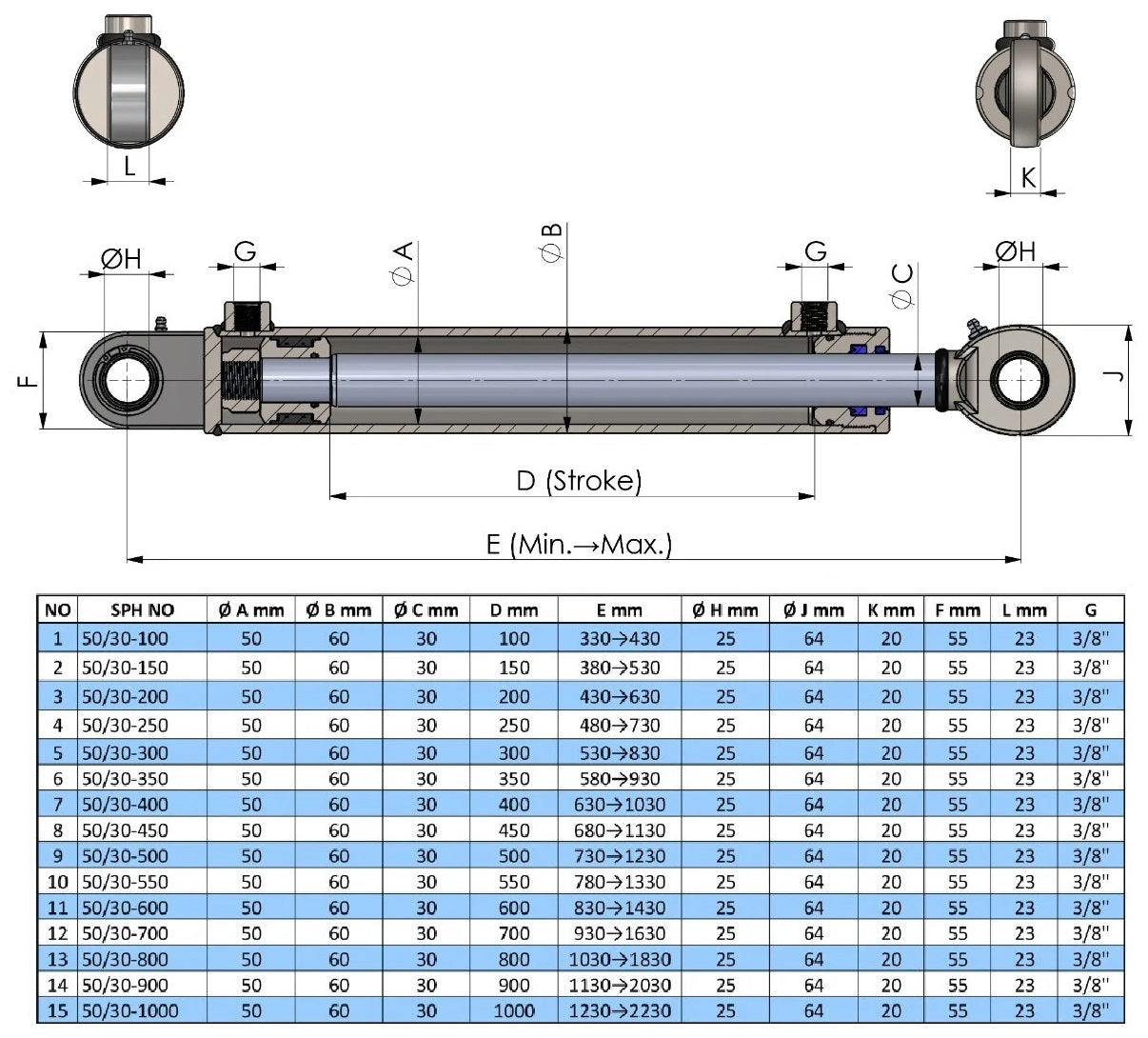

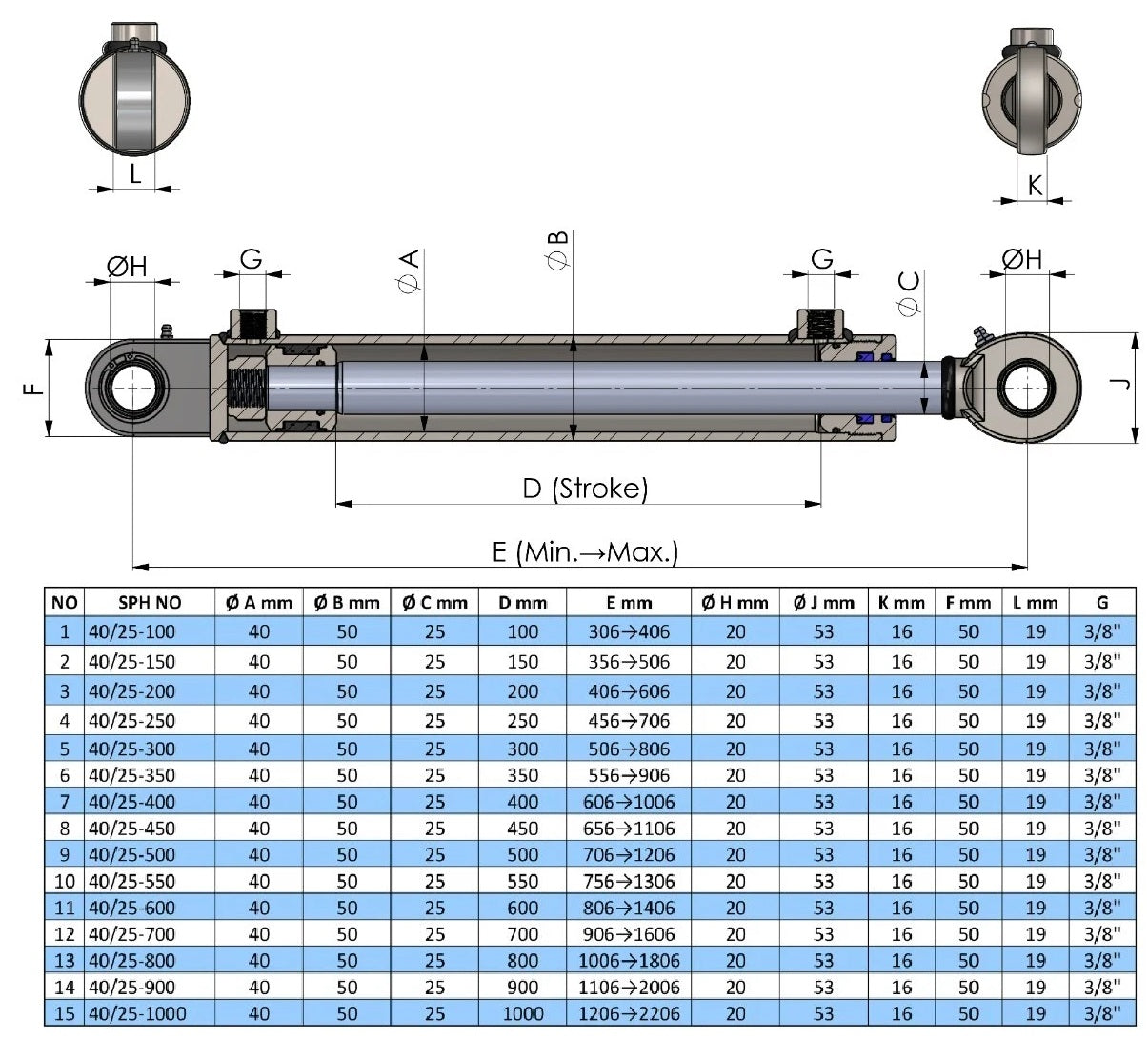

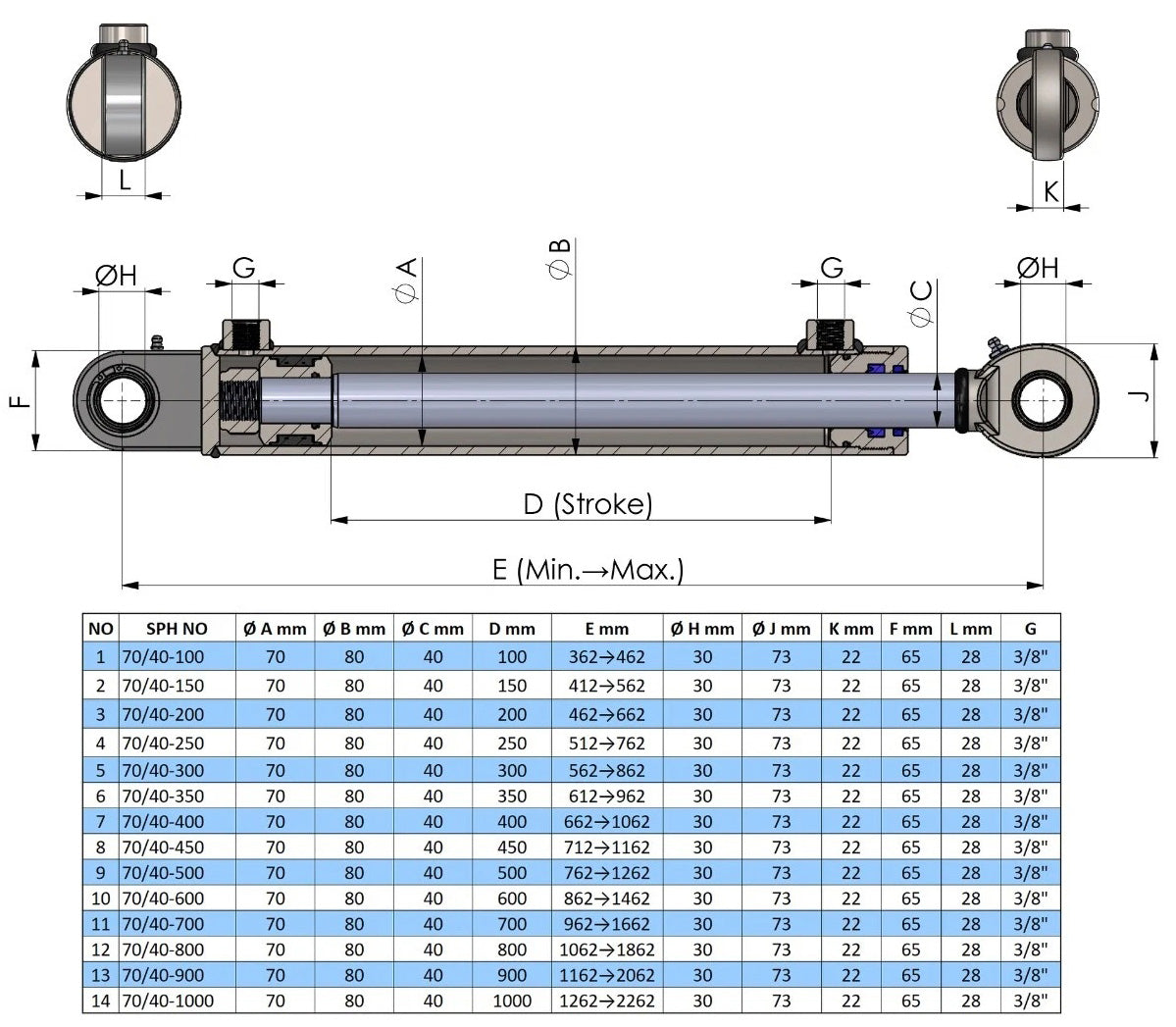

Each product page includes detailed technical specifications to help you choose the correct cylinder for your application.

Alternative Hydraulic Cylinders

For applications such as steering systems or power steering, dedicated steering hydraulic cylinders are available. These are designed to match specific steering geometry and operating conditions.

Fast Shipping Across the USA

All double acting hydraulic cylinders with ball joints are available with fast delivery across the United States, helping reduce downtime and keep your equipment running.
