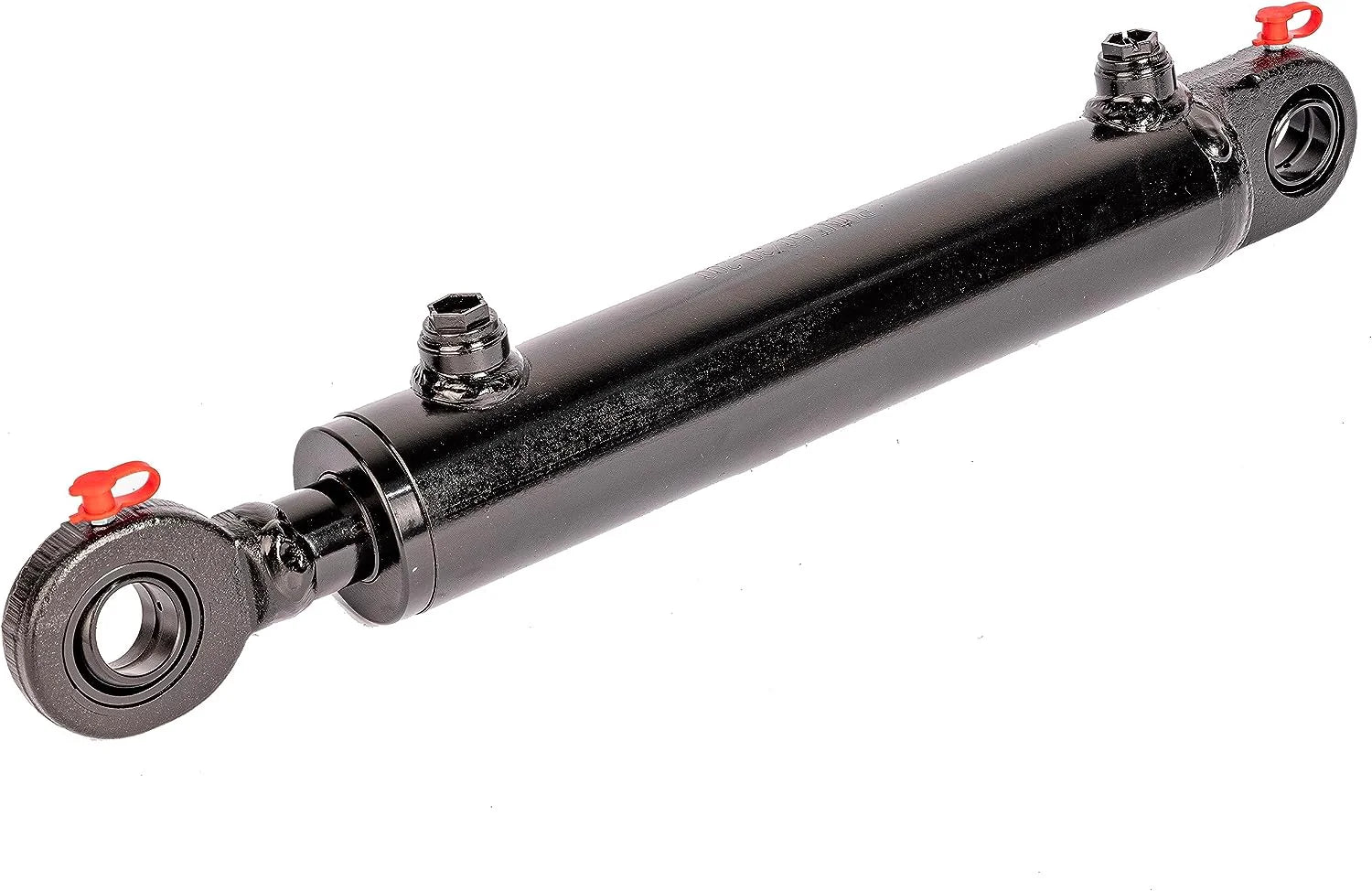

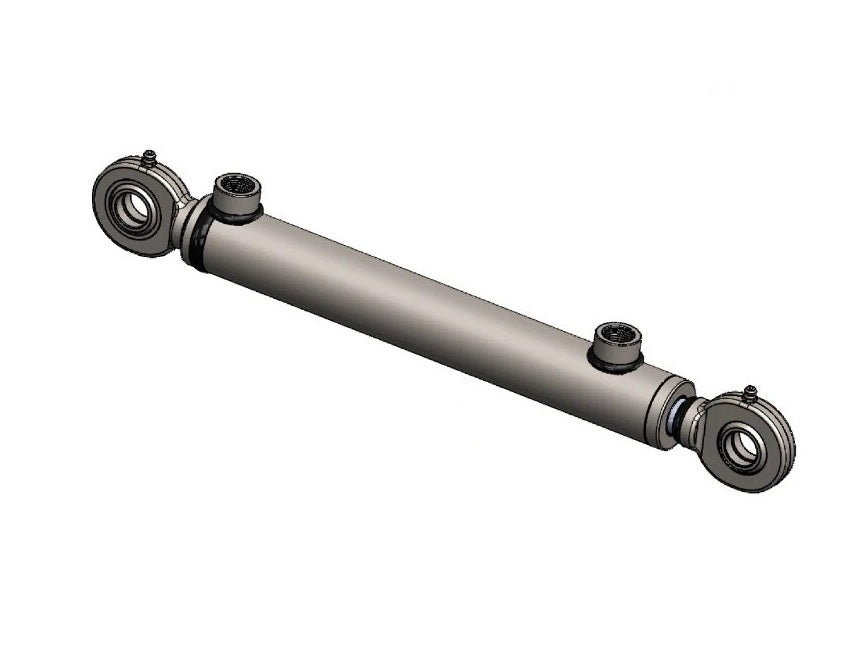

Double Acting Hydraulic Cylinder With Industrial Ball Joints (32/20)

This double acting hydraulic cylinder with industrial ball joints (32/20) is engineered for heavy-duty agricultural, construction, and industrial applications. Designed with integrated spherical bearings (ball joints), this cylinder allows angular movement and reduces stress on mounting points, making it ideal for dynamic applications.

Also referred to as a hydraulic cylinder with spherical bearings or heim joint ends, this design ensures smooth operation even when alignment is not perfectly straight. This significantly improves durability and reduces wear compared to fixed mounting types.

The cylinder is delivered fully assembled and ready for immediate installation. Its innovative piston design includes a special locking ring, ensuring secure operation and enhanced reliability under high loads.

Key Features

• Integrated ball joints (spherical bearings) for flexible mounting
• Fully assembled – ready to install
• Heavy-duty steel construction
• 3/8" hydraulic ports
• Hard chrome-plated piston rod for reduced wear and corrosion
• Innovative piston design with locking ring for added safety

Advantages

• Compensates for misalignment and angular movement
• Reduces mechanical stress on the cylinder and frame
• Long service life in demanding environments
• High operational safety and reliability

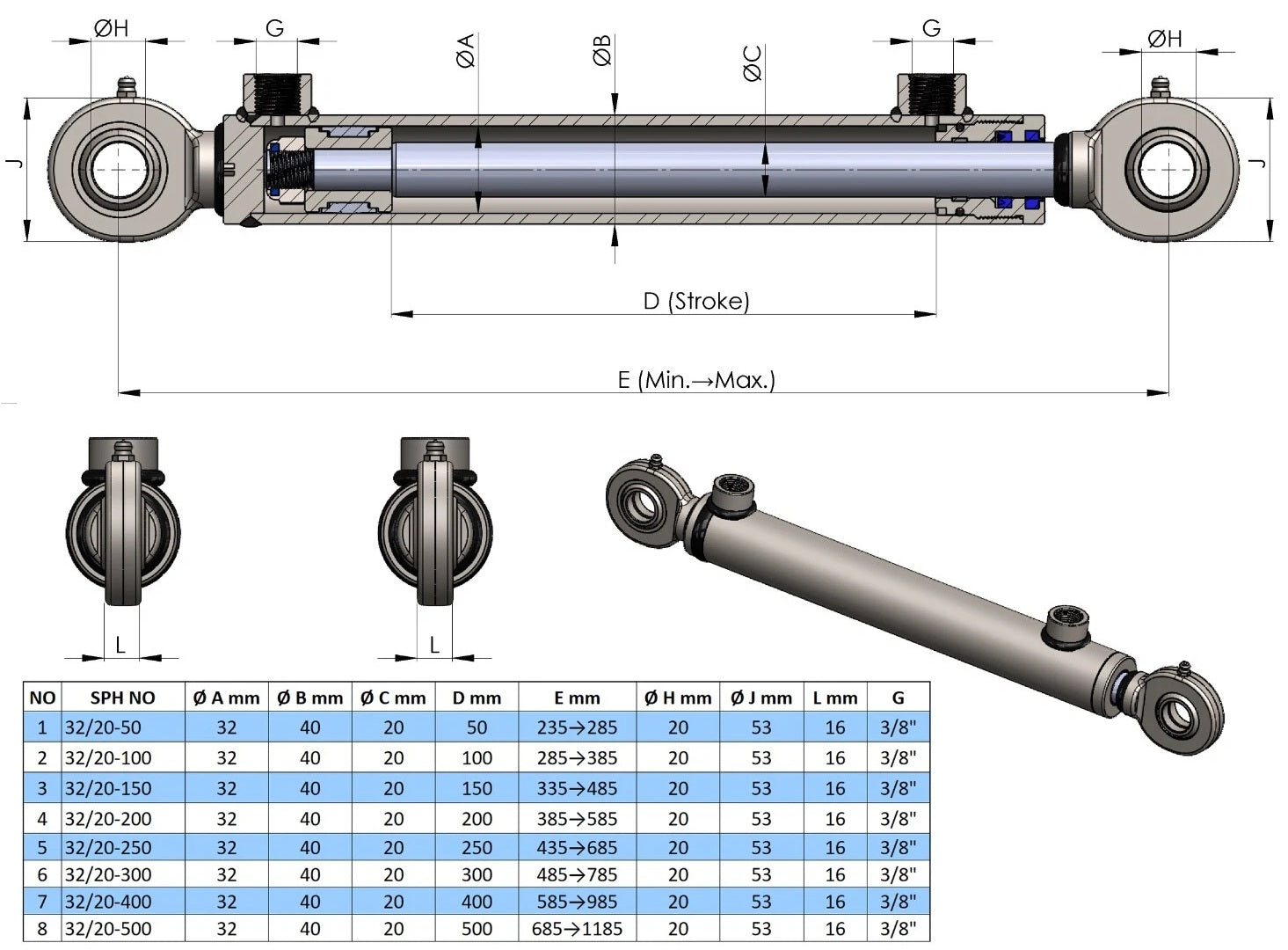

Technical Specifications

• Type: Double acting hydraulic cylinder with ball joints
• Bore / Rod: 32 mm / 20 mm (1.26" / 0.79")
• Ports: 3/8
• Working pressure: up to 2610 PSI (180 bar)
• Peak pressure: up to 3625 PSI (250 bar)
• Medium: Mineral oil (HLP ISO VG 32 – 46)
• Oil cleanliness: ISO 4406 22/20/17 or NAS 9
• Max radial load: 10% of axial force
• Interchangeable with many common brands

Performance Data at 2610 PSI (180 bar)

• 25 / 16 mm: Push 1,984 lbf (0.90 tons) / Pull 1,102 lbf (0.50 tons)
• 32 / 20 mm: Push 3,197 lbf (1.45 tons) / Pull 1,874 lbf (0.85 tons)
• 40 / 25 mm: Push 5,071 lbf (2.30 tons) / Pull 3,086 lbf (1.40 tons)
• 50 / 30 mm: Push 7,937 lbf (3.60 tons) / Pull 5,071 lbf (2.30 tons)
• 60 / 30 mm: Push 11,243 lbf (5.10 tons) / Pull 8,378 lbf (3.80 tons)
• 60 / 40 mm: Push 11,243 lbf (5.10 tons) / Pull 6,173 lbf (2.80 tons)
• 63 / 35 mm: Push 12,566 lbf (5.70 tons) / Pull 8,598 lbf (3.90 tons)
• 70 / 40 mm: Push 15,432 lbf (7.00 tons) / Pull 10,361 lbf (4.70 tons)

Note: Force values are approximate and may vary depending on system pressure, oil type, and operating conditions.

Important Notes

• All cylinders are coated with industrial black paint for corrosion protection
• Minor scratches may occur during transport and are not considered defects
• Protect the cylinder from welding spatter during installation

Applications

Ideal for tractors, agricultural implements, construction equipment, and industrial machinery requiring flexible mounting and reliable push-pull force.

Why Choose Ball Joint Cylinders?

• Better alignment tolerance than clevis or rigid mounts
• Ideal for dynamic and moving applications
• Extended lifespan due to reduced side loading
