Double Acting Hydraulic Cylinders with Tube Ends

This collection includes double acting hydraulic cylinders with tube ends, designed for hydraulic applications where controlled pushing and pulling force is required and a rigid, fixed connection is used. These cylinders are suitable for agricultural, industrial, transport, and mobile hydraulic systems.

The cylinders are supplied with fixed tube ends on the cylinder body and piston rod. This design is intended for applications where the mounting is integrated into the machine structure and where no articulated end connections such as clevises or eyes are required.

Typical Applications

Double acting hydraulic cylinders with tube ends are used in systems where a fixed installation is required and where the movement is primarily linear.

• Agricultural machinery and implements with fixed cylinder mountings
• Industrial machines with integrated cylinder constructions
• Dump trailers and lifting systems with rigid mounting points
• Mobile hydraulic applications with limited angular movement

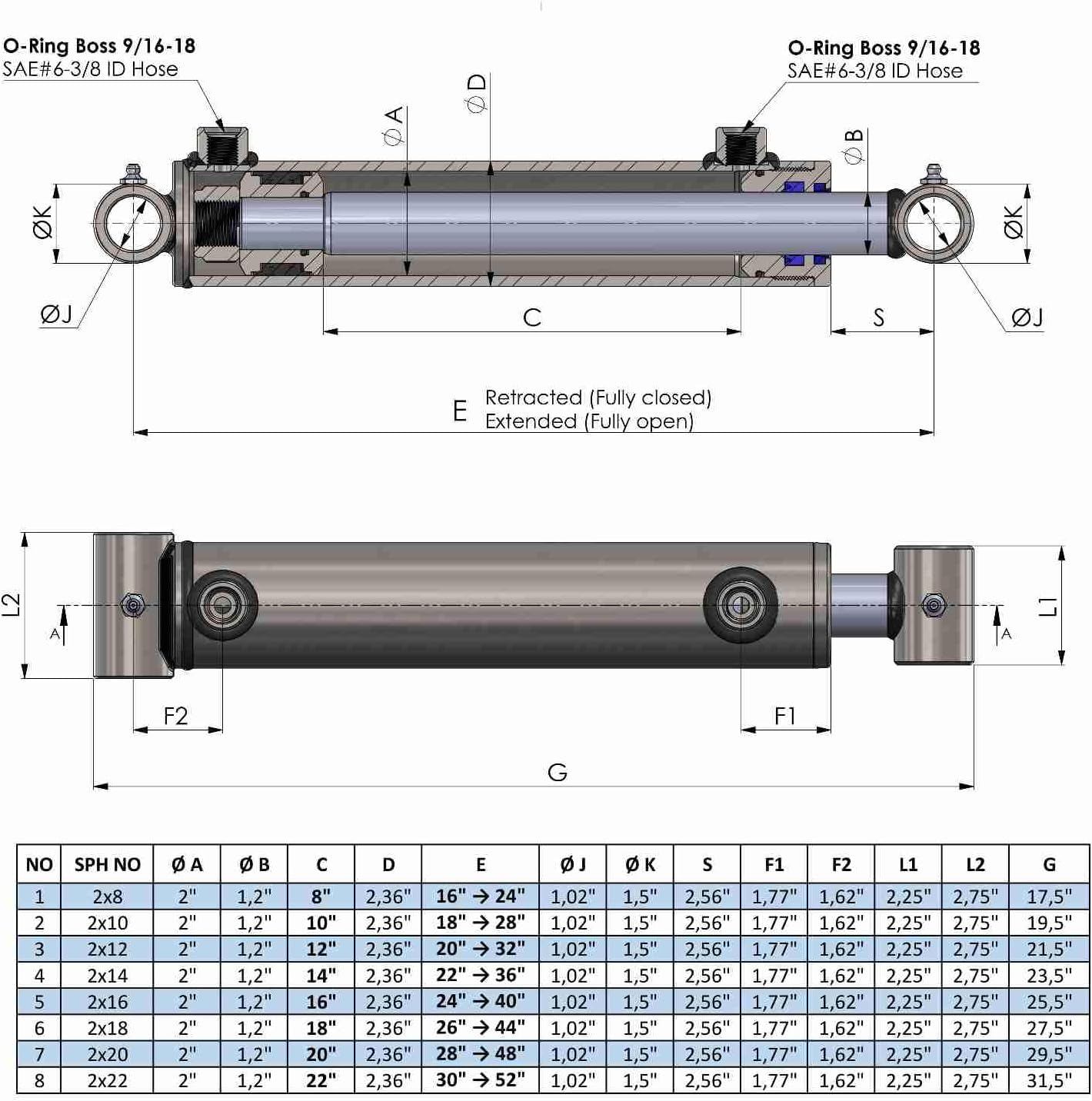

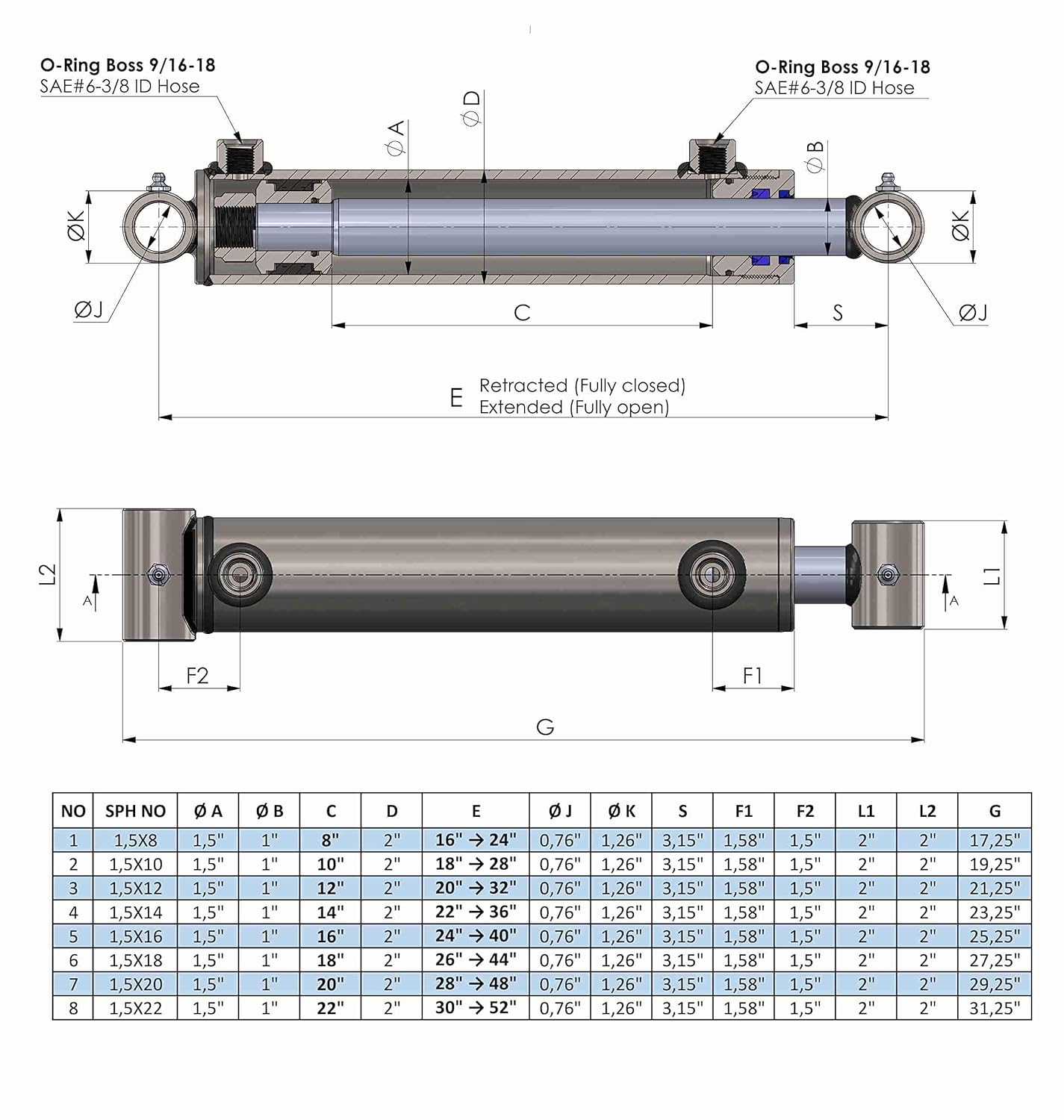

Tube Ends Explained

In this design, the ends of the cylinder tube and piston rod are executed as tube ends. This provides a strong, rigid connection and makes these cylinders suitable for applications where no additional articulation at the mounting points is required.

Construction and Reliability

All double acting hydraulic cylinders with tube ends are manufactured from high-quality steel and equipped with chrome-plated piston rods to reduce wear and corrosion. Reliable sealing systems ensure leak-free operation and consistent performance under demanding operating conditions.

Select the Correct Hydraulic Cylinder

Select the appropriate hydraulic cylinder based on bore size, stroke length, operating pressure, and the mounting method. Each product page provides the relevant technical specifications to ensure correct selection and safe operation.
