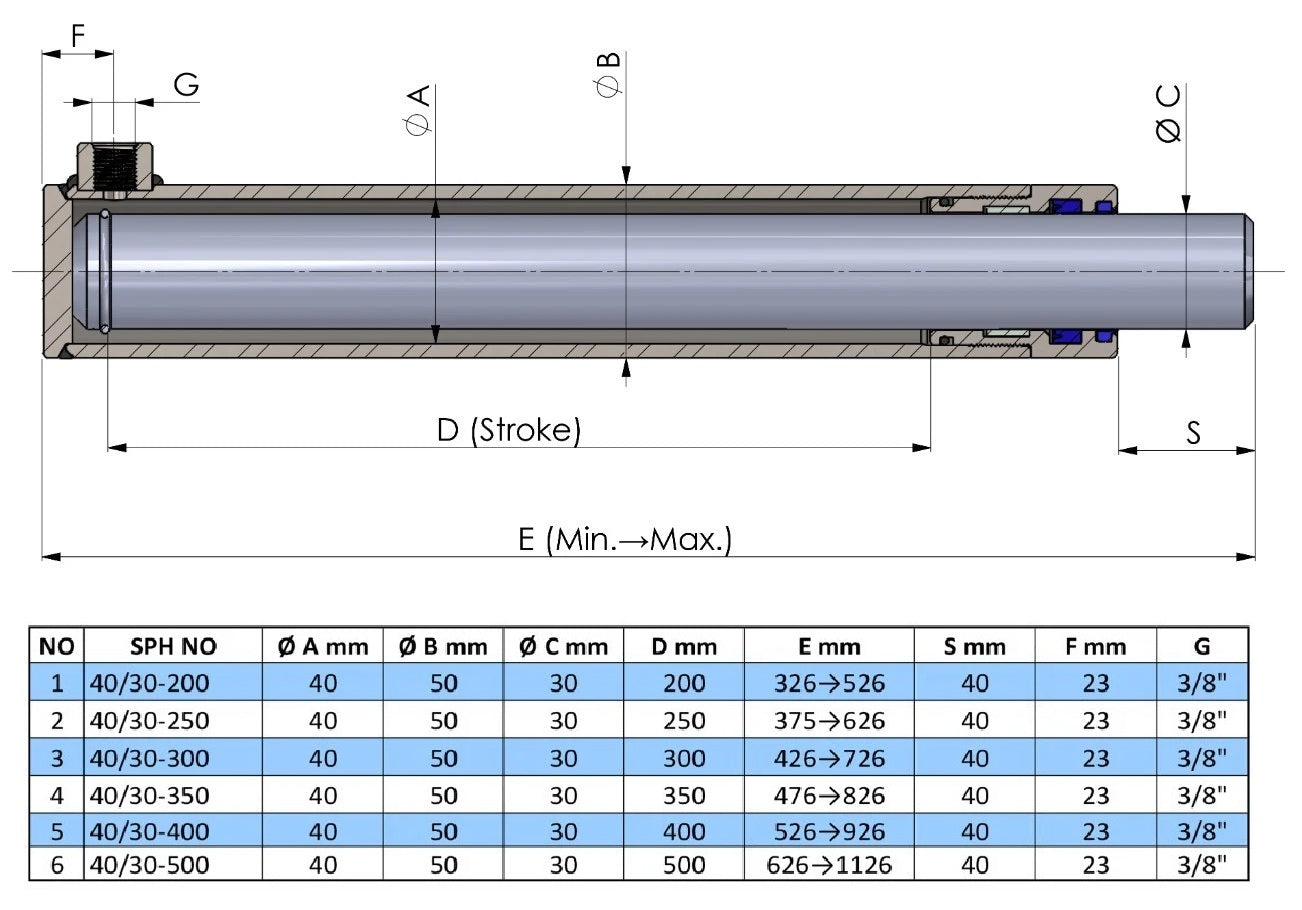

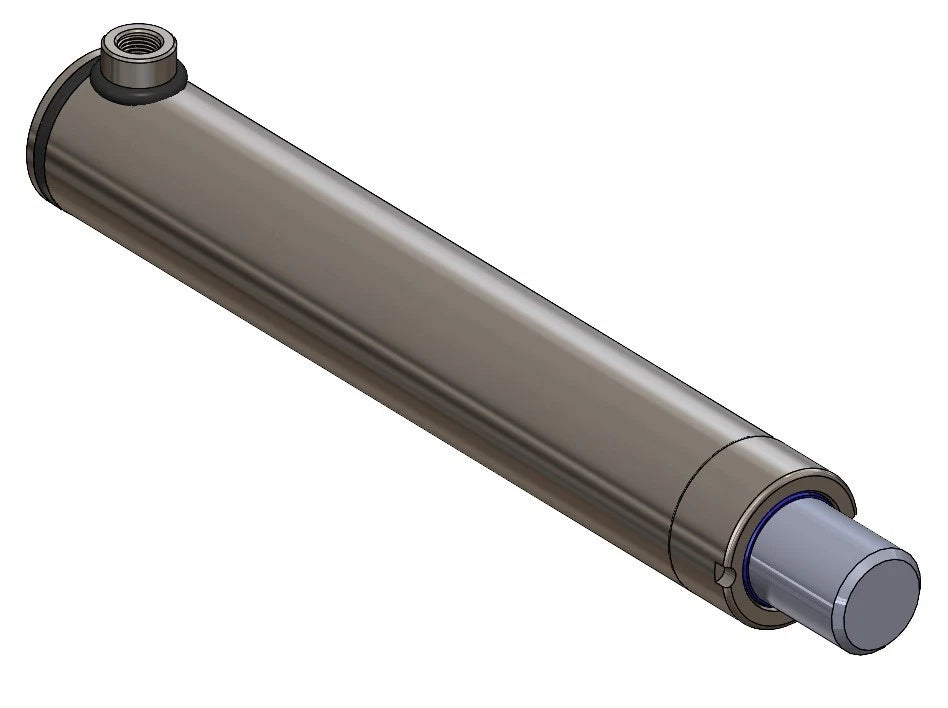

Single Acting Hydraulic Cylinder Standard (40/30)

Standard hydraulic cylinder single -acting. 3/8" ports. Piston and rod diameter selectable. Stroke selectable.

Larger quantities available on request.

Special features:

• Fully assembled
• Unique innovative design
• Special locking ring on the piston

Advantages:

• Immediately ready for use
• Long service life
• High level of operational safety

Properties:

• All types of fastening possible
• Maximum radial load: 10% of the axial force
• Maximum operating pressure depends on the maximum buckling load

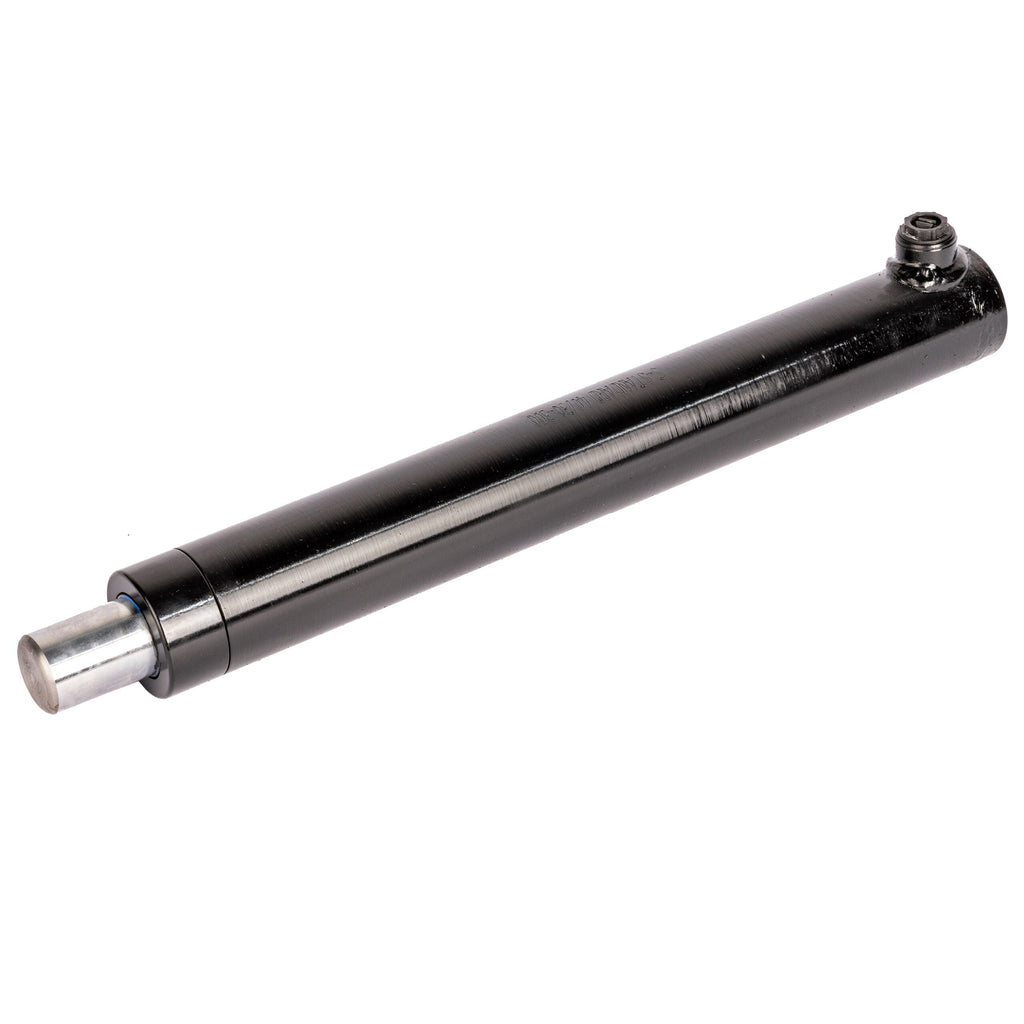

• All cylinders are painted black. This can show signs of scratches and is only used to protect against corrosion during storage or transport. Scratches are therefore not a defect or a reason for complaint

Technical information:

• Interchangeable with other brands
• Medium: mineral oil, HLP ISO VG 32 to ISO VG 46
• Cleanliness of the medium: ISO 4406 22/20/ 17 or NAS 9
• Important note! Protect welding spatter!
