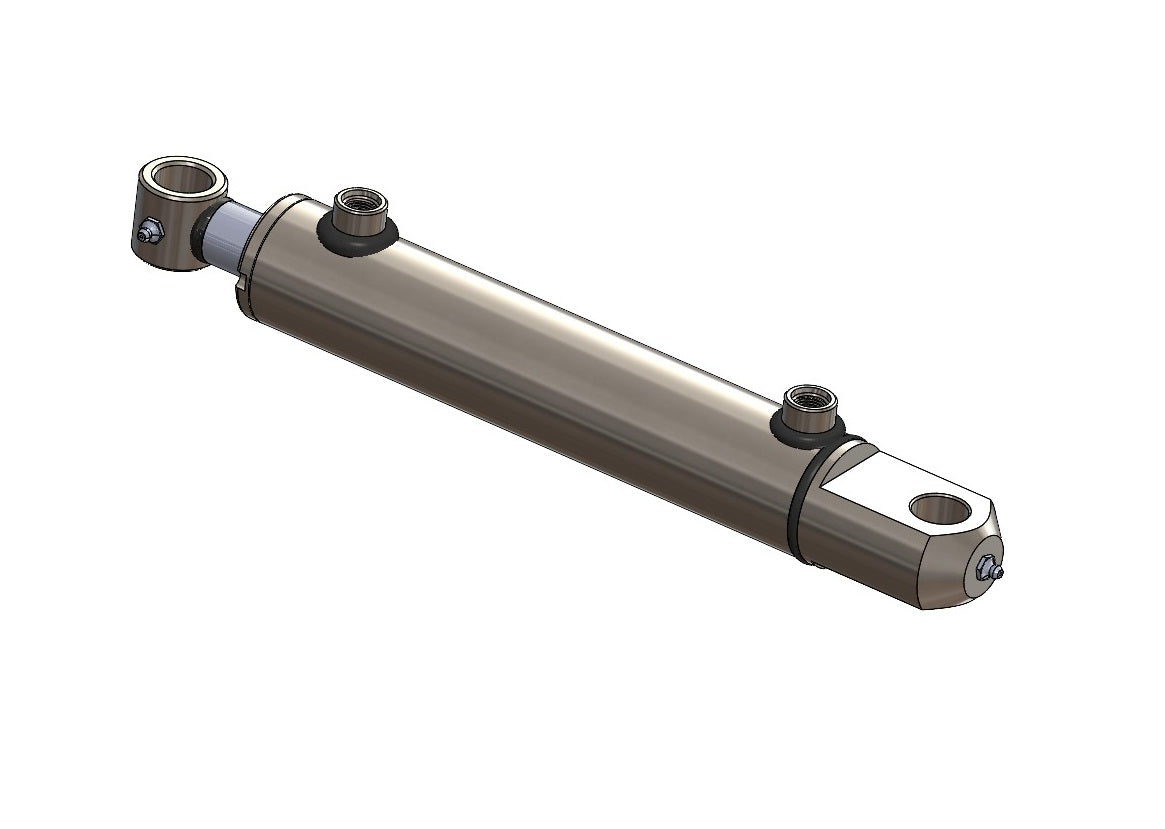

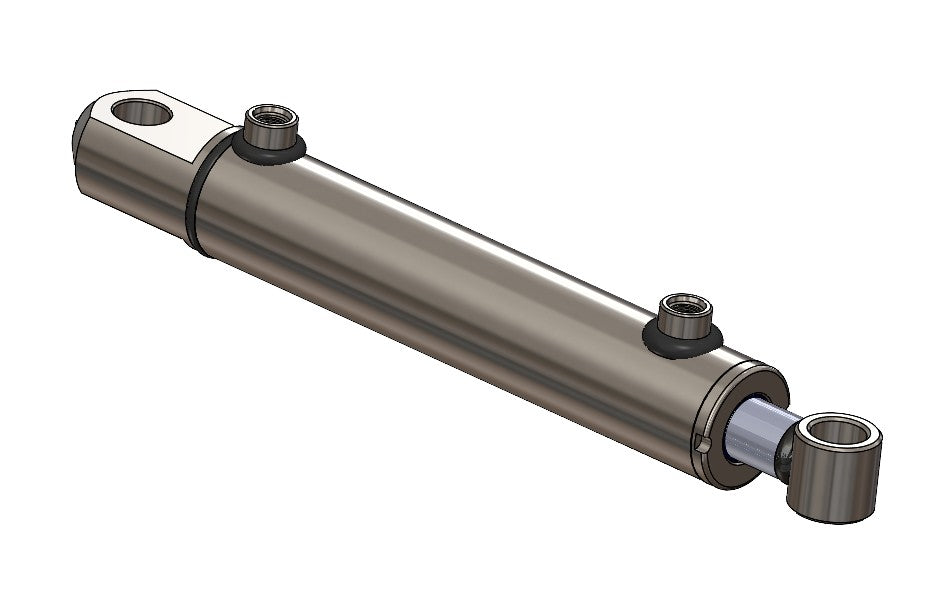

Double Acting Hydraulic Cylinders with Tang

This collection includes double acting hydraulic cylinders with tang mountings, developed to provide additional mounting flexibility within compact or restricted installation spaces. These tang cylinders are designed as industry-compatible stock cylinders, suitable for a wide range of hydraulic applications.

The tang end design allows the cylinder to fit into narrow frames where standard eye or clevis mountings are not suitable. Hydraulic ports are positioned in line with the pin holes, supporting clean hose routing and straightforward installation.

Tang Mounting Explained

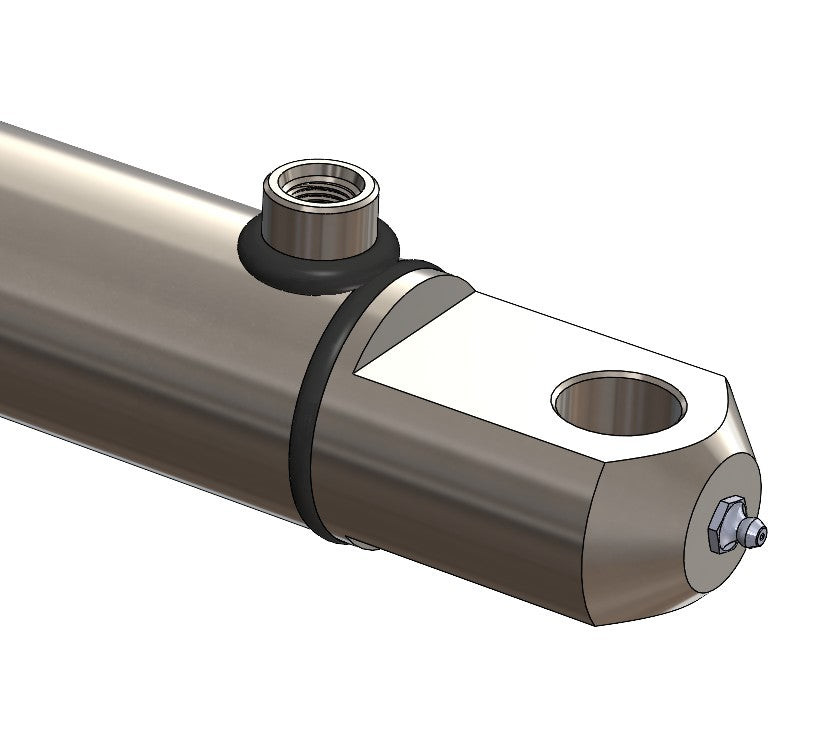

A tang mounting consists of welded flat mounting tabs that slide into a bracket and are secured with a pin. This mounting style offers a compact, rigid connection and is commonly used where space is limited or where a low-profile mounting solution is required.

Typical Applications

Double acting hydraulic cylinders with tang ends are used across multiple sectors where reliable push–pull force and compact mounting are essential.

• Agricultural machinery and tractor attachments
• Front-end and frame-mounted hydraulic applications
• Transport and tipping equipment
• Construction and waste handling machinery
• General industrial and mobile hydraulic systems

Construction and Performance

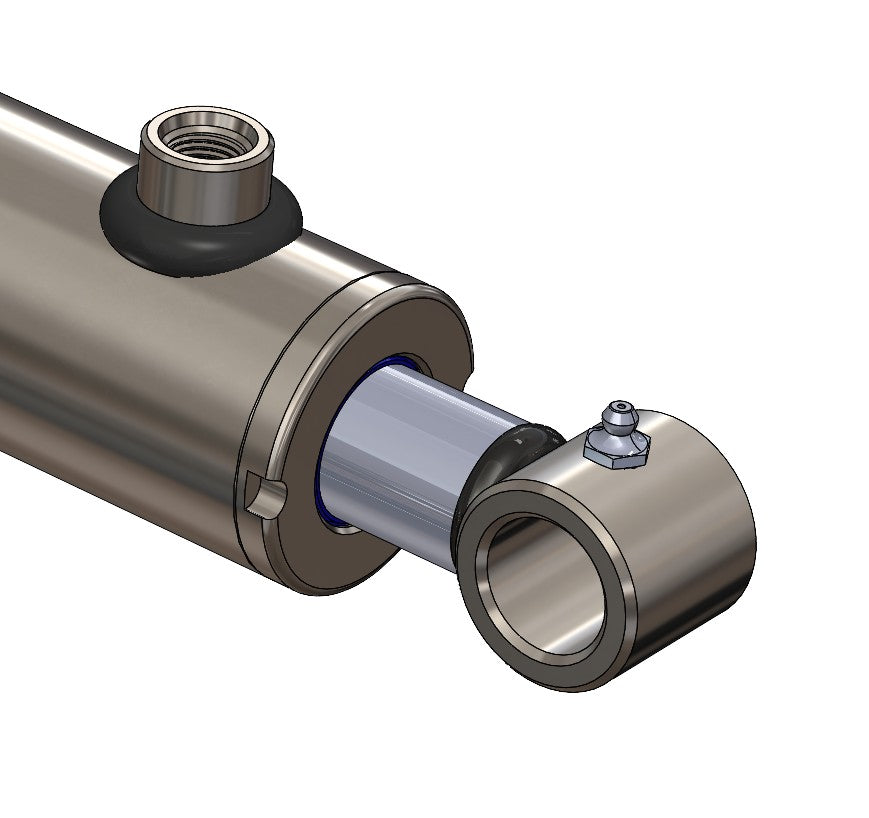

These cylinders are manufactured from premium-quality steel with welded mounting ends and hard chrome-plated piston rods to reduce wear and corrosion. High-quality sealing systems ensure dependable, leak-free performance under continuous load.

Select the Correct Tang Hydraulic Cylinder

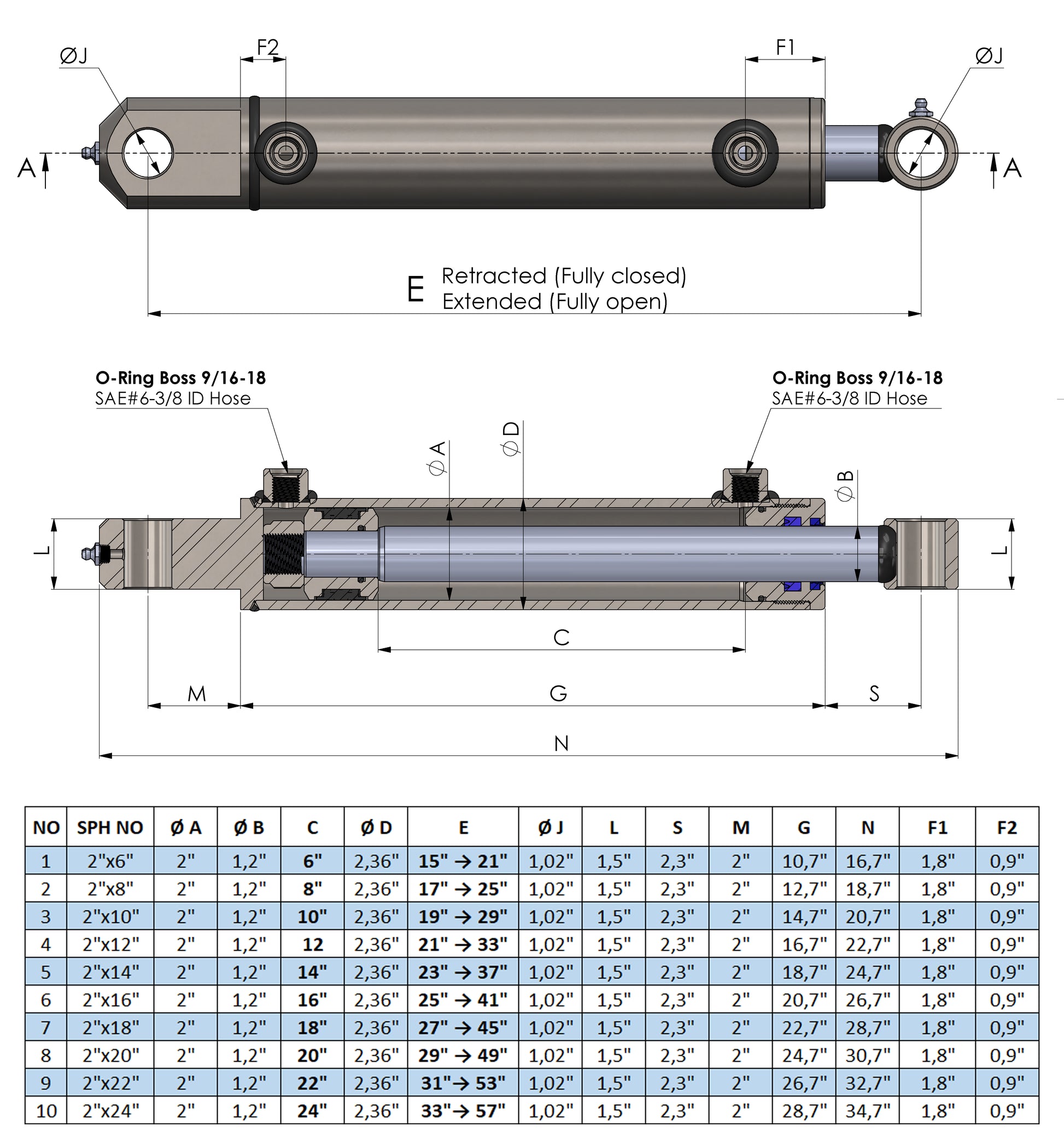

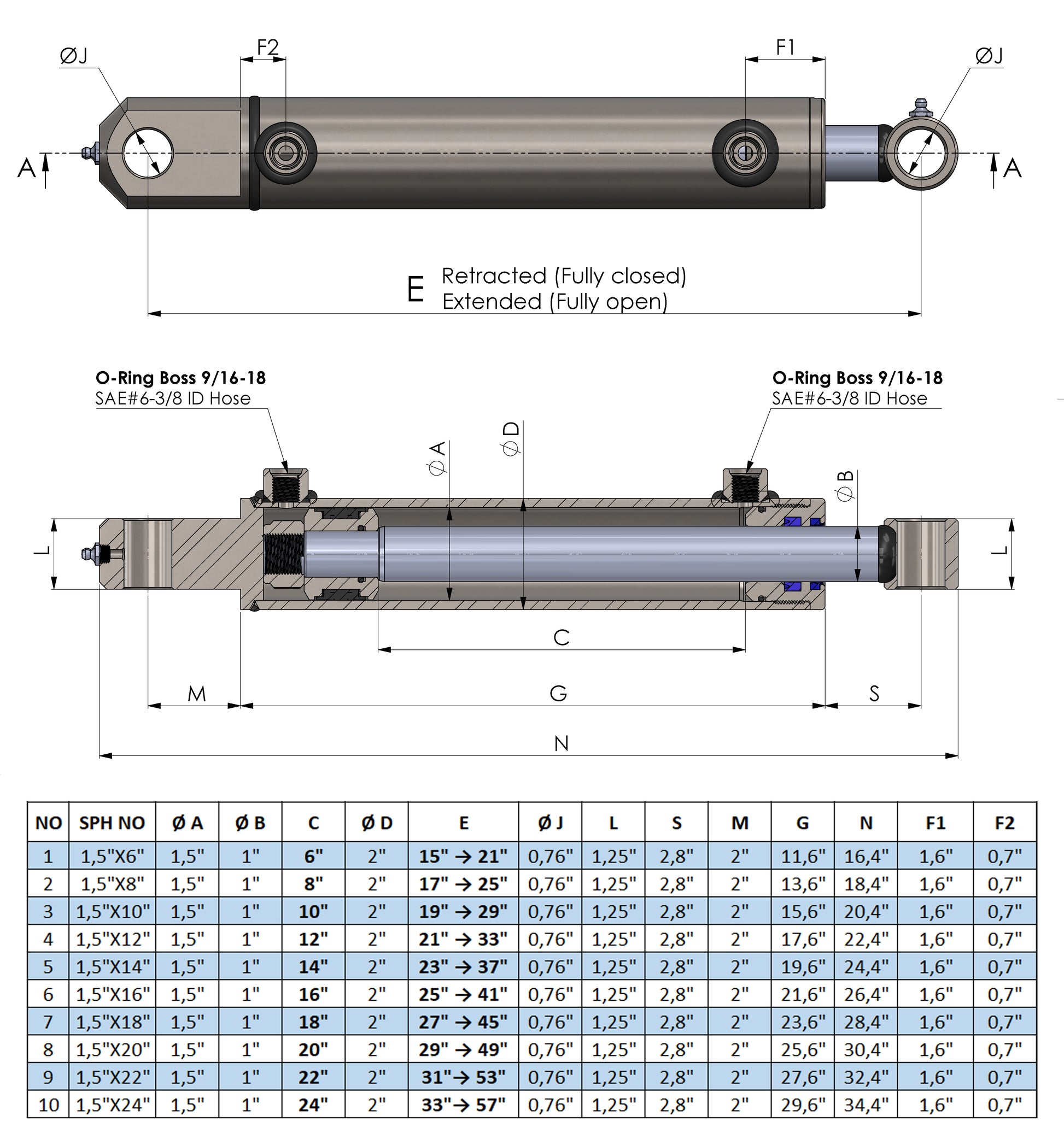

Select the correct cylinder by matching bore size, stroke length, tang width, pin diameter, and operating pressure to your application. Detailed technical specifications are provided on each product page to ensure correct fitment and safe operation.
