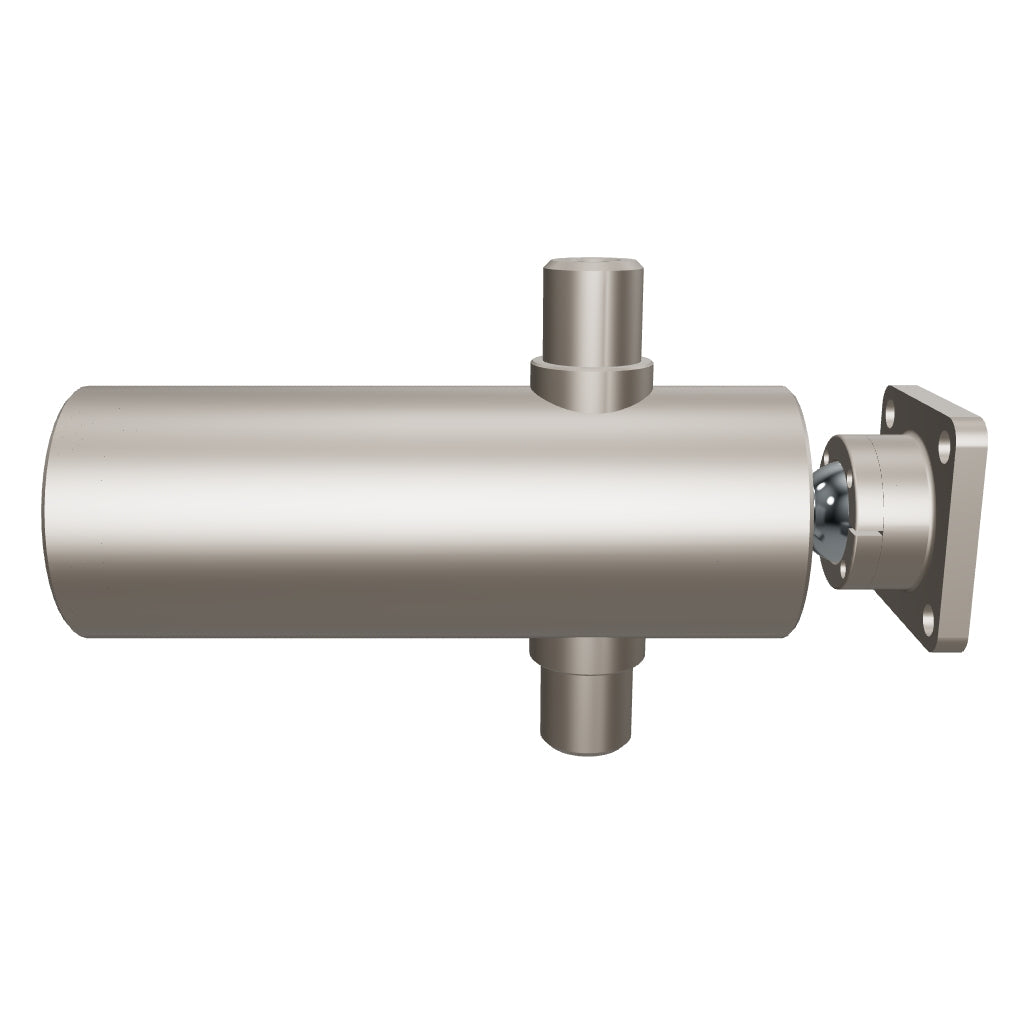

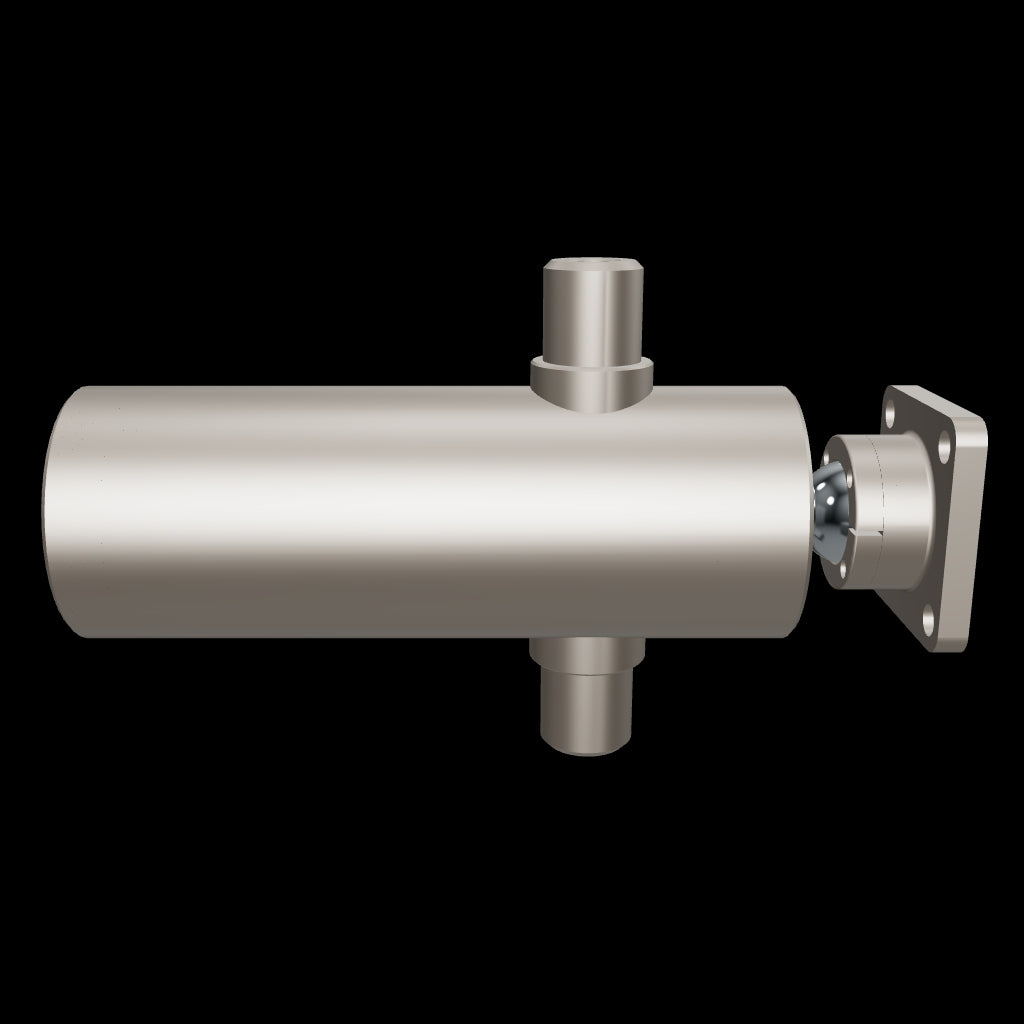

Telescopic tipping cylinder – retracted
Telescopic tipping cylinder – retracted

Request STL File

Request an STL file for 8-Ton 4-Stage Hydraulic Telescopic Tipping Cylinder - 726mm Stroke

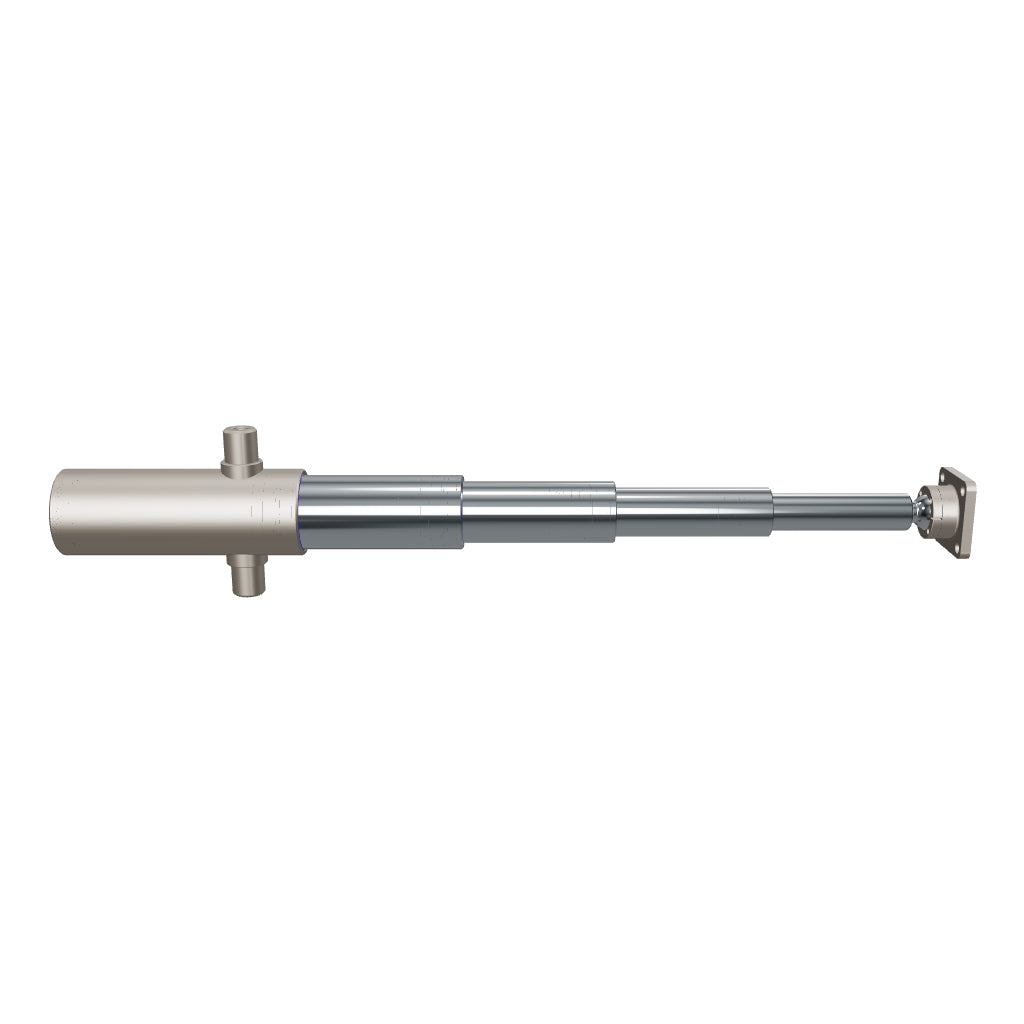

8-Ton 4-Stage Hydraulic Telescopic Tipping Cylinder - 726mm Stroke

SKU :  SPH340934
€327,91 incl. VAT
€271,00 excl. VAT
5 in stock
Shipping costs are calculated at checkout.
Add hydraulic oil 5–210 L
Eurol Hykrol VHLP ISO VG 46 Hydraulic Oil Product details
Capacity
€35,43 incl. VAT
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews

Description

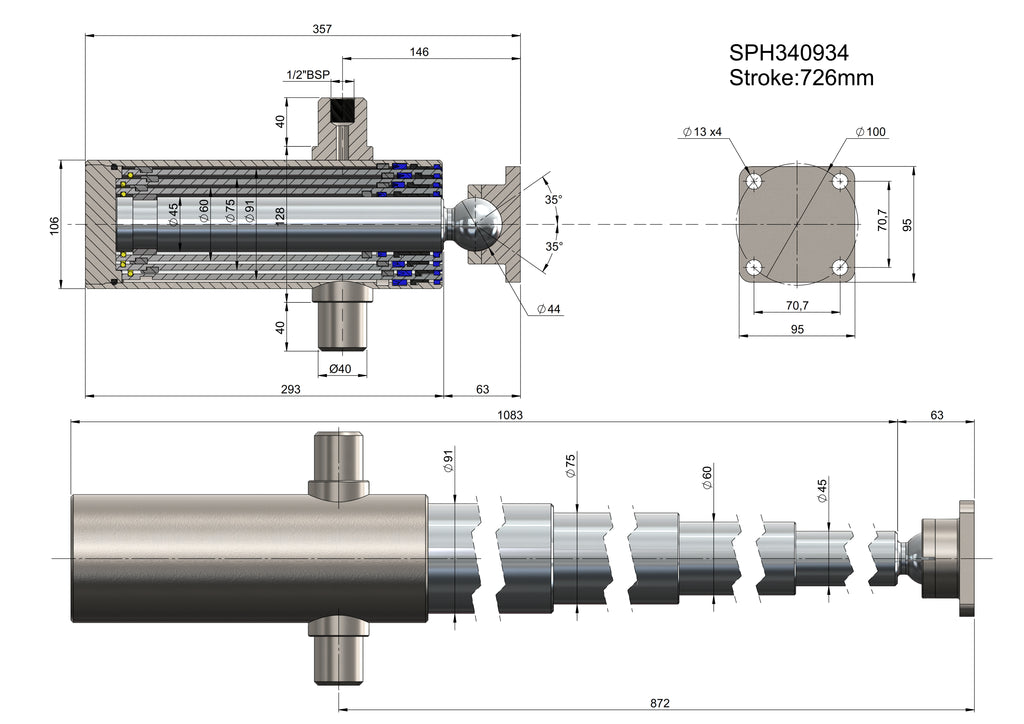

Upgrade your tipper trailer or commercial dumping vehicle with our high-performance Hydraulic Telescopic Tipping Cylinders. Engineered for heavy-duty agricultural and industrial applications, these high-pressure hydraulic rams deliver reliable lifting performance and smooth, effortless unloading under demanding site conditions. Please refer to the technical drawing in the image gallery for exact stroke dimensions, stage counts, and mounting measurements.

Upper mounting plate: bolt-on or welded attachment

The upper mounting plate with ball joint can be bolted or welded to the tipper body. The cylinder body is mounted to the chassis via the two side trunnions. Welding is permitted on the mounting plate, not on the cylinder body.

Premium Quality Standards: Corrosion Protection & Heavy-Duty Strength

Engineered for long-lasting durability in harsh outdoor environments and demanding agricultural conditions, every cylinder is manufactured with top-tier industrial components:

  • Mounting plate with ball joint: The upper mounting plate allows bolted or welded attachment to the tipper body.
  • Precision-Finished Seamless Tubes: Cold-drawn seamless steel tubes (NFA 49311/312 & C35R) machined, ground, and polished to Ra < 0.4μ for smooth extension and extended seal life.
  • Corrosion-Protected Black Finish: Exterior surfaces are coated with a protective moisture-resistant black paint layer to prevent oxidation and withstand harsh site weather.
  • Advanced Leak-Free Sealing: High-grade compact polyurethane lip seals, wiper seals, and Shore 80 O-rings ensure zero fluid leakage even under peak 200-bar operating pressure.

Technical Specifications & Operating Limits

Parameter Specification Value
Cylinder Type Hydraulic Telescopic Tipping Cylinder
Stages & Dimensions See Technical Drawing / Option Selected
Max Operating Pressure 200 Bar
Proof (Test) Pressure 300 Bar
Maximum Operating Speed 0.2 m/s
Operating Temperature -30°C to +90°C
Compatible Fluid Hydraulic Mineral Oil

Operational Recommendations & Maintenance

The normal operation of a telescopic cylinder consists of regular lifting of a tipper body to progressively empty its load. A tipping system is solely a lifting device; under no circumstances should it be used to stabilize or guide the tipper body.

  • System Protection: Always protect the hydraulic circuit using an appropriately set relief valve and a high-purity oil filter.
  • Circuit Purging: Ensure all air is bled from the hydraulic circuit and cylinder before initial operation.
  • No Mechanical Stop: Do not use the tipping system as a mechanical hard-stop at maximum extension.
  • Resting Gap: In the stowed (lowered) position, ensure a gap of at least 20mm to 30mm remains between the tipper body and cylinder. Never allow the body weight to rest on the cylinder.
  • Storage & Cleaning: Apply protective grease to the cylinder rod before extended storage. Protect the cylinder shaft and trunnions during high-pressure steam cleaning.

Safety Procedures & Risk Prevention

Before initiating any tipping procedure, verify the following checklist:

  • The ground surface is firm, stable, and completely flat.
  • The payload is within vehicle limits and evenly distributed across the trailer bed.
  • The working perimeter is completely clear of bystanders and overhead obstacles.
  • Tyre pressures are correctly set across all wheels.
  • Pay attention to sticky loads (e.g., wet soil, clay): Strong load adhesion can offset the center of gravity and cause vehicle rollover.

🚫 STRICTLY PROHIBITED:

  • Never move or drive the vehicle during tipping.
  • Never operate the cylinder control valve rapidly or abruptly.
  • Never work under a raised tipper body unless it is mechanically locked with safety props.
  • Never tip in strong wind conditions.
WARNING: Non-compliance with safety procedures may cause extreme internal over-pressures and unallowed transverse side-loads, resulting in equipment failure and severe risk to the operator.
