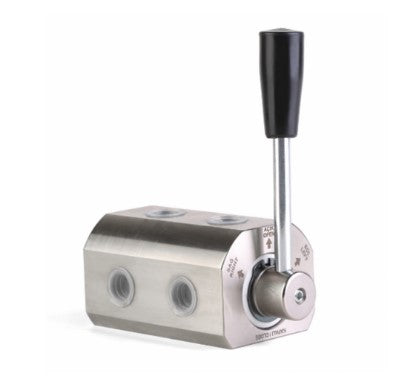

Hydraulic 6-way diverter valve with steel body and black hand lever
Hydraulic 6-way diverter valve with steel body and black hand lever
Hydraulic 6-way diverter valve – 3/8″ and 1/2″ BSP

Hydraulic 6-way diverter valve – 3/8″ and 1/2″ BSP

SKU :  SPH390153
Thread Size
€44,00
€36,36 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

This hydraulic 6-way diverter valve switches two hydraulic lines between two pairs of ports. Operate two hydraulic functions alternately using the hand lever. Choose 3/8″ BSP for a maximum flow of 35 l/min or 1/2″ BSP for 50 l/min. Both versions have a steel body and a maximum pressure of 350 bar.

6 PORTSTwo functions used alternately
350 BARMaximum pressure for both versions
MANUALSelection by hand lever

Choose the connection and flow capacity

Check the thread size, required flow and available installation space. Click a part number to select that version.

Part Thread Max. flow
SPH390153 G3/8″ 35 l/min
SPH390152 G1/2″ 50 l/min

How the 6-way diverter valve works

The lever selects which pair of ports connects to the two common lines. This lets you choose between two hydraulic actuators, such as two double-acting cylinders. The functions operate alternately; the valve does not divide the flow between both actuators simultaneously.

Applications include agricultural machinery, crane hydraulics and lifting equipment. Check your system’s hydraulic circuit diagram before selecting or connecting the valve.

Technical specifications

Property Specification
Type Manual 6-way diverter valve
Connections 6: two common ports and two pairs of ports
Maximum pressure 350 bar
Body material Steel
Seal NBR O-ring (nitrile rubber)
Temperature range −30 °C – +110 °C
Coating Zinc-plated with Cr³⁺ passivation
Internal parts Case-hardened

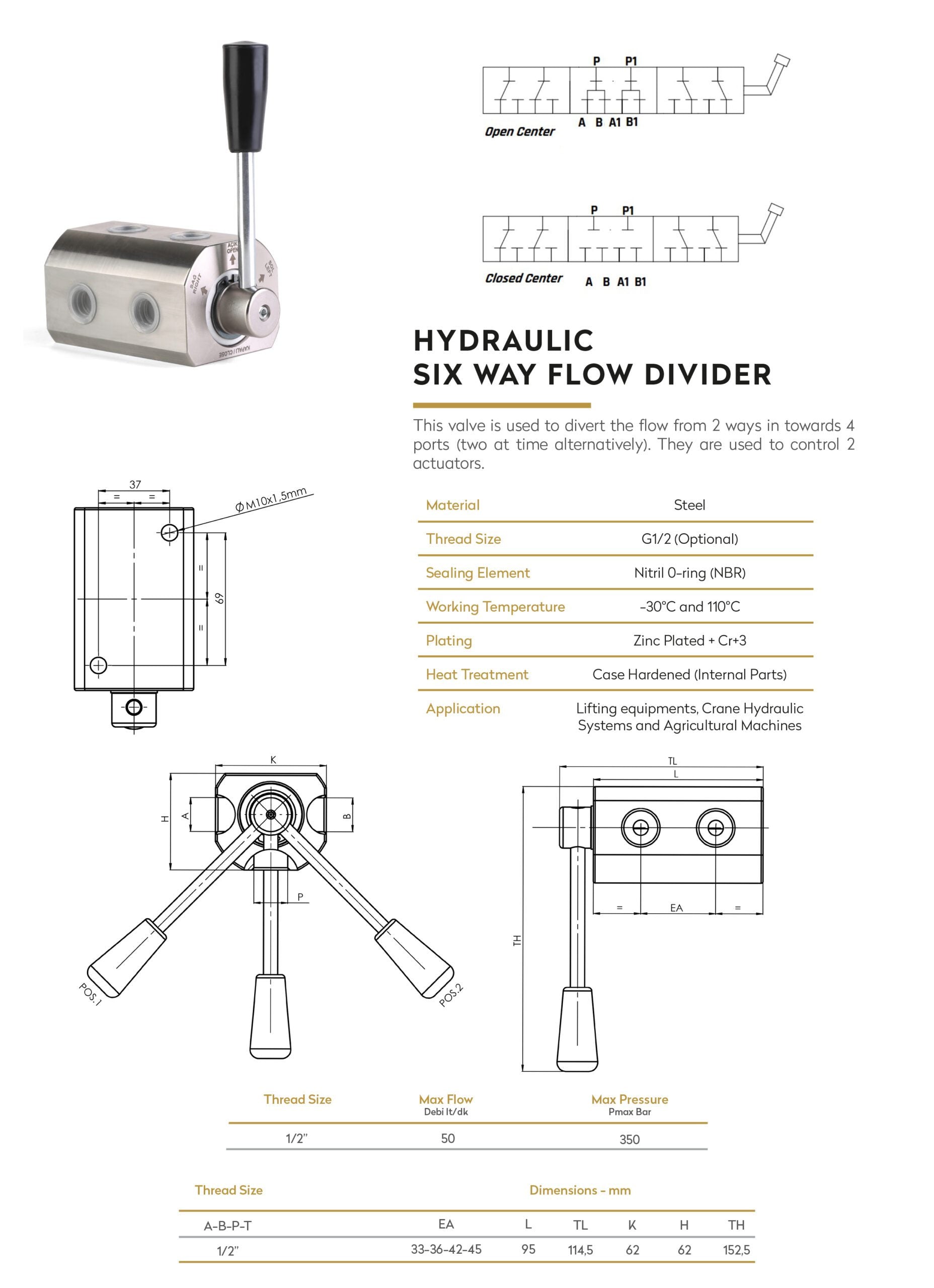

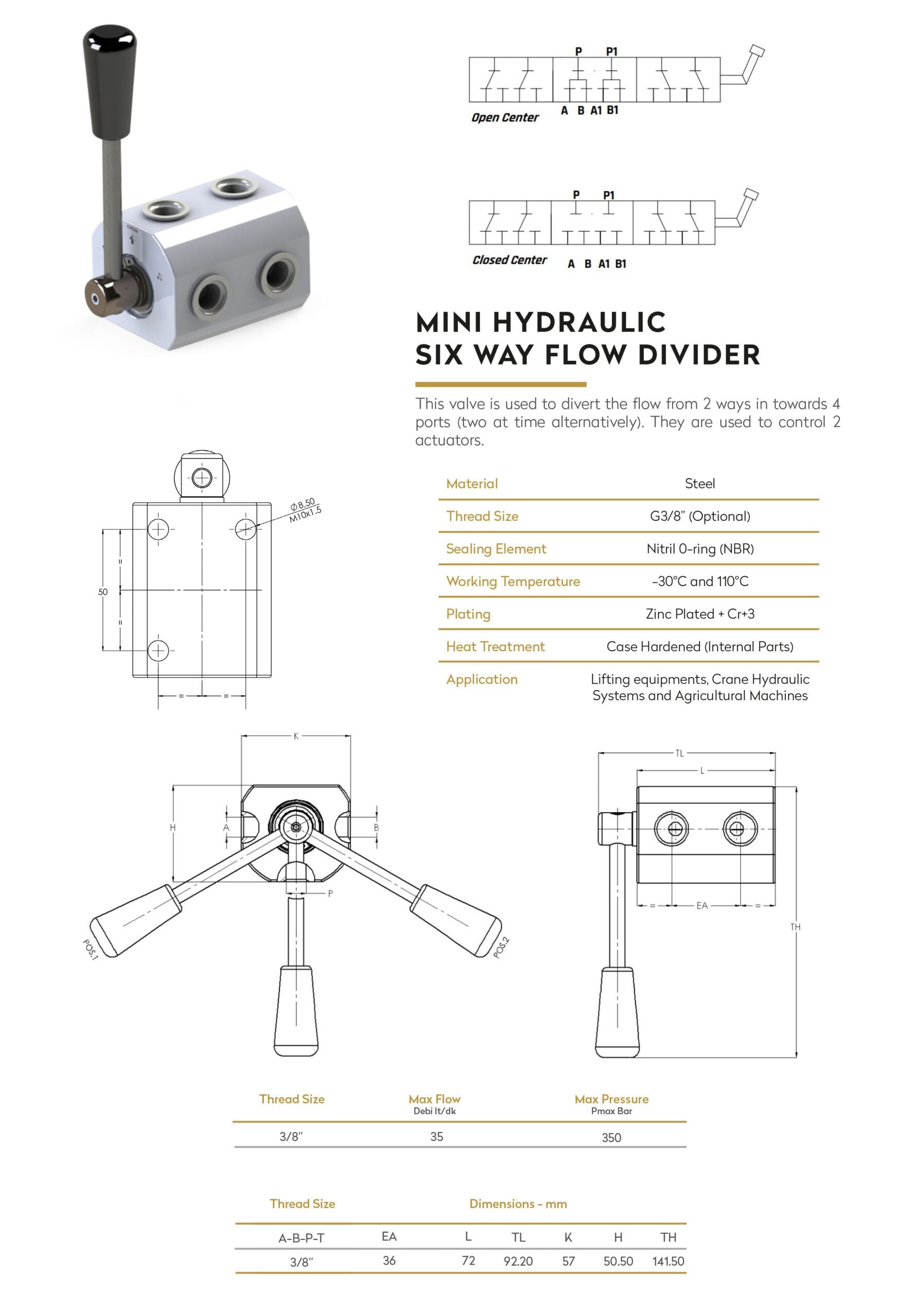

Dimensions from the technical drawings

All dimensions below are in millimeters. The letters refer to the dimension lines on the drawing for the selected version.

Size SPH390153
3/8″		 SPH390152
1/2″
L 72 95
TL 92.20 114.5
K 57 62
H 50.50 62
TH 141.50 152.5

Connections and system compatibility

In addition to thread size and flow, check the switching function and the clearance for the lever. The drawings show both open-center and closed-center arrangements. They do not confirm which center arrangement is supplied; have this confirmed before ordering if the center condition is critical to your system.

Install the valve with the system depressurized and connect the lines according to the appropriate hydraulic diagram. For connections, see our hydraulic hoses and hydraulic couplings.

Frequently asked questions

What is the difference between SPH390153 and SPH390152?

SPH390153 has G3/8″ ports, a maximum flow of 35 l/min and a more compact body. SPH390152 has G1/2″ ports and a maximum flow of 50 l/min. Both have a maximum pressure of 350 bar.

Can both hydraulic functions operate at the same time?

No. The lever selects the active pair of ports. This is a diverter valve for alternate operation of two functions, not a flow divider for simultaneous operation.

Choose your 6-way diverter valve

Select the required thread size above and check the drawing before ordering. For other switching functions, browse our hydraulic valves.
