Dual Hydraulic Remote Valve Kit for Ford 2000 / 3000 / 4000 – 4-Way Double Spool – SPH330006

Dual Hydraulic Remote Valve Kit for Ford 2000 / 3000 / 4000 – 4-Way Double Spool – SPH330006

SKU :  SPH330006
€269,00
€222,31 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

Upgrade a compatible Ford tractor with this dual 4-way hydraulic remote valve kit. The valve has two independent control levers: lever 1 can operate a single-acting or double-acting hydraulic cylinder, while lever 2 is intended for double-acting cylinder operation only.

For lever 1, the T-handle switches the operating mode: open = single-acting and closed = double-acting. The complete kit includes the valve, two control levers, hydraulic hoses, seals, ½" ISO 5675 female quick couplers and mounting hardware.

Two independent hydraulic functions

Lever 1 can be used for a single-acting or double-acting cylinder. Lever 2 is for double-acting cylinder operation only. The valve has no float position and is designed for mounting under the tractor seat on the lift cover.

Hydraulic remote valve kit for Ford tractors

Lever 1

Single-acting or double-acting cylinder operation. Use the T-handle to select the required mode.

Lever 2

Dedicated to double-acting hydraulic cylinder operation.

Complete retrofit kit

Includes valve, levers, hydraulic hoses, seals, ½" ISO 5675 female quick couplers and mounting hardware.

Compatible Ford tractor models

This hydraulic remote valve kit is listed for a wide range of compatible Ford agricultural, industrial and construction tractors. Always verify the tractor model, original valve, mounting position and hydraulic connections before ordering.

Agricultural tractor models
501, 541, 600, 601, 611, 620, 621, 630, 631, 640, 641, 650, 651, 660, 661, 671, 681, 700, 740, 741, 771, 800, 801, 811, 820, 821, 840, 841, 850, 851, 860, 861, 871, 881, 900, 901, 940, 941, 950, 951, 960, 961, 971, 981, 1801, 1811, 1821, 1841, 1871, 1881, 2000 (3-cylinder), 2000 (4-cylinder), 2030, 2031, 2100, 2110 (3-cylinder), 2110 (4-cylinder), 2111, 2120 (3-cylinder), 2120 (4-cylinder), 2121, 2130, 2131, 2150, 2300, 2310, 2600, 2610, 2810, 2910, 3910, 4110 (3-cylinder), 4610, 4610SU, 3000, 3055, 3100, 3110, 3120, 3190, 3300, 3310, 3330, 3600, 3610, 3900, 4000 (3-cylinder), 4000 (4-cylinder), 4000SU, 4030 (4-cylinder), 4031, 4040, 4100, 4110 (4-cylinder), 4120, 4121, 4130 (3-cylinder), 4130 (4-cylinder), 4131, 4140 (3-cylinder), 4140 (4-cylinder), 4190, 4200, 4330, 4340, 4410, 4600, 4600SU and 5000.
Industrial and construction models
230A, 231, 233, 234, 333, 334, 335, 340, 3400, 340A, 340B, 3500, 3550, 420, 4400, 445, 445A, 4500, 515, 530A, 531, 532, 535, 540, 540A, 540B, 545 and 545A.

Compatibility note: not suitable for Ford compact tractors. If your exact tractor version is uncertain, compare the original valve, lift-cover mounting and hydraulic connections before ordering.

OEM and replacement references

Main references

309973F, 80309973, 309973, 309996

Valve / replacement references

C9NNB950B, E1NNB950BA, E1NNB950BB, D9NNB950BB, 83928704 and 83944762

Technical specifications

Product type Dual hydraulic remote valve kit
Valve configuration Double spool / 4-way
Control 2 independent manual levers
Lever 1 Single-acting or double-acting cylinder operation
Lever 2 Double-acting cylinder operation only
Working pressure Up to 200 bar
Test pressure 300 bar
Quick couplers ½" ISO 5675 female
Float position No
Mounting position Under the seat on the lift cover
Construction Steel with black protective coating
Part number SPH330006

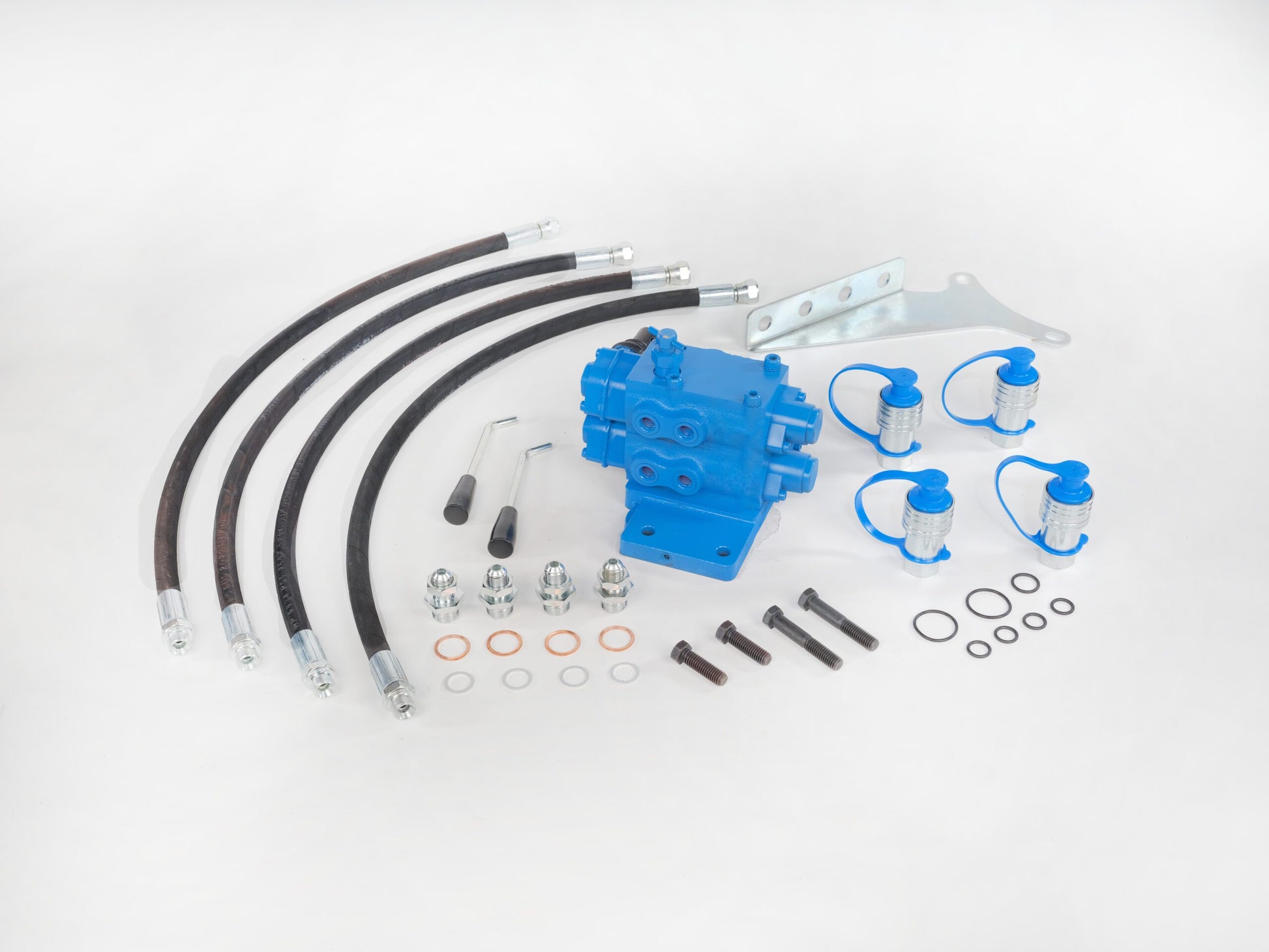

Kit contents

  • Dual 4-way hydraulic remote valve
  • Two manual control levers
  • Hydraulic hoses
  • Seals
  • ½" ISO 5675 female quick couplers
  • Required mounting hardware

Installation and use

The valve is designed for mounting under the tractor seat on the lift cover. Before installation, verify the tractor version, original valve, mounting arrangement and hydraulic connections.

The two levers control separate hydraulic functions. Lever 1 can be switched between single-acting and double-acting operation with the T-handle; lever 2 is intended for double-acting operation only.

For other compatible Ford applications, see our hydraulic remote valve kits for Ford tractors.

Frequently asked questions

Can both levers operate a single-acting cylinder?

No. Lever 1 can be used for single-acting or double-acting operation. Lever 2 is for double-acting operation only.

How do I switch lever 1 between single-acting and double-acting?

Use the T-handle: open = single-acting and closed = double-acting.

Does this hydraulic valve have a float position?

No. This valve does not have a float position.

Is SPH330006 suitable for Ford compact tractors?

No. This kit is not intended for Ford compact tractors.

Order SPH330006 from Spare Parts Holland as a complete dual hydraulic remote valve kit for compatible Ford tractors, with fast worldwide delivery from the Netherlands.
