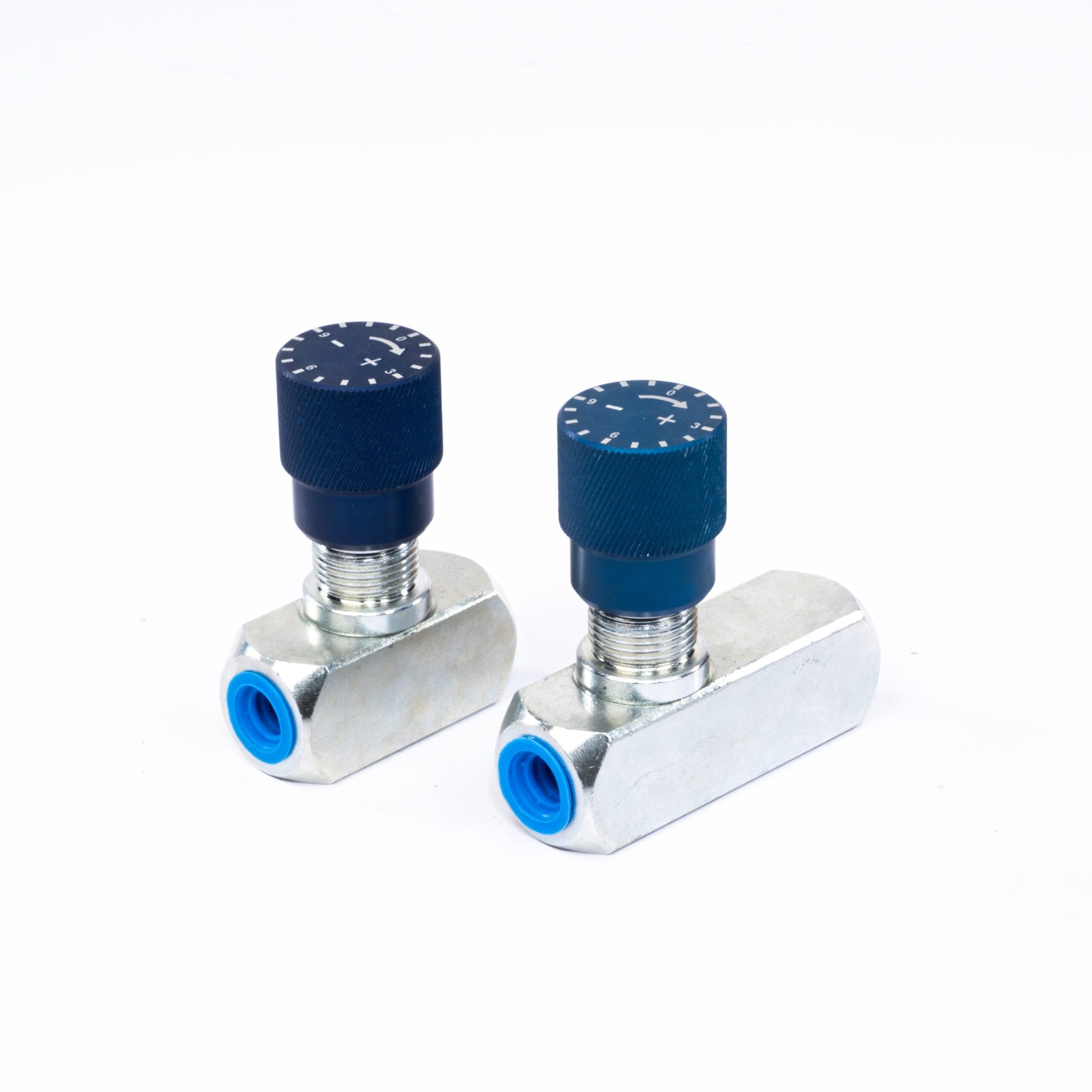

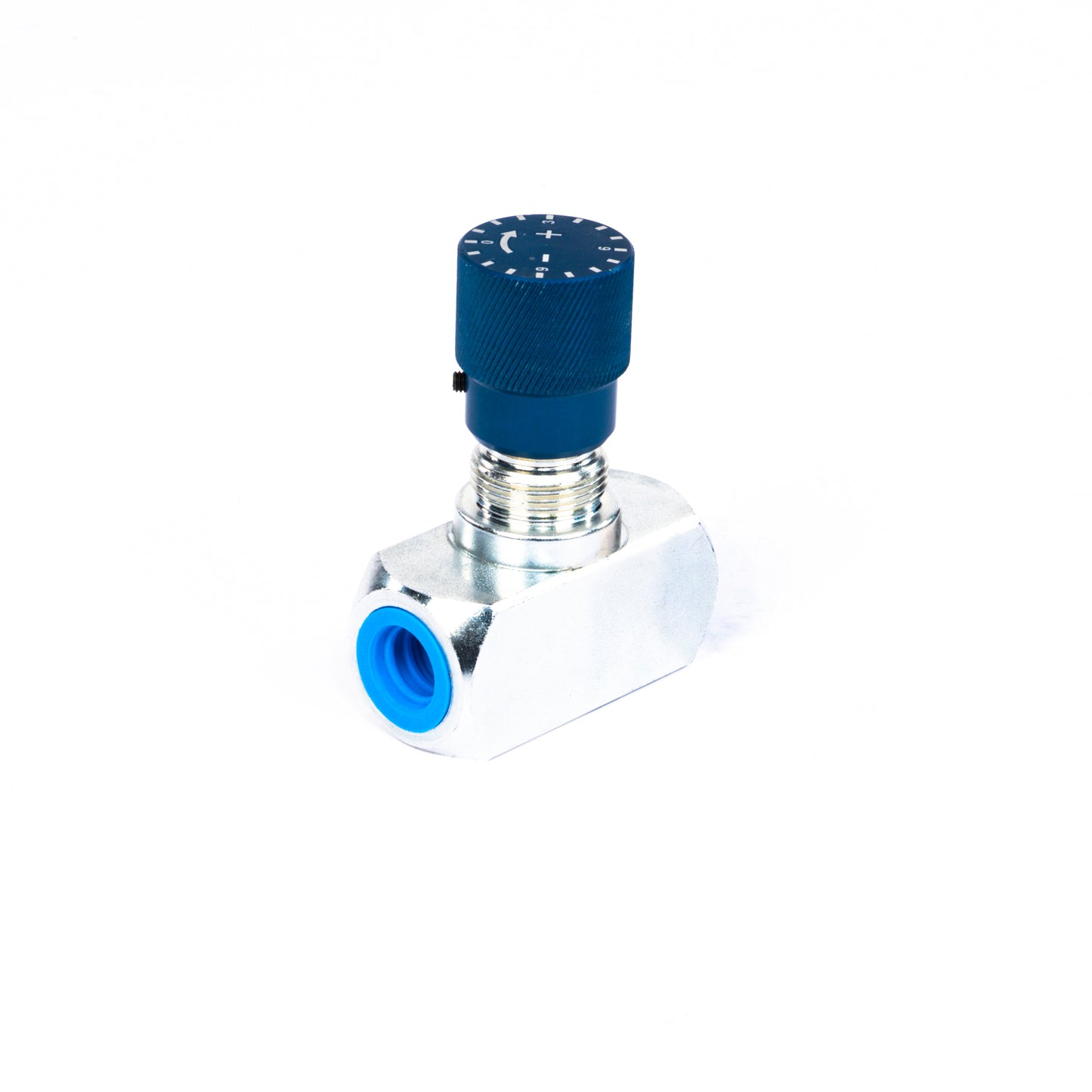

Hydraulic flow control valve with adjustment knob, scale and protective port plug
Hydraulic flow control valve with adjustment knob, scale and protective port plug

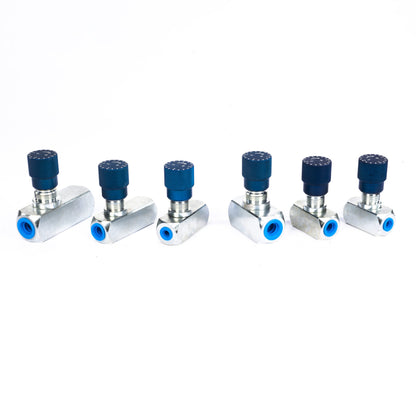

Hydraulic flow control valve without check – 1/4″, 3/8″, 1/2″ BSP

Hydraulic flow control valve without check – 1/4″, 3/8″, 1/2″ BSP

SKU :  SPH390059
Thread Size
€16,00
€13,22 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

This hydraulic flow control valve restricts oil flow in both directions. Use the adjustment knob to set the opening and adapt the speed of a hydraulic cylinder or motor to the application. Choose 1/4″, 3/8″ or 1/2″ BSP female threads.

Two directions
without check valve
400 bar
Maximum pressure
BSP
female thread

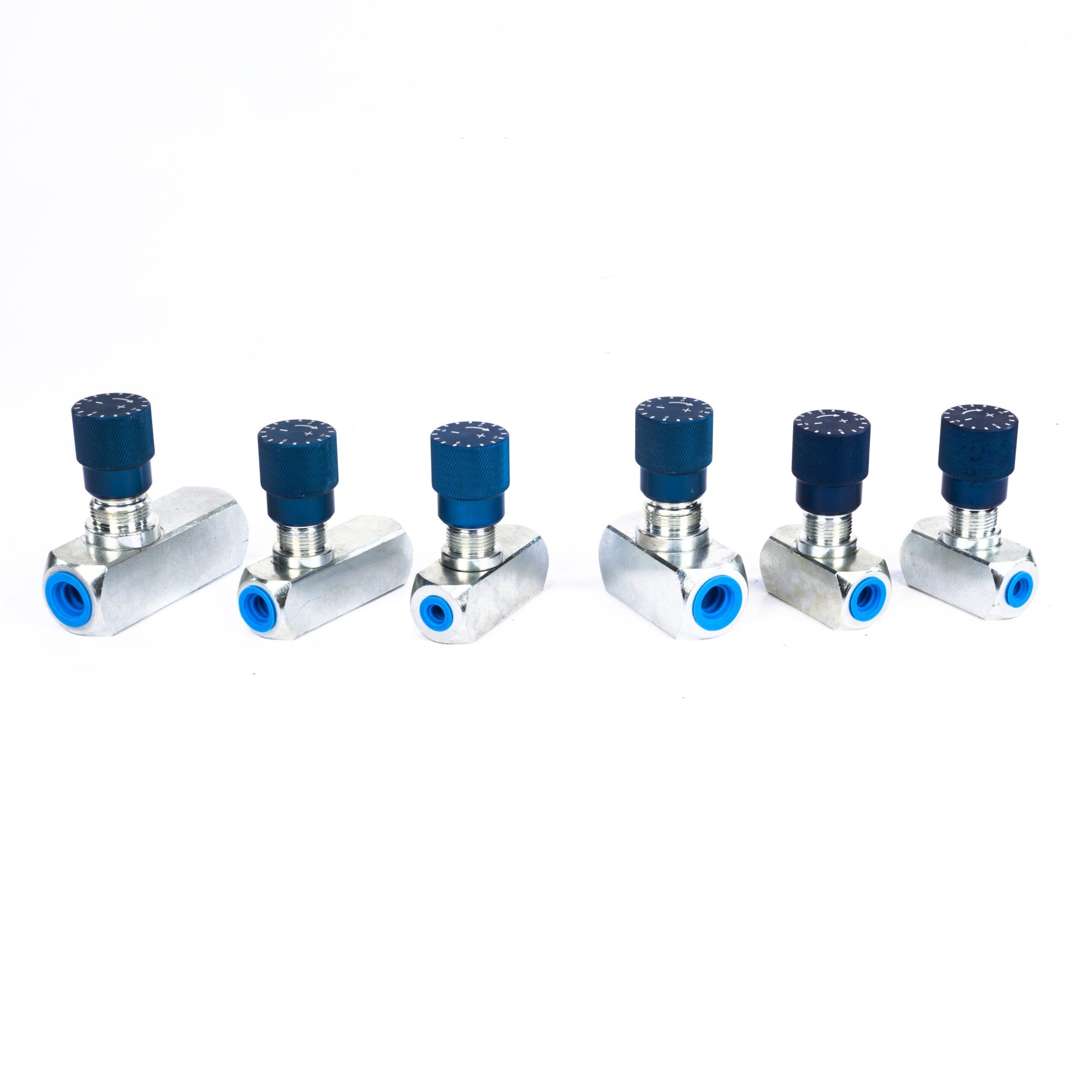

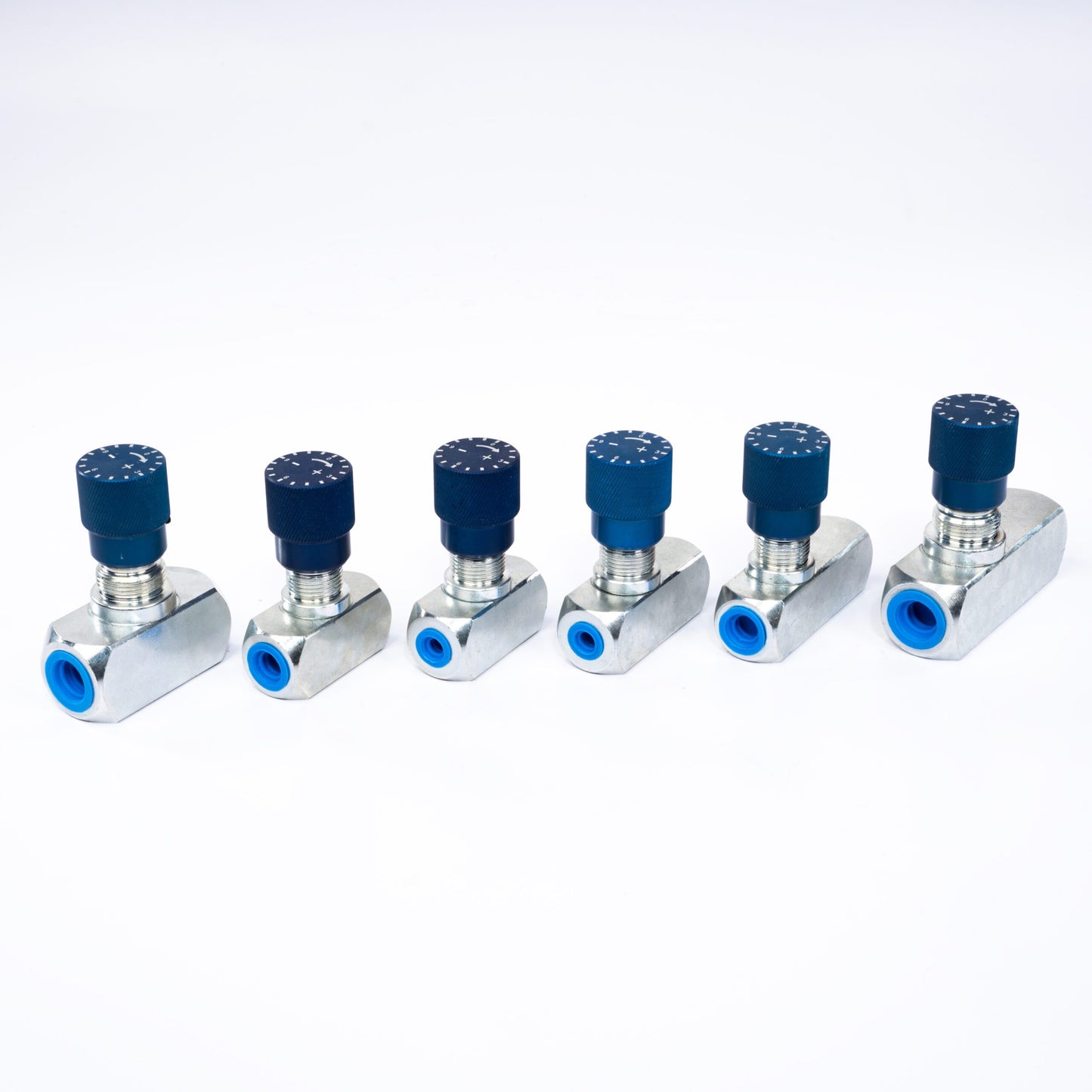

Choose your connection size

Select an item number to choose the corresponding version. Maximum flow depends on connection size; also check operating pressure and available installation space.

Item BSP Q max.
SPH390059 1/4″ 15 l/min
SPH390060 3/8″ 30 l/min
SPH390061 1/2″ 50 l/min

Operation and application

The same throttle opening acts in both flow directions. There is no check valve bypass for free reverse flow. The two directions cannot be adjusted independently. The valve can restrict oil flow in hydraulic circuits on agricultural machinery, mobile equipment and industrial installations.

The setting determines the opening. Actual movement speed also depends on the hydraulic circuit and operating conditions.

Technical specifications

Property Specification
Type Bidirectional throttle valve
Flow control Restriction in both directions
Connections BSP female thread: 1/4″, 3/8″, 1/2″
Maximum pressure 400 bar for all three sizes, according to the dimensional drawing
Max. flow 1/4″: 15 l/min · 3/8″: 30 l/min · 1/2″: 50 l/min

Dimensions from the drawing

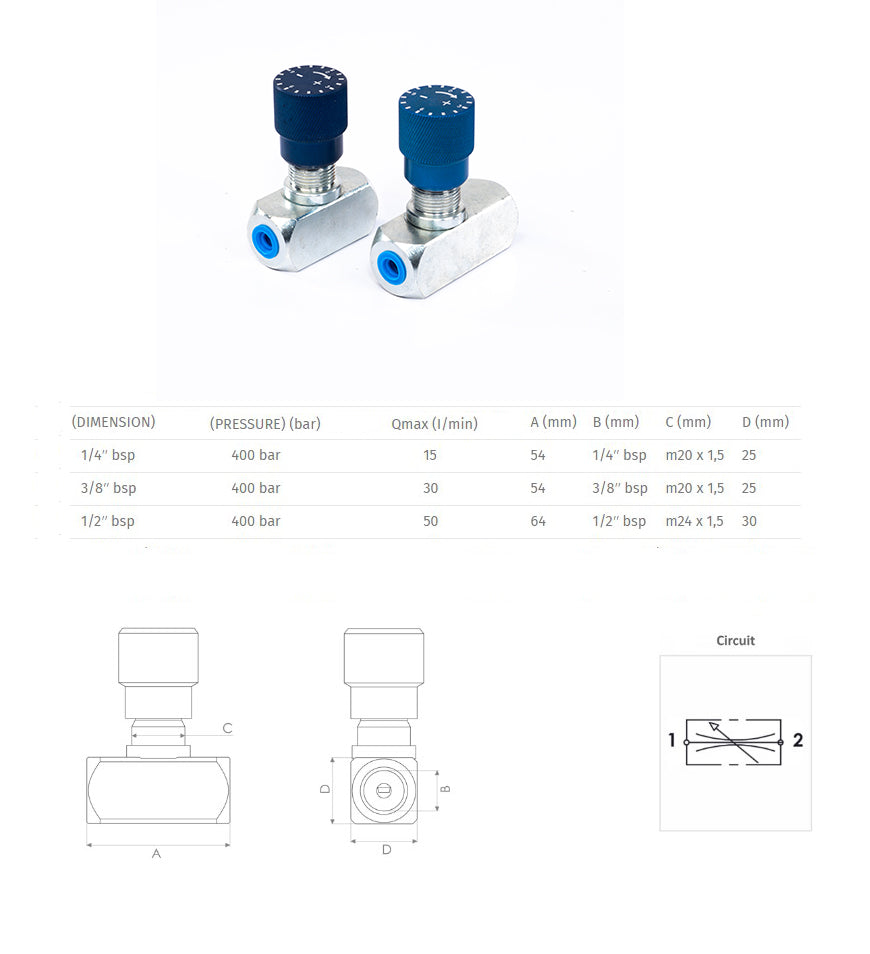

Letters A, B, C and D refer to the drawing in the product images. B is the BSP port; C is the metric thread shown in the drawing, not the pipe connection.

B: BSP A / D C
1/4″ 54 / 25 mm M20 × 1.5
3/8″ 54 / 25 mm M20 × 1.5
1/2″ 64 / 30 mm M24 × 1.5

Check before installation

Check connection size, system pressure, flow and installation space. Install with the system depressurized, keep connections clean and adjust gradually. This flow control valve does not replace a separate load-holding or hose-burst protection device.

Related hydraulic components

Compare the alternative version and browse the relevant hydraulic components:

Hydraulic throttle check valve · Hydraulic valves · Hydraulic hoses

Frequently asked questions

What is the difference between the two versions?

A throttle valve without a check valve restricts flow in both directions. A throttle check valve restricts flow in one direction and allows free reverse flow through a check valve.

Does 50 l/min apply to every size?

No. The drawing specifies 15 l/min for 1/4″, 30 l/min for 3/8″ and 50 l/min for 1/2″. It specifies 400 bar for all three sizes.

Choose the right flow control valve

Select 1/4″, 3/8″ or 1/2″ BSP above and check the chosen version before ordering.
