Hydraulic Top Link Cat 2-2 (26,80" - 40") Rapid Hook, Locking Block and 2 Hoses - SPH320066

Hydraulic Top Link with Rapid Hook – Category 2 – For Tractors with 50–100 HP

Upgrade your tractor’s 3-point hitch system with this high-quality Hydraulic Top Link with Rapid Hook. Designed to replace a standard mechanical top link, it allows you to easily adjust the working angle of your implement directly from the cab—improving comfort, precision, and overall efficiency.

The integrated rapid hook makes attaching implements quick and hassle-free. Ideal for equipment such as mowers, scrapers, box blades, and bale spears.

Key Features

• Fits Category 2 tractors (1" pins, 50–100 HP)
• Hydraulic adjustment from the cab – saves time and effort
• Integrated locking block with check valve – holds position securely
• Rotating piston rod for easy installation
• Compatible with 1/2" ISO 5675 (AG-style) quick couplers
• Equipped with rapid hook for fast and easy implement hookup

What’s Included

• 1 × Hydraulic Top Link with Rapid Hook (black powder-coated finish)
• 2 × Hydraulic hoses (27.5")
• 2 × 1/2" BSP quick couplers (poppet type, ISO 5675 – AG-style)

Technical Specifications

• Push force: approx. 12,570 lbs @ 2,610 PSI
• Pull force: approx. 8,600 lbs @ 2,610 PSI
• Recommended tractor power: 50–100 HP
• Requires: double-acting hydraulic remote

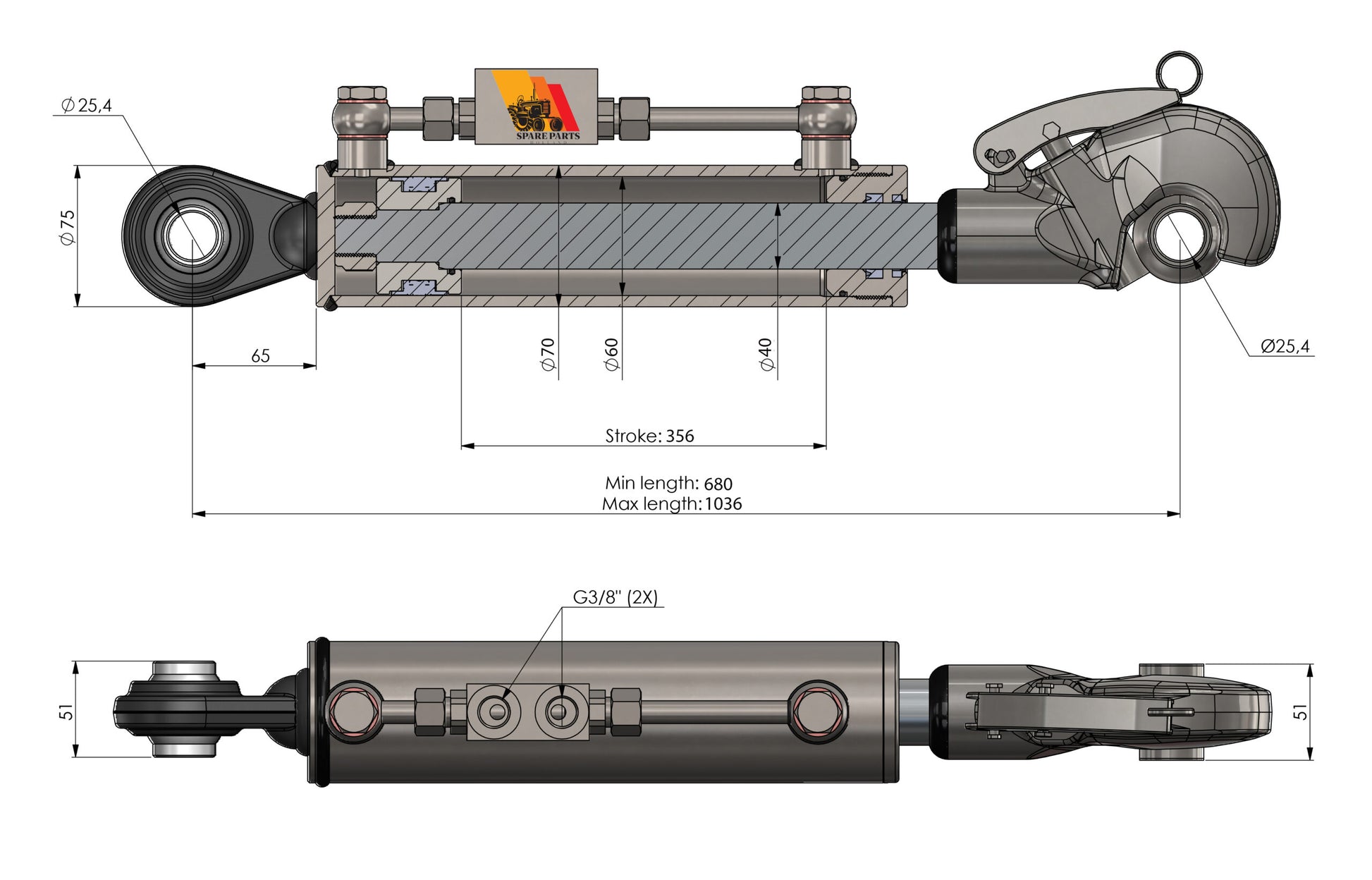

• Technical drawing: available in the product images

How to Choose the Right Top Link

• Check the category:
  • Category 1 → 3/4" pins (20–45 HP)
  • Category 2 → 1" pins (40–120 HP)
  • Category 3 → 1-1/4" pins (80–225+ HP)
• Measure the length range:
  • Measure your current top link in both retracted and extended positions
  • Select a hydraulic model with the correct stroke and adjustment range
• Check your hydraulic system:
  • Pressure range: approx. 2,300–2,900 PSI
  • Using 1/2" ISO 5675 quick couplers (AG-style)? ✔ Male couplers included

Product Overview

This Hydraulic Top Link with Rapid Hook replaces a manual top link and makes adjusting your implement angle quick and easy—right from the operator’s seat. The integrated check valve keeps the cylinder securely in position and only opens when hydraulic pressure is reapplied, ensuring reliable and precise control at all times.

An essential upgrade for professionals looking to work more efficiently, safely, and comfortably.

Simplify your workflow—upgrade your tractor with this Hydraulic Top Link with Rapid Hook today.
