Hydraulic Top Link Holding Bracket for Tractors – SPH500198

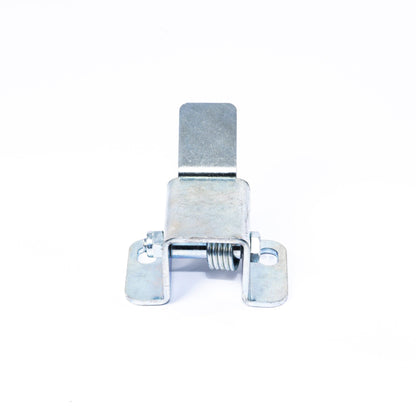

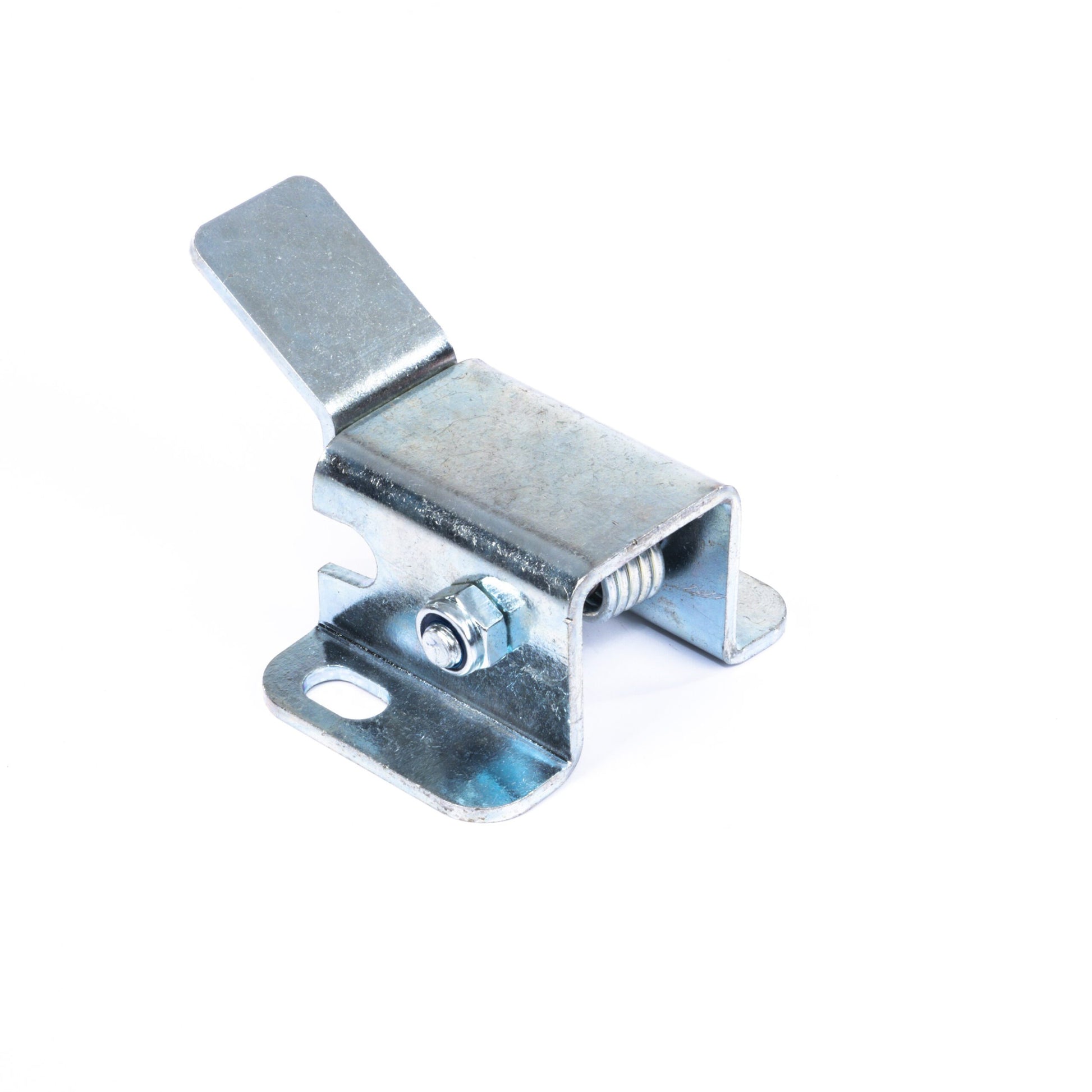

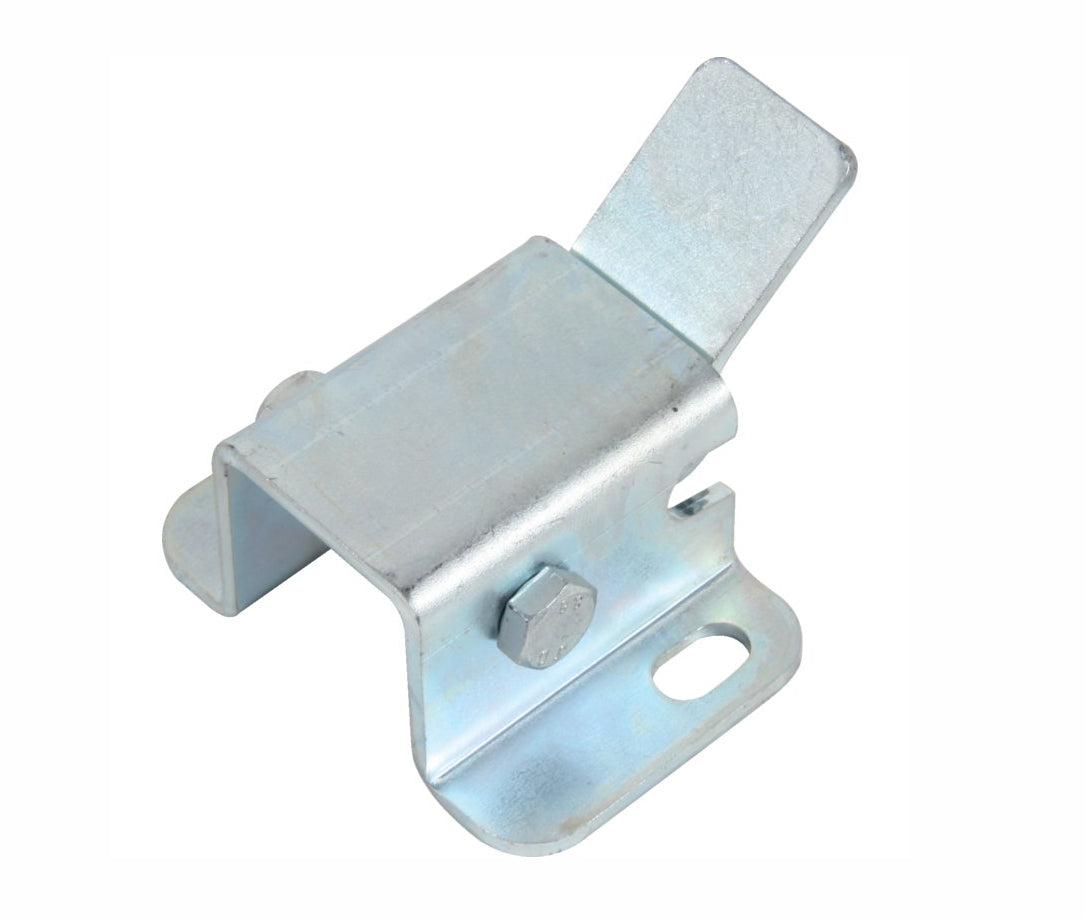

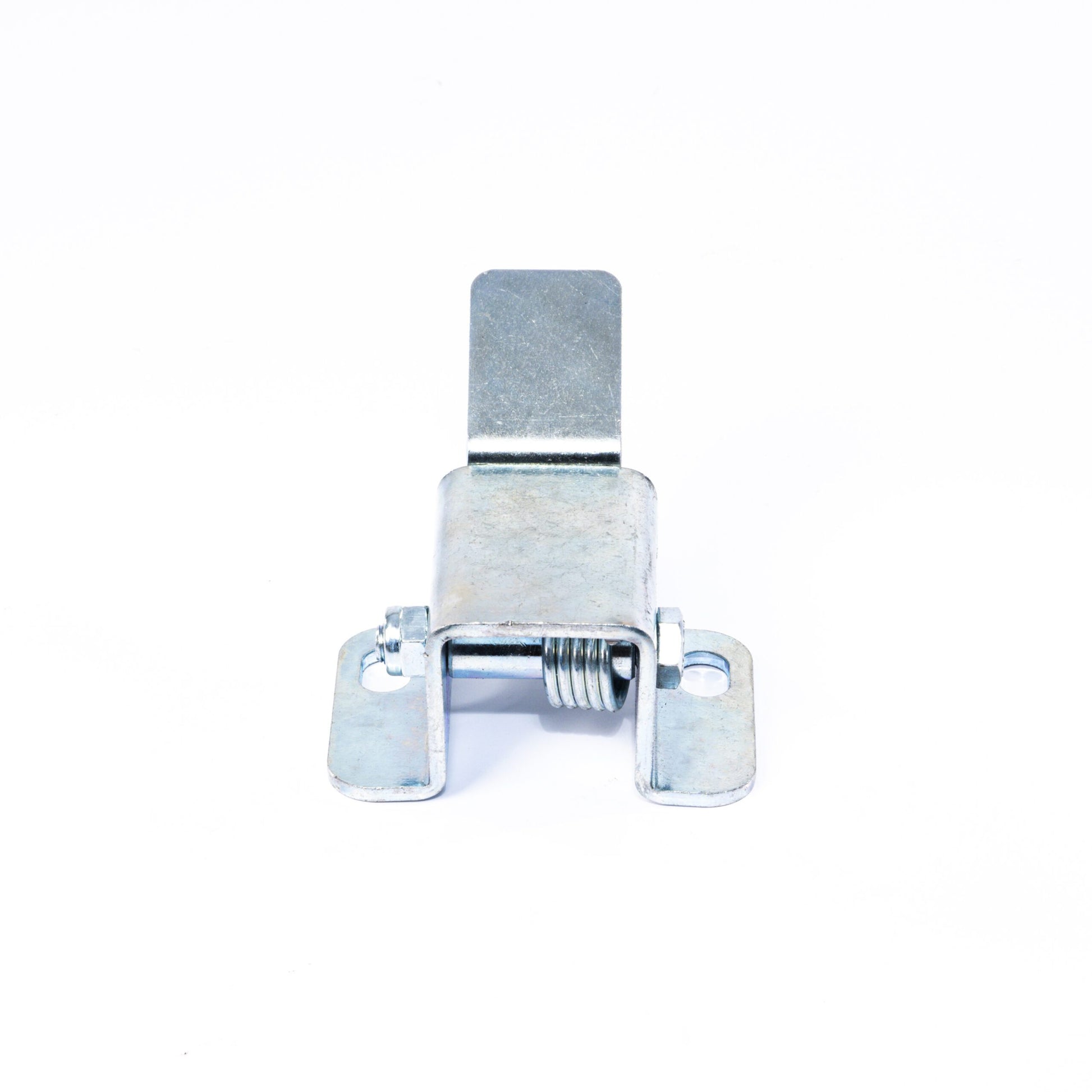

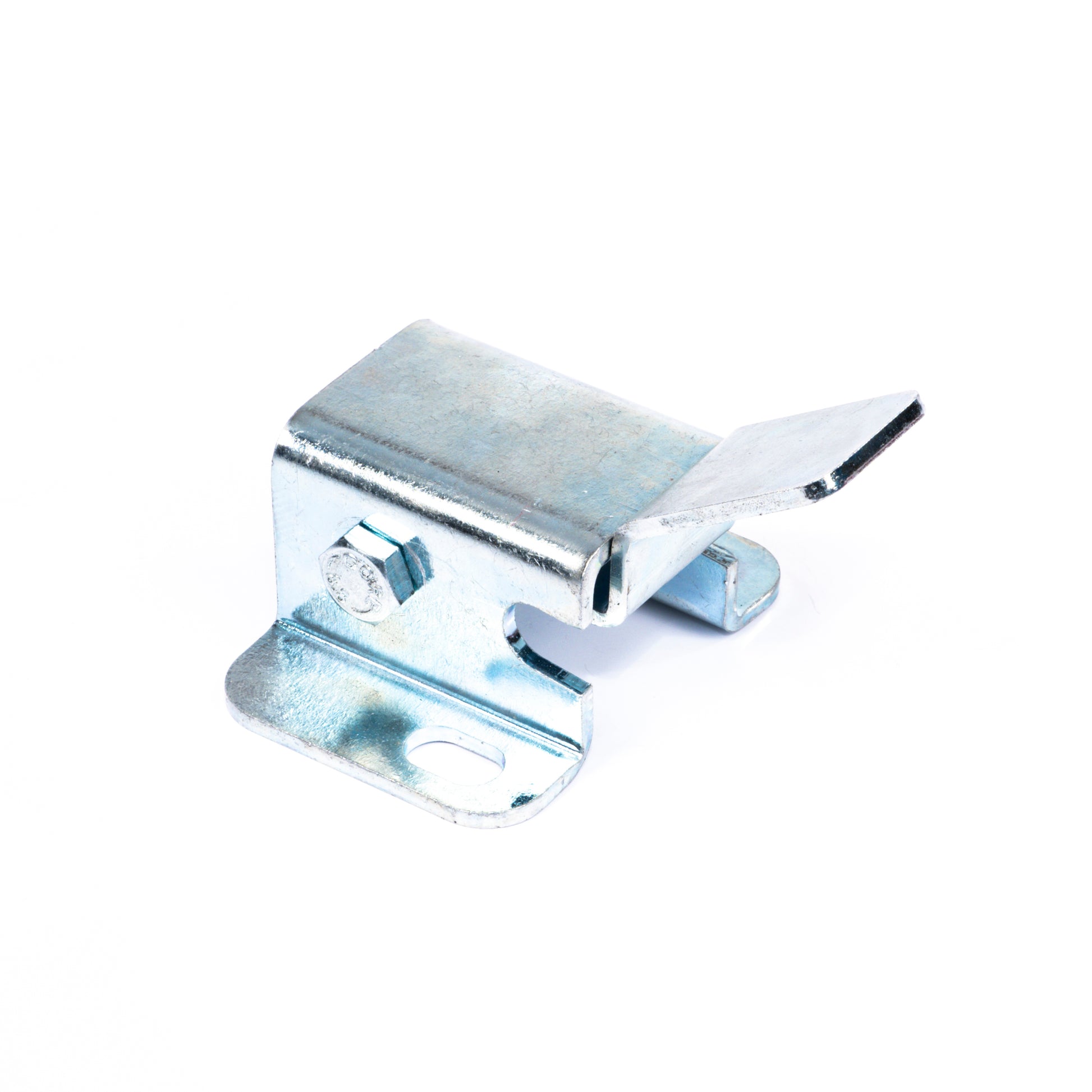

Hydraulic Top Link Holding Bracket for Tractors – SPH500198. This tractor-mounted top link holder keeps a hydraulic top link raised and supported when it is not in use. It helps prevent the top link from hanging freely or contacting other tractor components. The galvanized bracket is intended for tractors, Unimog and other work vehicles with a suitable mounting position and a compatible retaining bracket on the top link.

Key Features

• Supports the hydraulic top link in a raised resting position.
• Mounts to a suitable point on the rear of a tractor or work vehicle.
• For top links with a compatible retaining bracket (German: Haltebügel).
• Galvanized finish for corrosion resistance.
• Compact holder for compatible three-point linkage systems.

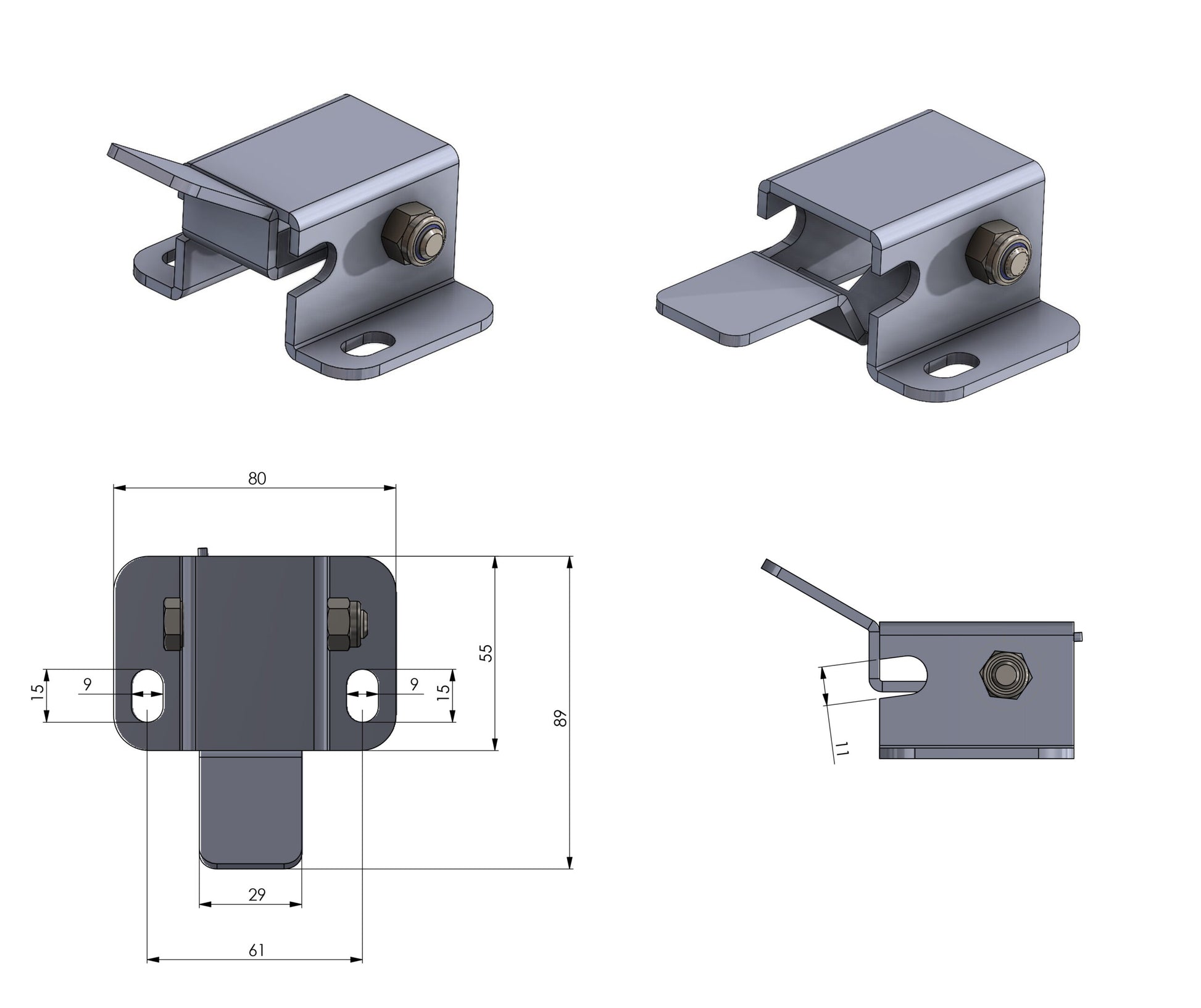

Mounting Dimensions and Fitment

The 40 mm minimum is the clear internal width between the sides of the retaining bracket attached to the top link. The rod that hooks into the holder must be Ø10 mm or smaller; a thicker rod will not fit the slot.

Installation and Use

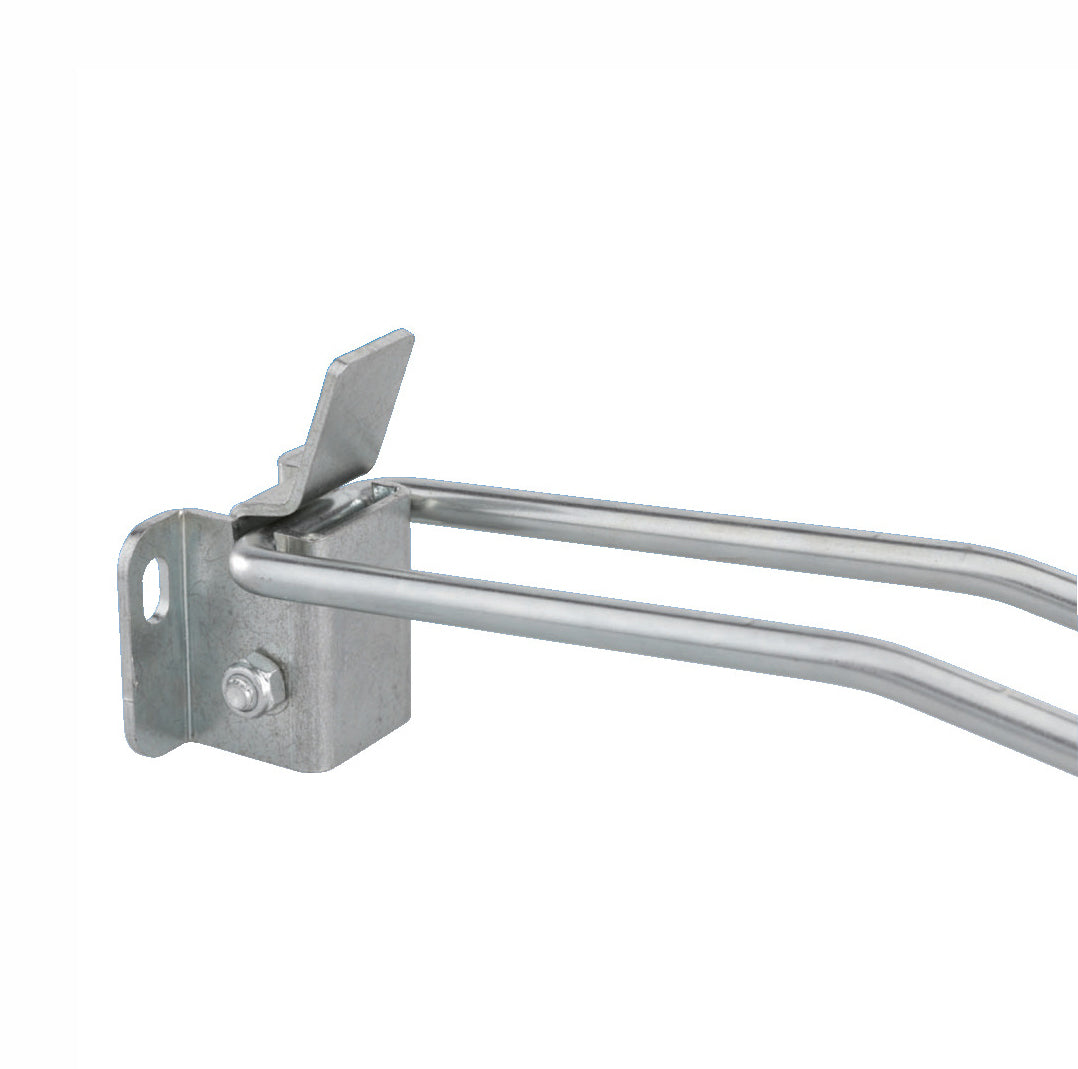

Secure the bracket to a suitable mounting point on the tractor. When the hydraulic top link is not needed, raise it and place its compatible retaining bar into the holder. Before use, check the mounting-hole spacing, retaining-bracket width, rod diameter and available clearance. Make sure the stored top link does not contact hydraulic hoses, implements or moving parts.

What's Included

1 × Hydraulic Top Link Holding Bracket – SPH500198. The hydraulic top link, its retaining bracket/holding bar and mounting bolts are not included.

Frequently Asked Questions

Does it fit every top link? No. A compatible retaining bar with at least 40 mm clear internal width and a rod diameter no greater than Ø10 mm is required, together with suitable tractor mounting dimensions.

Is the holder galvanized? Yes, it has a galvanized finish.

Are the top link and fixing bolts included? No. The package contains one tractor-side holding bracket only.
