Hydraulic top link Cat 1-1 with hook (455–615 mm) including 2 hoses – SPH320047

Hydraulic top link Cat 1-1 with hook (455–615 mm) including 2 hoses – SPH320047

SKU :  SPH320047
€186,00
€153,72 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

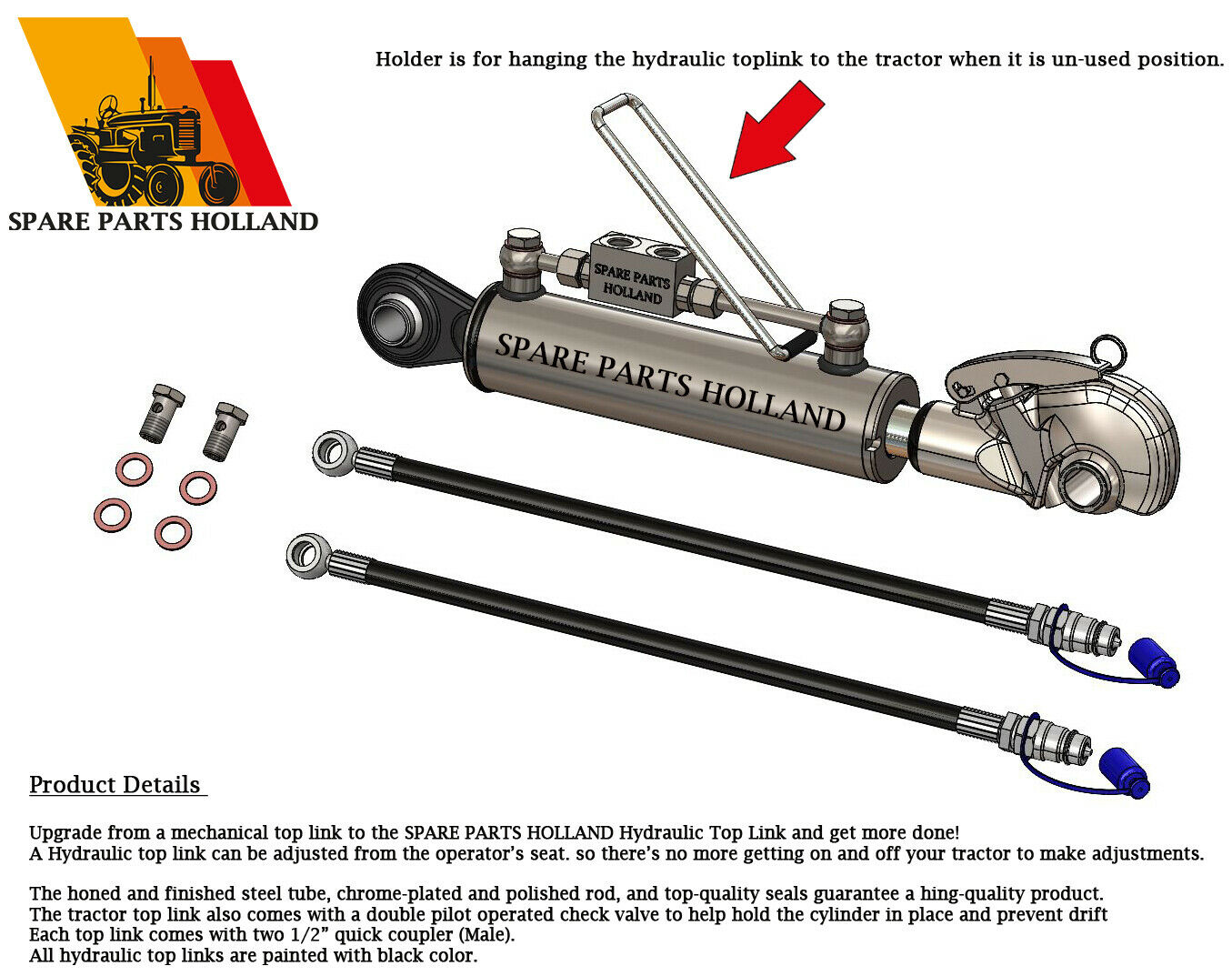

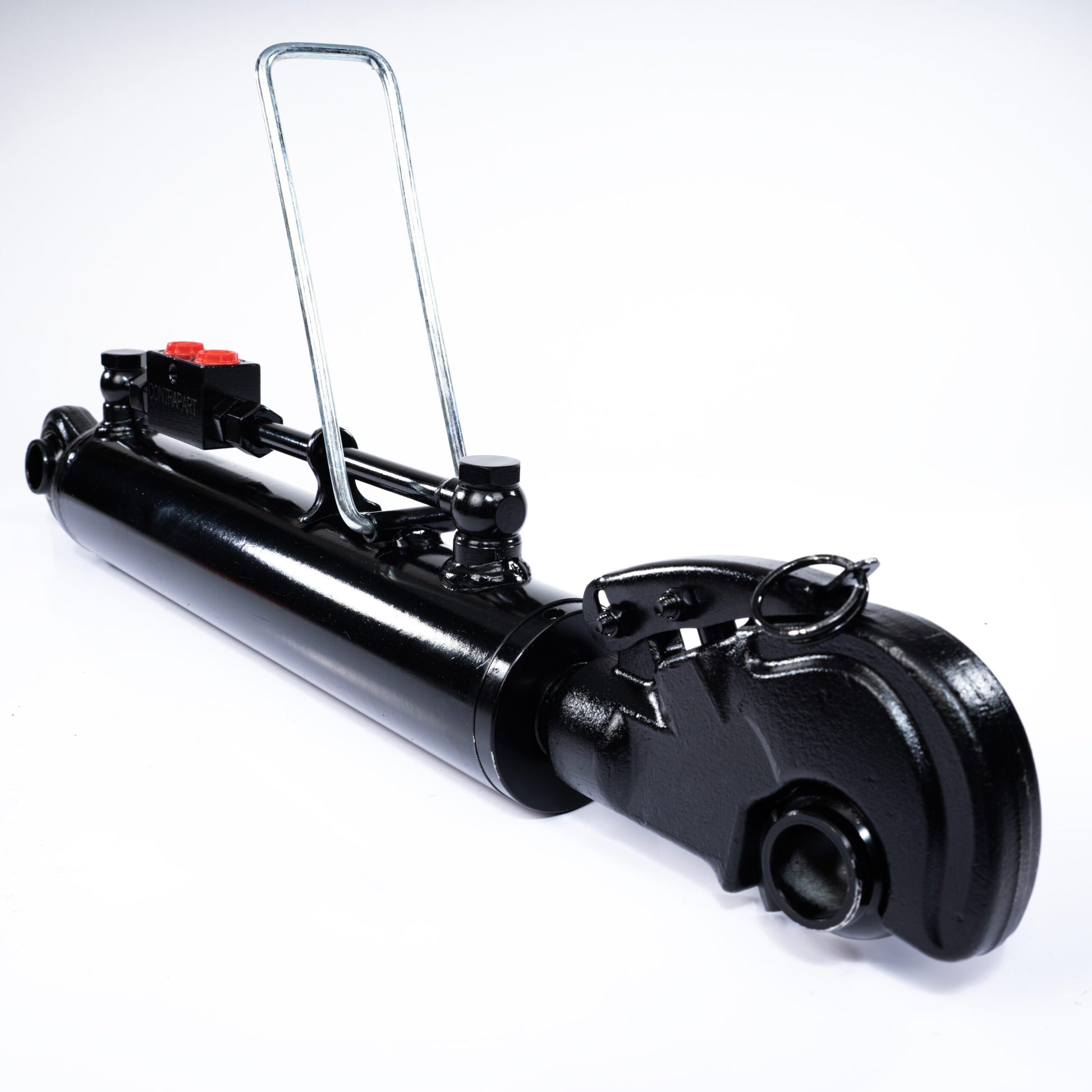

This Cat 1 hydraulic top link with hook replaces the mechanical top link on your tractor. Adjust its length using the tractor hydraulics to change the implement's working angle from the tractor seat. It has a 455–615 mm length range, 160 mm stroke and 50/30 mm cylinder bore/piston rod. Supplied with 2 hoses with quick couplings, 2 banjo bolts and 4 sealing washers.

CAT 1-1 · 455–615 MM · 50/30 MM

Check the fit before ordering. Compare the required length, both mounting points and available clearance with the technical drawing. Category or tractor make alone does not confirm a suitable fit.

Mounting holes: Ø19.2 mm; end widths: 44 mm and 44 mm.

What is included?

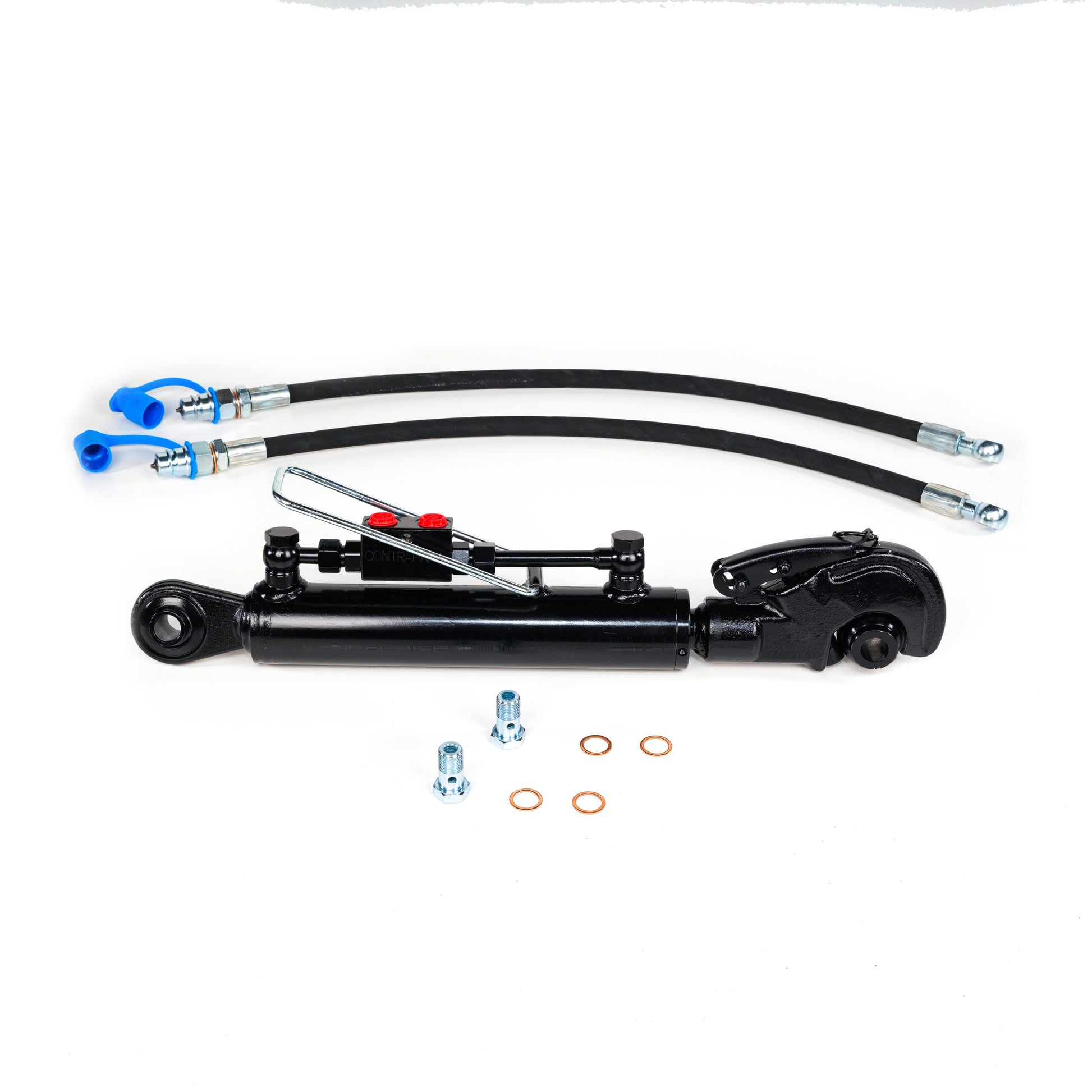

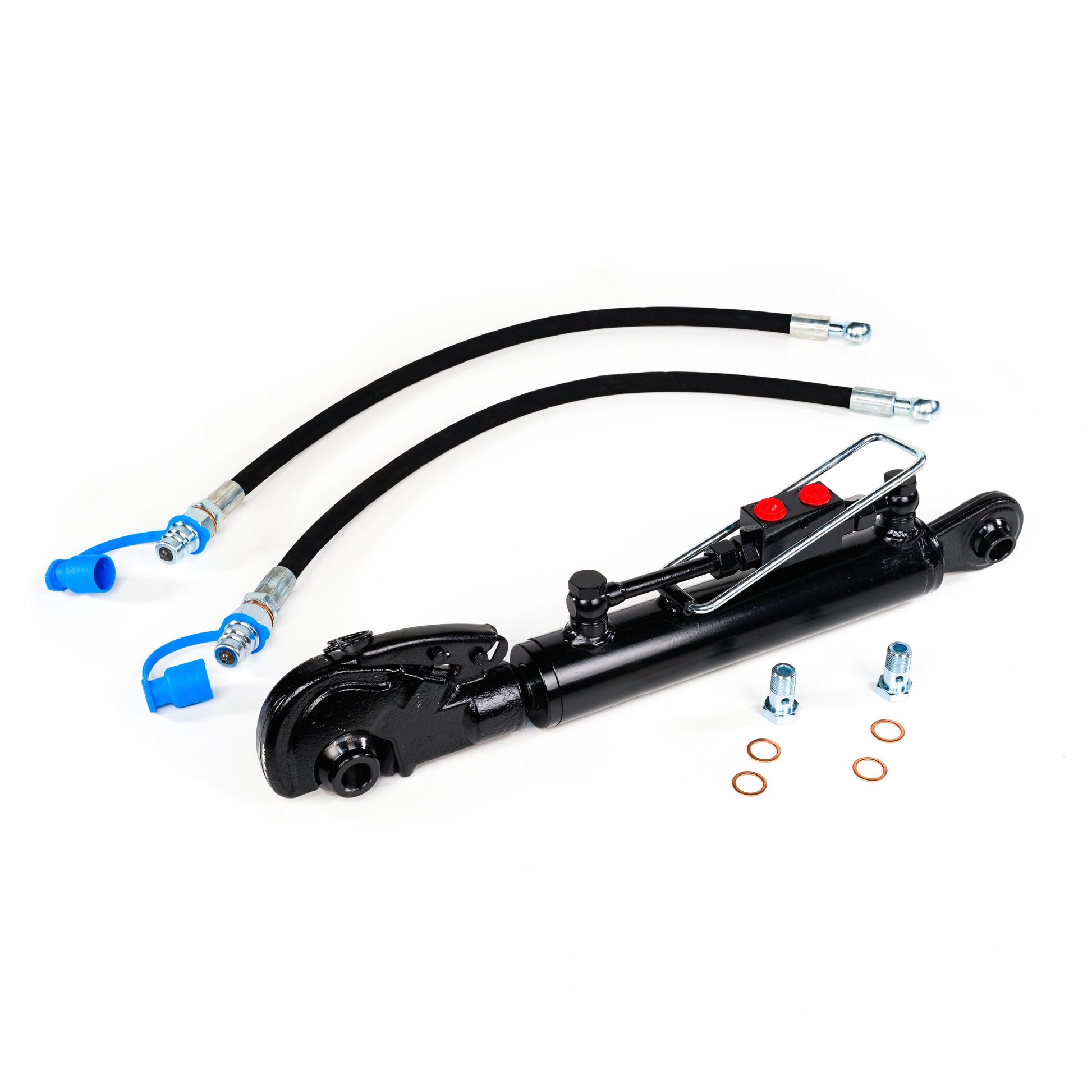

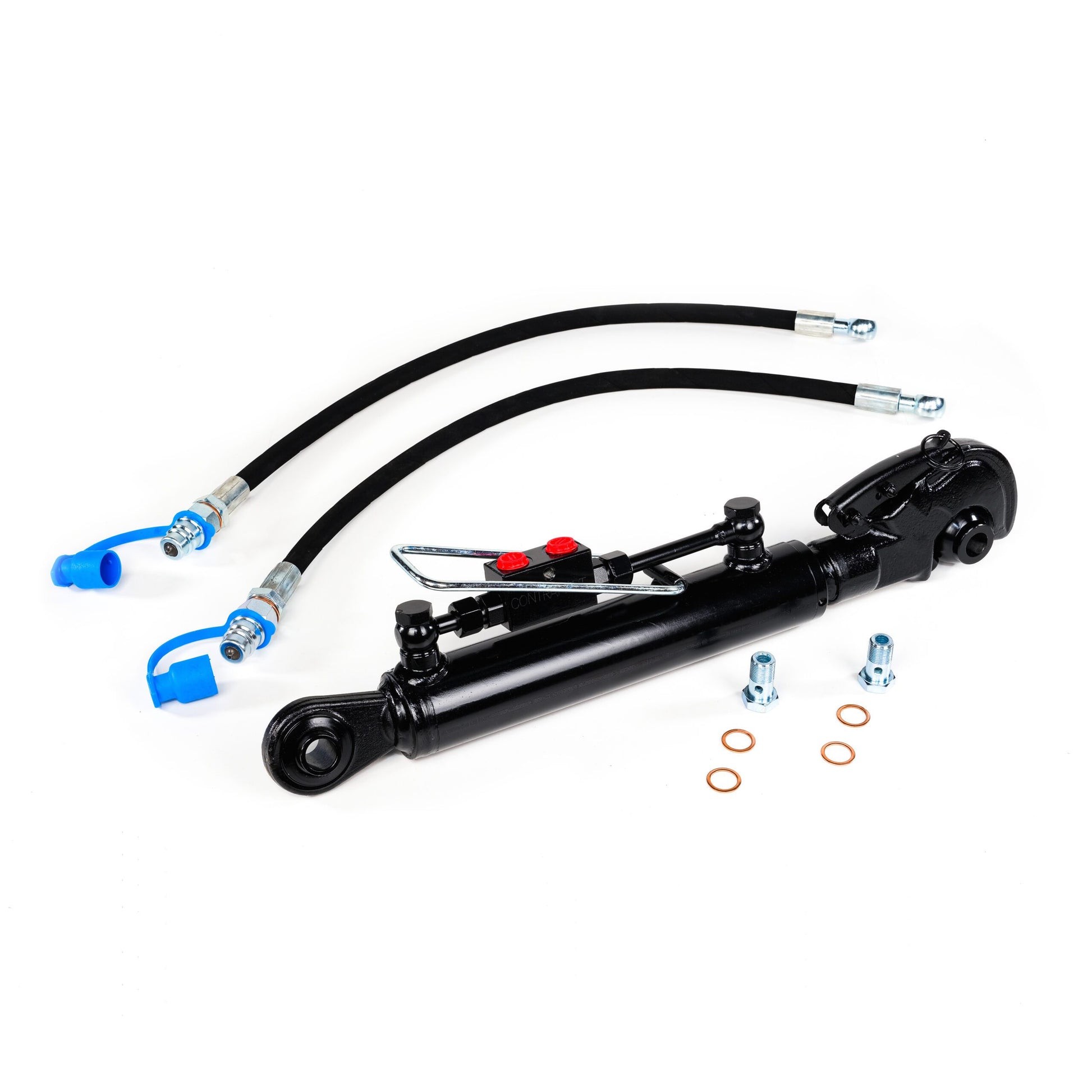

  • 1 × hydraulic top link with hydraulic locking block
  • 2 × hydraulic hoses with quick couplings
  • 2 × banjo bolts
  • 4 × sealing washers for the banjo connections

The hydraulic locking block is the valve block on top of the cylinder. Check that the quick couplings match your tractor and that the hoses have sufficient clearance throughout movement.

Will this version fit your tractor?

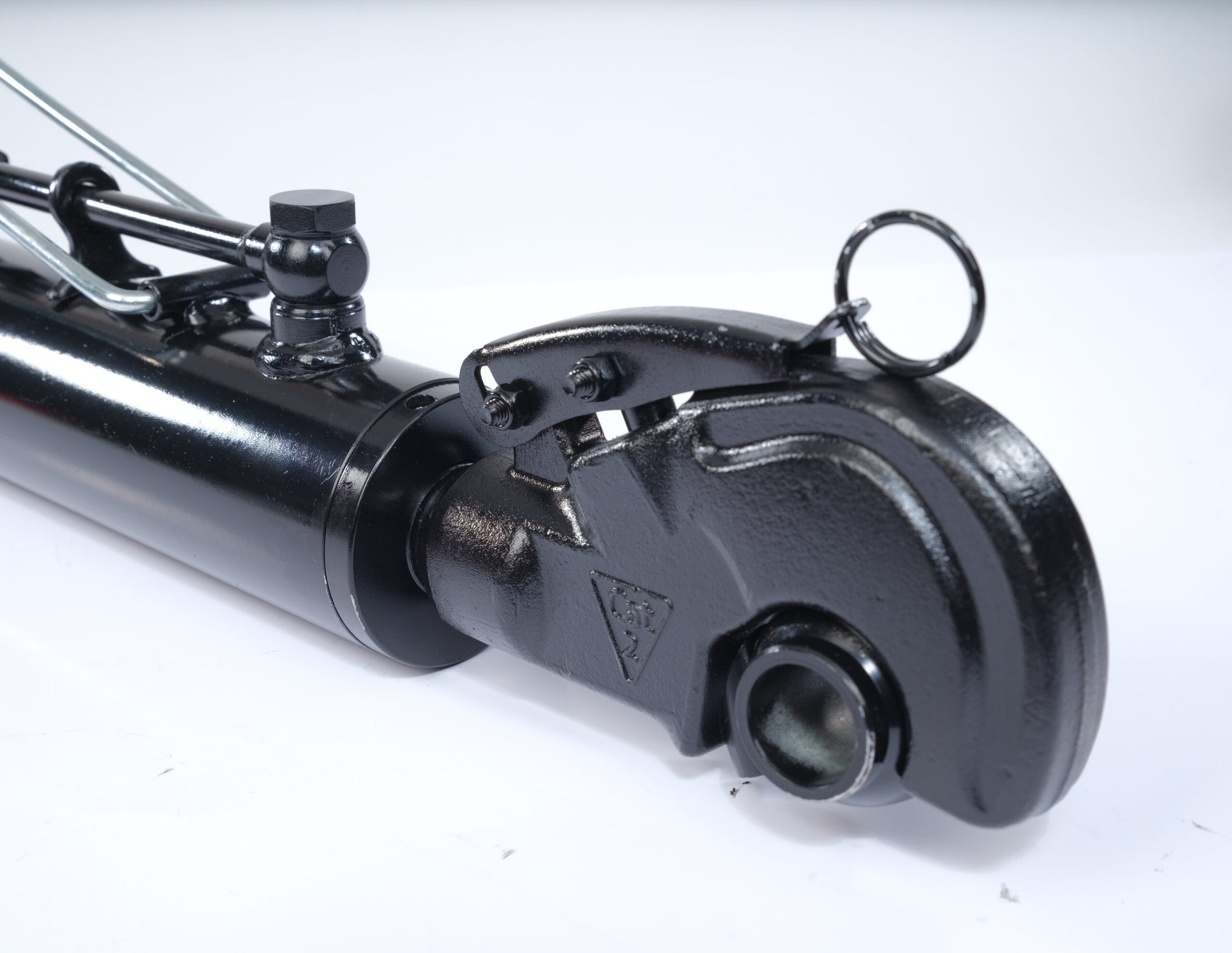

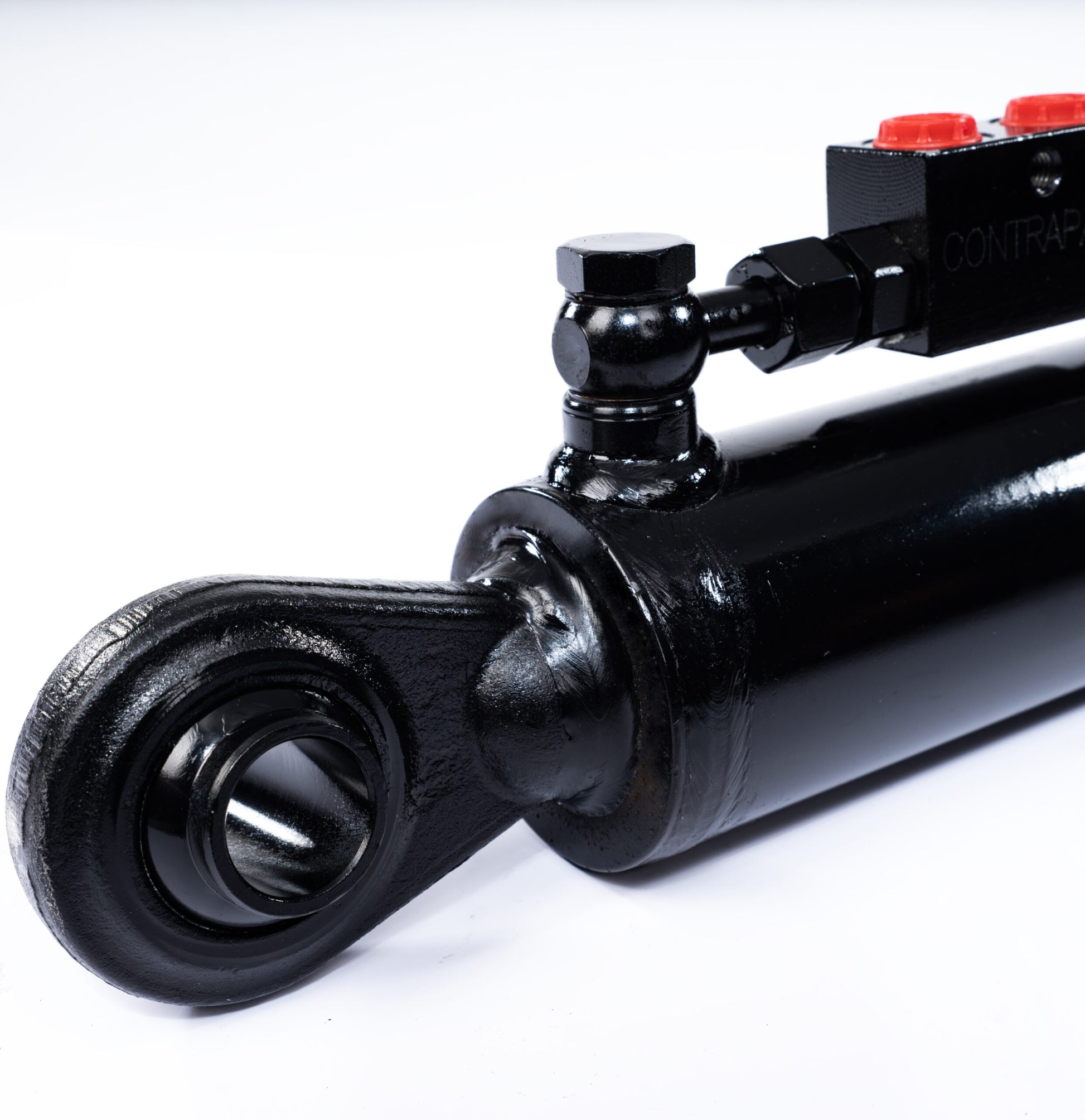

A ball joint is fitted at the cylinder end and a hook at the piston rod end. Check the hook, matching ball and pin together, and make sure the hook is closed and locked before use. A double-acting hydraulic connection is required. The 50/30 designation means a 50 mm cylinder bore and a 30 mm piston rod.

Technical specifications

Part numberSPH320047
End-fitting categoryCat 1-1
End fittingsBall joint and hook end
Retracted length¹455 mm
Extended length¹615 mm
Stroke160 mm
Bore / piston rod50 / 30 mm
Hole diameter at ball jointØ19.2 mm
Hole diameter of ball in hookØ19.2 mm
Width at cylinder end44 mm
Width at hook end, as drawn44 mm
Cylinder ports shown on drawingG3/8″ (2×)

¹ Measure from the centre of the ball joint to the centre of the ball seated in the hook, as shown on the metric drawing. Compare the shortest and longest lengths required with 455–615 mm. Do not measure to the outside of the hook. The 44 mm dimension is not the hook opening.

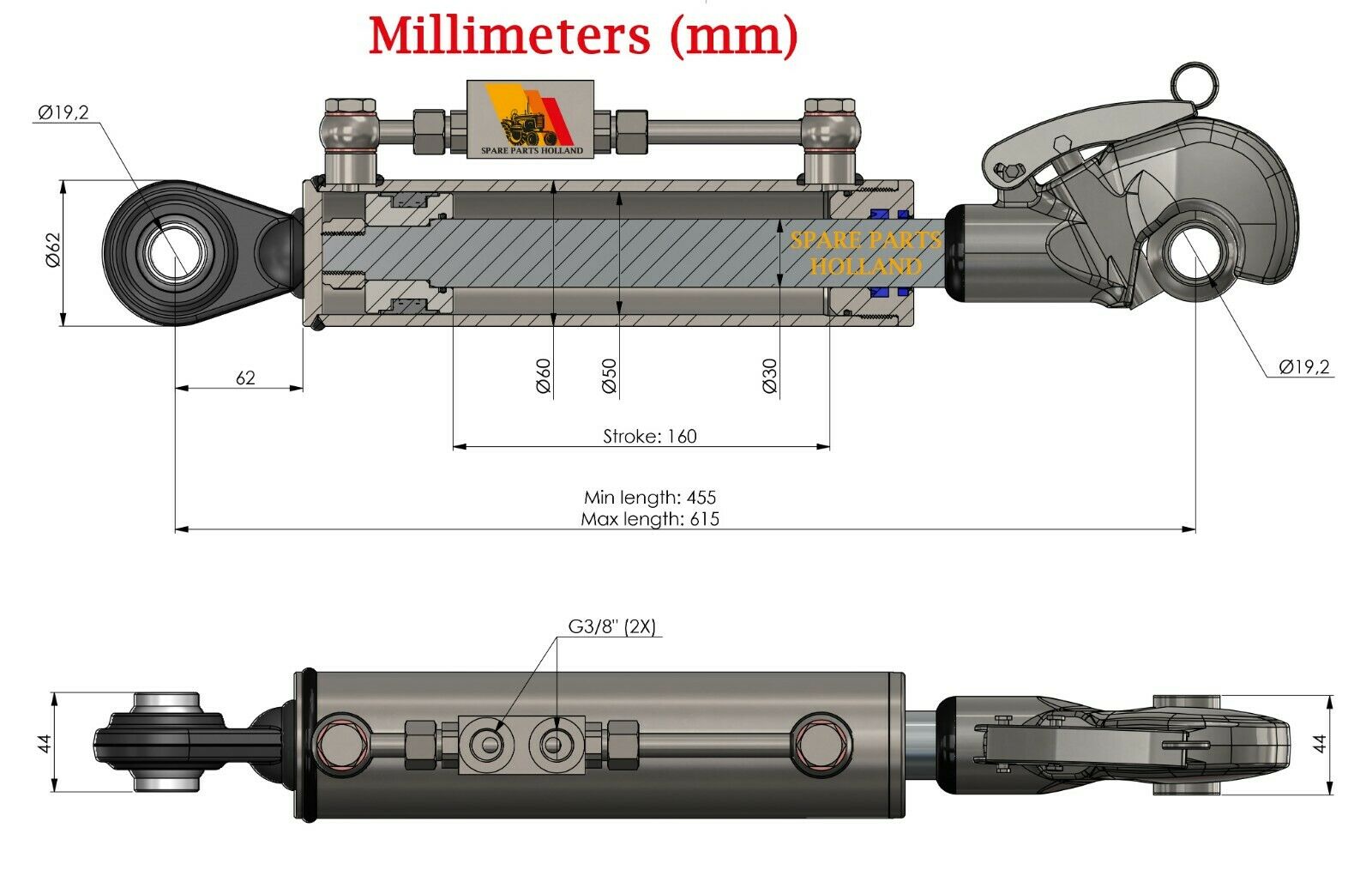

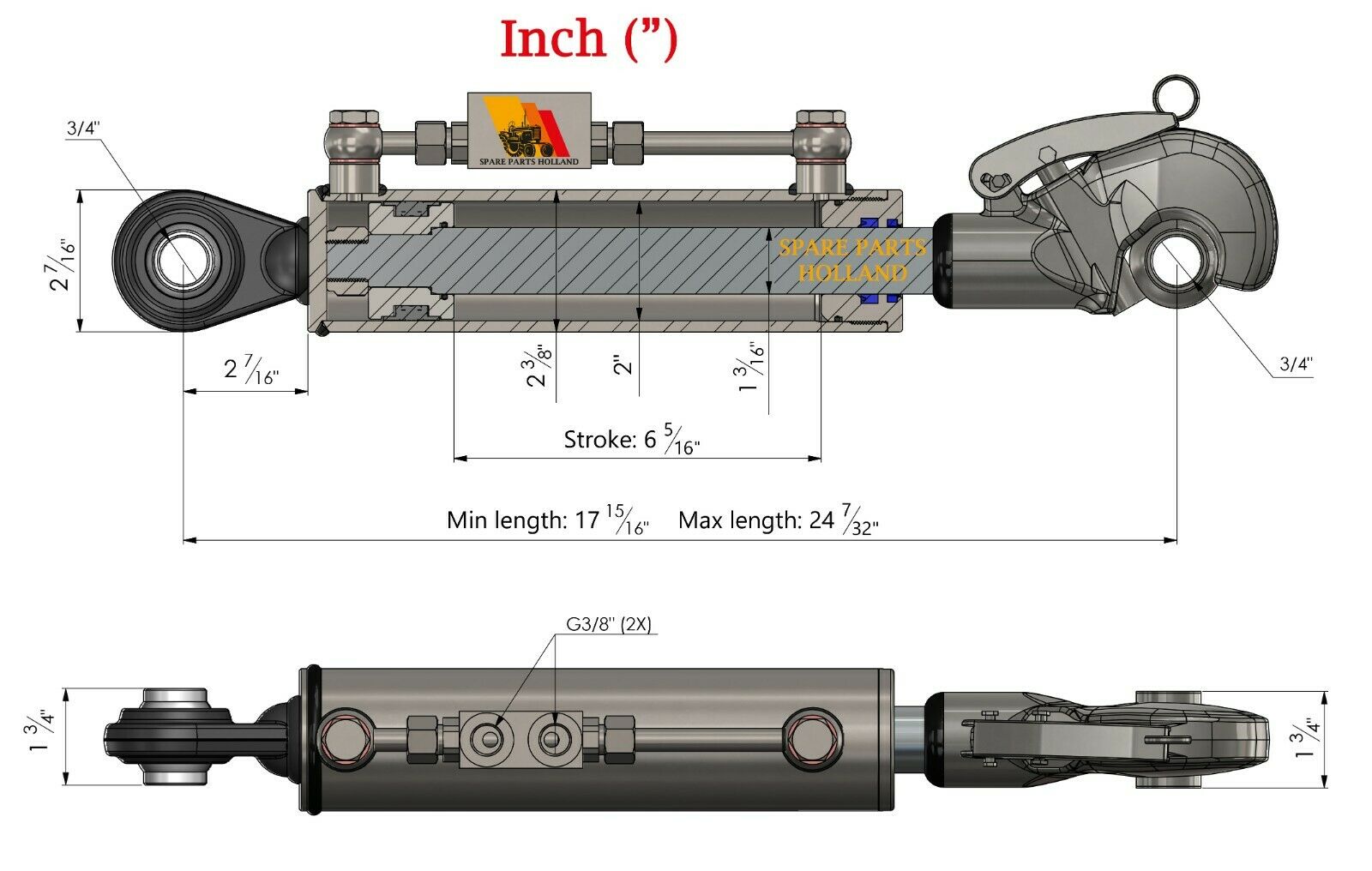

View the metric technical drawing

Checks before installation

  1. Compare the required retracted and extended lengths with 455–615 mm.
  2. Check both mounting pins, hole diameters, joint widths and available clearance.
  3. Check double-acting control and tractor quick couplings. G3/8″ is the cylinder port size, not the tractor quick-coupling specification.
  4. Route the hoses without kinks, tension or contact with moving parts.

Compare other length ranges

Compare other length ranges: 505–715 mm · 210 mm; 575–855 mm · 280 mm; 650–990 mm · 340 mm.

Compare standard Cat 1 hydraulic top links or Cat 1 hydraulic top links with hook. Check each version's mounting dimensions separately.

Frequently asked questions

Does it fit every Cat 1 tractor?

No. Check the length range, both mounting points, available clearance and hydraulic connections.

How do I measure the required top-link length?

Measure from the centre of the ball joint to the centre of the ball seated in the hook, as shown on the metric drawing. Compare the shortest and longest lengths required with 455–615 mm. Do not measure to the outside of the hook. The 44 mm dimension is not the hook opening.

Is the 160 mm stroke the same as the overall length?

No. Stroke is the cylinder's travel. The retracted length is 455 mm and the extended length 615 mm, measured between the indicated mounting points.

Need help choosing?

Send your tractor model, photos of both mounting points and the dimensions of your current top link via WhatsApp. Tell us which implement you use. The product code is already included in the message.
