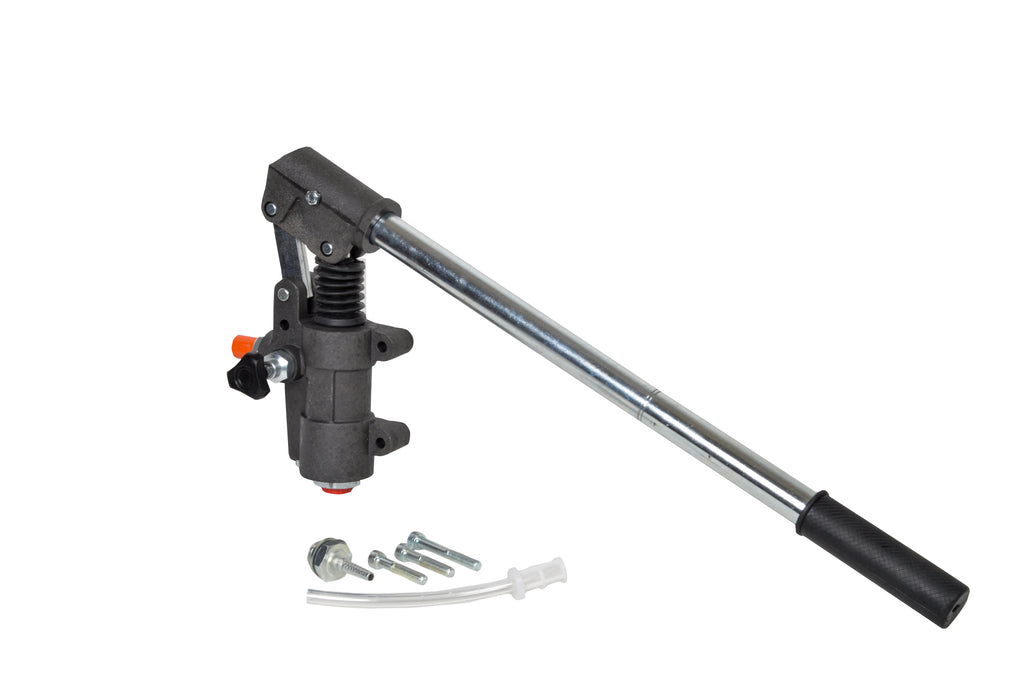

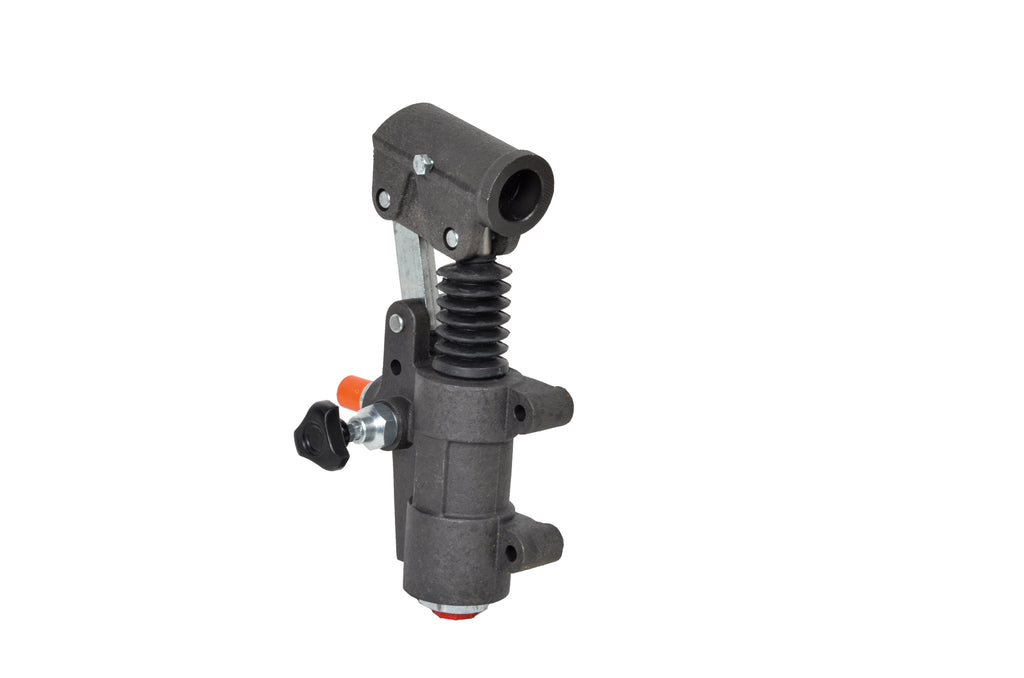

Inline Hydraulic Hand Pump 20cc for Single-Acting Cylinders - SPH390162
Inline Hydraulic Hand Pump 20cc for Single-Acting Cylinders - SPH390162
Technical specifications / dimensions

Request STL File

Request an STL file for Inline Hydraulic Hand Pump 20cc for Single-Acting Cylinders - SPH390162

Inline Hydraulic Hand Pump 20cc for Single-Acting Cylinders - SPH390162

Inline Hydraulic Hand Pump 20cc for Single-Acting Cylinders - SPH390162

SKU :  SPH390162
€70,18
€58,00 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

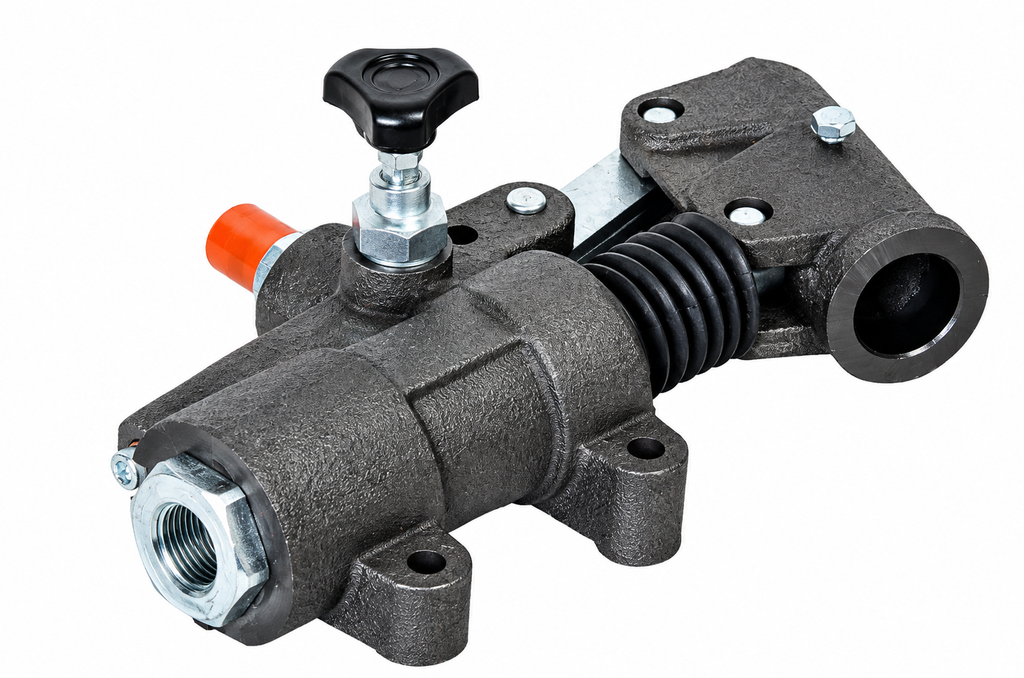

The PRBC20 inline hydraulic hand pump is designed for hydraulic systems with a single-acting cylinder and an external oil reservoir. The compact tankless design can be connected directly into an existing hydraulic circuit via hoses.

The pump uses a double-stroke pumping mechanism, moving hydraulic oil during both lever directions. An integrated release control allows pressure to be released so the single-acting cylinder can retract.

20 ccWorking volume
250 barRated working pressure
Double strokePumps in both lever directions
Without tankFor an external reservoir

Double stroke does not mean double-acting. The pump delivers oil during both lever movements. The hydraulic circuit is intended for a single-acting cylinder. The cylinder returns under its own weight, spring force or an external load when the oil can flow back.

Key features

  • Inline / tankless design: for use with an external hydraulic oil reservoir.
  • Single-acting hydraulic circuit: intended for operating single-acting cylinders.
  • Double-stroke pump action: pumps during both movements of the operating lever.
  • Rated working pressure: 250 bar.
  • Mounting: 3 mounting holes for fixed installation on a machine frame, panel or similar support.
  • Pressure release control: manual release for controlled cylinder retraction.

Technical specifications

Model PRBC20
SPH number SPH390162
Application Inline hand pump for single-acting hydraulic cylinders
Pumping mechanism Double stroke
Working volume 20 cm³ (20 cc)
Rated working pressure 250 bar
Pressure port (P) G 3/8" BSP
Suction / tank port (T) G 1/2" BSP
Mounting holes 3 × Ø8.5 mm
Operating lever length 550 mm
Weight 2.9 kg
Body Cast iron

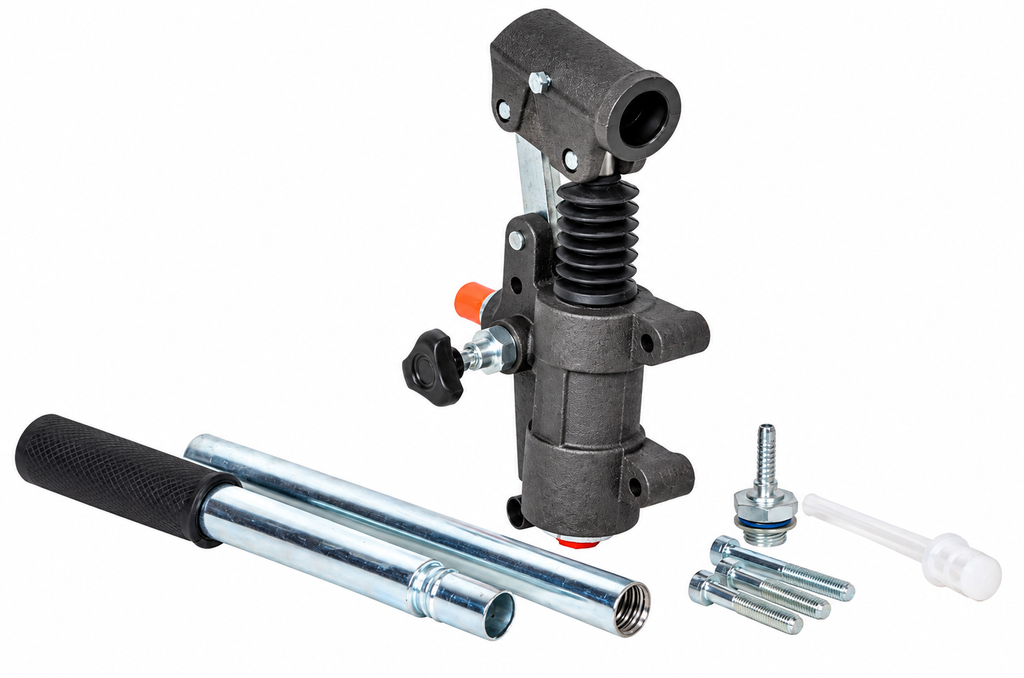

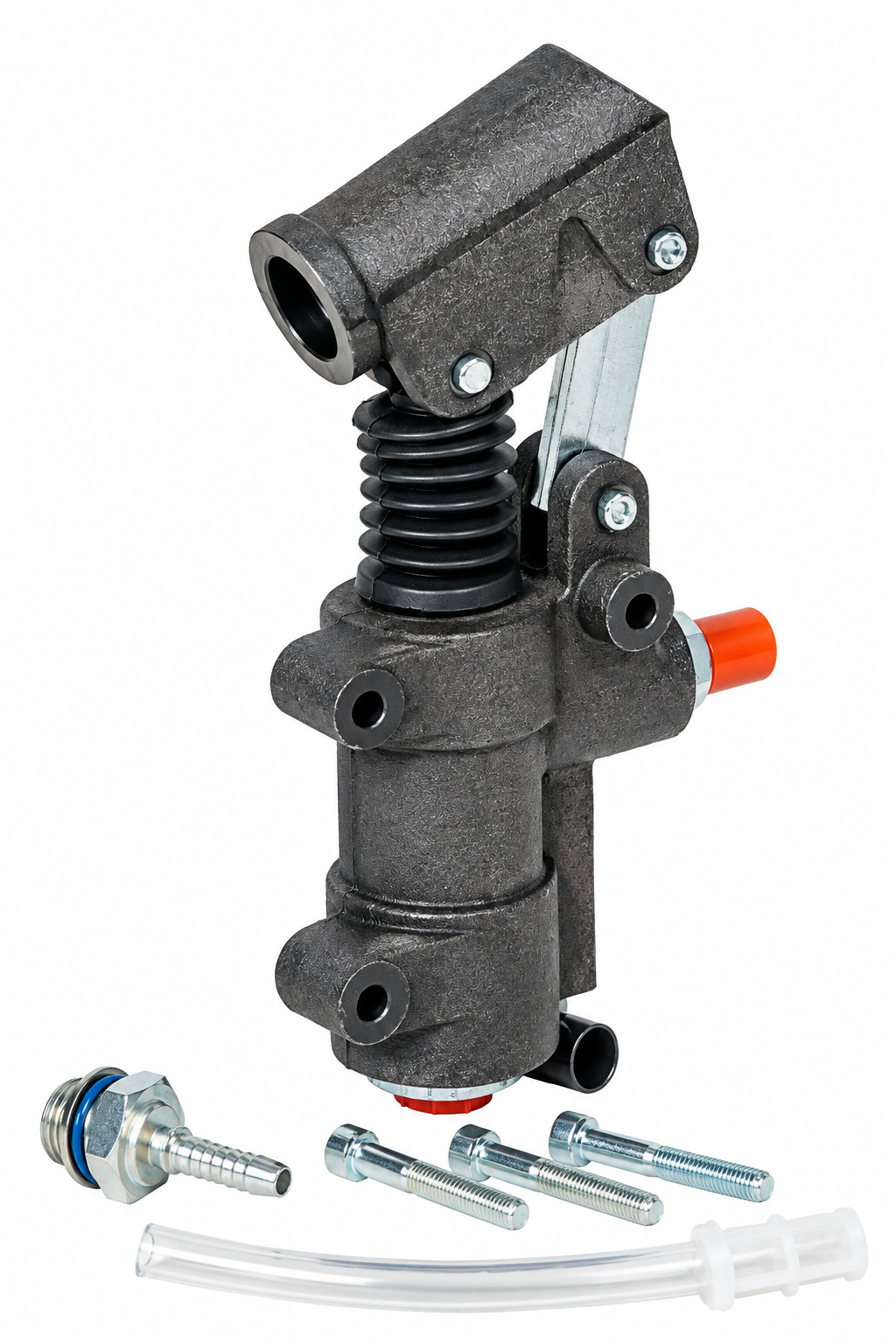

Package contents

  • 1 × inline hydraulic hand pump, 20 cc
  • 1 × steel operating lever, 550 mm
  • 1 × suction tube, 176 mm
  • 1 × suction filter

Check before ordering

This hand pump is supplied without an integrated oil tank and is intended for an external reservoir. Before ordering, check the required hydraulic function, port threads, available installation space and the specifications of the cylinder and hydraulic circuit.

Suitable hydraulic system

See our single-acting hydraulic hand pumps and single-acting hydraulic cylinders. Check the working pressure, connections and required oil volume of the complete installation.

Frequently asked questions

Is this pump suitable for a double-acting cylinder?

This version is intended for a single-acting hydraulic circuit. Pumping on both lever movements does not make the cylinder operation double-acting.

Is an oil tank included?

No. The PRBC20 is supplied without an integrated tank and requires a suitable external oil reservoir.

What connections does SPH390162 have?

Pressure connection P: G3/8 BSP. Suction/tank connection T: G1/2 BSP. Check the hose and coupling threads and pressure ratings before installation.

What happens when the pressure release is opened?

Pressure can be released so oil can return. The cylinder returns under its own weight, spring force or an external load.

Order the PRBC20 inline hydraulic hand pump from Spare Parts Holland. Questions about your installation? Contact us.
