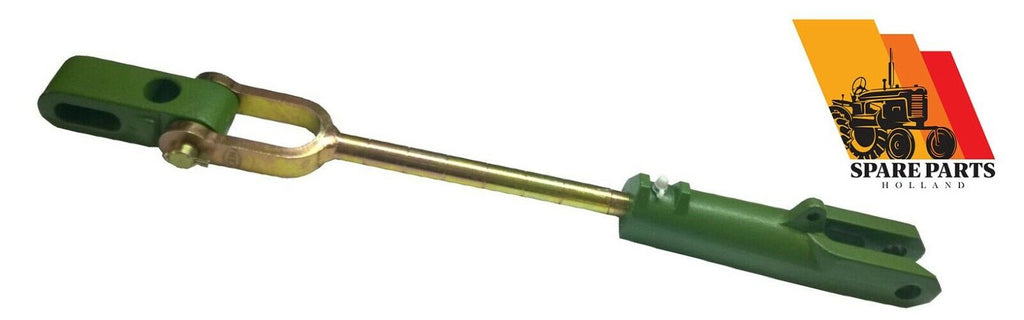

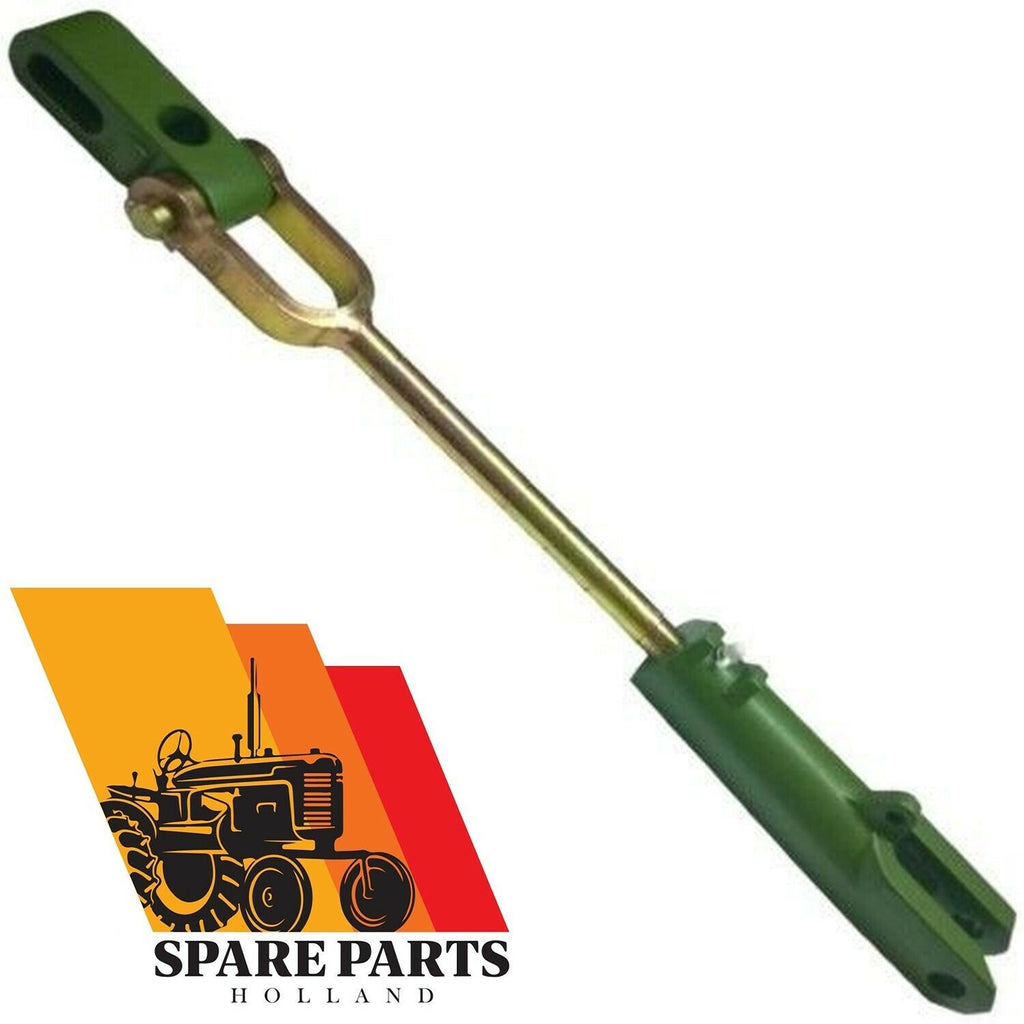

Left-Hand Levelling Box / Lift Link 02384369 for Deutz 5005 / 7505U / 5206 / 5506 / 6006 / 6206 / 6806 / 7206 – SPH430717
SKU :
SPH430717
€77,00
€63,64 excl. VAT
€63,64 excl. VAT
2-year warranty on all our products
Worldwide Shipping
1000+ customers give us a 9.4 review
Description
Complete left-hand adjustable levelling box / lift link for selected Deutz tractors. This aftermarket replacement part is intended for the tractor’s three-point linkage and can be compared with reference numbers 02384369, 03471320, 04315453 and 71804878.
This is the left-hand version. Before ordering, compare the reference number, tractor model and mounting dimensions with the part currently fitted to your tractor.
Left-hand lift link for Deutz tractors
This complete left-hand levelling box / lift link is suitable for selected Deutz 05 and 06 Series tractors listed below. Check the side of the tractor and the dimensions carefully before ordering.
Compatible Deutz tractor models
05 Series
5005 / 7505U
06 Series
5206 / 5506 / 6006 / 6206 / 6806 / 7206
Reference numbers
- 02384369
- 03471320
- 04315453
- 71804878
Technical data
Version
Complete, left-hand
Complete, left-hand

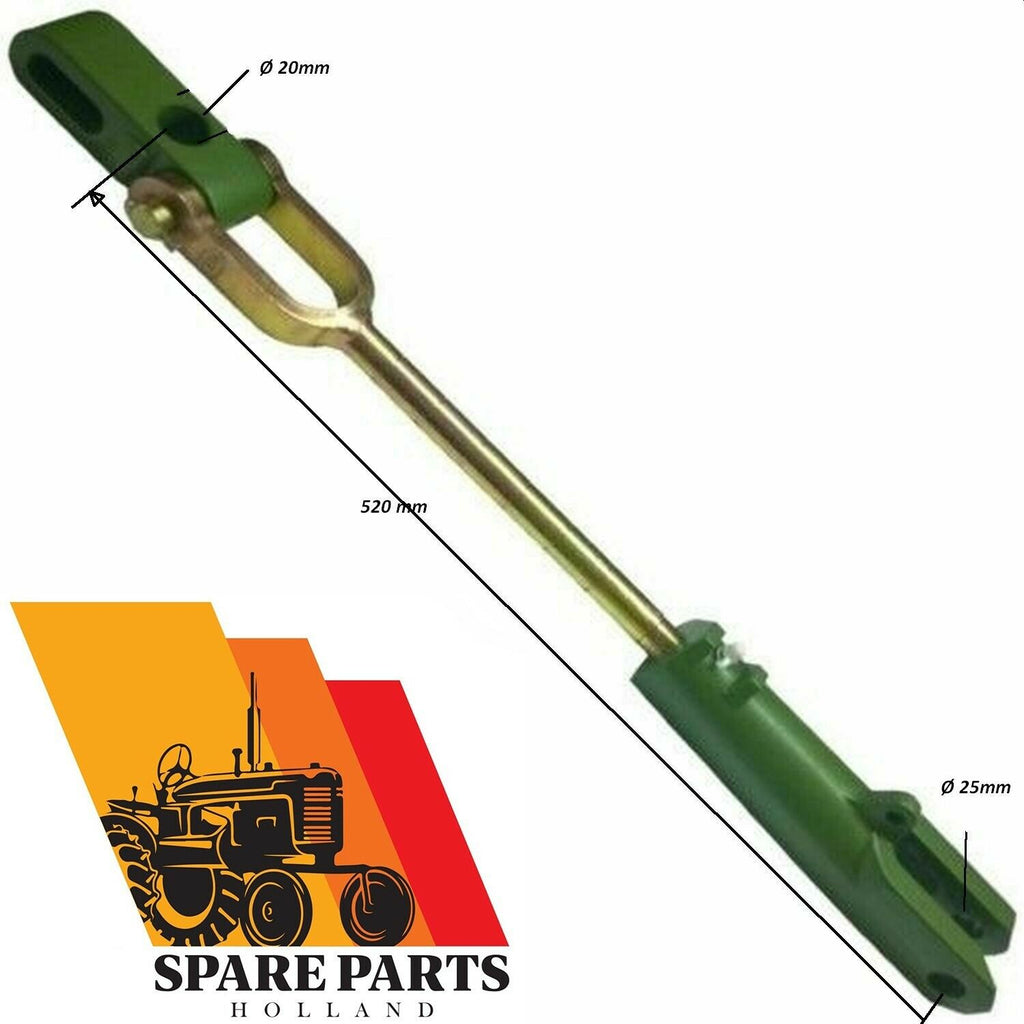

Length
520–720 mm (20.47–28.35 in)
520–720 mm (20.47–28.35 in)
Diameter
20 mm (0.79 in)
20 mm (0.79 in)
Fork inside width
22 mm (0.87 in)
22 mm (0.87 in)
Fitment check: this product is the left-hand version. Compare the side, reference number, minimum and maximum length, diameter and fork width with your existing part before ordering.
Aftermarket replacement part
This is an aftermarket replacement part suitable for the listed Deutz applications. Brand names and reference numbers are used only to identify compatibility and do not imply that the part is an original Deutz component.
Frequently asked questions
Is this the left- or right-hand version?
SPH430717 is the complete left-hand version.
Which reference numbers can I compare?
Compare 02384369, 03471320, 04315453 or 71804878 with the number on your existing part where available.
What is the length?
The specified length is 520–720 mm (20.47–28.35 in).
What is the fork inside width?
The fork inside width is 22 mm (0.87 in).
Order the correct left-hand Deutz lift link
Check the reference number, left-hand version and measurements against your existing part. If they match your application, you can order SPH430717 as an aftermarket replacement for the listed Deutz tractors.
Left-Hand Levelling Box / Lift Link 02384369 for Deutz 5005 / 7505U / 5206 / 5506 / 6006 / 6206 / 6806 / 7206 – SPH430717
Ordered before,
15:00 CET
delivered within
3 days
2-year
warranty
1000+
customers give us a
9.4+
review
€77,00
€63,64 excl. VAT
€63,64 excl. VAT
