Dual Hydraulic Remote Valve Kit Compatible with Massey Ferguson 35 135 165 185 285 – 4 Way – SPH330032

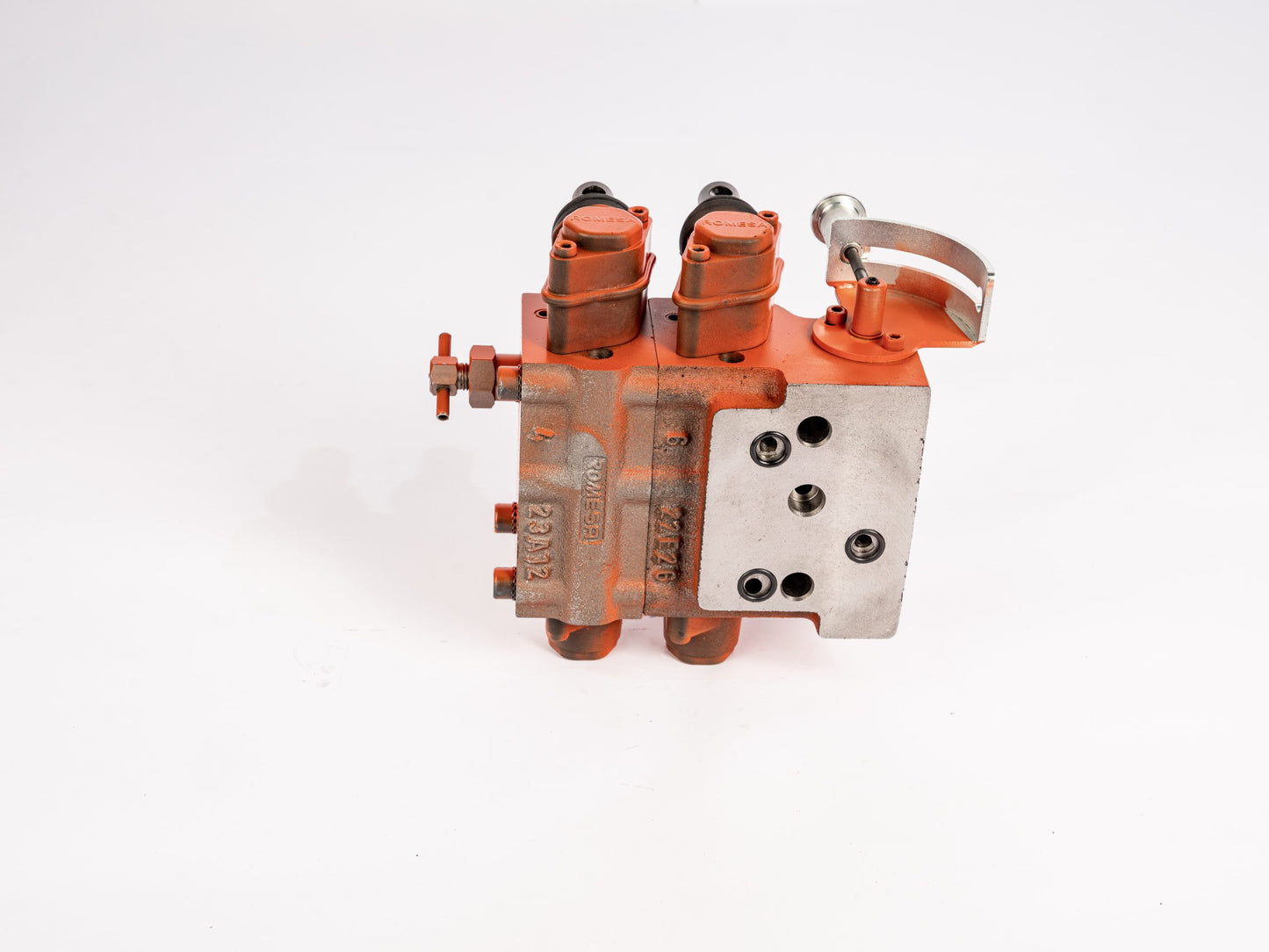

This high-performance dual-spool hydraulic remote valve kit is designed for selected Massey Ferguson 100, 200 and 300 series agricultural and industrial tractors and provides two independent auxiliary hydraulic circuits for rear-mounted implements. The 4-way control valve combines one spool for single-acting or double-acting cylinder operation with a second spool for double-acting cylinders only.

Massey Ferguson dual hydraulic remote valve kit – 4-way control

The first lever controls the first hydraulic spool and can operate both single-acting and double-acting cylinders. The second lever controls the second spool and operates double-acting cylinders only. Together they provide two independent hydraulic circuits for compatible rear-mounted implements and auxiliary hydraulic functions.

Key product features

• Dual-spool / 4-way hydraulic control valve: two independent hydraulic circuits.
• First lever: for single-acting and double-acting cylinders.
• Second lever: for double-acting cylinders only.
• ½” ISO 5675 female quick couplers: for secure connection and consistent oil flow.
• Rear remote valve function: adds two independent hydraulic outlets.
• Direct mounting on the lift cover: under-seat installation.
• Easy installation: The product details describe a straightforward bolt-on installation.
• Heavy Duty construction: built for demanding agricultural conditions.

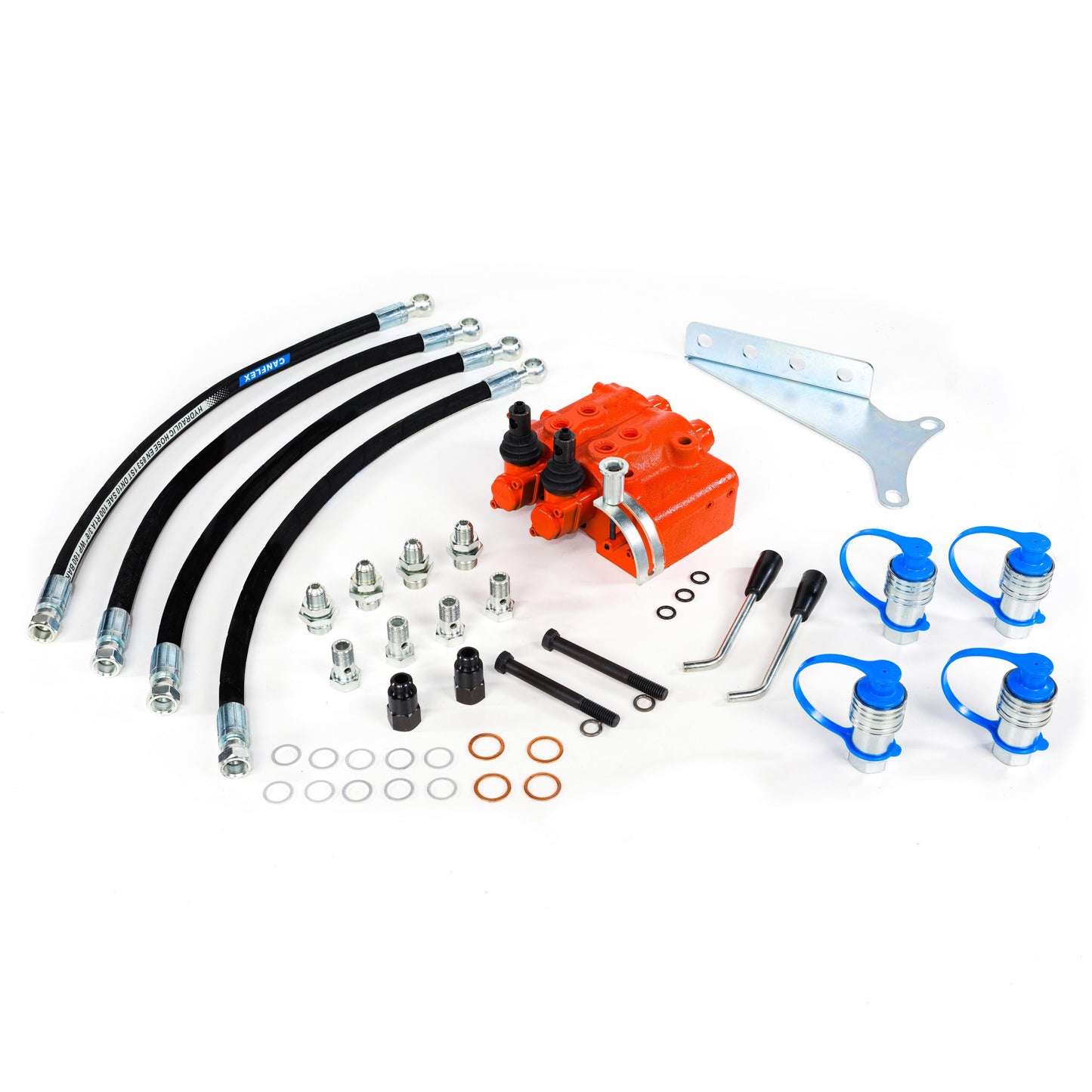

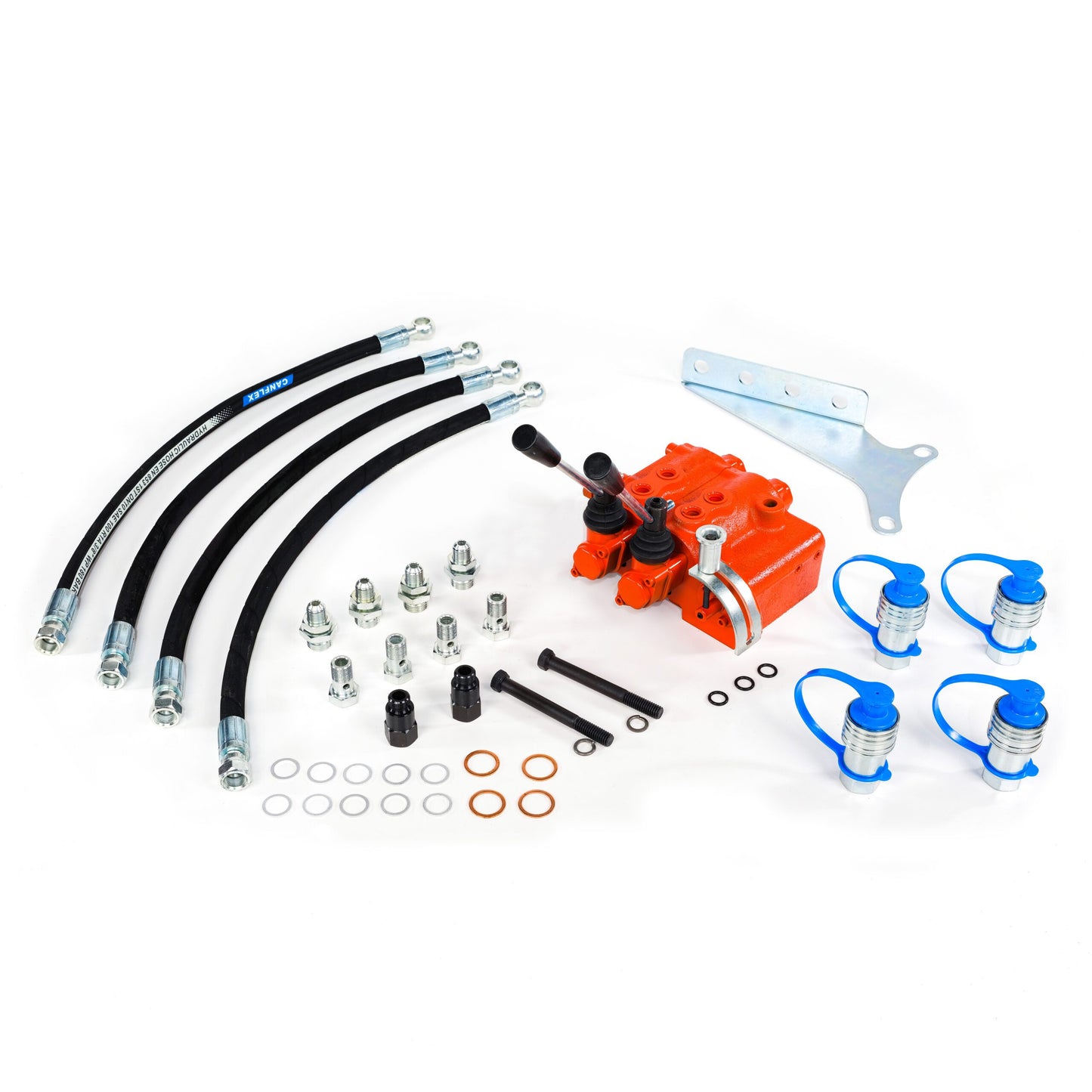

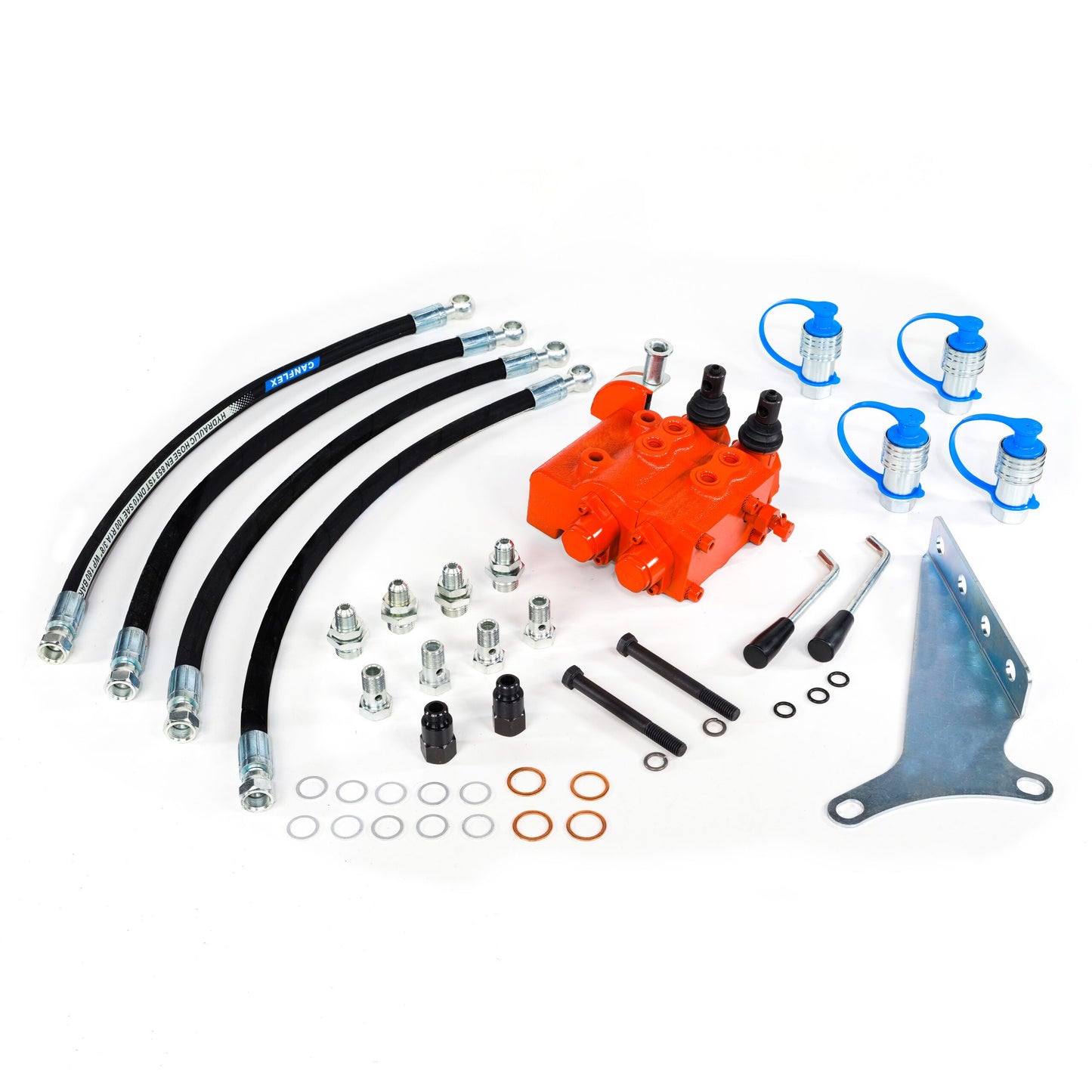

• Complete kit: includes valve, levers, hoses, fittings and mounting hardware.
• No float position: stated in the product information.

Technical specifications

Compatible Massey Ferguson models

Agricultural models: 130, 133, 135, 140, 148, 150, 152, 155, 158, 165, 168, 175, 178, 180, 188, 230, 231, 235, 240, 245, 25, 250, 253, 255, 265, 270, 275, 282, 283, 290, 35, 35 UK, 360, 362, 375, 383, 390, 398, 399, 50, 65 and 85.

Industrial / construction models: 20, 202, 203, 204, 205, 20C, 20D, 20F, 2135, 30, 302, 304, 30B, 30D, 30E, 31, 40, 40B, 40E, 50C, 50D and 50E. Ferguson: TO35, 40 Ag and Industrial, 40 and 50. Massey Harris: 50. The product details also state that the kit may fit additional Massey Ferguson models; confirm compatibility before ordering.

How do the two hydraulic spools work?

The first lever controls the first spool for single-acting or double-acting cylinder functions. The second lever controls the second spool for double-acting functions only. The product details state that the two independent circuits allow efficient operation of multiple compatible implements.

the product information also describes this product as a dual spool valve, rear remote valve, hydraulic control valve kit, auxiliary hydraulic kit, hydraulic outlet kit and tractor remote valve.

MF240 1986 fitment note and reference numbers

The product details state that the kit may not fit flush on Massey Ferguson 240 models from 1986 because of handbrake clearance. A minor modification, such as repositioning the handbrake, may be required for installation.

The product details also state that the kit replaces 180908M1 and hydraulic valve 1860100M95. If your tractor model is not listed above, confirm compatibility before ordering.

Installation and hydraulic use

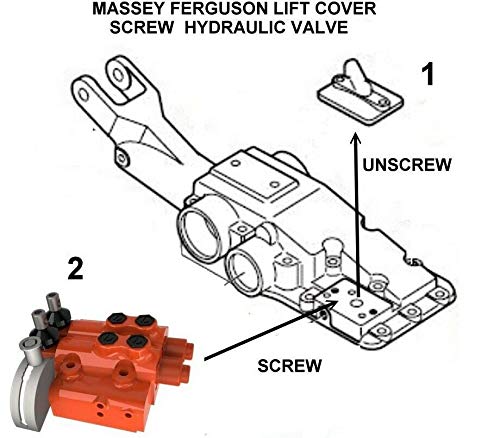

The unit mounts directly on the lift cover under the seat and includes the components required for the straightforward bolt-on installation. The ½” ISO 5675 female quick couplers are intended for fast connection and consistent oil flow to compatible hydraulic equipment.

For more Massey Ferguson options, see our Massey Ferguson hydraulic remote valve kits. To compare all tractor-specific and universal solutions, see our hydraulic remote valve kits for tractors.

Order Massey Ferguson dual valve kit SPH330032 online

Choose SPH330032 when you need a dual-spool / 4-way hydraulic remote valve kit for the listed Massey Ferguson applications. Check the model list, fitment notes and MF240-1986 exception before ordering. Spare Parts Holland ships hydraulic parts from the Netherlands with fast worldwide delivery.
