Hydraulic Remote Valve Kit Compatible with Massey Ferguson 35 135 165 185 285 – Single Spool 2 Way – SPH330030

This high-performance single-spool hydraulic remote valve kit is designed for selected Massey Ferguson agricultural and industrial tractors and adds one auxiliary hydraulic control function for rear-mounted implements. The 2-way control valve can operate both single-acting and double-acting hydraulic cylinders and mounts directly on the lift cover under the seat.

Massey Ferguson single-spool hydraulic remote valve kit – 2-way control

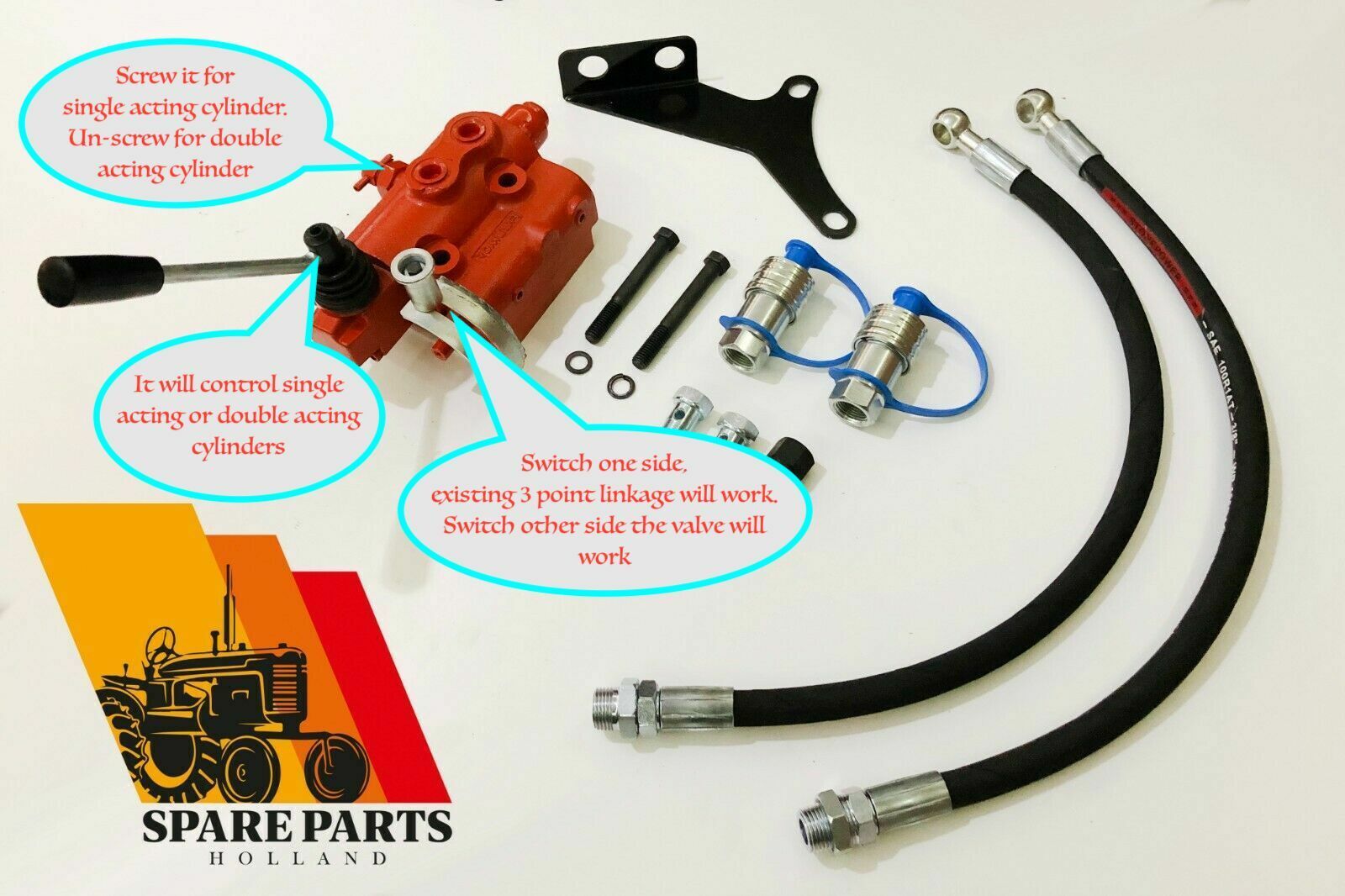

The single hydraulic spool can operate both single-acting and double-acting cylinders. The kit is intended for rear-mounted implements such as loaders, splitters, mowers and other compatible auxiliary attachments, providing an additional hydraulic outlet with smooth manual lever control.

Key product features

• Single-spool / 2-way hydraulic control valve: one auxiliary hydraulic control function.
• Single-acting and double-acting cylinder operation: supported by the product information.
• ½” ISO 5675 female quick couplers: for secure, easy connection and consistent oil flow.
• Rear remote valve function: adds an extra hydraulic outlet.
• Direct mounting on the lift cover: under-seat installation.
• Easy installation: The product details describe a straightforward bolt-on installation.
• Heavy Duty construction: built for agricultural environments and long-term use.

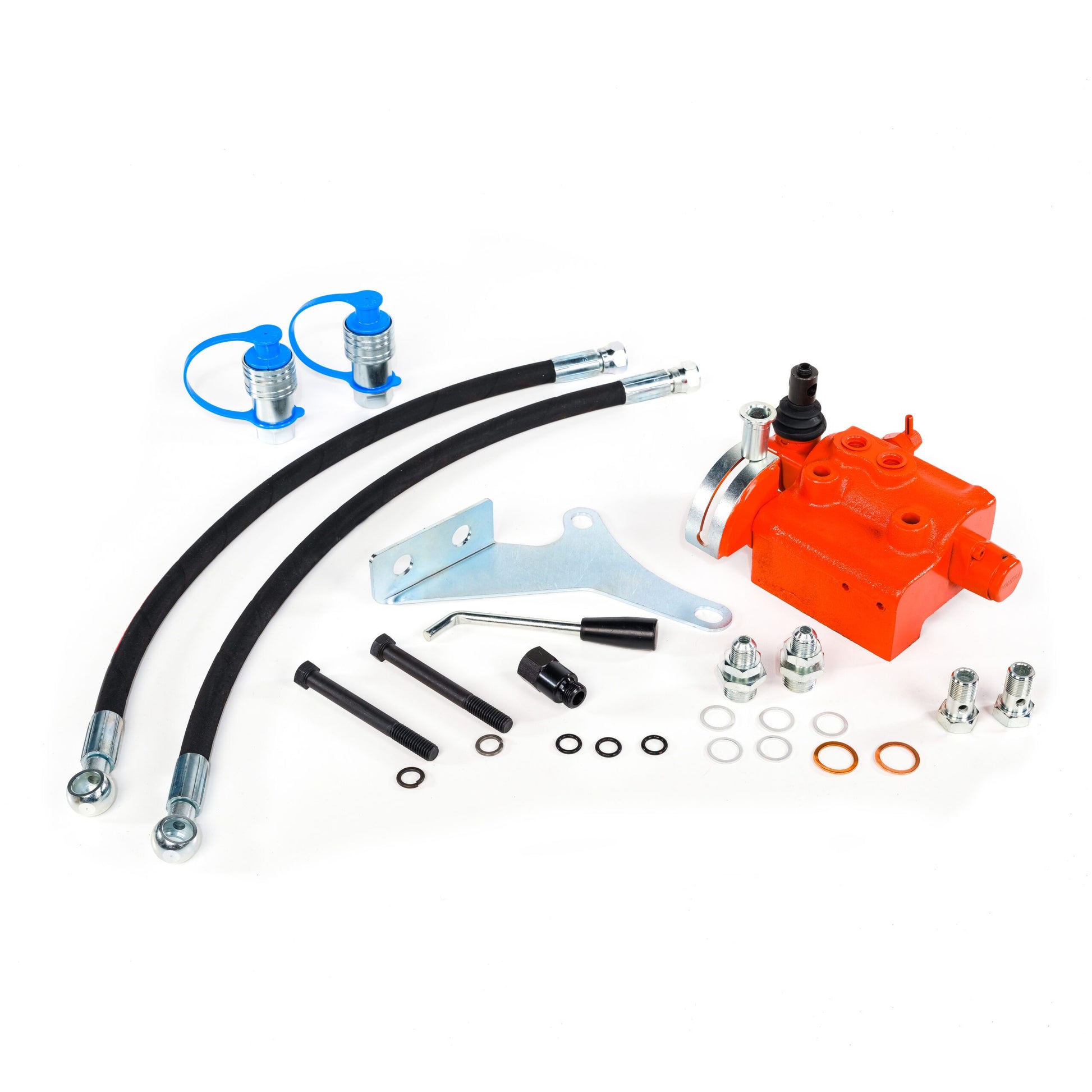

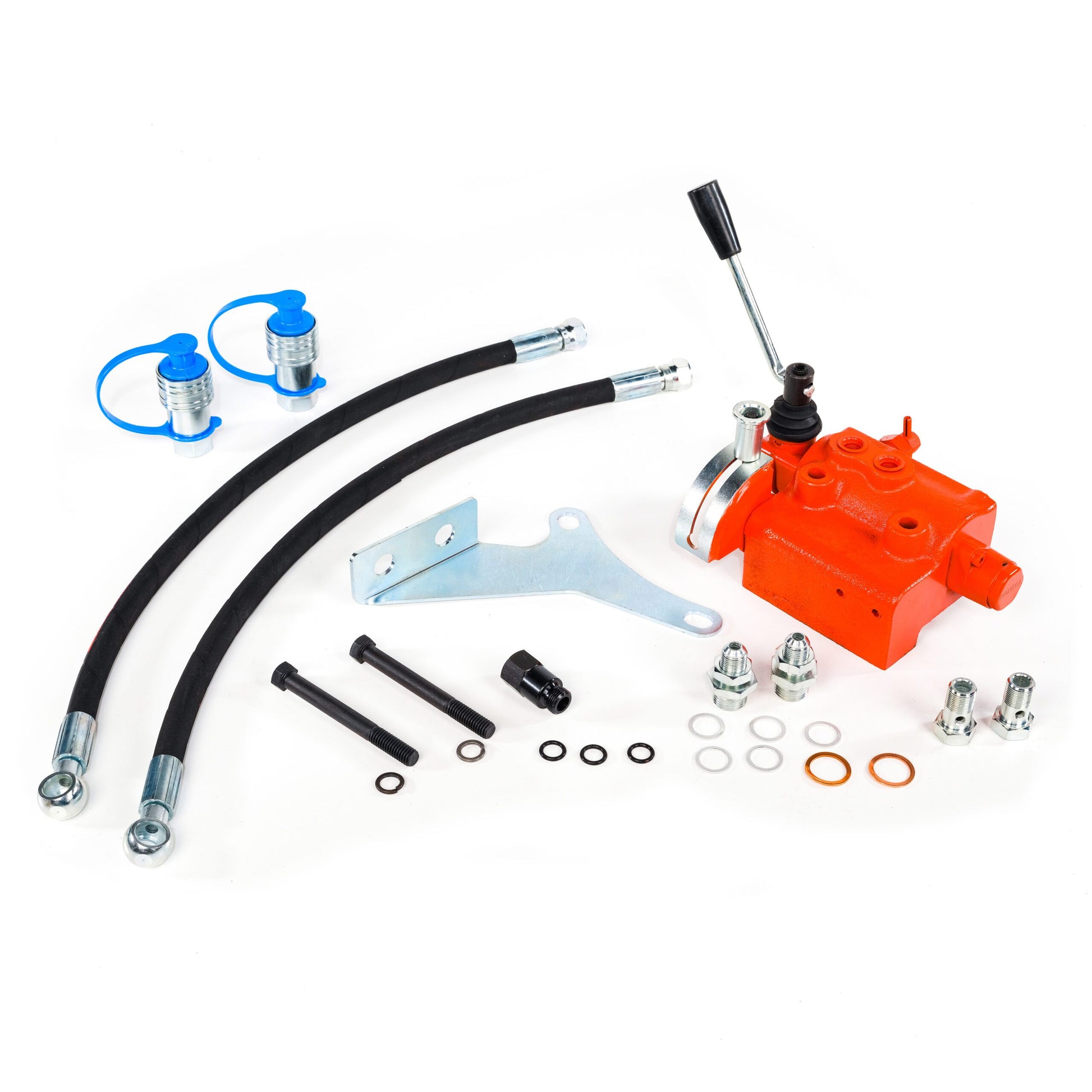

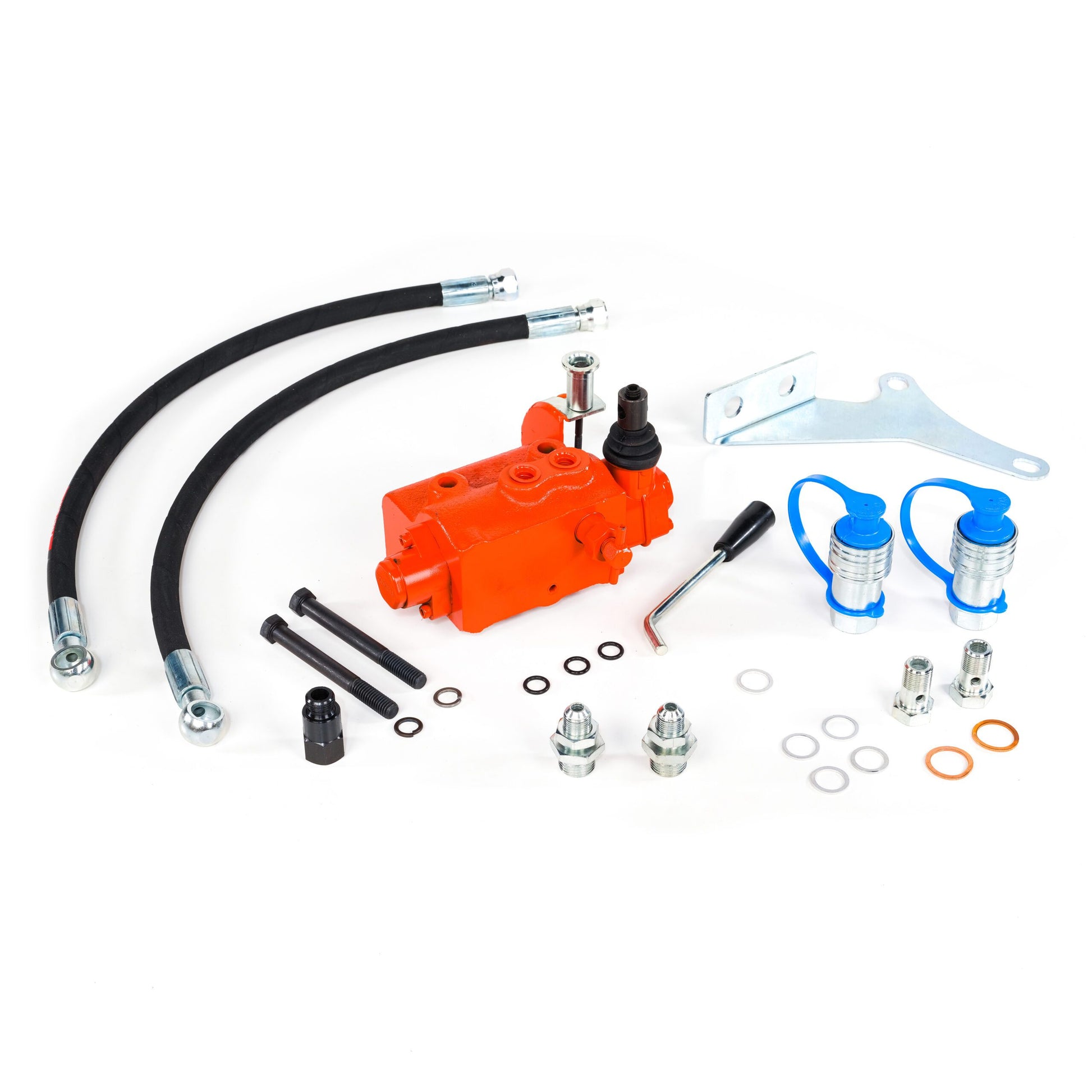

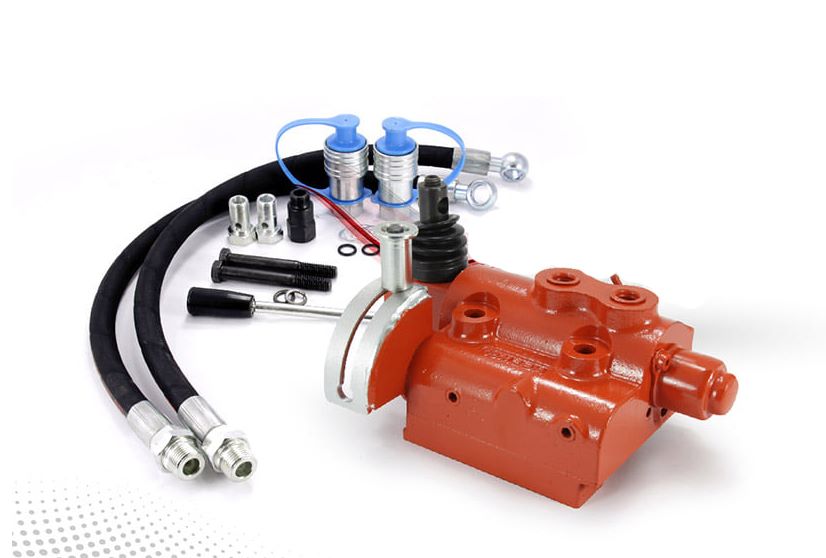

• Complete kit: includes valve, levers, hoses, fittings and mounting hardware.
• No float position: stated in the product information.

Technical specifications

Compatible Massey Ferguson models

Agricultural models: 130, 133, 135, 140, 148, 150, 152, 155, 158, 165, 168, 175, 178, 180, 188, 230, 231, 235, 240, 245, 25, 250, 253, 255, 265, 270, 275, 282, 283, 290, 35, 35 UK, 360, 362, 375, 383, 390, 398, 399, 50, 65 and 85.

Industrial / construction models: 20, 202, 203, 204, 205, 20C, 20D, 20F, 2135, 30, 302, 304, 30B, 30D, 30E, 31, 40, 40B, 40E, 50C, 50D and 50E. Ferguson: TO35, 40 Ag and Industrial, 40 and 50. Massey Harris: 50.

The product details also state that the first spool can operate single-acting and double-acting cylinders, matching the main product description.

MF240 1986 fitment note and reference numbers

The product details state that the kit may not fit flush on Massey Ferguson 240 models from 1986 because of handbrake clearance. A minor modification, such as repositioning the handbrake, may be required for installation.

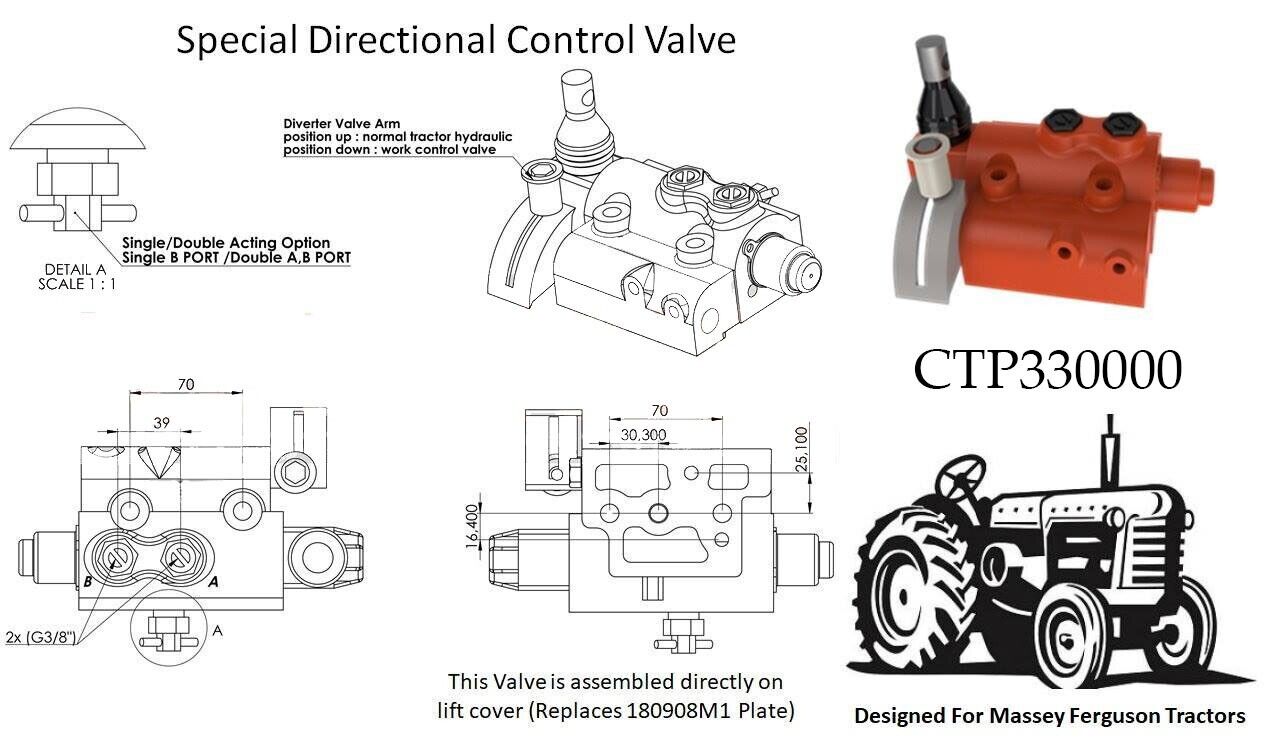

The product details also state that the kit replaces 180908M1 and hydraulic valve 1860100M95. If your tractor model is not listed above, confirm compatibility before ordering.

Installation and hydraulic use

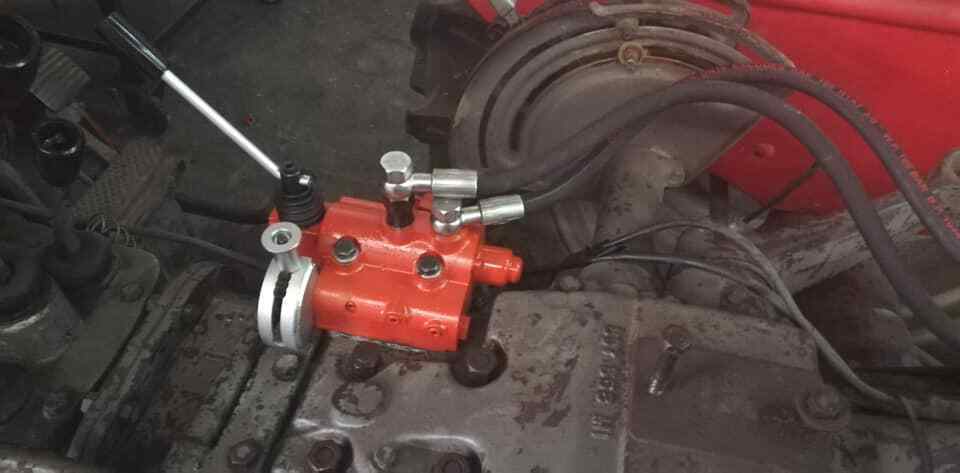

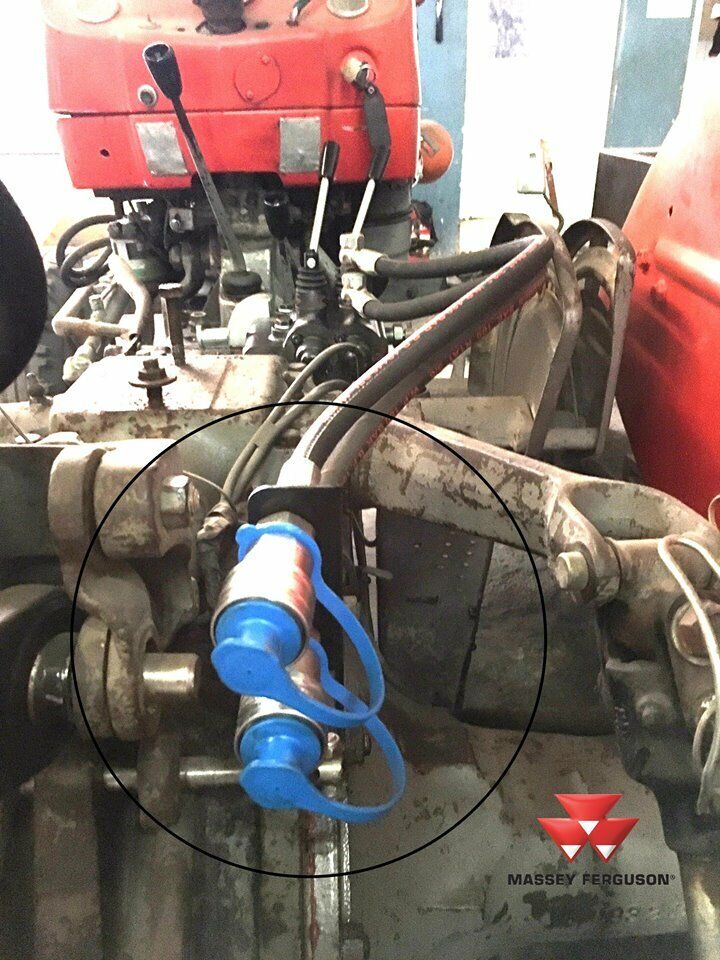

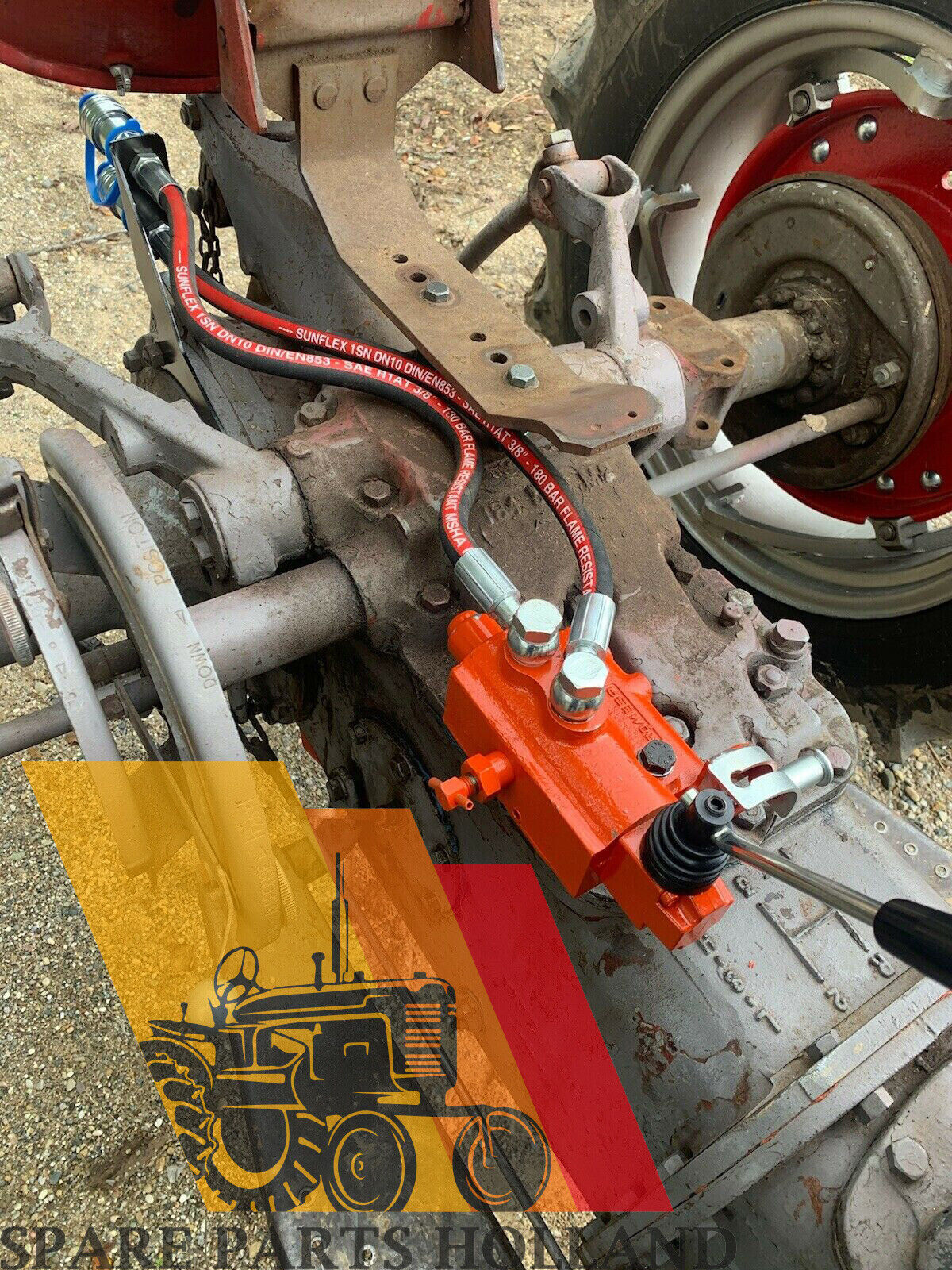

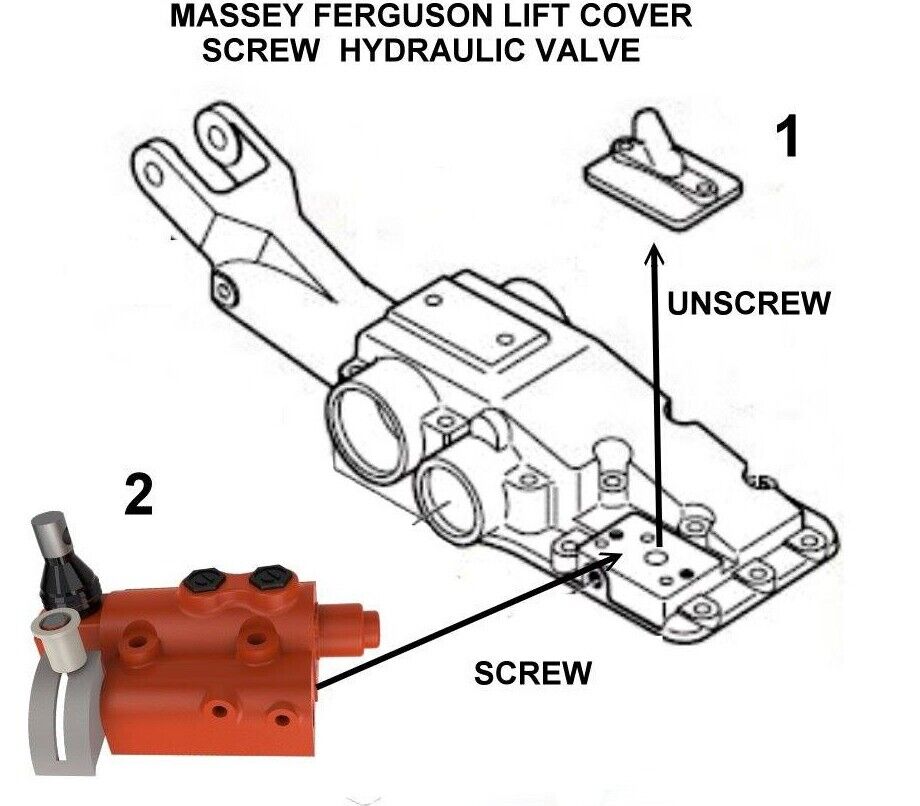

The unit mounts directly on the lift cover under the seat and includes the components required for the straightforward bolt-on installation. The ½” ISO 5675 female quick couplers are intended for fast connection and consistent oil flow to compatible hydraulic equipment.

For more Massey Ferguson options, see our Massey Ferguson hydraulic remote valve kits. To compare all tractor-specific and universal solutions, see our hydraulic remote valve kits for tractors.

Order Massey Ferguson single valve kit SPH330030 online

Choose SPH330030 when you need a single-spool / 2-way hydraulic remote valve kit for the listed Massey Ferguson applications. Check the model list, fitment notes and MF240-1986 exception before ordering. Spare Parts Holland ships hydraulic parts from the Netherlands with fast worldwide delivery.
