Hydraulic Remote Valve Kit Compatible with Massey Ferguson 35 50 65 135 150 – Single Spool 2 Way – SPH330000

This single-spool hydraulic remote valve kit is designed for selected Massey Ferguson tractors and adds one auxiliary hydraulic control function. The 2-way valve can operate both single-acting and double-acting hydraulic cylinders and is supplied with ½” ISO 5675 female quick couplers for connecting hydraulic implements.

Massey Ferguson single-spool hydraulic remote valve kit

The kit provides one manually controlled hydraulic function and is suitable for single-acting and double-acting cylinders. The source describes the valve as Heavy Duty and specifies direct mounting on the lift cover under the seat. There is no float position.

Key product features

• Single spool / 2-way valve: one auxiliary hydraulic control function.
• Single- and double-acting operation: suitable for both cylinder types.
• ½” ISO 5675 female quick couplers: for connecting compatible hydraulic implements.

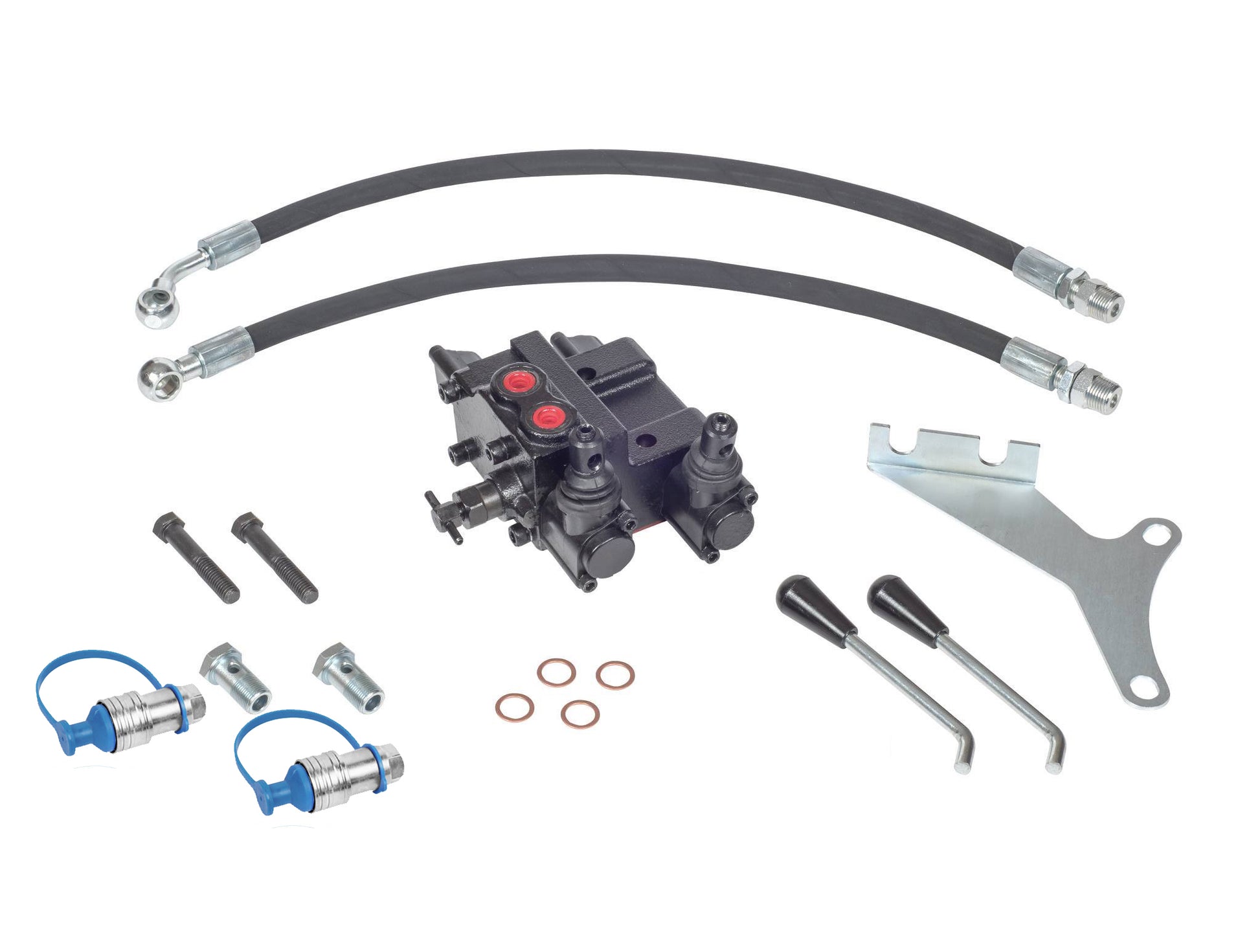

• Complete kit: valve, brackets, hoses, quick couplers and fittings.
• No float position: the valve does not include a float function.
• 3-point linkage: can operate the 3-point linkage.

Technical specifications

Compatible Massey Ferguson models

Agricultural models: 130, 133, 135, 140, 148, 150, 152, 155, 158, 165, 168, 175, 178, 180, 188, 230, 231, 235, 240, 245, 25, 250, 253, 255, 265, 270, 275, 282, 283, 285, 290, 35, 35 UK, 360, 362, 375, 383, 390, 398, 399, 50, 65 and 85.

Industrial / construction models: 20, 202, 203, 204, 205, 20C, 20D, 20F, 2135, 30, 302, 304, 30B, 30D, 30E, 31, 40, 40B, 40E, 50C, 50D and 50E. Ferguson: TO35, 40 Ag and Industrial, 40 and 50. Massey Harris: 50.

MF240 1986 fitment note

The source specifically notes that this rear remote kit may not fit flush on a 1986 Massey Ferguson 240. A minor handbrake modification may be required. This exception must be considered before ordering and overrides any general easy-installation or direct-fit wording for that configuration.

The reference numbers 180908M1 and 1860100M95 support the corresponding replacement application, but compatibility remains product- and tractor-specific. Always compare the existing lift cover, hydraulic arrangement and connections before installation.

Installation and use

The kit mounts on the lift cover under the seat and is operated manually by lever. It can be used to add an auxiliary hydraulic function for compatible cylinders and hydraulic implements. Because the valve has no float position, applications requiring float control need a different valve configuration.

For more Massey Ferguson options, see our Massey Ferguson hydraulic remote valve kits. To compare all tractor-specific and universal solutions, see our hydraulic remote valve kits for tractors.

Order Massey Ferguson valve kit SPH330000 online

Choose SPH330000 when you need a single-spool 2-way hydraulic remote valve kit for the listed Massey Ferguson applications. Verify the tractor configuration and the MF240 exception before ordering. Spare Parts Holland ships hydraulic parts from the Netherlands with fast worldwide delivery.
