Tractor Lower Link Weld-On Hook with Ball – 1 Piece – Cat 1 / Cat 2S / Cat 2 / Cat 3

Tractor Lower Link Weld-On Hook with Ball – 1 Piece – Cat 1 / Cat 2S / Cat 2 / Cat 3

SKU :  SPH430540T
Category
€40,99
€33,88 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

Choose the correct category for this single weld-on lower link hook. Each variant is supplied as 1 hook + 1 matching lower link ball for a tractor three-point hitch.

Important: this product is sold as 1 piece. One order contains 1 weld-on hook and 1 matching ball in the selected category.

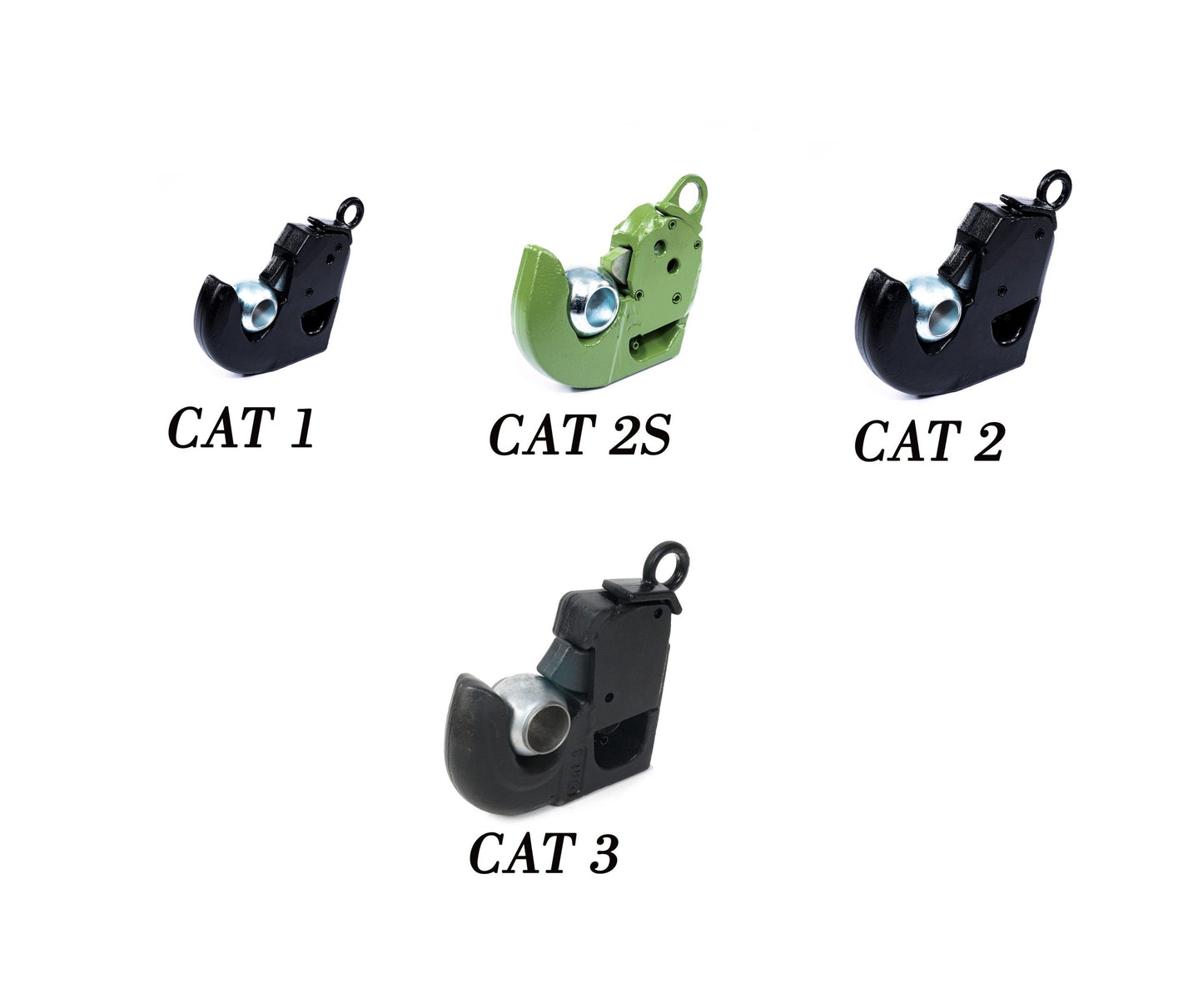

Choose the correct category

Variant Max. stated tractor power Hook opening Included ball / key dimensions
Cat 1 44 kW / 60 hp Ø44 mm Ball: ID Ø22.5 mm, OD Ø44 mm, width 34 mm
Cat 2S 66 kW / 90 hp Ø56 mm Ball: ID Ø29.4 mm, OD Ø56 mm, width 44.6 mm
Cat 2 110 kW / 150 hp Ø56 mm Matching Cat 2 ball included
Cat 3 206 kW / 280 hp Ø64 mm Ball: ID Ø37.4 mm, OD Ø64 mm, width 60 mm

Cat 2S is not automatically Cat 2. Both variants have a Ø56 mm hook opening in this range, so do not identify the category by diameter or tractor power alone. Check the three-point hitch category and the relevant dimensions.

Additional dimensions by variant

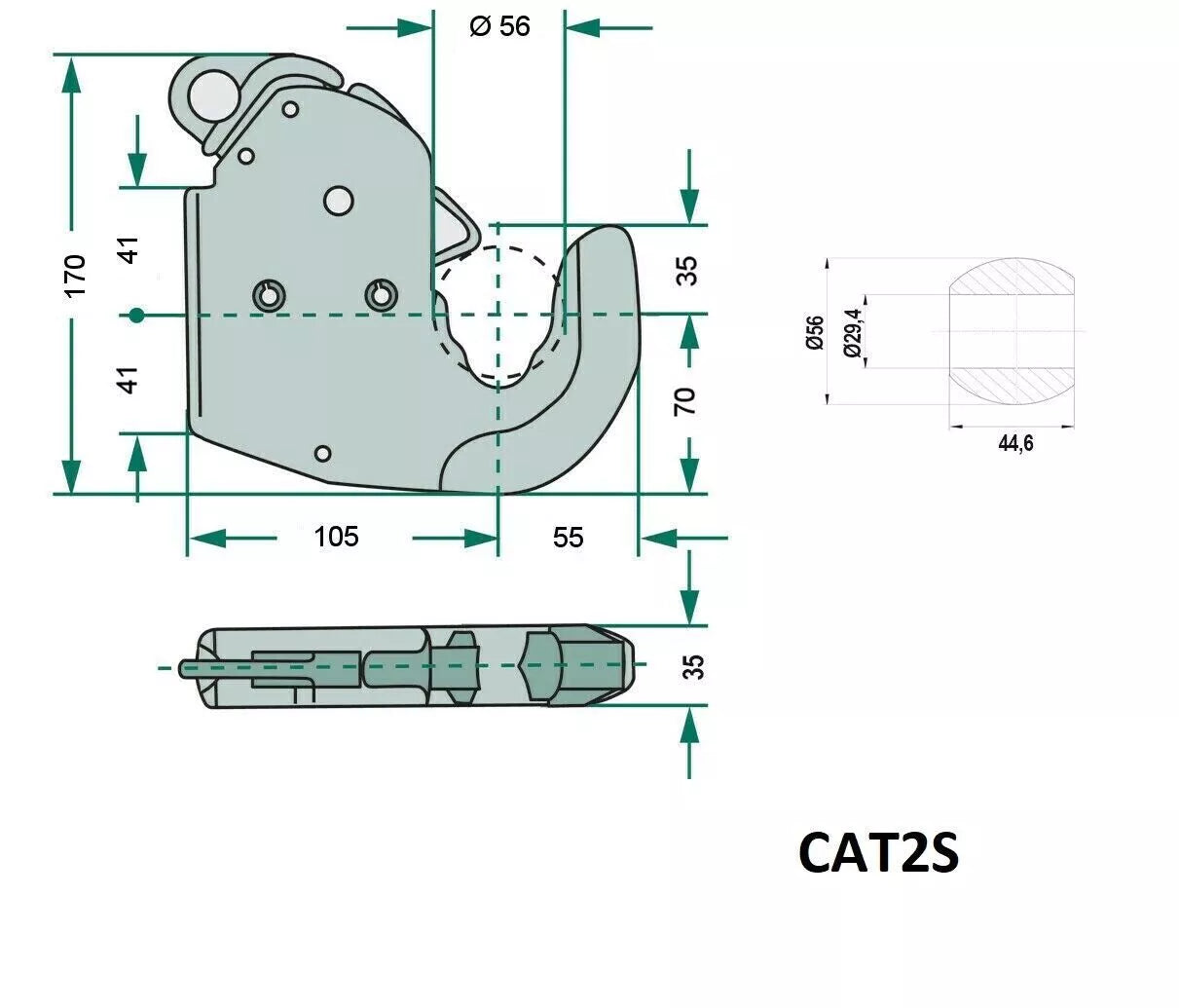

  • Cat 2S: approx. total height 170 mm, body 105 mm, front 55 mm, front hook 70 mm, width 35 mm.

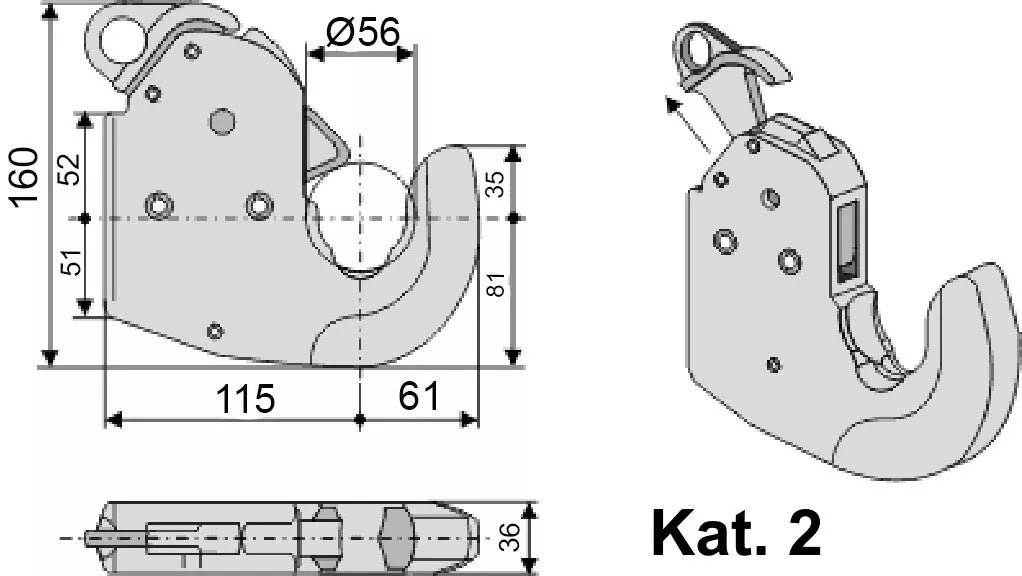

  • Cat 2: approx. total height 160 mm, body 115 mm, front 61 mm, hook height 81 mm, width 36 mm.

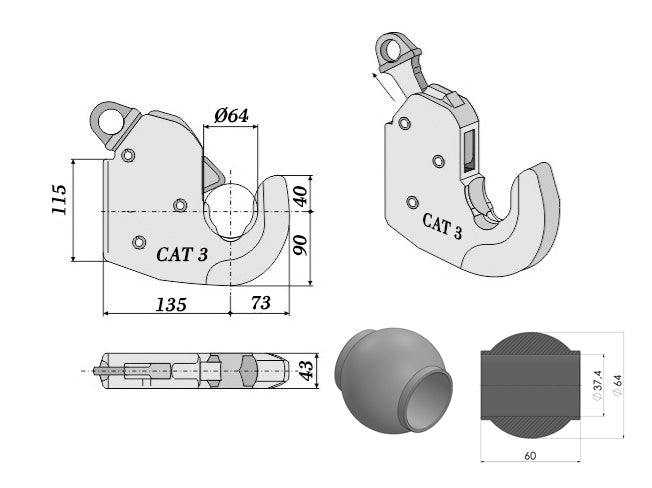

  • Cat 3: body 135 mm, front 73 mm, hook height 90 mm, width 43 mm.

Construction and locking

  • Material: forged 4140 steel
  • Mounting: weld-on to a suitable lower link
  • Position: suitable for left or right side
  • Locking: automatic safety lock, released using the opening lever

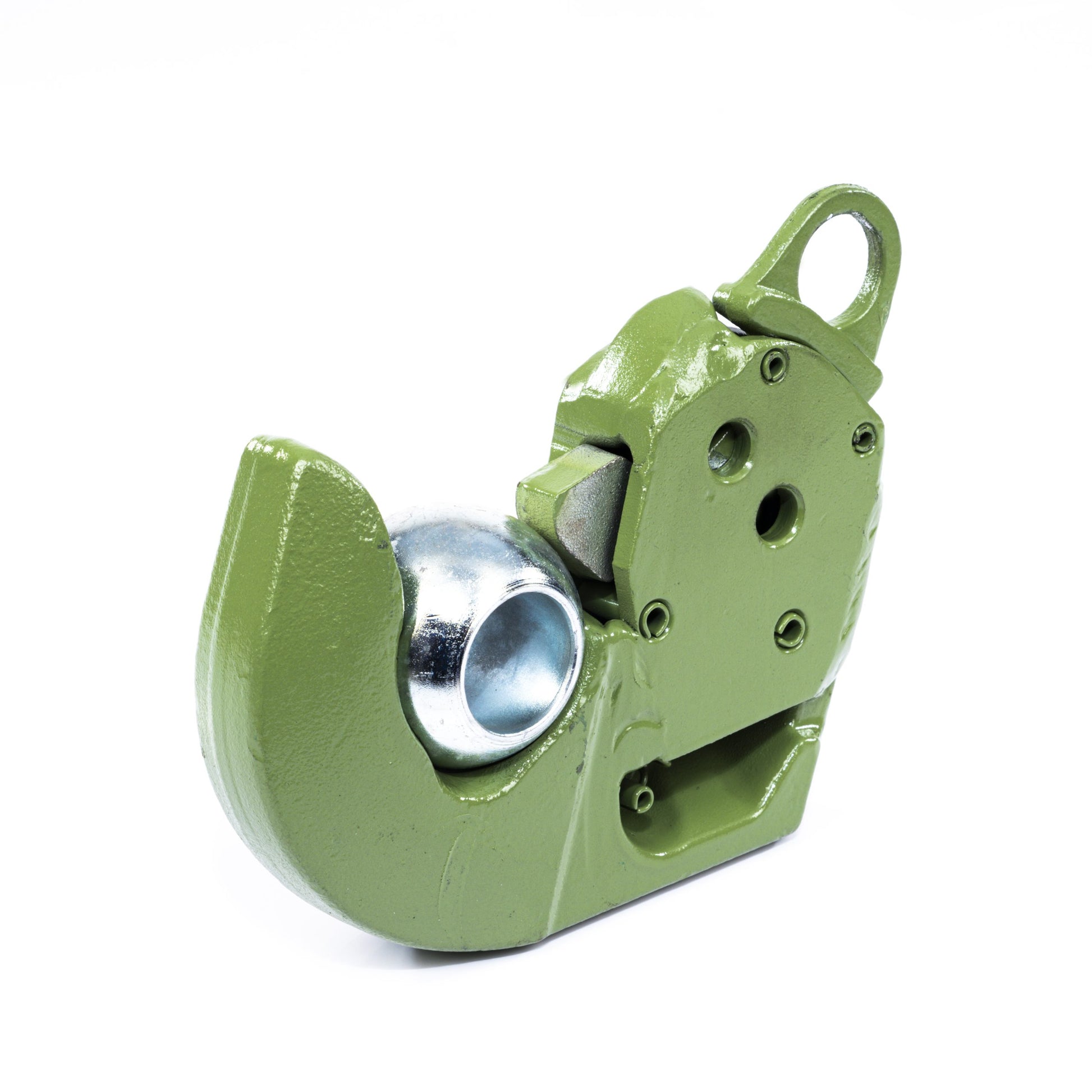

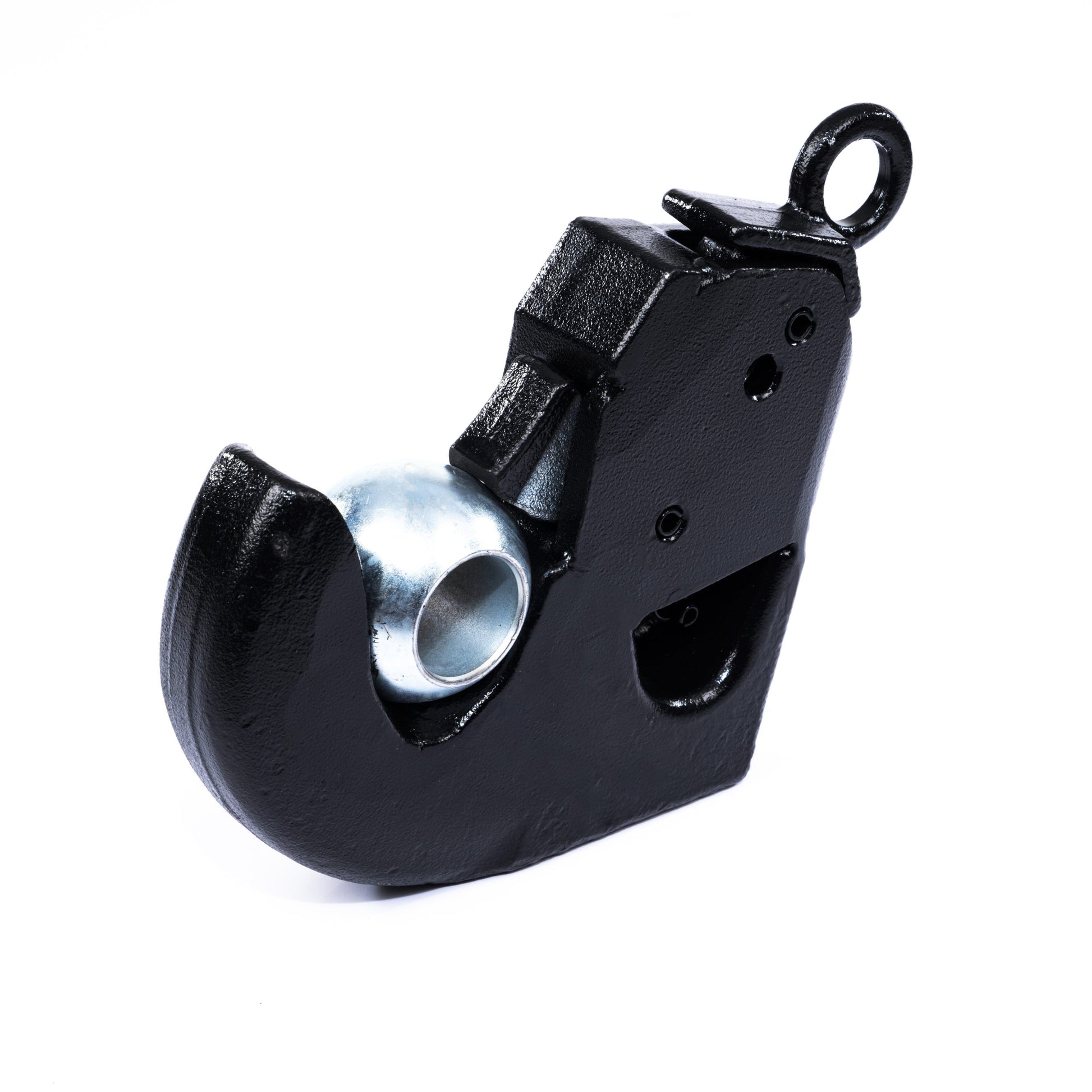

  • Finish: Cat 1, Cat 2 and Cat 3 are black; Cat 2S is green

Check before ordering

Select the category used by the tractor, lower links and implement, then compare the relevant dimensions with the existing setup. The stated tractor power is a product-specific maximum and should not be used as the only compatibility check.

Installation: this is a weld-on component. Correct alignment and professional welding are important for a safe installation.

Order 1 lower link hook with ball

Choose Cat 1, Cat 2S, Cat 2 or Cat 3 above. One selected variant contains 1 hook and 1 matching ball.
