Triple Hydraulic Remote Valve Kit for Massey Ferguson 35 135 165 285 & More – SPH330038

This triple hydraulic remote valve kit is designed for selected Massey Ferguson, Ferguson and Massey Harris tractors and adds three manually controlled auxiliary hydraulic functions. One valve section can be used for single-acting or double-acting operation, while the second and third sections are double-acting.

Triple hydraulic remote valve kit for Massey Ferguson

SPH330038 provides three separate hydraulic control levers for operating additional hydraulic functions on compatible tractors. The first section can be configured for single-acting or double-acting cylinder operation. The second and third sections are double-acting.

Key product features

• Three manual control levers: for three auxiliary hydraulic functions.
• First valve section: single-acting or double-acting operation.
• Second and third valve sections: double-acting operation.
• Complete installation kit: supplied with the necessary installation components; current product data also lists hoses, quick couplings and a mounting bracket.
• No float position.
• Replacement references: 180908M1 and 1860100M95.

Technical specifications

Compatible Massey Ferguson models

Agricultural models: 135, 150, 165, 175, 180, 230, 231, 235, 240, 245, 25, 250, 253, 255, 265, 270, 275, 282, 283, 290, 35, 35 UK, 360, 362, 375, 383, 390, 398, 399, 50, 65 and 85.

Industrial / construction models: 20, 202, 203, 204, 205, 20C, 20D, 20F, 2135, 30, 302, 304, 30B, 30D, 30E, 31, 40, 40B, 40E, 50C, 50D and 50E.

Ferguson: TO35, 40, Ag & Ind 40 and 50. Massey Harris: 50.

MF240 1986 fitment note

On a Massey Ferguson 240 from 1986, the kit does not fit flush in the standard configuration. Installation may be possible if the handbrake is modified or repositioned.

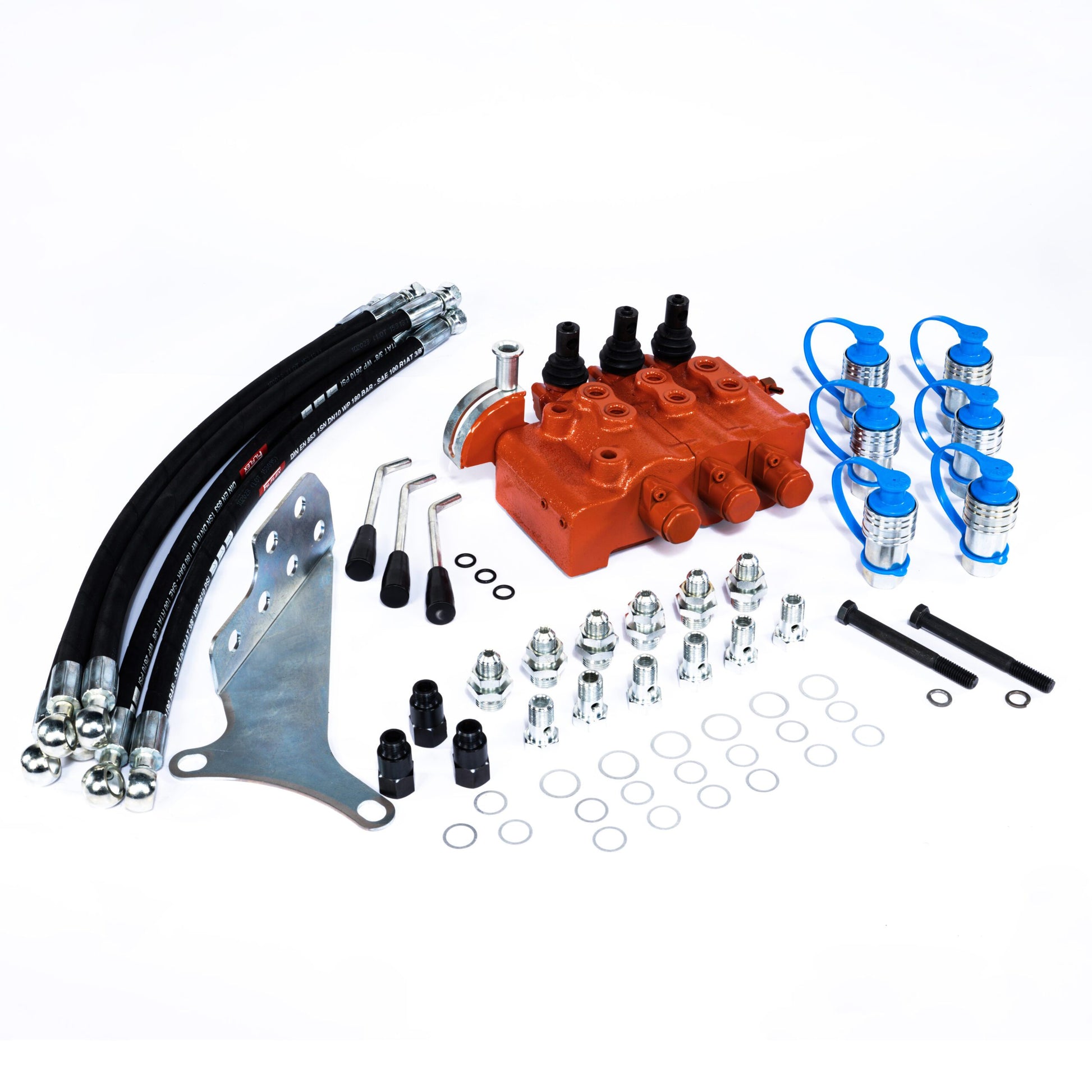

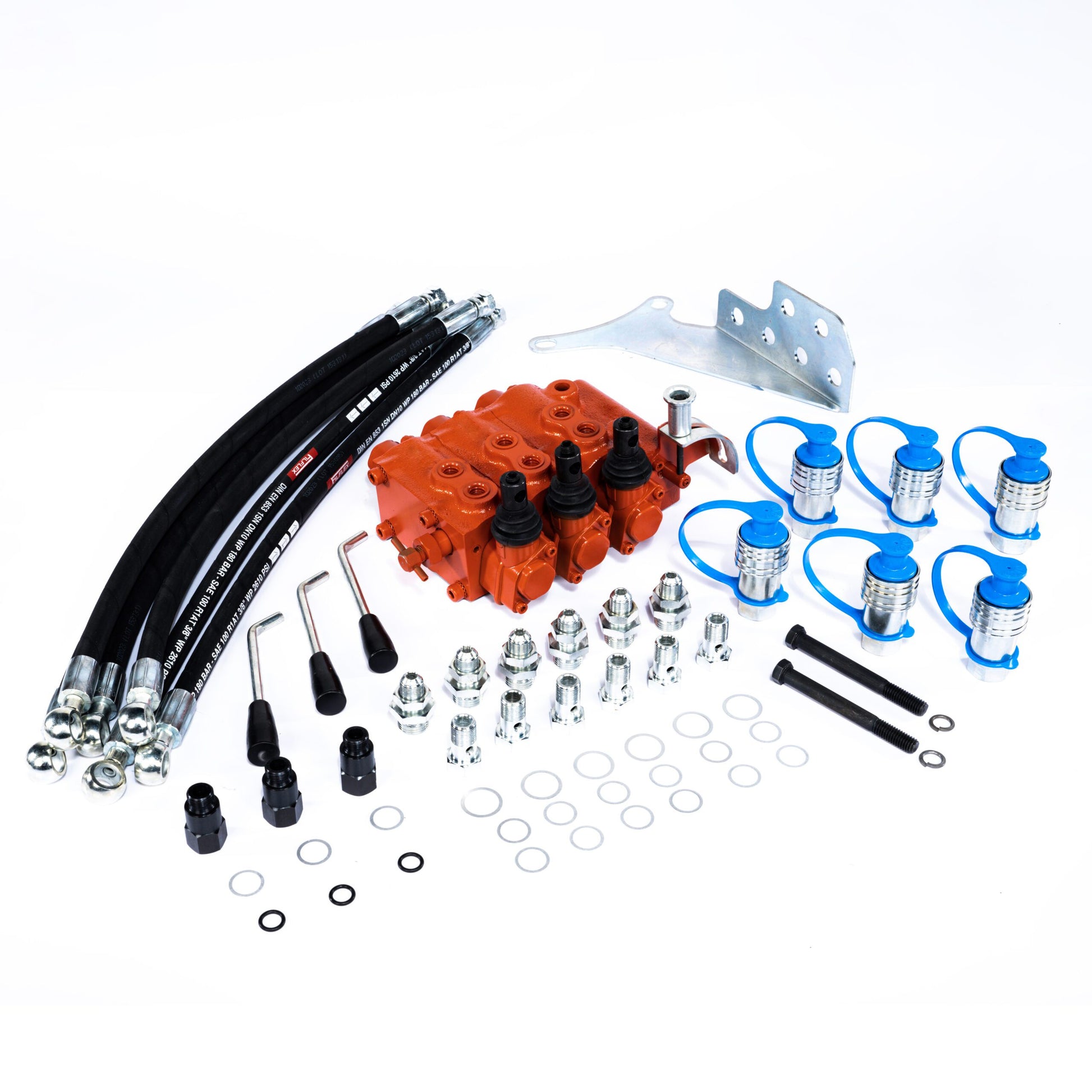

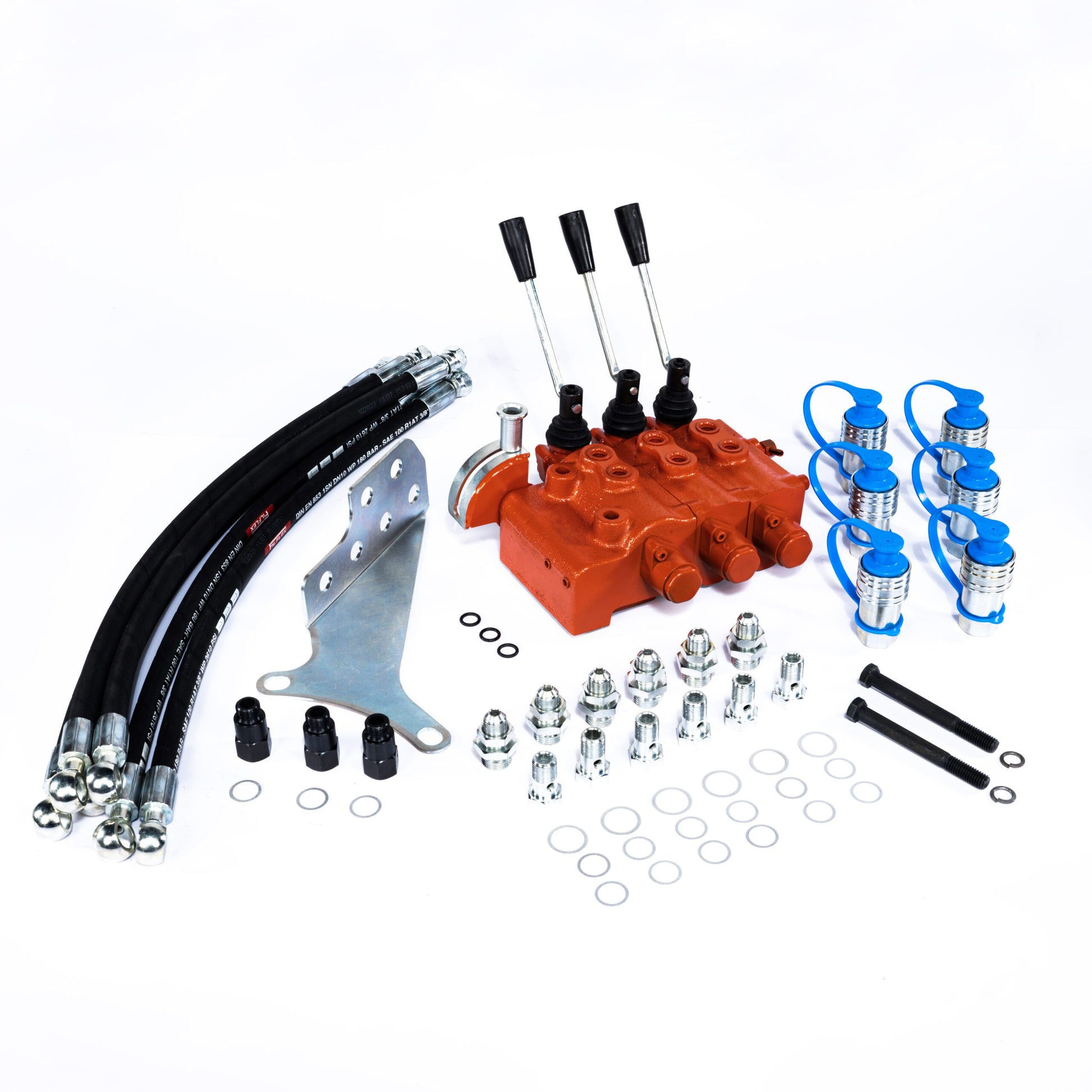

Installation kit and hydraulic functions

The kit is supplied as a complete installation set. One hydraulic section can be selected for single-acting or double-acting use, while the other two sections remain double-acting. This makes the kit suitable for operating multiple hydraulic functions on compatible tractors.

For more Massey Ferguson options, see our Massey Ferguson hydraulic remote valve kits. To compare all tractor-specific and universal solutions, see our hydraulic remote valve kits for tractors.

Order SPH330038 online

Choose SPH330038 when you need three separately controlled auxiliary hydraulic functions for one of the listed Massey Ferguson, Ferguson or Massey Harris applications. Check the exact model list and the MF240-1986 fitment note before ordering. Spare Parts Holland ships hydraulic parts from the Netherlands with fast worldwide delivery.
