3069056R91 Lift Link for Case IH / IHC 250 / 275 / 276 / 354 / 364 / 384 / 385 / 414 / 424 / 434 / 444 / 454 – SPH430725
SKU :
SPH430725
€107,00
€88,43 excl. VAT
€88,43 excl. VAT
2-year warranty on all our products
Worldwide Shipping
1000+ customers give us a 9.4 review
Description
This lift link for Case IH / IHC tractors is suitable for selected Case IH / IHC models including 250, 275, 276, 354, 364, 384, 385, 414, 424, 434, 444 and 454. It is also listed for UK Series 385 and 434.

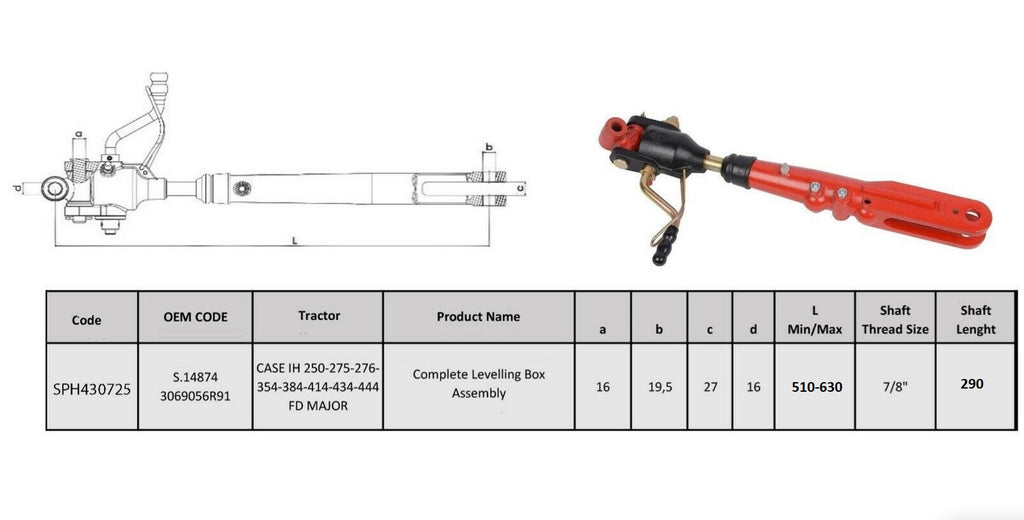

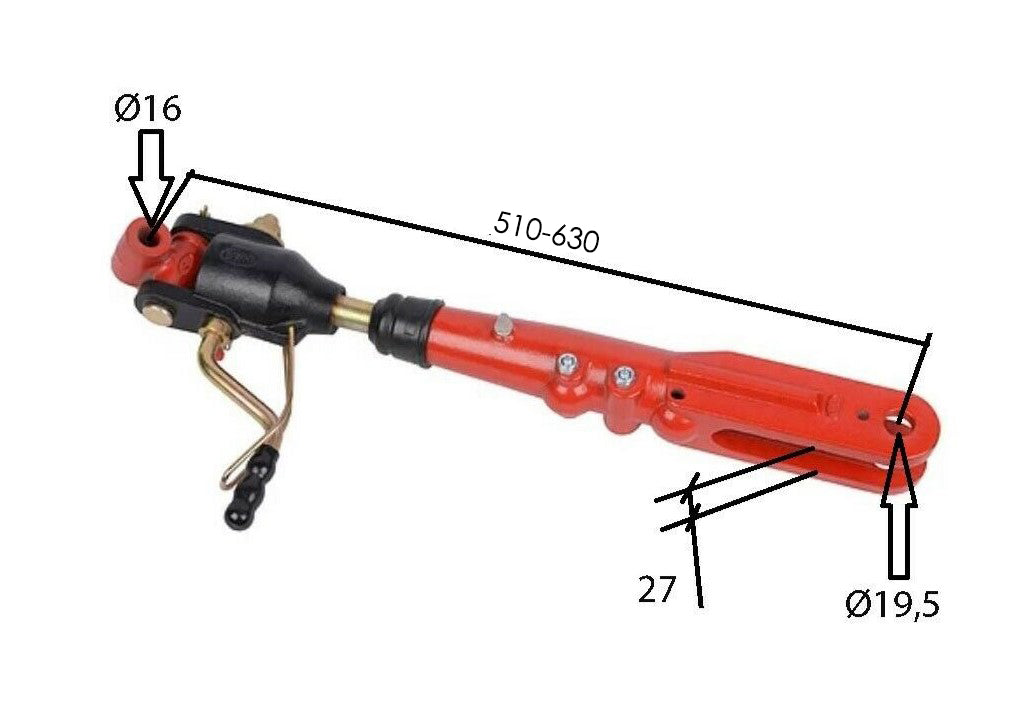

This aftermarket replacement part replaces reference 3069056R91. The confirmed minimum length is 510 mm, the maximum length is 630 mm and the shaft length is 290 mm.
Lift link for Case IH / IHC tractors
Before ordering, compare reference 3069056R91, the minimum and maximum length, shaft length and tractor model with the part currently fitted to your tractor.
Suitable Case IH / IHC models
Case IH / IHC
- 250
- 275
- 276
- 354
- 364
- 384
- 385
- 414
- 424
- 434
- 444
- 454
UK Series
- 385
- 434
Reference number
3069056R91
Technical details
Part number
SPH430725
SPH430725
Product type
Lift link
Lift link
Application
Selected Case IH / IHC tractors
Selected Case IH / IHC tractors
Reference
3069056R91
3069056R91
Minimum length
510 mm
510 mm
Maximum length
630 mm
630 mm
Shaft length
290 mm
290 mm
Check before ordering:
Do not order by tractor model alone. Compare reference 3069056R91 and the confirmed dimensions 510–630 mm and 290 mm with your existing part.
Aftermarket replacement part
This is an aftermarket replacement part suitable for the listed Case IH / IHC applications. Brand names and reference numbers are used only to indicate compatibility and do not mean that this is an original Case IH / IHC part.
Frequently asked questions
Which reference does this lift link replace?
It replaces reference 3069056R91. Original reference numbers are provided for comparison purposes.
What is the minimum and maximum length?
The confirmed minimum length is 510 mm and the maximum length is 630 mm.
What is the shaft length?
The confirmed shaft length is 290 mm.
How do I check compatibility?
Compare the tractor model, reference 3069056R91 and the listed dimensions with your existing part before ordering.
Order lift link SPH430725
Order this aftermarket lift link for selected Case IH / IHC tractors after checking the reference number and dimensions. Fast delivery available.
3069056R91 Lift Link for Case IH / IHC 250 / 275 / 276 / 354 / 364 / 384 / 385 / 414 / 424 / 434 / 444 / 454 – SPH430725
Ordered before,
15:00 CET
delivered within
3 days
2-year
warranty
1000+
customers give us a
9.4+
review
€107,00
€88,43 excl. VAT
€88,43 excl. VAT
