Double Acting Hydraulic Cylinder Standard (80/50)
2-year warranty on all our products
1000+ customers give us a 9.4 review

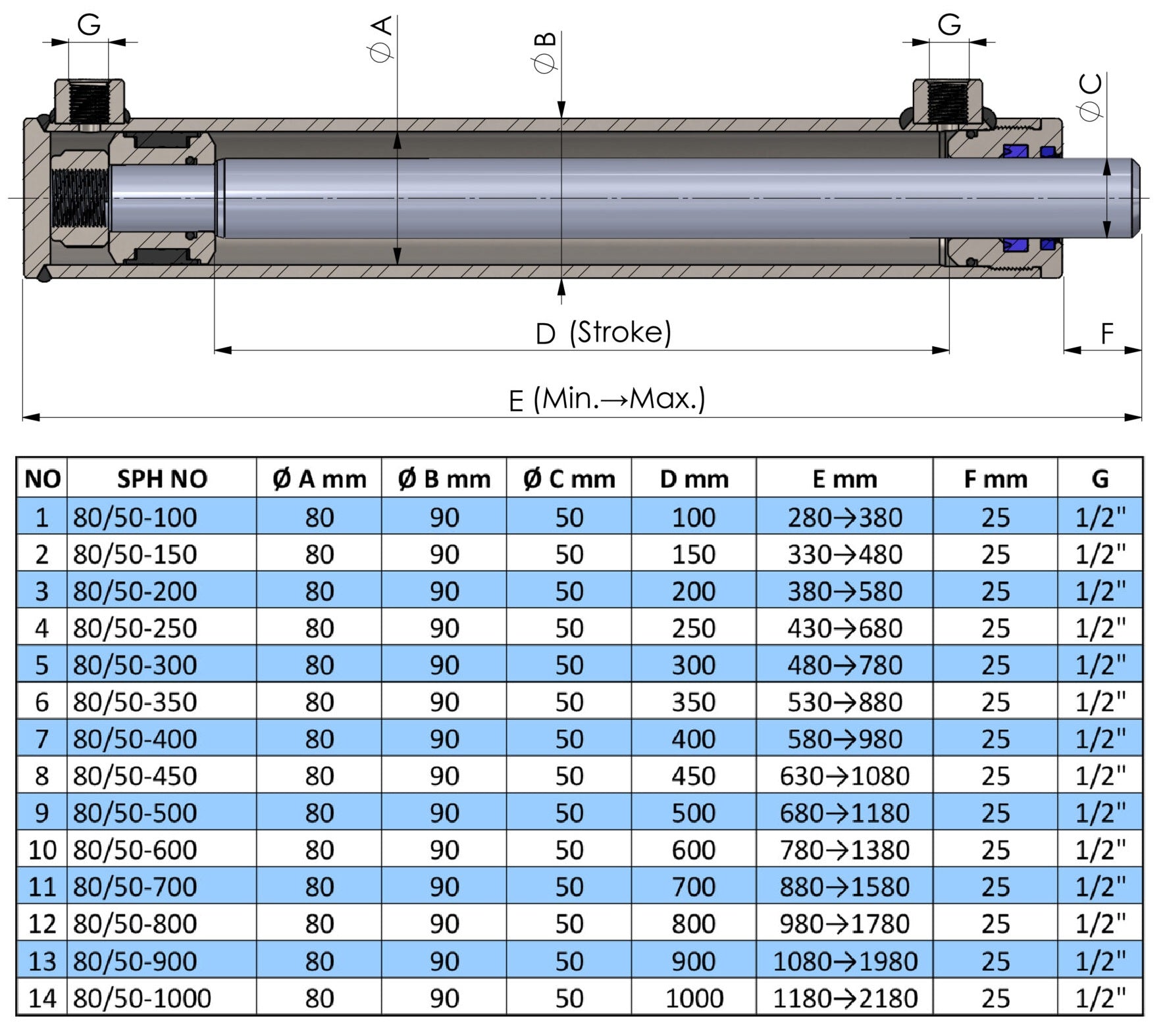

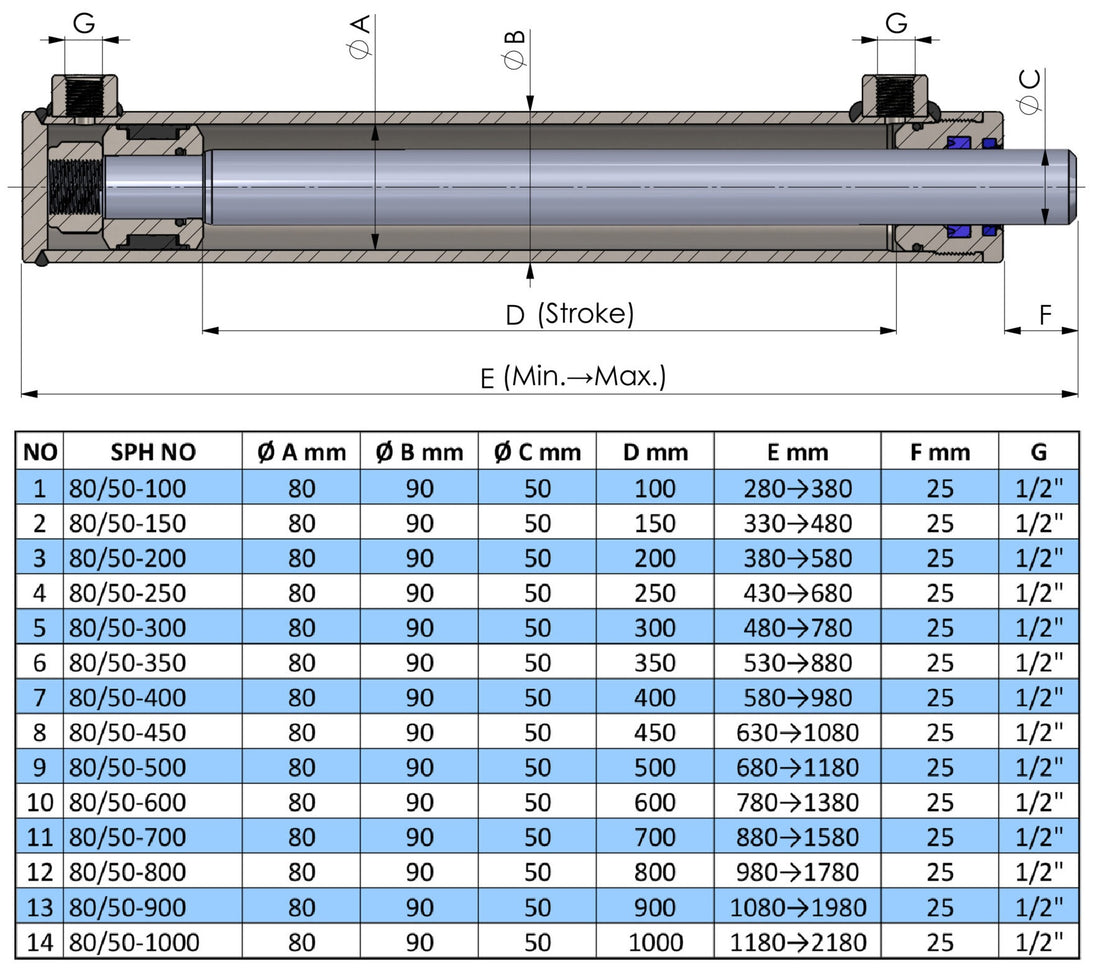

| NO | SPH NO | D | E Min. | E Max. |
|---|---|---|---|---|
| 1 | 80/50-100 | 100 | 280 | 380 |
| 2 | 80/50-150 | 150 | 330 | 480 |
| 3 | 80/50-200 | 200 | 380 | 580 |
| 4 | 80/50-250 | 250 | 430 | 680 |
| 5 | 80/50-300 | 300 | 480 | 780 |
| 6 | 80/50-350 | 350 | 530 | 880 |
| 7 | 80/50-400 | 400 | 580 | 980 |
| 8 | 80/50-450 | 450 | 630 | 1080 |
| 9 | 80/50-500 | 500 | 680 | 1180 |
| 10 | 80/50-600 | 600 | 780 | 1380 |
| 11 | 80/50-700 | 700 | 880 | 1580 |
| 12 | 80/50-800 | 800 | 980 | 1780 |
| 13 | 80/50-900 | 900 | 1080 | 1980 |
| 14 | 80/50-1000 | 1000 | 1180 | 2180 |
Description
Our hydraulic double acting cylinders are made of high quality steel and are a smart solution to replace defective cylinders or to adapt them to individual requirements. Due to their raw structure, they can be equipped with fork joints or welded eyes or bushings. Thus, they can be used in any area, from agriculture, to vehicle construction or for self-construction.
The hydraulic cylinder is turned out of a honed steel tube. The pipe faced from the inside was made of the material S235 JR. The piston rod has been hard chrome-plated, as are the piston jaws. This special surface treatment makes the steel smooth and thus reduces seal wear to a minimum. This type of chrome plating also significantly increases the resistance. This also enables us to guarantee a long service life due to the corrosion protection. The compressive and tensile force specified by us is specified at an operating pressure of 2610 PSI / 180 bar. You can also load it up to a peak pressure of 3335 PSI / 230 bar.
- Hard chrome-plated piston rod
- Honed steel pipe
- Operating pressure 2610 PSI / 180 bar
- Painted black
