Double Acting Hydraulic Cylinders With Tube Ends (40/25)
SKU :
SPH340738
€98,00
Taxes included.
2-year warranty on all our products
1000+ customers give us a 9.4 review

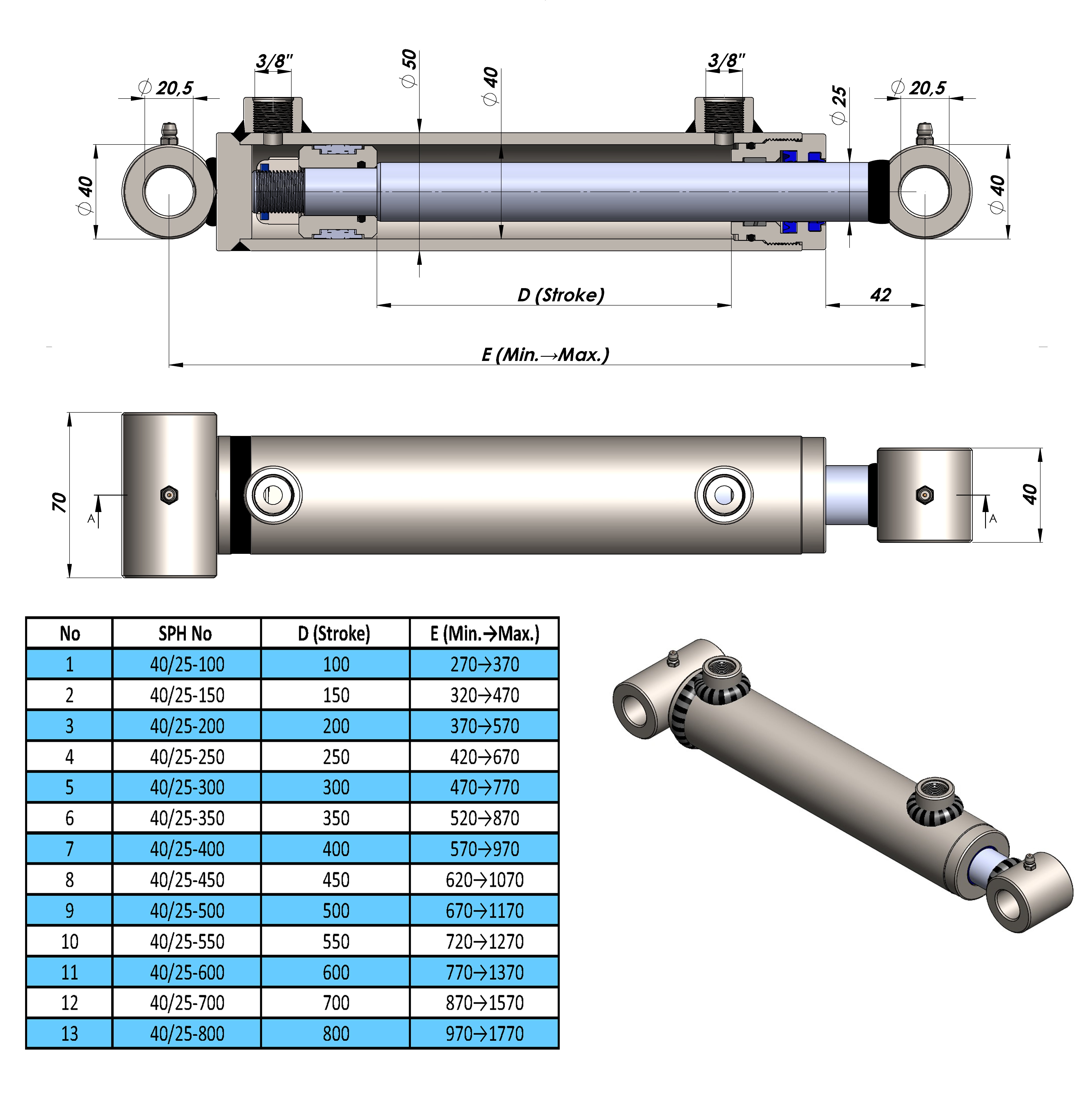

| NO | SPH NO | D | E Min. | E Max. |
|---|---|---|---|---|
| 1 | 40/25-100 | 100 | 270 | 370 |
| 2 | 40/25-150 | 150 | 320 | 470 |
| 3 | 40/25-200 | 200 | 370 | 570 |
| 4 | 40/25-250 | 250 | 420 | 670 |
| 5 | 40/25-300 | 300 | 470 | 770 |
| 6 | 40/25-350 | 350 | 520 | 870 |
| 7 | 40/25-400 | 400 | 570 | 970 |
| 8 | 40/25-450 | 450 | 620 | 1070 |
| 9 | 40/25-500 | 500 | 670 | 1170 |
| 10 | 40/25-550 | 550 | 720 | 1270 |
| 11 | 40/25-600 | 600 | 770 | 1370 |
| 12 | 40/25-700 | 700 | 870 | 1570 |
| 13 | 40/25-800 | 800 | 970 | 1770 |
Description

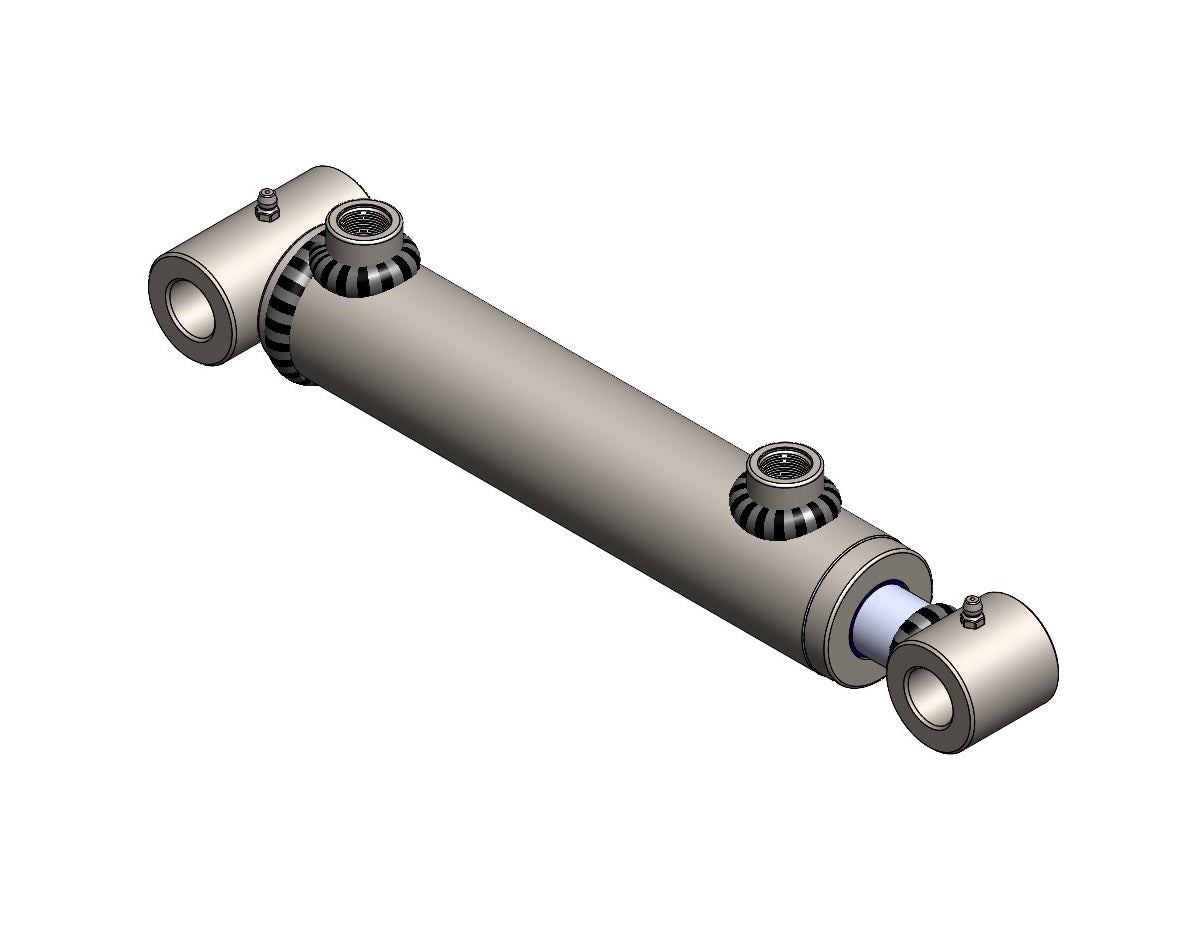

Hydraulic cylinder double-acting with Tube Ends.
3/8" ports, piston and rod diameter selectable! Stroke selectable!
Larger quantities available on request.
Special features:
- Fully assembled
- Unique innovative design
- Special locking ring on the piston
Advantages:
- Immediately ready for use
- Long service life
- High level of operational safety
Properties:
- All types of fastening possible
- Maximum radial load: 10% of the axial force
- Maximum operating pressure depends on the maximum buckling load
- All cylinders are painted black. This can show signs of scratches and is only used to protect against corrosion during storage or transport. Scratches are therefore not a defect or a reason for complaint
Technical information:
- Interchangeable with other brands
- Medium: mineral oil, HLP ISO VG 32 to ISO VG 46
- Cleanliness of the medium: ISO 4406 22/20/ 17 or NAS 9
- Important note! Protect welding spatter!
