Double pilot-operated check valve 3/8″ with mounting kit – SPH500079

Double pilot-operated check valve 3/8″ with mounting kit – SPH500079

SKU :  SPH500079
€27,00
€22,31 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

This 3/8″ pilot-operated check valve with mounting kit is intended for compatible hydraulic top links and other double-acting cylinders. The valve block prevents oil returning from the cylinder until pilot pressure opens the relevant check valve.

The kit is suitable for compatible hydraulic top links, lift cylinders, adjustment cylinders and agricultural implements where cylinder drift or unintended movement needs to be limited. The supplied fittings support installation in suitable double-acting hydraulic systems.

Key benefits

For double-acting cylinders

For hydraulic cylinders powered hydraulically in both directions.

Pilot operated

Return flow from the cylinder is released when sufficient pilot pressure opens the relevant valve.

Helps limit cylinder drift

Helps maintain the cylinder position and reduce gradual lowering or movement.

For hydraulic top links

Useful when the selected top link position needs to remain stable during work.

Includes mounting kit

Includes long and short banjo fittings, two banjo bolts and four sealing washers.

Up to 350 bar

For hydraulic applications with a maximum working pressure of 350 bar.

Complete kit with 3/8″ ports and 12L fittings

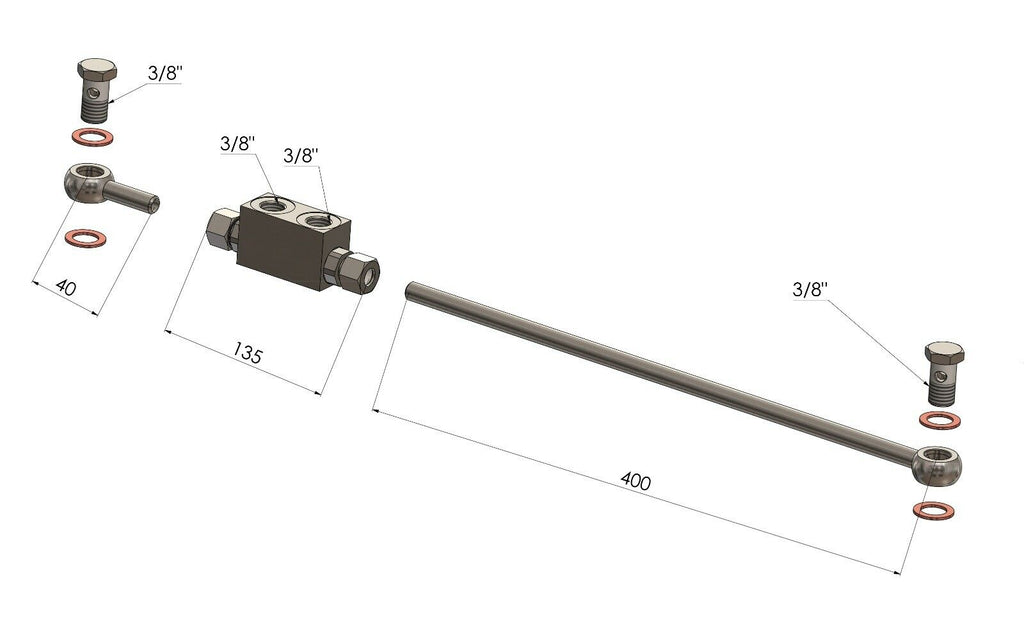

The kit contains a double pilot-operated check valve with two 12L fittings with nuts and cutting rings and two 3/8″ female ports. A long and a short banjo fitting, two banjo bolts and four sealing washers are supplied for installation. The cylinder in the assembly drawing is an application example only.

Before installation, check that the 3/8″ ports, 12L fittings, tube size, pressure rating and mounting position suit your hydraulic cylinder, top link or implement.

Technical specifications

Part number
SPH500079

Product type
Pilot-operated check valve with mounting kit

Suitable for
Double-acting hydraulic cylinders

Connection size
3/8″

Connections
2 × 12L

Female ports
2 × 3/8″

Supplied fittings
2 × nuts with cutting rings

Maximum pressure
350 bar

Mounting kit
Long and short banjo fittings, two banjo bolts and four sealing washers

Function
Maintain cylinder position and limit drift

Applications
Hydraulic top links, lift cylinders, adjustment cylinders, implements and double-acting cylinders

How does a pilot-operated check valve work?

The block contains two pilot-operated check valves. Oil can flow from the supply to the cylinder. Return flow from the cylinder is blocked until pilot pressure opens the relevant check valve. Both sides of a double-acting cylinder can therefore be locked.

This is a locking function: the valve does not independently control the lowering speed of a load. Check that the hydraulic circuit and available installation space suit your application.

For hydraulic top links, lift cylinders and implements

This 3/8″ pilot-operated check valve is used with suitable hydraulic cylinders on agricultural machinery. Applications include hydraulic top links, lift and adjustment cylinders, front loader functions and implements where drift or unwanted cylinder movement needs to be limited.

On a hydraulic top link, the check valve helps maintain the selected position. It also supports holding the cylinder when there is minor leakage through the directional control valve or a loss of supply pressure.

What is included

Check valve

1 × pilot-operated check valve for double-acting cylinders.

Connections

2 × 12L fittings and 2 × 3/8″ female ports.

Nuts with cutting rings

2 × nuts with cutting rings for compatible installation.

Mounting kit

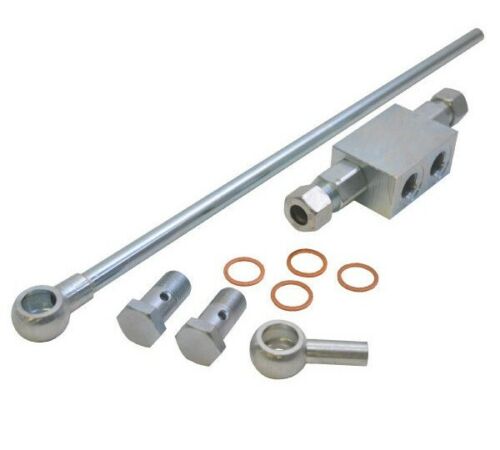

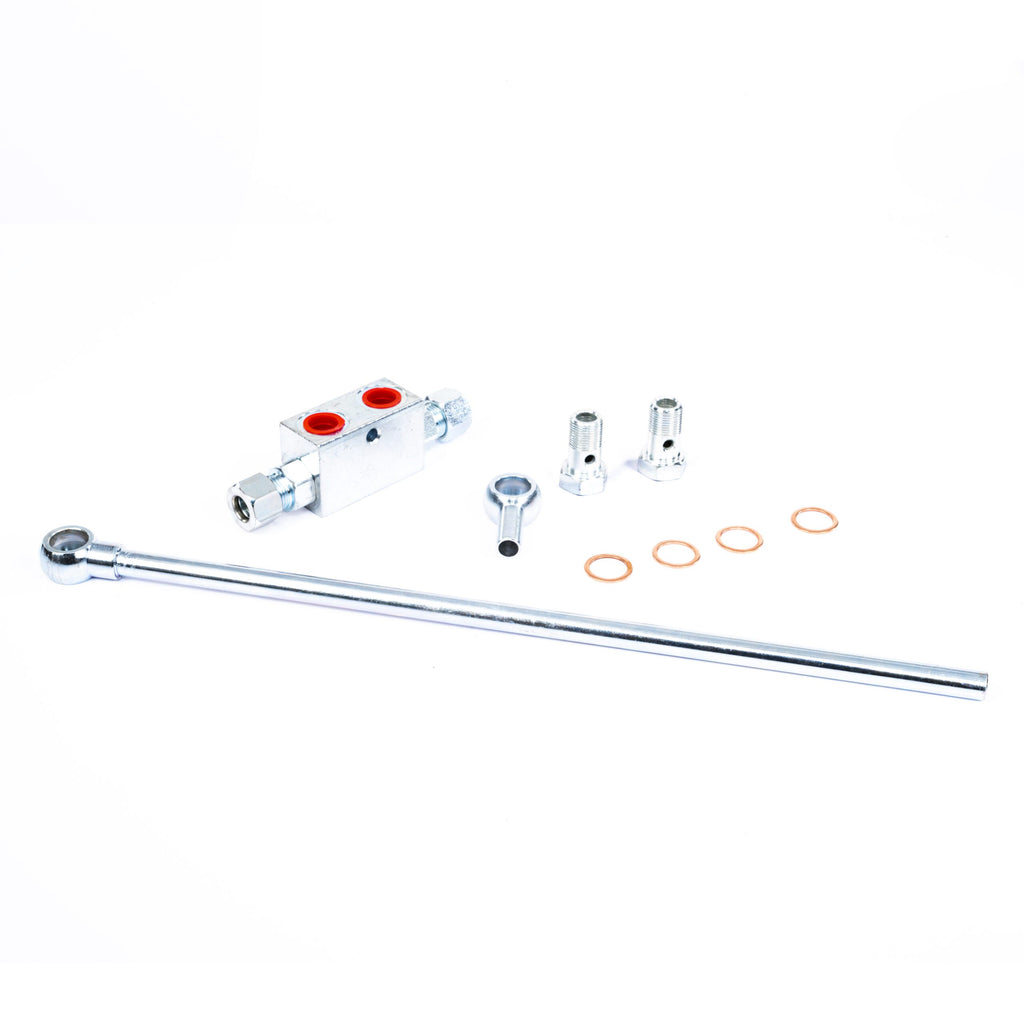

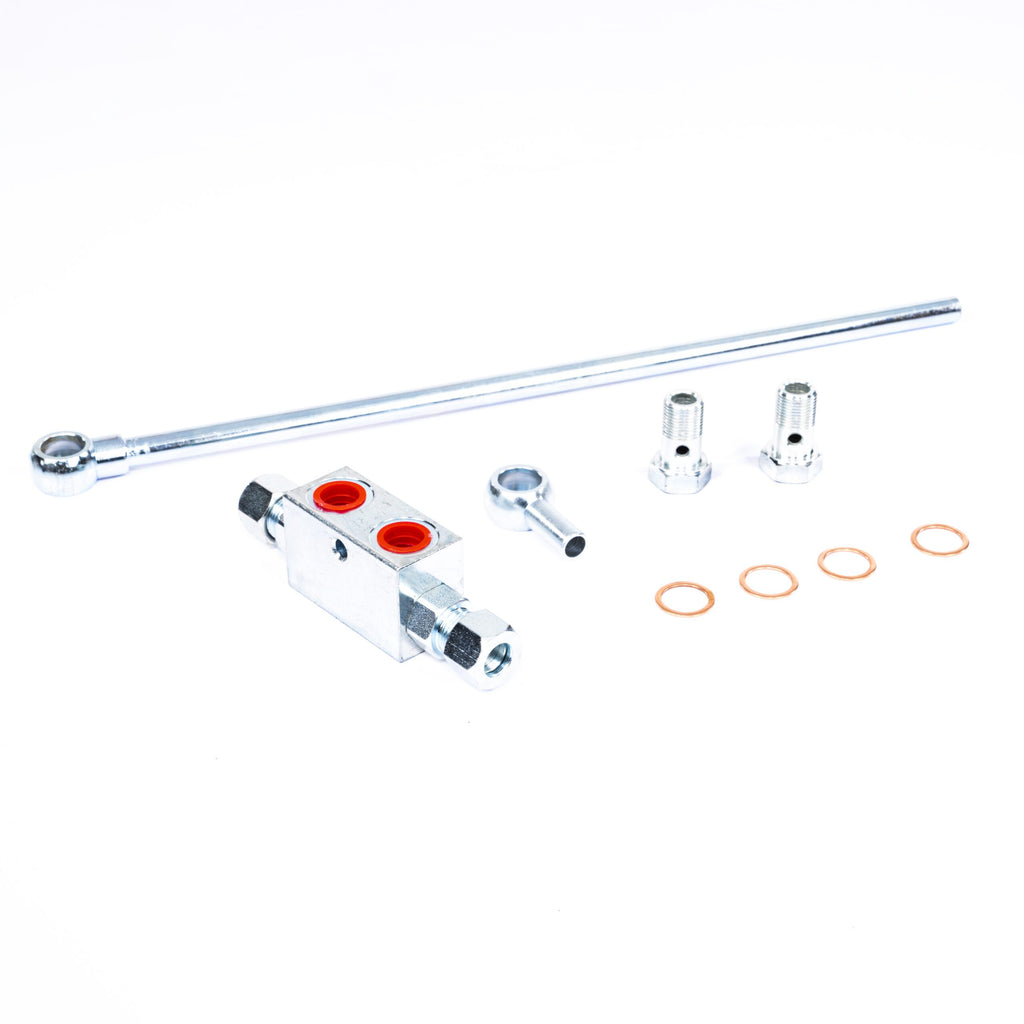

Long and short banjo fittings, two banjo bolts and four sealing washers as shown in the product photograph.

What should you check before buying?

Check that the 3/8″ ports, 12L fittings, female threads, maximum working pressure of 350 bar and mounting arrangement suit your cylinder, top link or implement.

  • Check that 3/8″ and 12L suit your hydraulic lines and cylinder.
  • Use this check valve only in compatible double-acting hydraulic systems.
  • Do not exceed the maximum working pressure of 350 bar.
  • Depressurize the system before installation, keep lines and connections clean, then check operation and sealing.

Important safety information

This check valve helps hold a hydraulic cylinder in position but does not replace mechanical protection for safety-critical work. Never work beneath a raised or loaded component without suitable mechanical support. Always check the system for leaks and correct operation after installation.

Combine with suitable hydraulic components

Explore our hydraulic valves, hydraulic top links, hydraulic hoses and hydraulic fittings. Compare connections, pressure ratings and installation dimensions before combining components.

Why choose this check valve with mounting kit?

This pilot-operated check valve with mounting kit is a practical option for compatible hydraulic top links, double-acting cylinders and implements where drift needs to be limited and the selected cylinder position maintained.

Order this pilot-operated check valve with mounting kit online from Spare Parts Holland for your compatible hydraulic application.

Frequently asked questions

What is this pilot-operated check valve used for?

It helps hold a double-acting hydraulic cylinder in position and limit unwanted lowering or drift.

Is this check valve suitable for hydraulic top links?

Yes, for a compatible double-acting hydraulic top link. Check the connections, cylinder port positions and available installation space against the drawing before ordering.

What is included in the mounting kit?

The mounting kit includes a long and a short banjo fitting, two banjo bolts and four sealing washers, as shown in the product photograph. The illustrated cylinder is an installation example and is not included.

Which connections are included?

The kit has 2 × 12L fittings, 2 × nuts with cutting rings and 2 × 3/8″ female ports.

What is the maximum pressure?

The maximum working pressure is 350 bar. Always check suitability for your hydraulic system and application.
