Hydraulic Quick Coupling Male Plug ISO 7241-A Metric Thread (10L / 12L / 15L)
Hydraulic Quick Coupling Male Plug ISO 7241-A Metric Thread (10L / 12L / 15L)

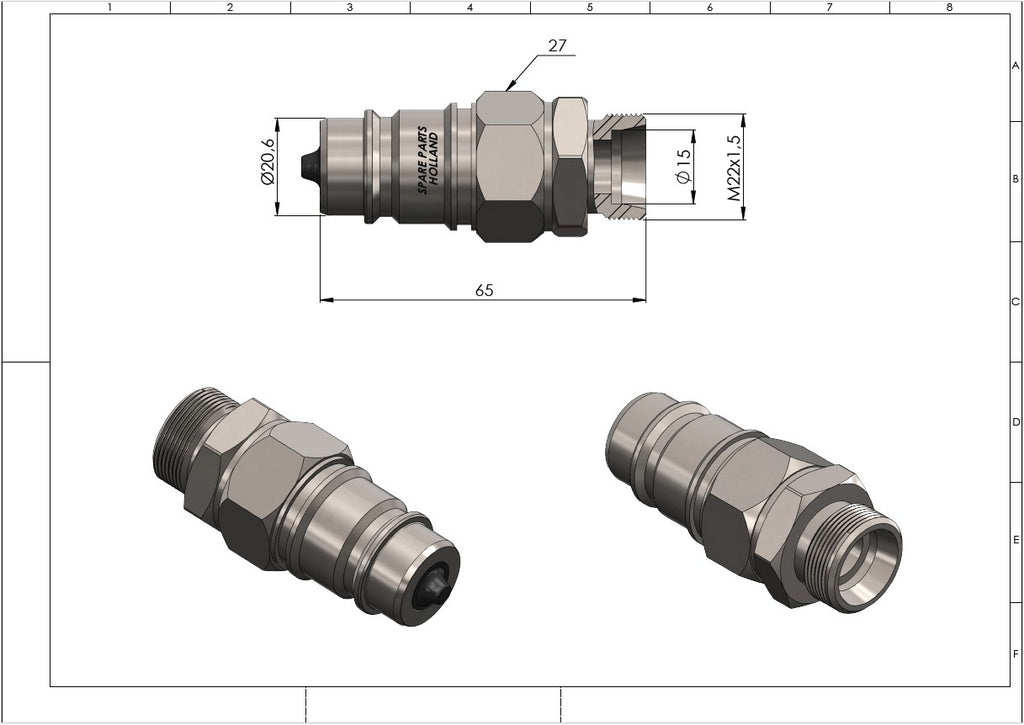

Technical specifications / dimensions

Request STL File

Request an STL file for Hydraulic Quick Coupling Male Plug ISO 7241-A Metric Thread (10L / 12L / 15L)

Hydraulic Quick Coupling Male Plug ISO 7241-A Metric Thread (10L / 12L / 15L)

Hydraulic Quick Coupling Male Plug ISO 7241-A Metric Thread (10L / 12L / 15L)

SKU :  SPH390266
Size
€3,03
€2,50 excl. VAT
In stock
2-year warranty Warranty information
Shipping to the Netherlands View shipping information
Excellent on Trustpilot Read our reviews
2-year warranty View Shipping to the Netherlands View Excellent on Trustpilot Reviews

Description

Connect your tractor remotes and agricultural implements effortlessly with our Hydraulic Quick Coupling Male Plug with Metric External Thread. Manufactured to globally recognized ISO 7241-A (ISO-A) standards, this heavy-duty male coupling plug ensures direct, leak-free connection to metric steel hydraulic lines.

Each unit comes complete with a precision-engineered metric male adapter nipple (CEL - 24° inner cone, DIN 2353 Light Series) pre-installed. This saves setup time and guarantees a tight, reliable hydraulic seal right out of the box.

Standard 1/2" Body Size (BG3 / 20.6 mm)

This male plug features the industry-standard 1/2" body size (BG3). The outer probe diameter measures exactly 20.6 mm. Please measure your existing plug probe with a caliper to ensure exact sizing before ordering.

Modular & Cost-Effective Design

Changing your hose diameter or pipe spec in the future? You won't need to replace the entire male quick coupling plug body. Simply unscrew the rear adapter nipple and fit a new size—saving you time, effort, and replacement costs.

Available Metric Pipe Sizes (Light Series - L)

Select your required external thread size from the dropdown options based on the outer diameter (OD) of your hydraulic steel pipe:

10L (M16x1.5)

Connects directly to hydraulic pipes with a 10 mm outer diameter.

12L (M18x1.5)

Connects directly to hydraulic pipes with a 12 mm outer diameter.

15L (M22x1.5)

Connects directly to hydraulic pipes with a 15 mm outer diameter.

Technical Specifications

  • Product Profile: Hydraulic Quick Coupling Male Plug
  • Body Size: 1/2" Body (BG3 / Outer Diameter: 20.6 mm)
  • Interchange Standard: ISO 7241-1 Series A (ISO-A / ISO 5675)
  • Connection Port: Metric Male External Thread (CEL - 24° Cone, DIN 2353 Light Series)
  • Adaptability: Removable rear adapter nipple for quick size conversions
  • Material & Coating: High-grade carbon steel with durable zinc-plated corrosion protection
  • Max Working Pressure: Up to 300 Bar
  • Applications: Tractor hydraulic lines, tipping trailers, front loaders, and farm implements.

Complete Your Setup

Protect your male quick plug against dirt and contamination. Check out the "You may also like" section below to add matching rubber male dust caps and matching female couplings to your order.
