Hydraulic Top Link Cat. 2-2 (27 9/16”–42 7/8”) with Locking Block + 2 Hydraulic Hoses - SPH320099

Hydraulic Top Link – Category 2-2 – For Tractors with 40–120 HP

Upgrade your tractor’s 3-point hitch system with the Spare Parts Holland Hydraulic Top Link (SPH320099). This professional-grade hydraulic top link replaces a standard mechanical top link and allows you to adjust the working angle of your implement directly from the cab—improving comfort, precision, and efficiency.

Engineered for demanding agricultural applications, the integrated locking block system with check valve ensures the cylinder maintains a secure and consistent position—even under heavy loads. Adjustment is only possible when hydraulic pressure is applied, giving you maximum control during operation and transport.

Key Features

• Fits Category 2 tractors on both ends (1" pin holes, 40–120 HP)
• Hydraulic adjustment from the cab – saves time and effort
• Integrated locking block with check valve – holds position securely under load
• Heavy-duty steel construction with durable black powder-coated finish
• Replaces a manual top link – improves comfort, efficiency, and working precision
• Compatible with standard tractor hydraulic systems (double-acting spool valve required)

What’s Included

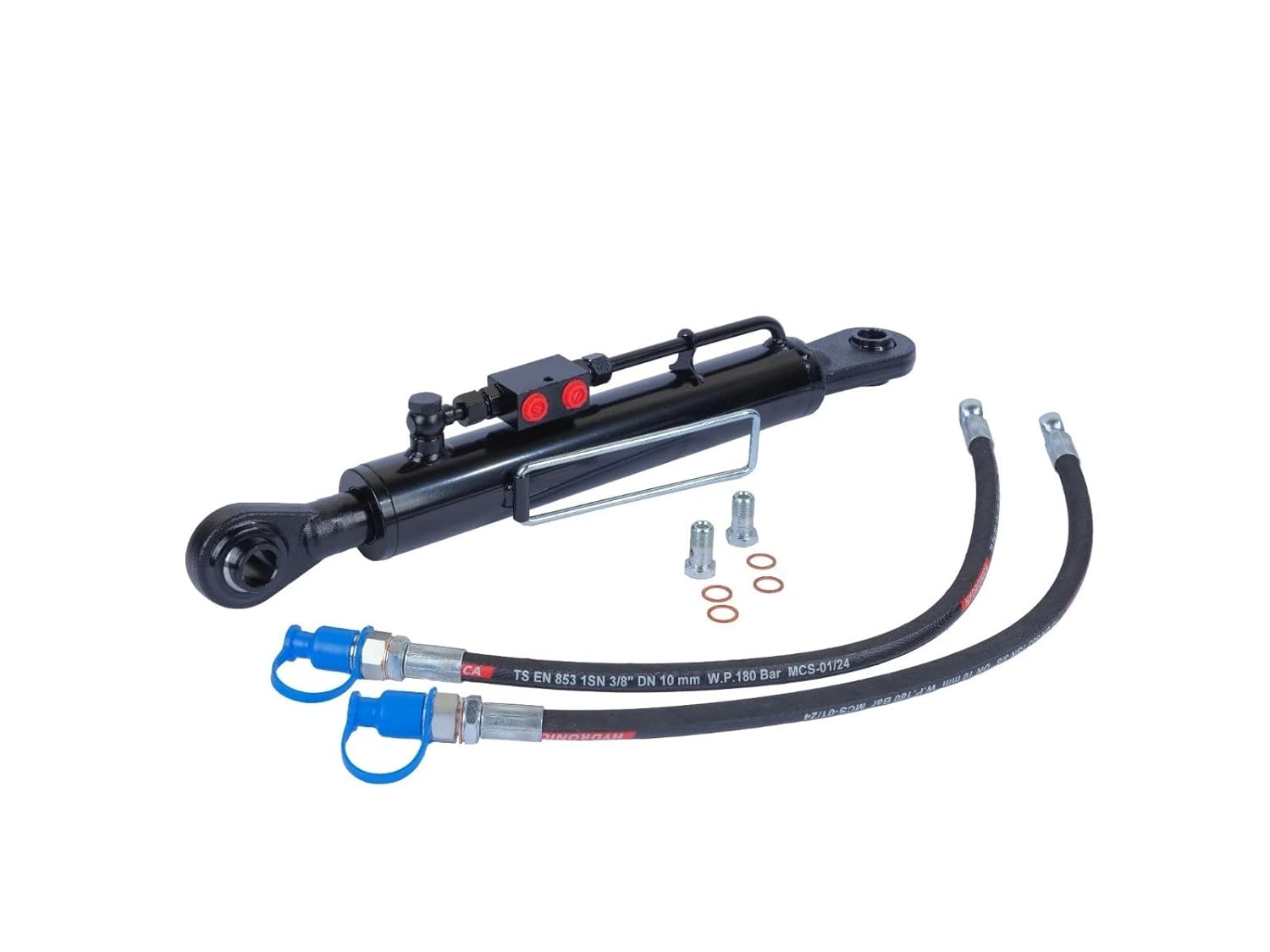

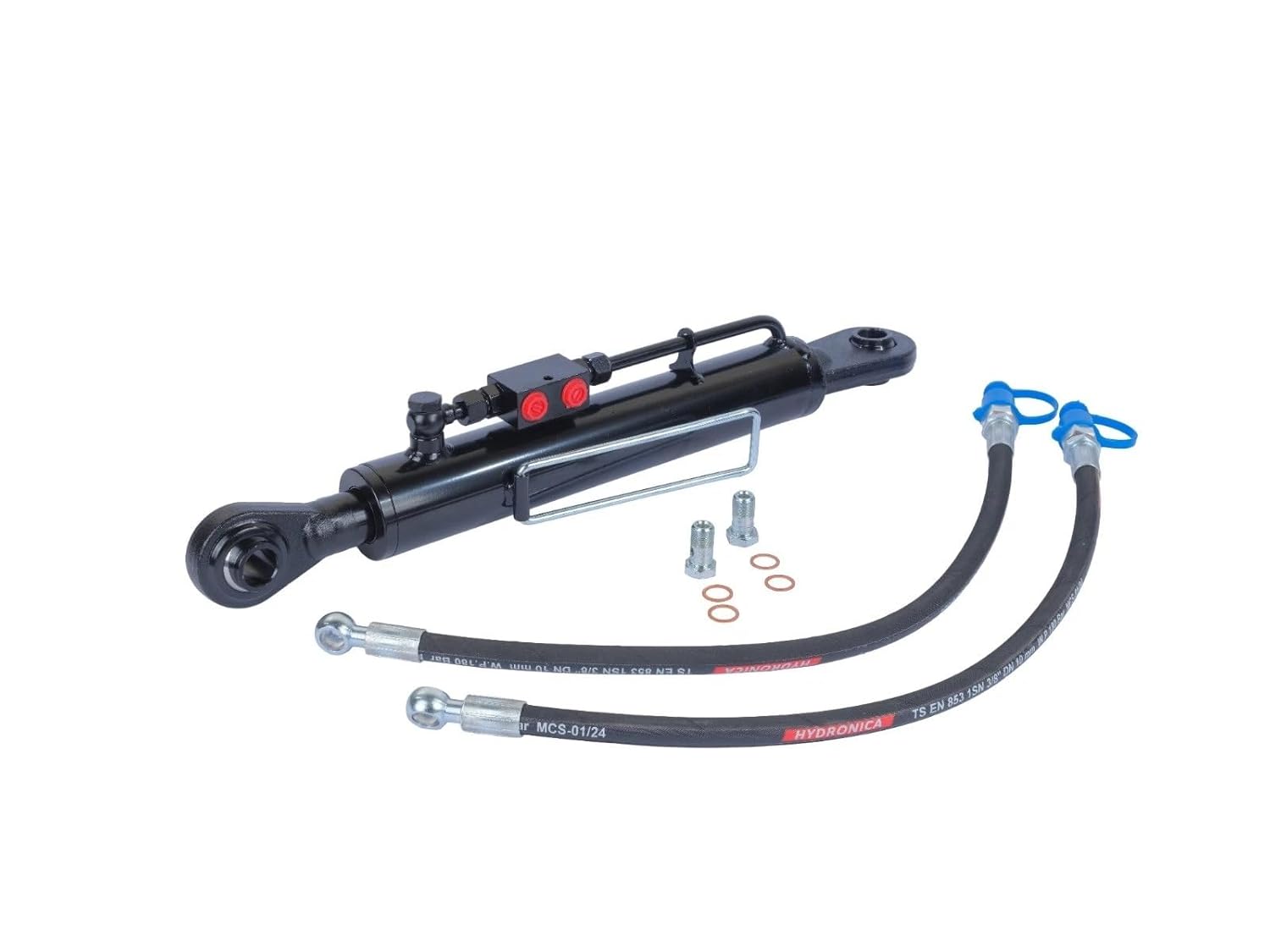

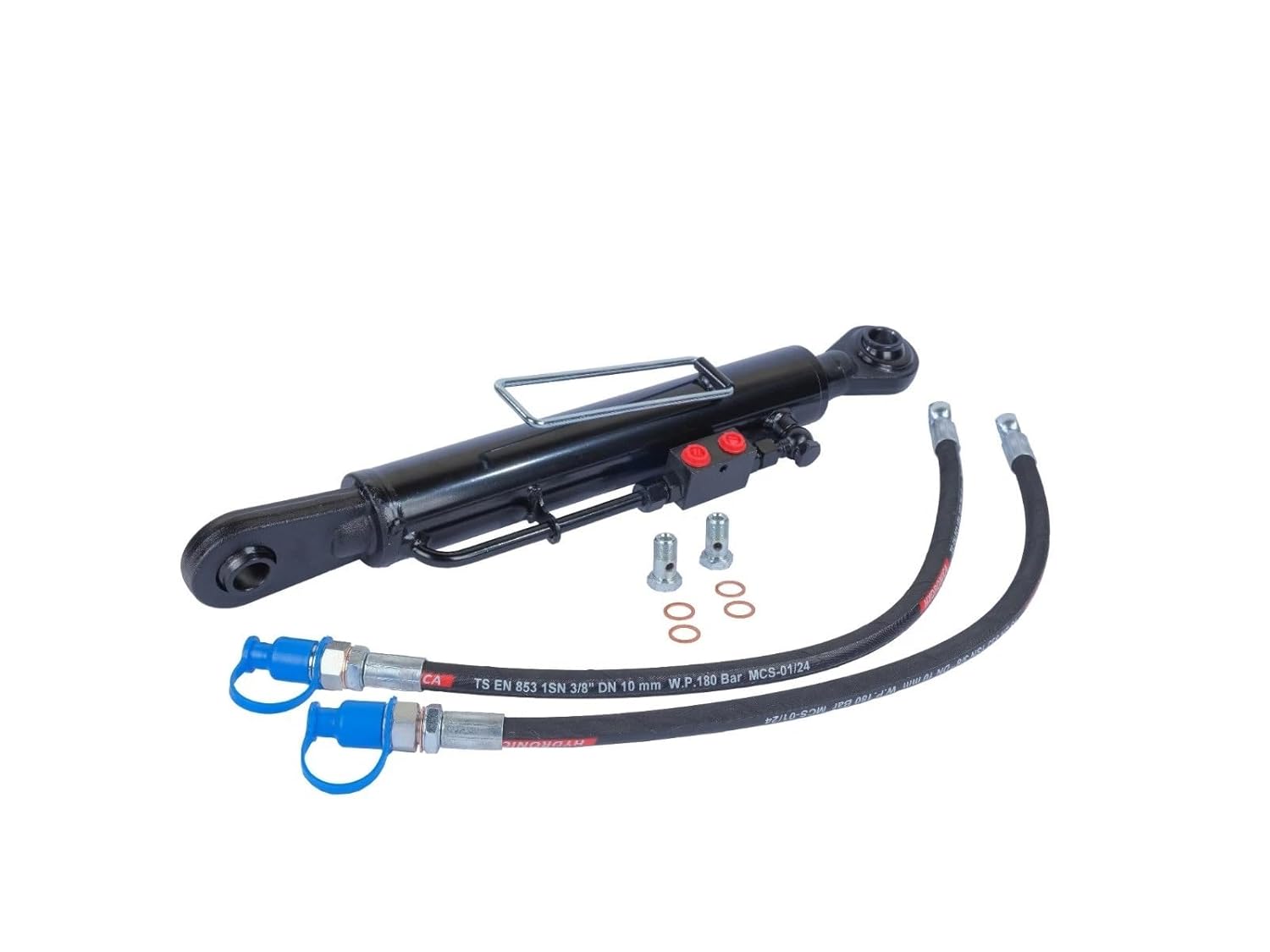

• 1 × Hydraulic Top Link (black powder-coated finish)
• 2 × Hydraulic hoses (approx. 27.6" each)
• 2 × 1/2" BSP quick couplers (poppet type, ISO 5675 – Series A)

Technical Specifications

• Model: SPH320099
• Working length range: 27-9/16" – 42-7/8"
• Operating pressure: 2,610 PSI
• Push force: approx. 11,240 lbs @ 2,610 PSI
• Pull force: approx. 6,170 lbs @ 2,610 PSI
• Hydraulic requirement: Double-acting spool valve
• Pin category: Category 2 / Category 2

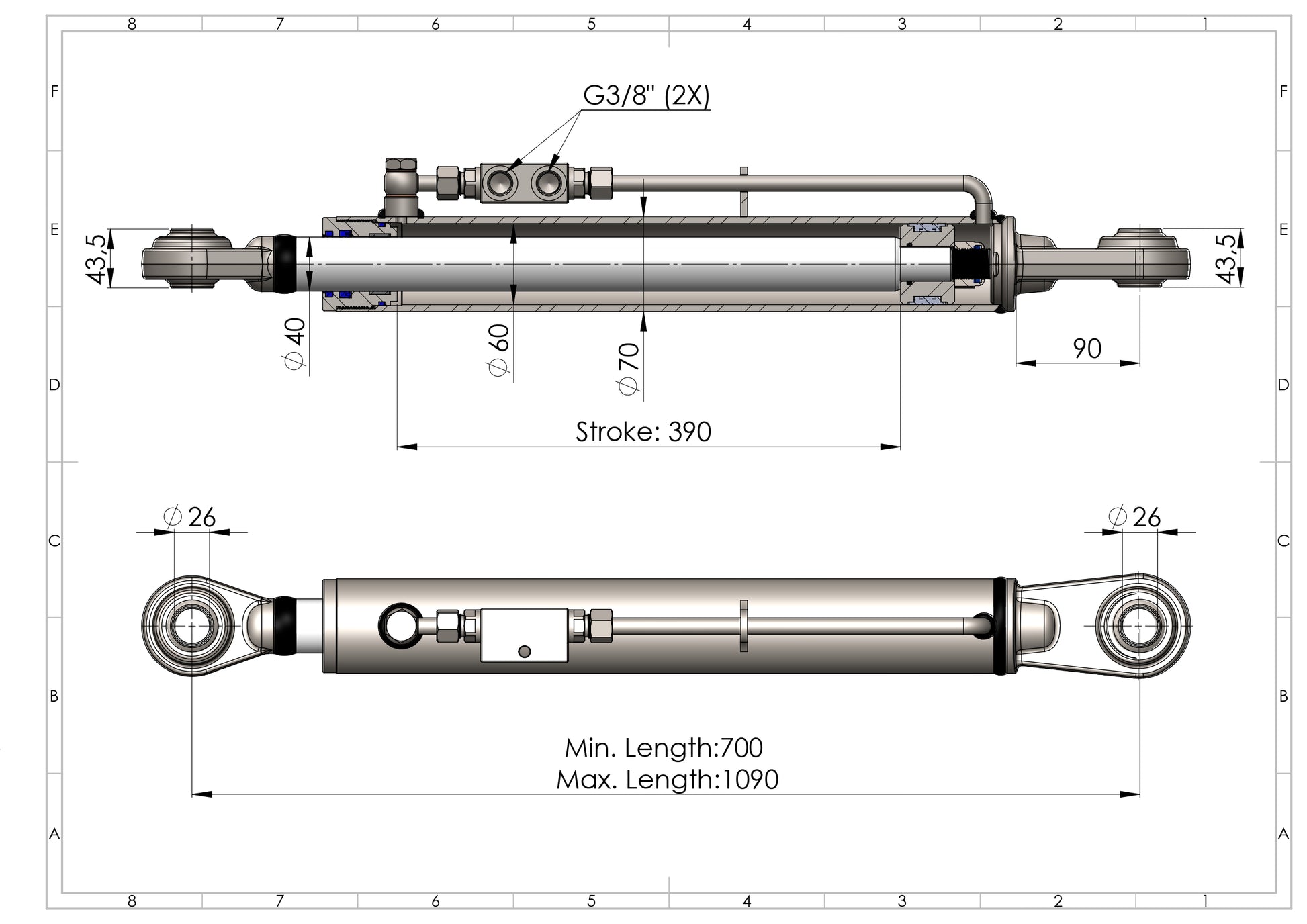

• Documentation: Technical drawing available in the product listing

How to Choose the Right Top Link

• Check the category:
  • Category 1 → 3/4" pin holes (20–45 HP)
  • Category 2 → 1" pin holes (40–120 HP)
  • Category 3 → 1-1/4" pin holes (80–225+ HP)
• Measure the working range:
  • Measure your current top link in both retracted and extended positions
  • Select a hydraulic model with the correct adjustment range
• Check your hydraulic system:
  • Operating pressure: 2,610 PSI
  • Requires a double-acting spool valve
  • Make sure your couplers and hose connections match your tractor setup

Product Overview

This Hydraulic Top Link replaces a manual top link and makes adjusting implement angles fast and effortless—directly from the operator’s seat. It is ideal for implements such as mowers, scrapers, box graders, and bale spears, where quick and precise angle adjustment improves overall performance.

The integrated check valve inside the locking block keeps the cylinder firmly in place under load and only reopens when hydraulic pressure is applied. This ensures excellent stability, safety, and control in both field work and transport situations.

Built from high-quality steel and finished with a durable black powder coating, this hydraulic top link is designed for long-lasting professional use.

Upgrade your tractor today with this Hydraulic Top Link and experience greater control, efficiency, and ease of use.
