Hydraulic Top Link Cat 3 (25 5/8"–33 7/8") Rapid Hook With Clevis 3-point and 2 Hoses

Upgrade your tractor’s 3-point hitch with this Hydraulic Top Link Cat 3 (SPH320200).
This professional-grade hydraulic top link replaces a standard mechanical top link and allows you to adjust the working angle of your implement directly from the cab—improving comfort, precision, and efficiency.

Designed for demanding agricultural applications, the integrated locking block system ensures the cylinder maintains a secure and stable position—even under heavy loads.

Key Features

• Fits Category 3 tractors (1-1/4" pin holes) for heavy-duty 3-point hitch applications
• Hydraulic adjustment from the cab – fast and efficient operation
• Integrated locking block with check valve – holds position securely under load
• Heavy-duty steel construction with durable black protective coating

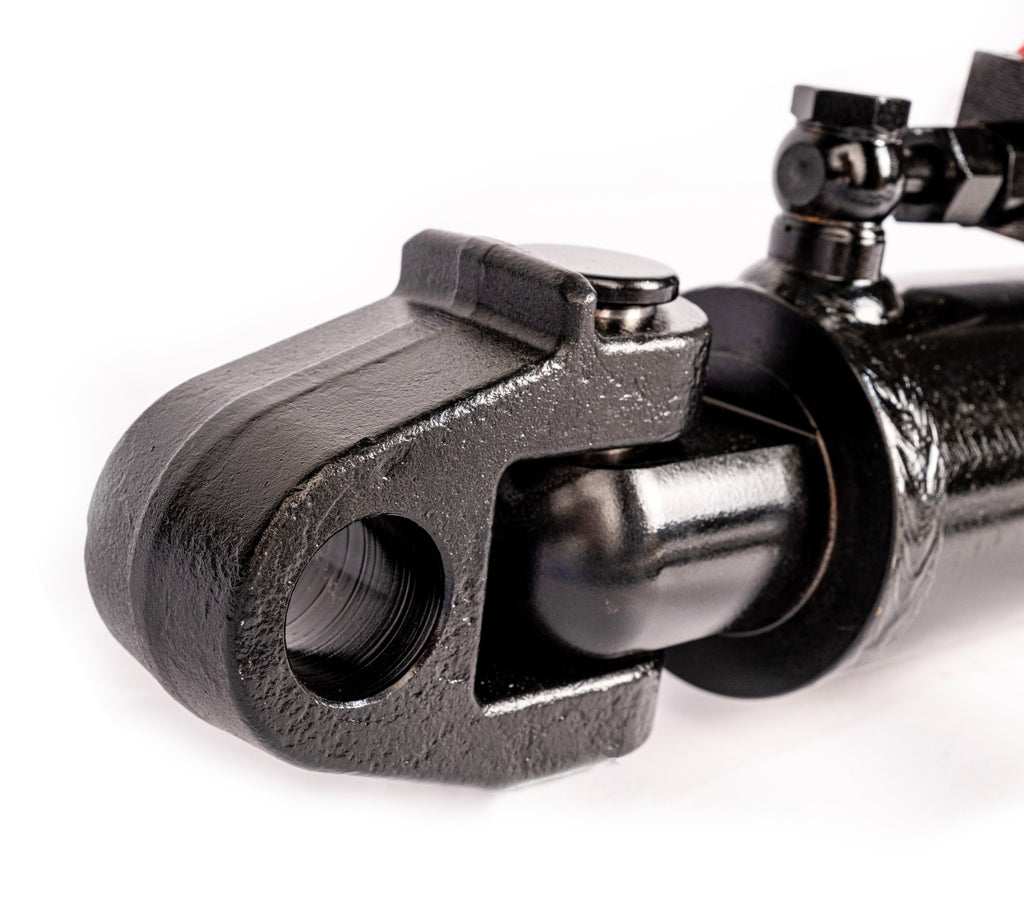

• Rotating piston rod for precise alignment and easy installation

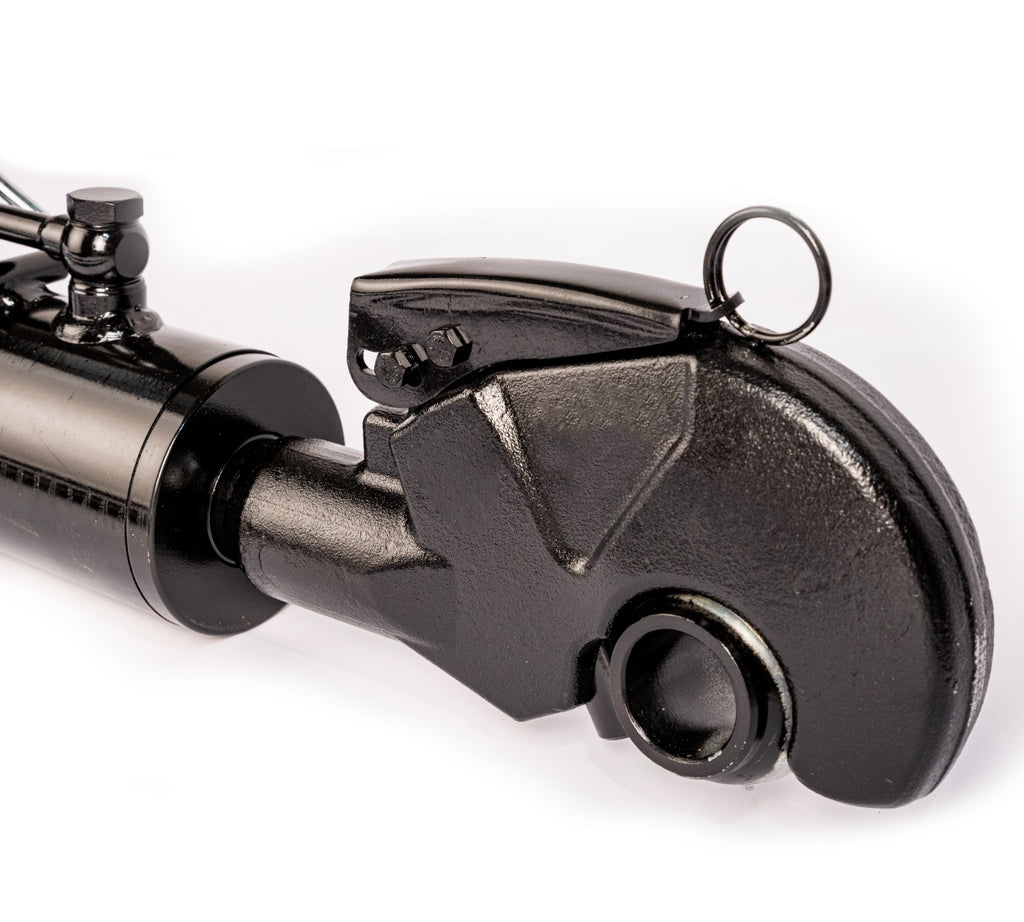

• Rapid hook with clevis 3-point design for flexible implement connection
• Compatible with standard tractor hydraulic systems (double-acting remote required)
• Built-in holder to secure the unit when not in use
• Corrosion-resistant black finish

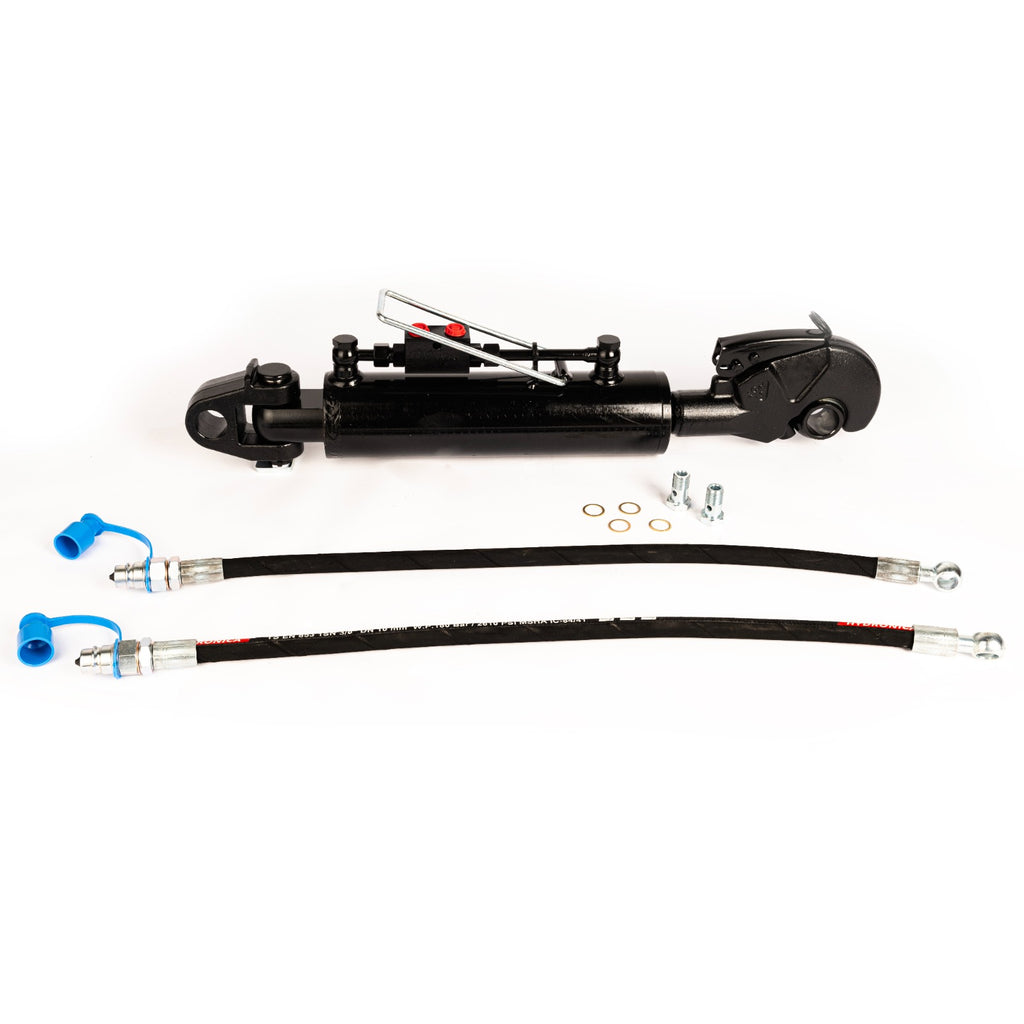

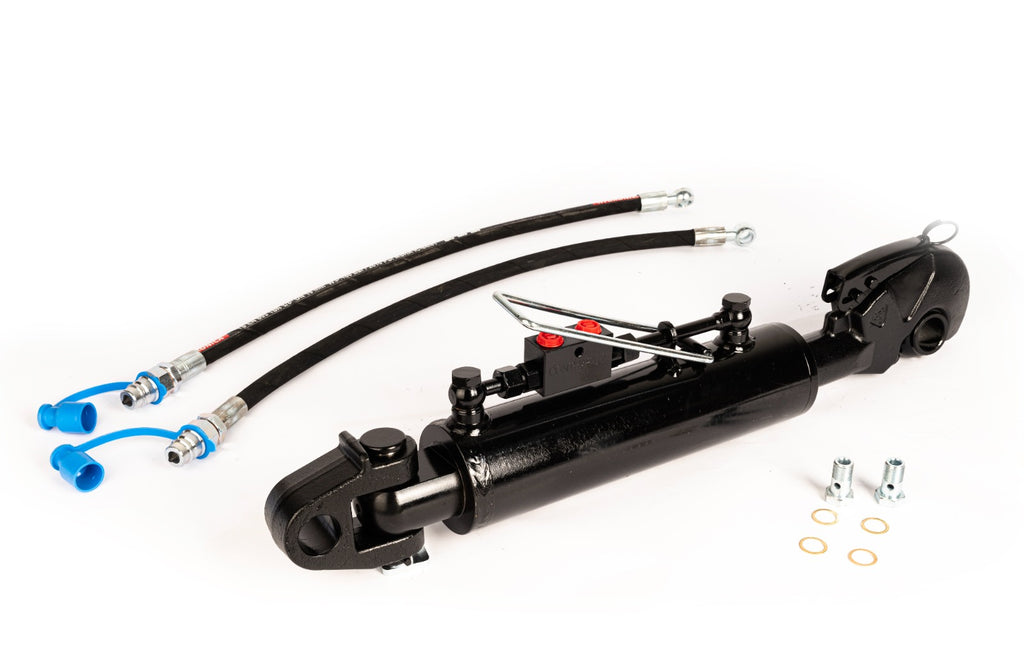

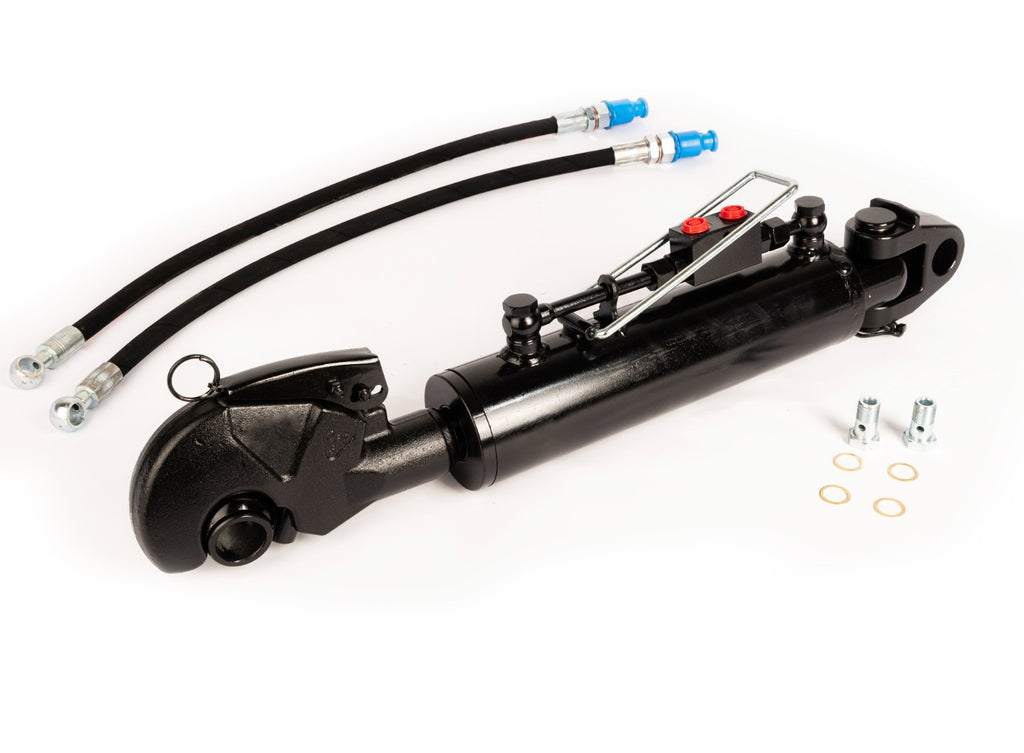

What’s Included

• 1 × Hydraulic Top Link (black coated finish)
• 2 × Hydraulic hoses (29.5" / 750 mm)
• 2 × Male quick couplers (1/2" / 12.7 mm)
• Protective dust covers
• Banjo bolts with sealing washers

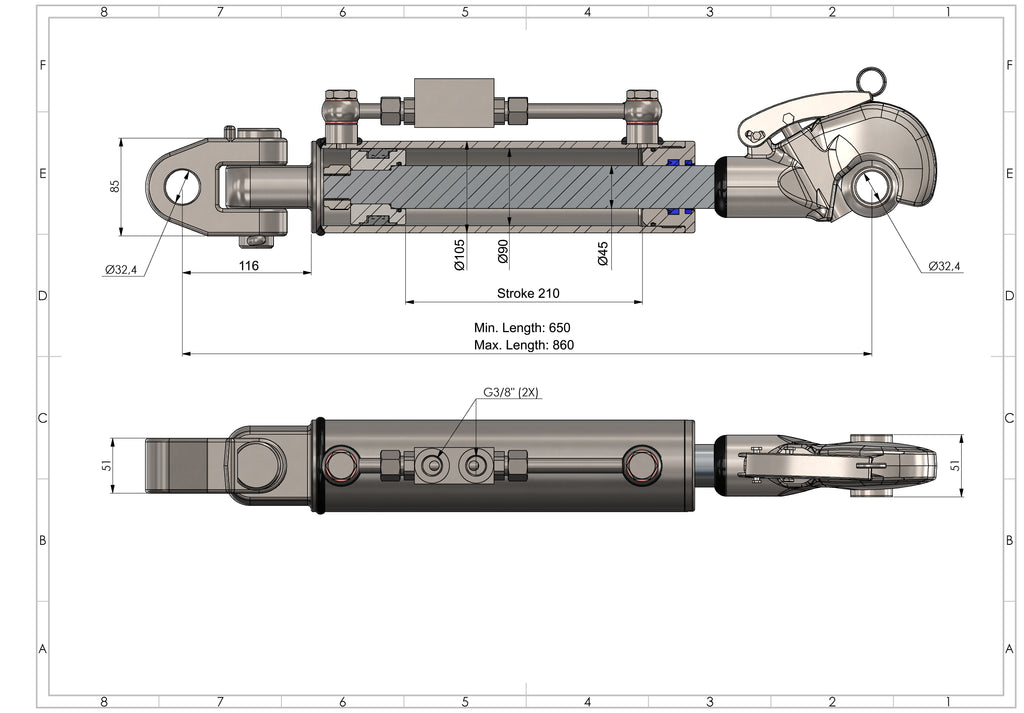

Technical Specifications

• Model: SPH320200
• Working length range: 25 5/8"–33 7/8" / 650–860 mm
• Stroke length: 8 1/4" / 210 mm
• Maximum hydraulic pressure: 3625 PSI / 250 bar
• Operating pressure: 2610 PSI / 180 bar
• Push force: 25,700 lbs / 11,660 kg @ 2610 PSI
• Pull force: 19,180 lbs / 8,700 kg @ 2610 PSI
• Hydraulic hoses: 3/8" Blue Flex SAE 100 R2AT (9.5 mm)
• Hose length: 29.5" / 750 mm
• Quick coupler type: Connection 12-L, bulkhead size 3

How to Choose the Right Top Link

Check the category:

• Category 1 → 3/4" pin holes (20–45 HP)
• Category 2 → 1" pin holes (40–120 HP)
• Category 3 → 1-1/4" pin holes (80–225+ HP)

Measure the working range:

• Measure your current top link in both retracted and extended positions
• Select a hydraulic model with the correct adjustment range

Check your hydraulic system:

• Operating pressure: 2,610 PSI
• Maximum system pressure: up to 3,625 PSI
• Requires a double-acting hydraulic control valve

Product Overview

This hydraulic top link replaces a manual top link and allows you to adjust implement angles quickly and precisely from the operator’s seat. The integrated check valve locking system keeps the cylinder firmly in place and only allows adjustment when hydraulic pressure is applied, ensuring stability during both operation and transport.

Built from high-grade steel and finished with a durable black coating, this hydraulic top link delivers long-lasting performance in demanding agricultural environments. The rapid hook with clevis configuration offers added flexibility for connecting a wide range of implements.

Upgrade your tractor today and benefit from improved control, efficiency, and ease of use.
